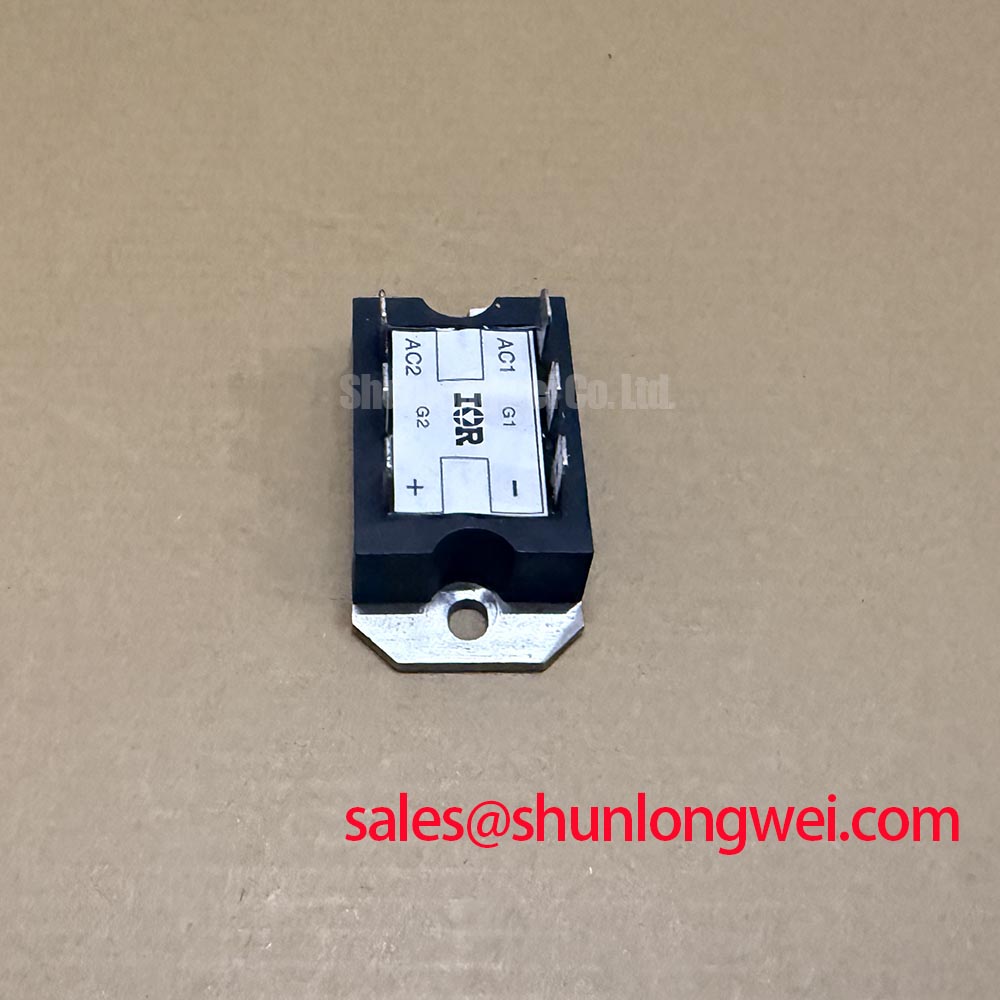

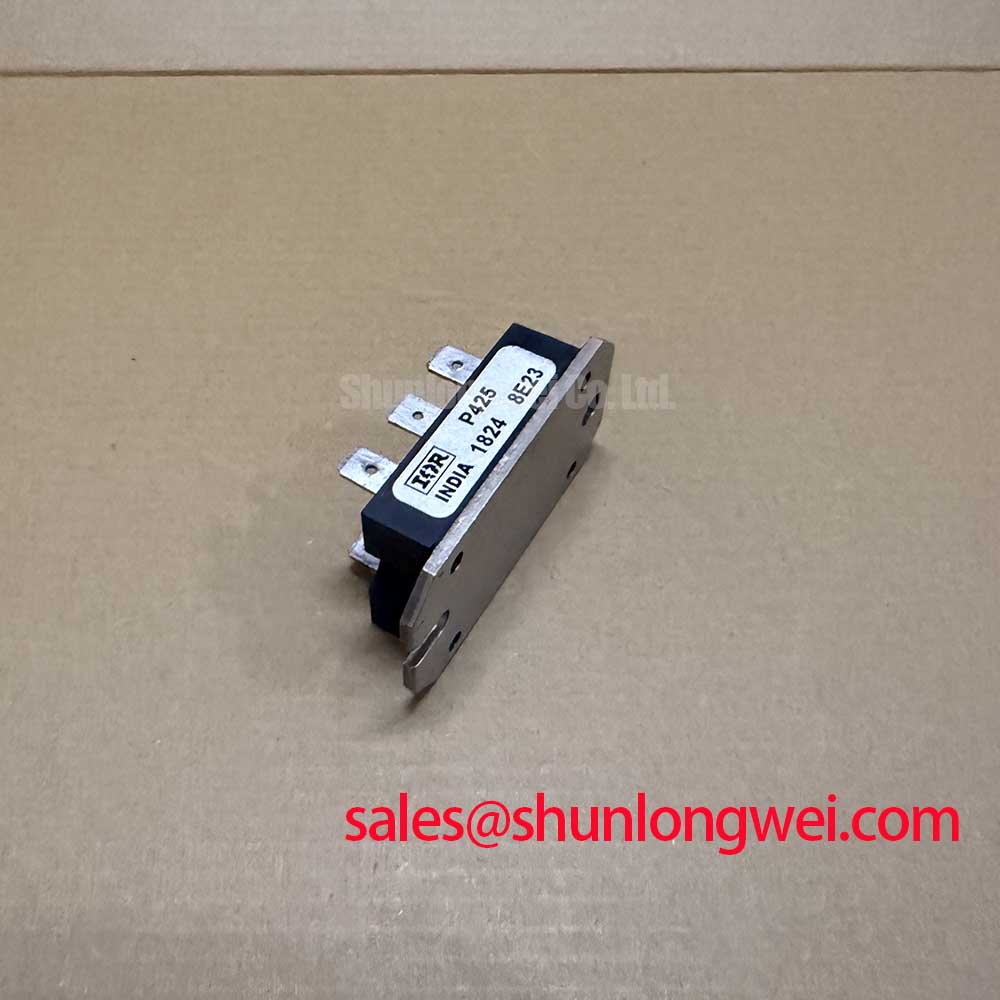

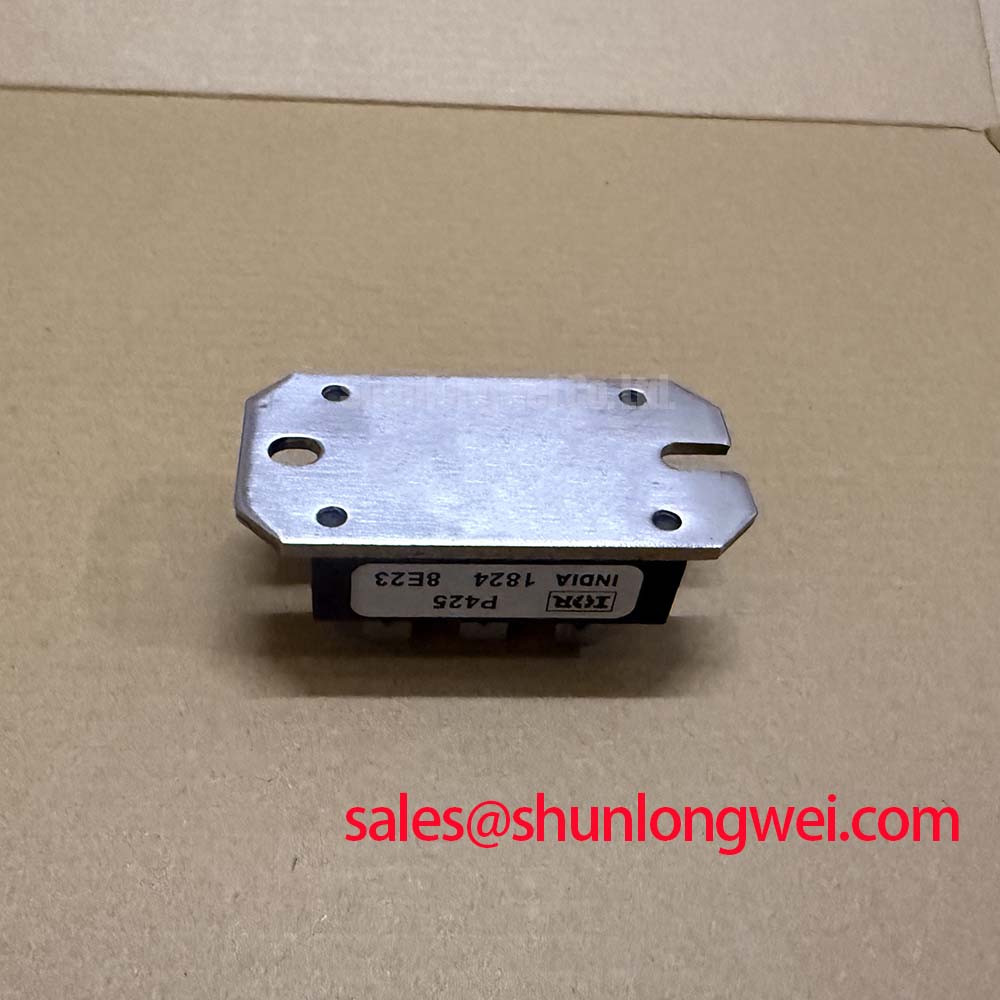

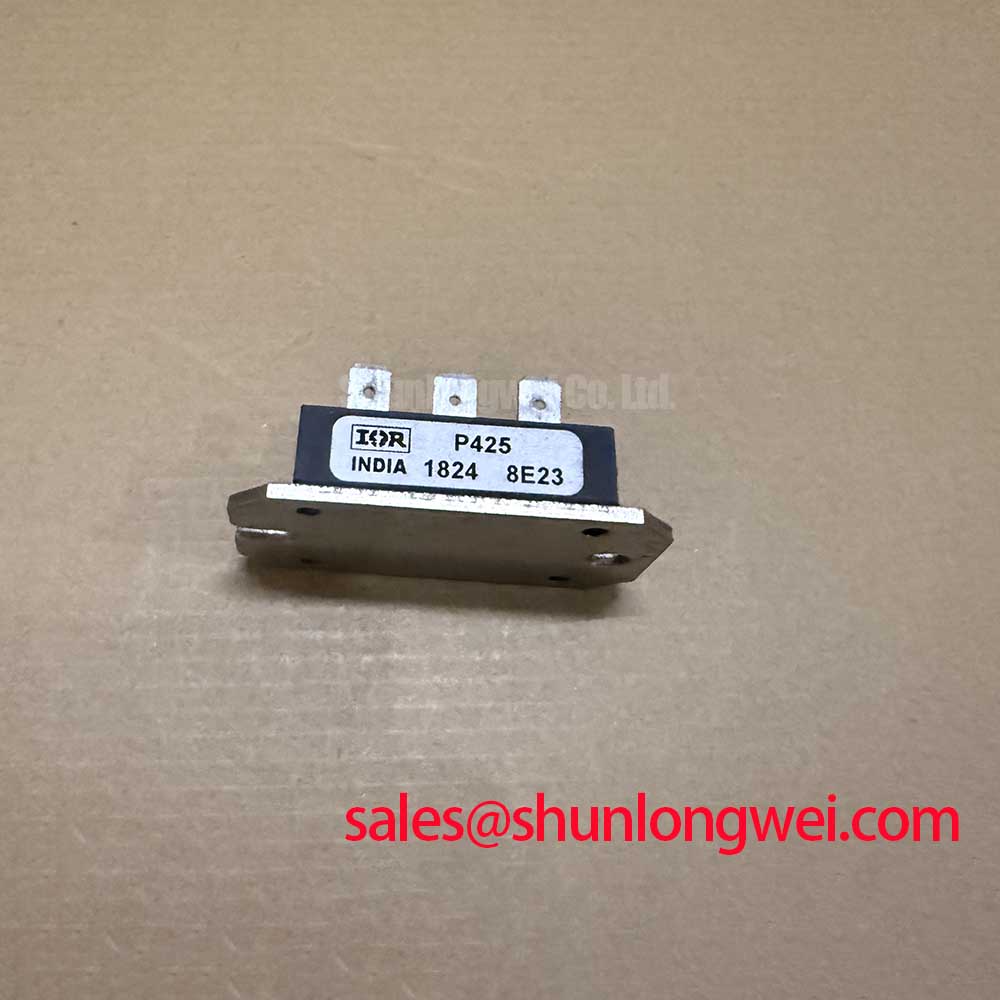

P425 International Rectifier 1200V 425A Phase Control Thyristor
The P425 by International Rectifier is a high-performance, standard recovery Phase Control Thyristor designed for industrial power conversion applications. Utilizing a robust Press Pack (Hockey Puk) ceramic housing, this device is optimized for systems requiring high current density and superior thermal management. It offers a V_DRM/V_RRM of 1200V and a mean on-state current I_T(AV) of 425A, making it a cornerstone for heavy-duty rectification and control. For engineers managing high-power cycles, the P425 provides the mechanical ruggedness and electrical stability needed to mitigate the risks of thermal fatigue in demanding environments.
High-Current Density in a Robust Press Pack Housing for Industrial Conversion
- Core Specifications: 1200V | 425A | V_TM 1.62V
- Key Benefits: Enhanced thermal fatigue resistance and high surge current capacity (I_TSM 7850A).
- Problem Solved: Addressing the challenge of heat dissipation in enclosed high-power cabinets, the P425 utilizes double-sided cooling to maintain a low R_th(j-hc), ensuring operational stability during continuous high-load operations.
For systems prioritizing maximum thermal margin, this 1200V thyristor is the optimal choice for phase-controlled converters.
Key Parameter Overview
Functional Spec Grouping for Enhanced System Design
| Parameter Category | Technical Specification | Value / Condition |
|---|---|---|
| Voltage Ratings | Repetitive Peak Off-State Voltage (V_DRM) | 1200V |
| Voltage Ratings | Repetitive Peak Reverse Voltage (V_RRM) | 1200V |
| Current Capacity | Max Average On-State Current (I_T(AV)) | 425A @ Tc = 55°C |
| Current Capacity | Max RMS On-State Current (I_T(RMS)) | 665A |
| Surge Handling | Max Peak One-Cycle Non-Repetitive Surge (I_TSM) | 7850A (50Hz) |
| Surge Handling | Maximum I²t for Fusing | 308 kA²s |
| Thermal Dynamics | Junction-to-Heatsink Resistance (R_th(j-hc)) | 0.038 K/W (Double Side) |
| Gate Trigger | Max Gate Trigger Current (I_GT) | 200mA |
Download the P425 datasheet for detailed specifications and performance curves. Request Datasheet.
Application Scenarios & Value
Achieving System-Level Benefits in High-Power Conversion Topologies
Engineers often face the difficulty of managing high-current motor startups or welding arcs where transient surges can degrade semiconductor longevity. The P425 addresses this through its high I²t rating of 308 kA²s, which provides a critical buffer during short-circuit or heavy-load onset conditions, simplifying the selection of protective fusing. In the context of large-scale Variable Frequency Drives (VFDs) or heavy industrial DC motor controllers, the P425 acts as a reliable front-end rectifier or phase controller.
In massive industrial conveyor systems, the repetitive stress of starting and stopping high-inertia loads requires a component that can handle cyclic thermal expansion. The pressure-contact design of the P425 eliminates the solder layers found in traditional modules, thereby removing a primary failure point associated with thermal cycling. While this discrete press pack is ideal for specialized high-current stacks, for applications requiring integrated bridge configurations, the SKM300GA123D offers a module-based alternative with different mounting characteristics.
This device is frequently utilized in the following semantic entities:
- High-Current Battery Chargers for industrial fleets.
- Resistance Welding Equipment requiring precise phase control.
- DC Motor Drives for mining and heavy manufacturing.
Understanding the nuances of power semiconductor selection is vital; for more information, engineers may refer to our guide on Power Semiconductor Selection.
Technical Deep Dive
Advanced Thermal Management through Pressure-Contact Engineering
The engineering hallmark of the International Rectifier P425 is its Press Pack architecture. In traditional power semiconductors, the die is soldered to a substrate, which can lead to "solder fatigue" as different materials expand and contract at different rates during thermal cycles. The P425 employs a pressure-contact mechanism, where the silicon wafer is held between two copper electrodes under significant mechanical force. This design can be compared to a high-performance engine head gasket: it ensures a perfect, void-free seal that maximizes both electrical and thermal conductivity without the brittle limitations of solder.
Furthermore, the R_th(j-hc) of 0.038 K/W represents a "thermal highway" that allows heat to escape from both sides of the silicon disk. This double-sided cooling capability is essential for maintaining a safe junction temperature (T_j) when operating at the full 425A rating. By reducing the thermal resistance, designers can either reduce the size of the external heatsink or operate the device at higher ambient temperatures without compromising reliability. This structural advantage is a key reason why press pack thyristors remain the standard for high-power rectification where long-term uptime is non-negotiable. For those interested in the underlying physics of such devices, exploring how a Voltage Controlled Switch operates can provide additional context on power regulation.
Frequently Asked Questions
How does the P425 press pack design enhance long-term reliability compared to soldered modules?
The P425 eliminates solder layers, which are prone to thermal fatigue and delamination over thousands of power cycles. By using mechanical pressure to maintain electrical contact, the device can accommodate the natural thermal expansion of silicon and copper more effectively, significantly extending the service life in heavy-duty applications like welding or traction control.
What is the primary benefit of the double-sided cooling feature in this 425A thyristor?
Double-sided cooling effectively halves the path for heat dissipation, allowing for a much lower thermal resistance (0.038 K/W). This allows the P425 to handle higher current densities in a smaller footprint while maintaining lower junction temperatures, which directly translates to a higher safety margin and the ability to use more compact thermal management systems.
As a specialized distributor, we focus on providing the technical data required for precise engineering assessments. To discuss the integration of the P425 into your next power conversion project or to verify technical compatibility with existing stacks, please contact our technical sales team. For further insights into high-efficiency systems, explore our resource on High-Efficiency Power Systems.
