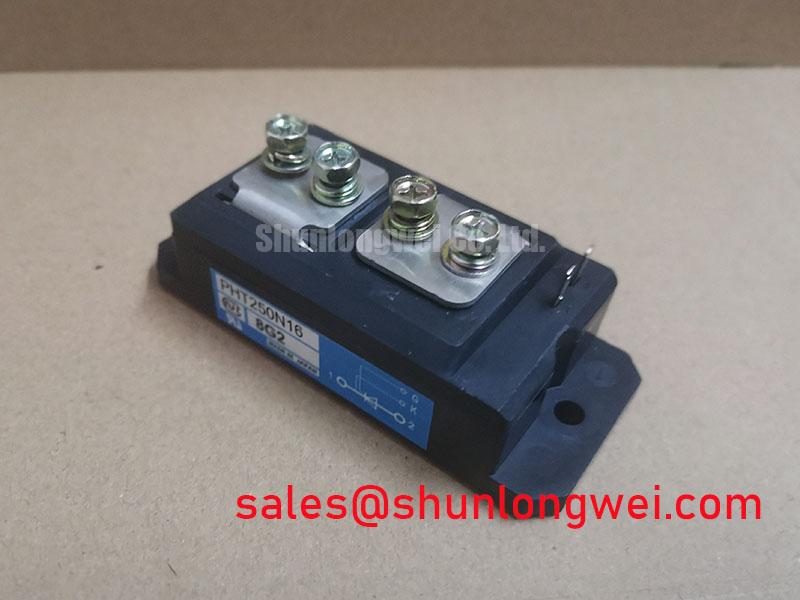

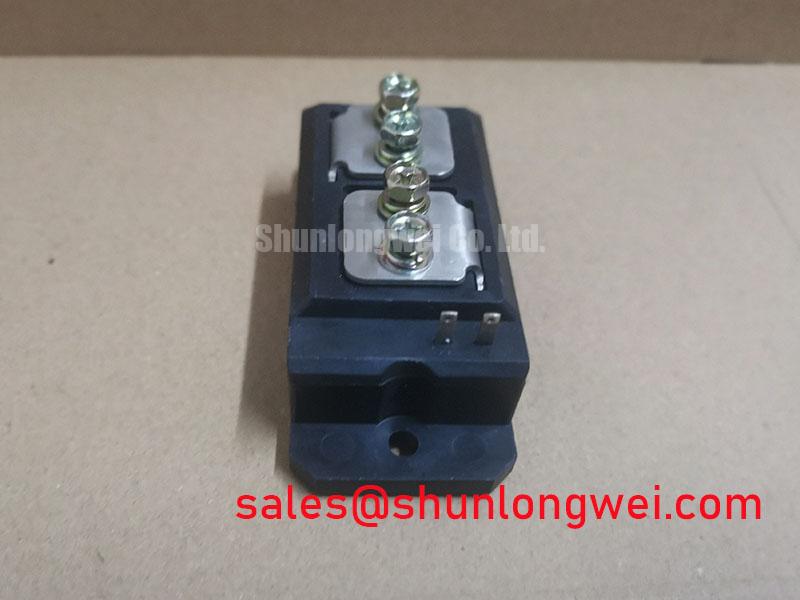

PHT250N16: High-Reliability 1600V Phase Control Thyristor Module
Engineered for robust performance in high-power rectification and control applications, the PHT250N16 is a high-reliability thyristor module designed for demanding industrial environments. This device delivers exceptional operational stability and thermal efficiency, centered on its core specifications: 1600V | 250A | I²t of 255 kA²s. Key engineering benefits include superior surge current handling and long-term operational lifespan. It directly addresses the need for a durable power control component in systems like high-power rectifiers and motor soft starters, where fault tolerance is a critical design parameter. For high-voltage industrial drives that require robust fault current management, the PHT250N16's high surge current rating makes it an ideal choice.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The technical specifications of the PHT250N16 are tailored for reliability in demanding power systems. The parameters below highlight its capacity for thermal stability and robust electrical performance. Each value is a critical factor in system design, influencing everything from protective circuit design to thermal management strategies.
| Parameter | Value | Engineering Value & Interpretation |
|---|---|---|
| Repetitive Peak Off-State Voltage (VDRM) | 1600 V | Provides substantial voltage headroom for direct use in 400V and 690V AC line applications, ensuring reliability against line voltage transients. |
| Average On-State Current (IT(AV)) | 250 A | Defines the module's continuous current handling capability, suitable for high-power industrial loads. The high rating allows for compact system design by potentially reducing the need for paralleling devices in certain applications. |
| Surge On-State Current (ITSM) | 7200 A (50Hz, half-sine) | This indicates exceptional robustness against fault conditions like motor start-up inrush currents or short circuits. Think of it as the device's ability to withstand a sudden, massive electrical "punch" without failing. |
| I²t for Fusing | 255,000 A²s | A critical value for coordinating with protective fuses. This high I²t rating simplifies fuse selection, ensuring that the protective fuse will open before the thyristor is damaged during a significant overcurrent event. |
| Critical Rate of Rise of On-State Current (di/dt) | 200 A/µs | Specifies the maximum speed at which the current can increase without damaging the device. This robustness is essential for reliable operation in fast-switching applications or systems with low inductance. |
| Operating Junction Temperature (Tj) | -40 to 125 °C | The wide operating temperature range ensures dependable performance across a variety of industrial settings, from cold starts to high-temperature operational environments. |
Download the PHT250N16 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Power Rectification and Control
The PHT250N16 is strategically suited for applications where precise control and high reliability of AC power are paramount. Its robust design provides significant value in industrial systems that experience frequent electrical and thermal stress.
A primary application is in controlled rectifier bridges for industrial DC power supplies and battery chargers. What is the primary benefit of its high surge rating? Enhanced system survivability during input power faults. In a scenario where a downstream fault causes a sudden current spike, the PHT250N16's 7200A ITSM rating provides the necessary resilience to withstand the event until protective devices, like fuses, can clear the fault. This prevents catastrophic failure of the power stage, a critical factor in applications like uninterruptible power supplies (UPS) and industrial welding equipment.
Another key area is in motor soft starters. The challenge for engineers here is managing the massive inrush current drawn by large AC motors during startup. The PHT250N16's phase-control capability allows for a gradual increase in voltage applied to the motor, smoothly ramping up its speed and torque. This controlled start-up minimizes mechanical stress on the motor and electrical stress on the power grid. The module's high di/dt rating of 200 A/µs ensures it can handle the rapid current changes inherent in this control method without degradation. While the PHT250N16 is ideal for these high-power AC control tasks, for applications requiring integrated diode and thyristor configurations, the TDB6HK124N16RR provides a module solution with a similar voltage class.
Frequently Asked Questions (FAQ)
How does the PHT250N16's 1600V VDRM rating benefit my 400V AC line application?
The 1600V rating provides a significant safety margin, typically a factor of 2.5 to 3.5 over the peak line voltage (approx. 565V for a 400V system). This robust voltage headroom is critical for ensuring long-term reliability in industrial environments where voltage spikes and transients from switching inductive loads (like motors) are common.
What is the significance of the 255 kA²s I²t rating for system protection?
This high I²t value is crucial for fuse coordination. It ensures that in a severe overcurrent event, a properly selected semiconductor fuse will interrupt the circuit before the thyristor's internal structure is permanently damaged. It allows designers to create a truly selective protection scheme, where the fuse acts as the designated sacrificial element, protecting the more valuable power module.
Can the PHT250N16 be used for AC voltage regulation (AC choppers)?
Yes, its phase-control characteristics make it well-suited for AC voltage controllers, often used in applications like industrial heating control or lighting dimming systems. By precisely controlling the firing angle of the thyristors, the module can effectively regulate the RMS voltage delivered to the load.
What does the 200 A/µs di/dt rating imply for circuit design?
This specifies the device's resilience to rapid increases in current. A high di/dt rating means the device is less susceptible to localized hot-spotting and failure during turn-on. It gives designers more flexibility, reducing the need for large, expensive snubber circuits that are sometimes required to limit the rate of current rise in less robust devices.
Is this module suitable for high-frequency applications?
The PHT250N16 is a phase-control thyristor (SCR), which is primarily designed for line-frequency applications (50/60 Hz). What is the typical application frequency for this device? It operates most efficiently at mains frequencies. For high-frequency switching applications (in the kHz range), an IGBT Module would be the appropriate technology choice.
Technical Deep Dive
A Closer Look at the Trade-off Between Surge Capability and On-State Voltage
The design of a thyristor like the PHT250N16 involves a fundamental engineering trade-off rooted in silicon physics. The exceptionally high surge current capability (ITSM) and I²t rating are achieved through a large silicon die area and specific doping profiles. This robust construction is analogous to building a dam with thicker walls; it can withstand a much greater sudden force. In this case, the "force" is a massive, short-duration current pulse.
However, this design choice directly influences the on-state voltage drop (VTM). A larger, more rugged die inherently has a slightly higher internal resistance, resulting in a higher voltage drop when conducting its nominal current. This leads to increased conduction losses (Power Loss = VTM x IT(AV)). Therefore, engineers must evaluate this trade-off: the PHT250N16 prioritizes survivability and fault tolerance over achieving the absolute lowest conduction losses. For systems where unpredictable load conditions or frequent fault risks are the primary concern—such as in metal smelting rectifiers or large motor drives—the enhanced reliability offered by its high surge rating provides far more system-level value than a marginal improvement in efficiency.
From an Engineer's Perspective
When specifying a power control component for a high-power industrial system, reliability is not just a feature; it's the foundation. The PHT250N16 is designed from this principle. Its specifications, particularly the 1600V blocking voltage and 7200A surge current rating, provide the necessary design margins to build systems that can withstand the harsh realities of the industrial power grid. It is a component selected not for benign laboratory conditions, but for critical applications where downtime is not an option and fault tolerance is a non-negotiable requirement of the system architecture.
