PK55FG160 | Sanrex 1600V 55A Thyristor/Diode Module for Industrial Power Control
Introduction to the PK55FG160 Power Module
A Foundation for Reliable High-Voltage Power Systems

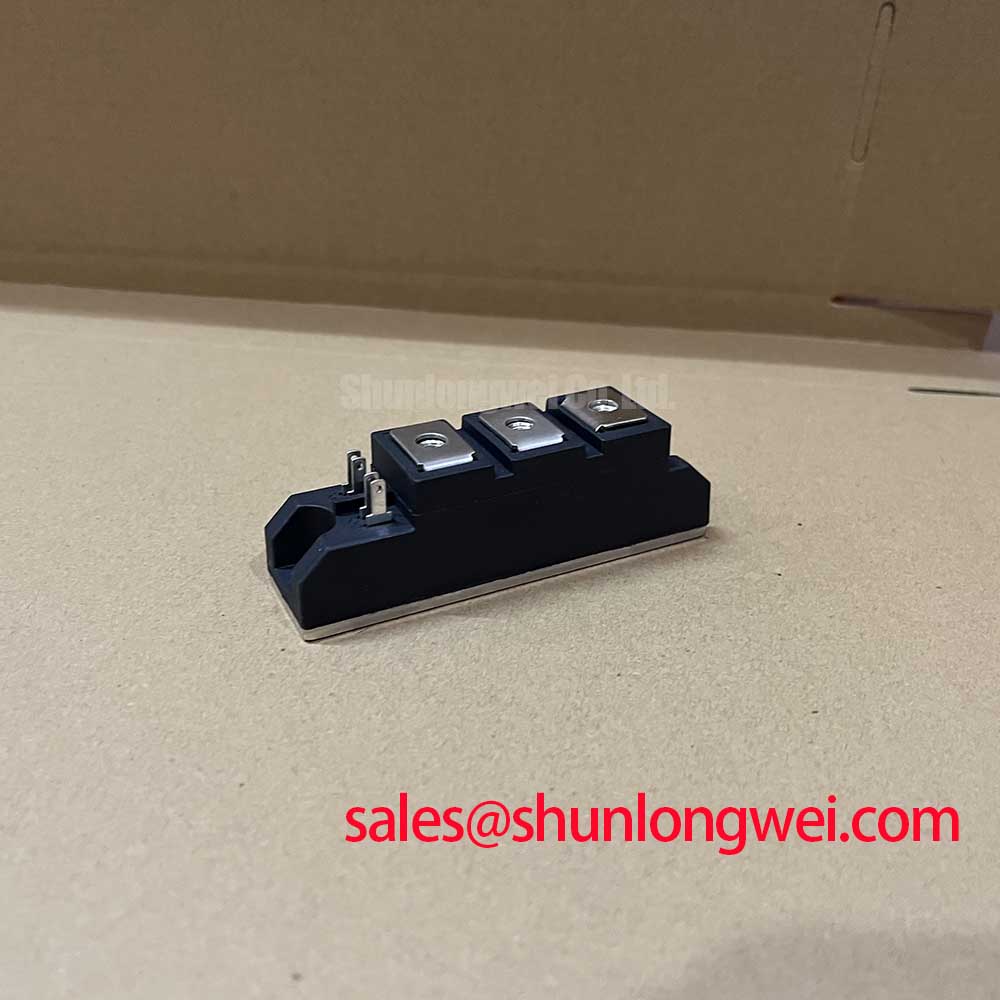

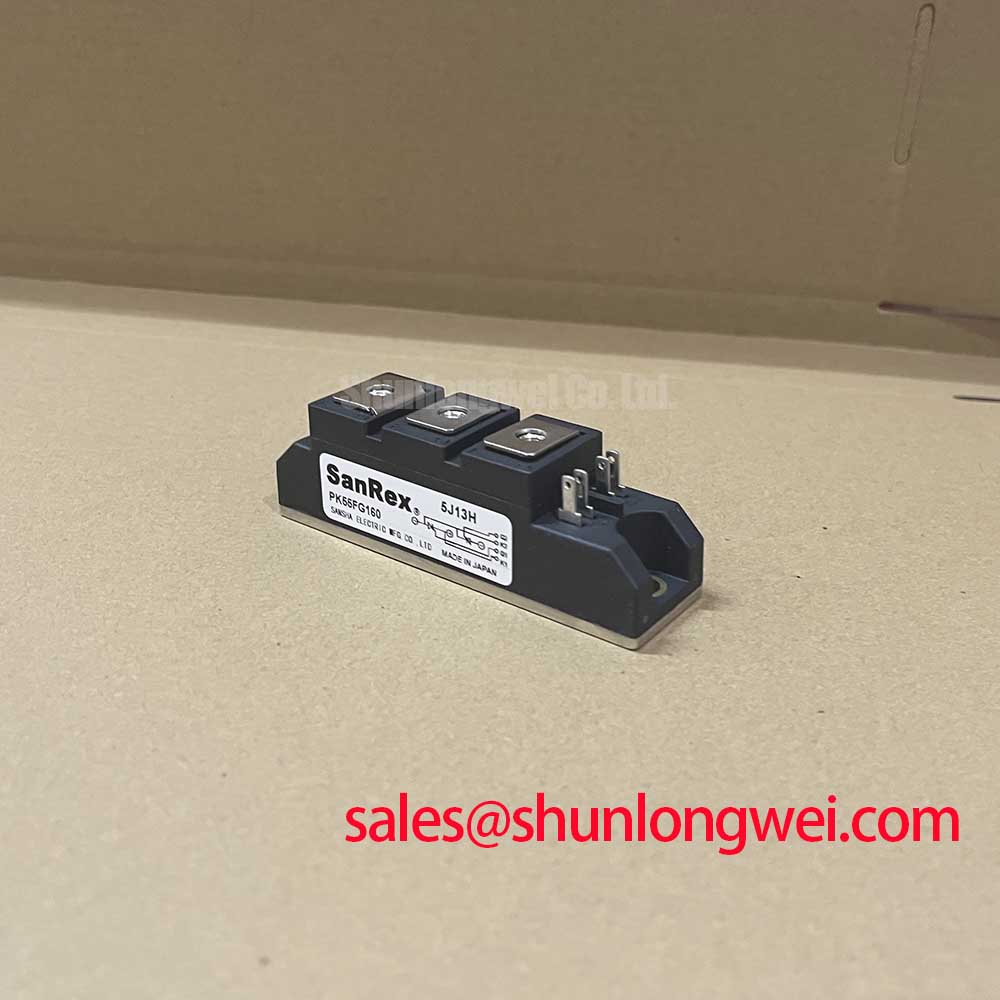

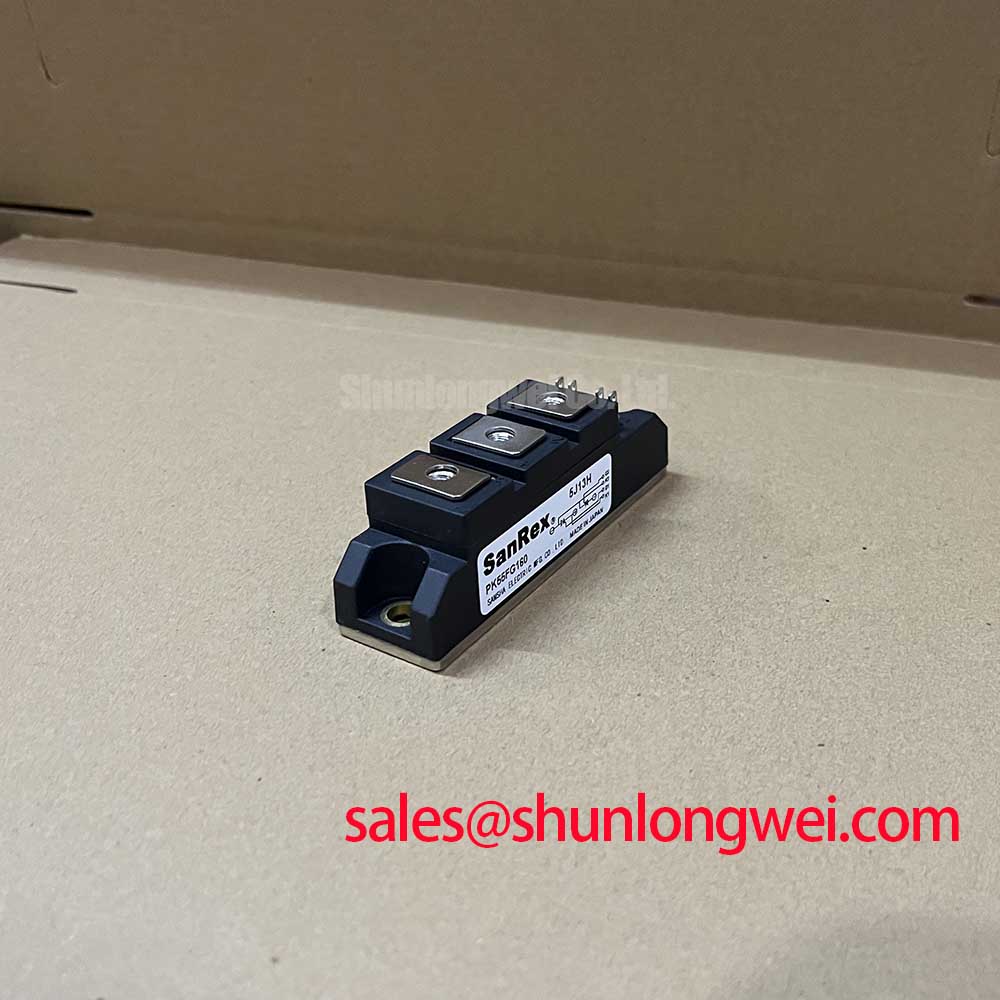

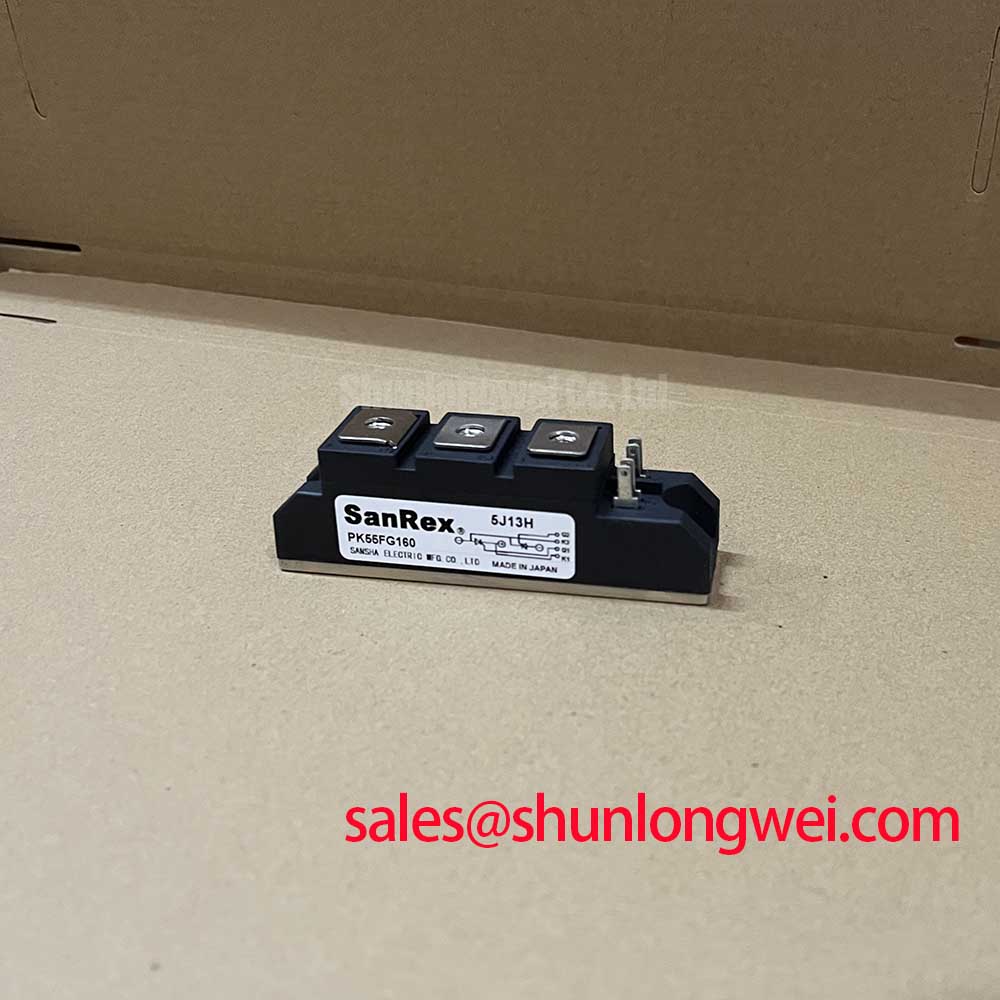

The Sanrex PK55FG160 is a high-reliability Thyristor/Diode module engineered for robust performance in demanding industrial power control applications. Featuring key specifications of 1600V | 55A | ITSM 1300A, this module delivers two primary engineering benefits: exceptional surge survivability and simplified thermal management. Designed for high-voltage AC lines such as 480V or 690V, its 1600V rating provides a critical engineering safety margin against the transient overvoltages common in industrial environments. For industrial AC controllers and soft starters requiring high reliability on volatile power lines, the PK55FG160's robust surge rating is a decisive advantage.
Key Parameter Overview
Decoding the Specs for Robust Industrial Power Control
The technical specifications of the PK55FG160 are foundational to its performance in industrial environments. The parameters below are grouped to provide a clear overview for design and evaluation engineers.
| Voltage & Current Ratings (Per device at Tc=25°C unless otherwise noted) | |
|---|---|
| Repetitive Peak Reverse/Off-State Voltage (VRRM, VDRM) | 1600V |
| Average On-State/Forward Current (IT(AV), IF(AV)) | 55A |
| RMS On-State Current (IT(RMS)) | 86A |
| Surge Non-Repetitive On-State/Forward Current (ITSM, IFSM) | 1300A (50Hz, half-sine) |
| I²t for Fusing | 8450 A²s |
| Thermal & Mechanical Specifications | |
| Operating Junction Temperature (Tj) | -40 to +125°C |
| Thermal Resistance, Junction to Case (Rth(j-c)) | 0.28 °C/W (Thyristor), 0.36 °C/W (Diode) |
| Isolation Voltage (Visol) | 2500V (AC, 1 minute) |
| Mounting Torque | 2.5 - 3.5 N·m |
Disclaimer: The parameters listed above are a summary. For complete specifications, characteristic curves, and safety information, it is imperative to consult the official documentation.
Download the PK55FG160 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Motor Drives and Heating Systems
The PK55FG160 is engineered for power control circuits where reliability and precise regulation are paramount. Its unique combination of high voltage, robust surge handling, and a versatile internal configuration makes it an excellent component for several core industrial applications.
- Motor Soft Starters: A primary challenge in motor control is managing the large inrush currents during startup. The PK55FG160's high surge current capability (ITSM of 1300A) is critical for system survivability, allowing it to safely handle these transient loads. By using this module in a phase-angle control topology, engineers can design soft starters that provide smooth, controlled acceleration for AC motors, reducing mechanical stress on equipment and mitigating electrical disturbances on the power line.
- Industrial Heating and Lighting Control: In applications such as large industrial furnaces, plastic extrusion machines, or theatrical lighting systems, this module enables precise power regulation. Its ability to handle high voltage and current ensures stable and efficient control over resistive and inductive loads, contributing to energy savings and process consistency.
- Controlled Rectifiers: The module's configuration of two thyristors and two diodes can be used to build single-phase controlled bridge rectifiers. This is essential for battery charging systems, DC motor drives, and power supplies where a regulated DC output is required from an AC source.
While the PK55FG160 excels in phase-angle control, for high-frequency PWM-based motor control, designers might evaluate IGBT modules like the CM200TXPA-24T which are optimized for fast switching.
Technical Deep Dive
Analyzing the Design for Long-Term Reliability and Thermal Stability
Two key design aspects of the Sanrex PK55FG160 directly contribute to its reputation for reliability in the field: its exceptional surge handling capability and its thermally efficient isolated package.
What is the primary benefit of the PK55FG160's high surge rating? It ensures system survivability during motor inrush currents. The I²t rating of 8450 A²s is a measure of the thermal energy the device can absorb during a short, non-repetitive fault event before failure. This can be compared to a dam's rating to withstand a flash flood of a specific magnitude and duration. A higher I²t value signifies greater resilience against unexpected line faults or short circuits, a crucial factor in preventing catastrophic failures in expensive industrial equipment. This robust design often allows engineers to select downstream protective devices with more tolerance, simplifying the overall protection scheme. For a deeper understanding of fault conditions, see our guide on preventing overcurrent and overvoltage failures.

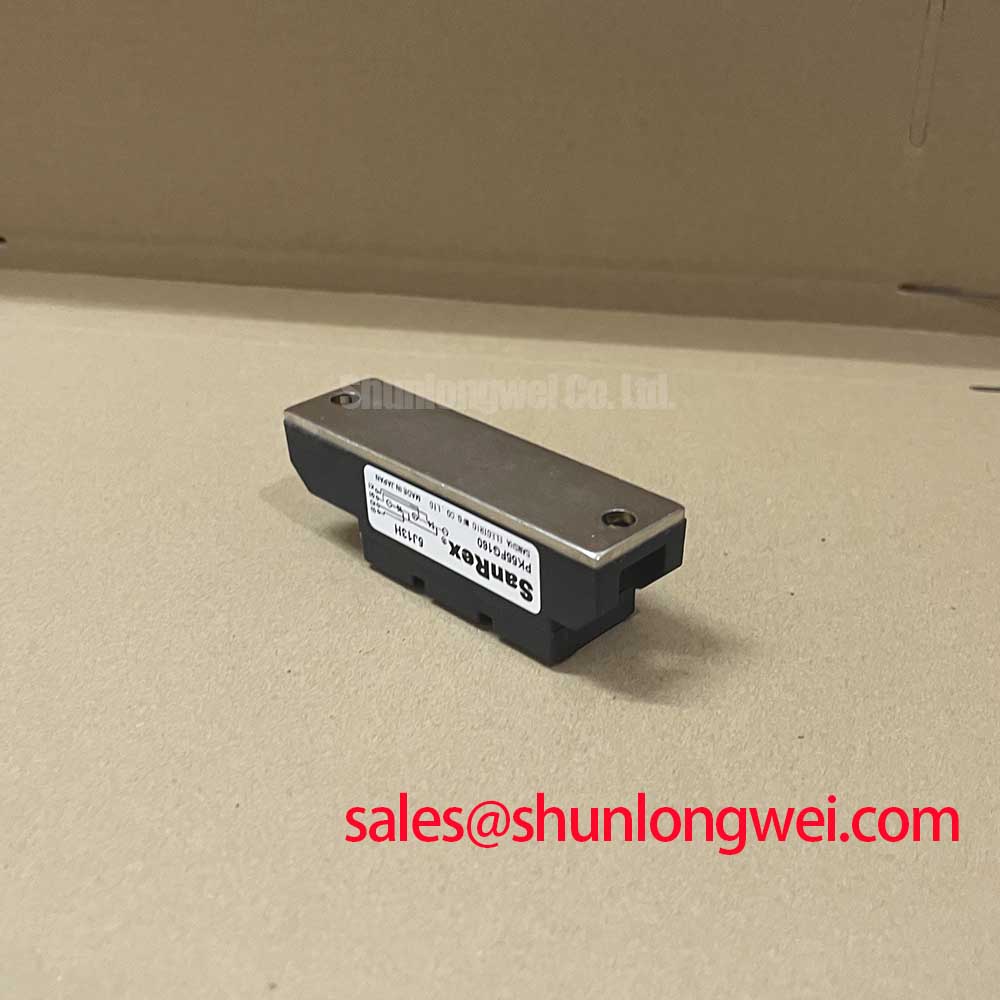

Furthermore, the module's 2500V isolation voltage simplifies system assembly and enhances thermal performance. How does the isolated baseplate simplify design? It allows direct mounting to a heatsink, saving cost. This integrated isolation eliminates the need for separate, fragile insulating pads (such as mica or silicone films). These external pads not only add to the bill of materials and assembly time but also introduce an additional, and often inconsistent, layer of thermal resistance. By enabling direct mounting to a grounded heatsink, the PK55FG160 achieves a more efficient, reliable, and predictable thermal path from the semiconductor junction to the ambient environment, a key factor for long-term operational stability.
Frequently Asked Questions
Engineering Insights for the PK55FG160 Module
How does the 1600V rating of the PK55FG160 benefit designs on a 480V AC line?
A standard 480V AC line can have a peak voltage of approximately 679V (480V * √2). However, industrial environments are prone to transient overvoltages from switching large inductive loads or lightning strikes. A 1200V device provides a reasonable safety margin, but a 1600V device like the PK55FG160 offers a much larger design margin. This increased headroom significantly enhances system robustness and long-term reliability by ensuring the device remains well within its Safe Operating Area (SOA) even during significant line voltage swells.
What is the significance of the 1300A surge current (ITSM) rating for applications like motor soft starters?
The ITSM rating defines the maximum peak current the thyristor can withstand for a single half-cycle sine wave (typically at 50/60Hz) without degradation. During motor startup, the inrush current can be 5 to 8 times the motor's nominal current. A high ITSM rating of 1300A ensures the PK55FG160 can reliably endure these repetitive startup stresses over its lifetime, preventing premature failure and ensuring consistent performance of the end equipment.
For your specific application, we encourage a thorough review of the official Sanrex datasheet. Our team is available to provide sourcing information and support your procurement process for the PK55FG160 and other power semiconductor components from leading manufacturers like Fuji Electric.
