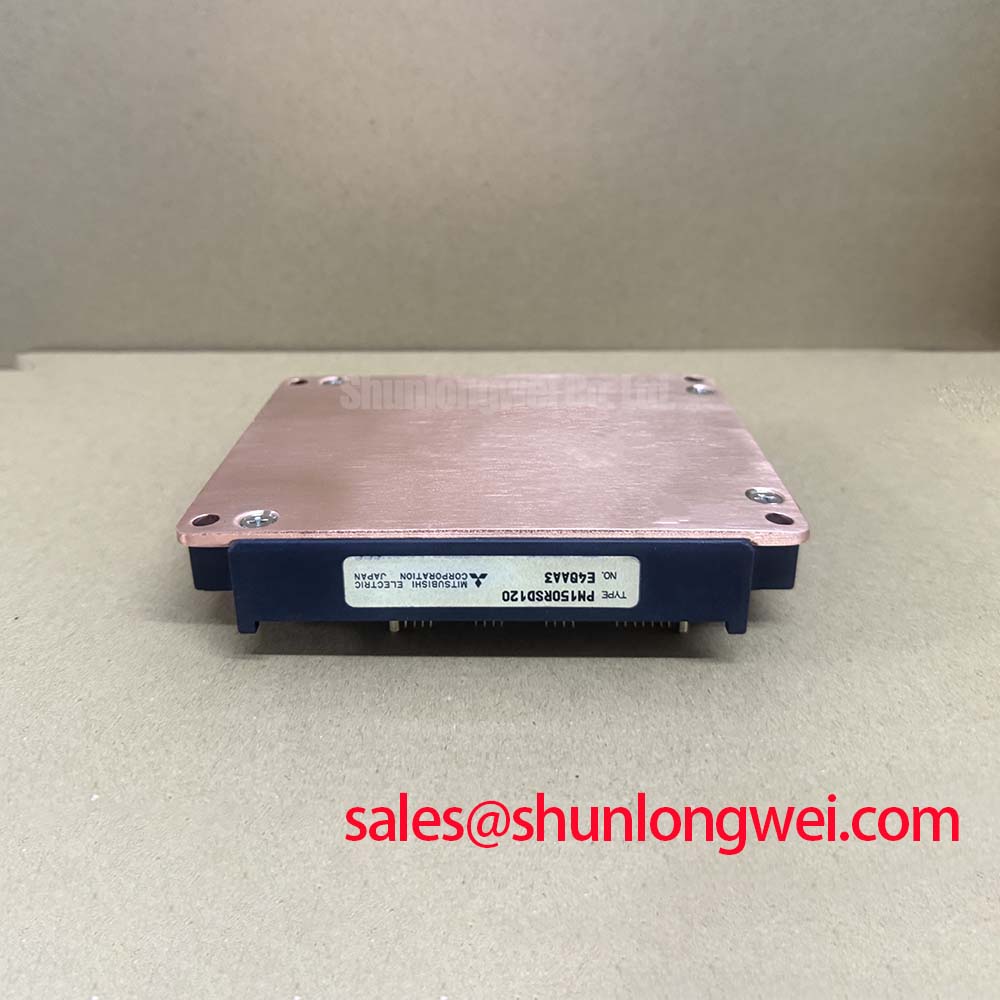

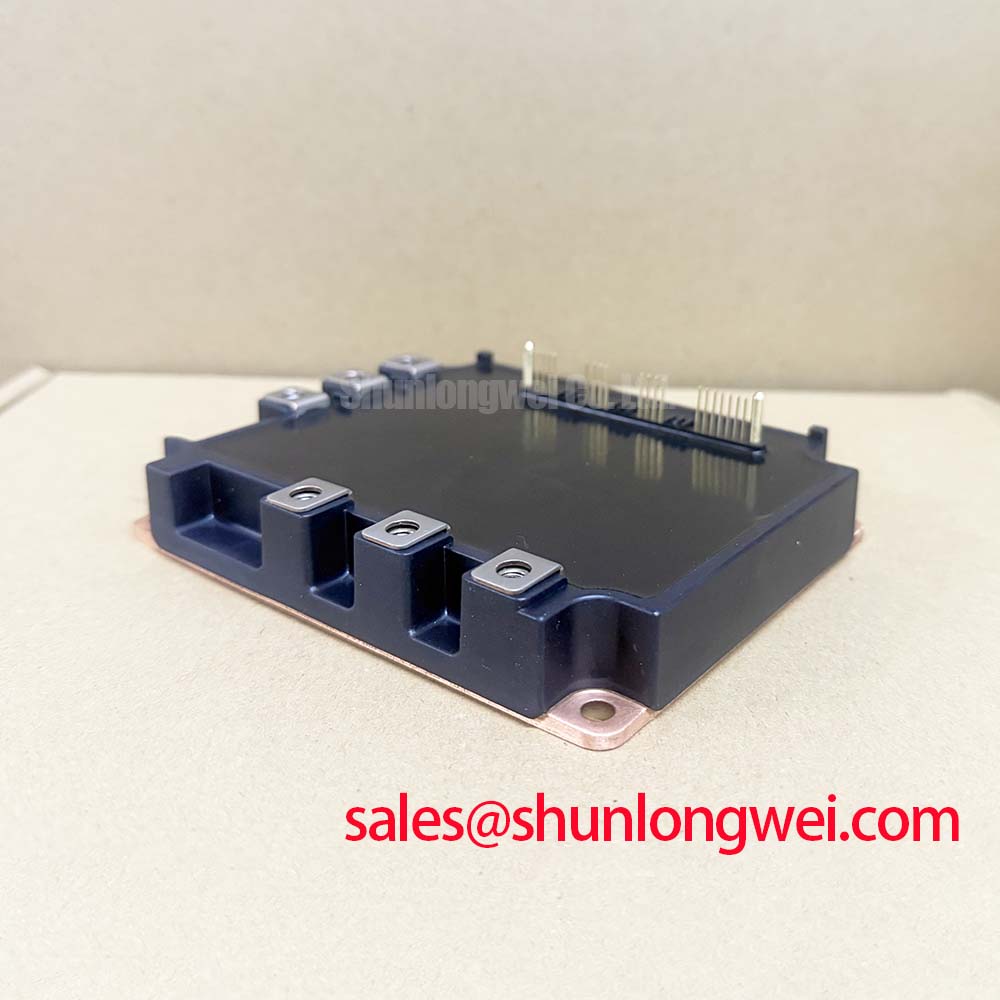

PM150RSD120 IPM: Datasheet Specs & Integration Features
Advancing power conversion through integrated intelligence, the Mitsubishi PM150RSD120 Intelligent Power Module (IPM) streamlines design by consolidating key functionalities. It delivers a robust platform for motor control and inverter applications, simplifying the path from concept to deployment. This module is specified with key ratings of 1200V | 150A | Tj 150°C. Key benefits include a reduced component count and accelerated development cycles. For engineers questioning how to achieve higher system reliability while reducing design complexity, this IPM provides a direct answer by integrating crucial protection circuits that operate autonomously, safeguarding both the module and the system.
Comparative Data for Informed Design Choices
Evaluating power modules requires a careful review of datasheet specifications against application demands. The PM150RSD120 offers a specific set of features centered around integration. For systems with different priorities, other components may present alternative parametric profiles. For instance, systems that require discrete component flexibility for highly customized gate drive and protection schemes might be built differently. For applications demanding higher current capacity, the CM200DY-24H offers a 200A rating within a conventional IGBT module format. The table below presents key specifications for the PM150RSD120 to facilitate an objective, data-based evaluation for your specific design constraints.
| Parameter | Mitsubishi PM150RSD120 | Notes for System Design |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1200V | Suitable for 480V to 600V AC line applications with sufficient voltage margin. |
| Collector Current (Ic) | 150A | Defines the continuous current handling capability at specified case temperatures. |
| Configuration | Six-Pack IPM | Includes six IGBTs with anti-parallel diodes, plus integrated gate drive and protection circuits. |
| Integrated Protections | Short-Circuit (SC), Over-Temperature (OT), Under-Voltage (UV) | Reduces need for external monitoring and protection circuitry, simplifying PCB layout. |
| Isolation Voltage (Visol) | 2500Vrms (1 min) | Ensures safety compliance by providing robust electrical isolation between power and control grounds. |
Core Specifications for System Integration
The technical parameters of the Mitsubishi PM150RSD120 are foundational to its role in simplifying power system architecture. These specifications, sourced directly from the official datasheet, provide the necessary data for thermal analysis, electrical simulation, and mechanical layout.
Download the Datasheet for complete performance curves and application notes.
Electrical Characteristics (at Tj=25°C unless otherwise noted)
- Collector-Emitter Voltage (VCES): 1200V
- Collector Current (IC): 150A
- Collector-Emitter Saturation Voltage (VCE(sat)): 2.7V (Typical) at IC = 150A
- Control Supply Voltage (VCC): 15V
- Short-Circuit Withstand Time (tsc): >10µs at Vcc=15V, Tj < 125°C
Thermal and Mechanical Characteristics
- Operating Junction Temperature (Tj): -20°C to +150°C
- Isolation Voltage (Viso): 2500Vrms for 1 minute
- Module Mounting Torque: 3.5 - 4.5 N·m (M6 Screw)
Accelerating Time-to-Market in Modern Power Systems
In the competitive landscape of industrial automation and green energy, reducing the development timeline is a significant strategic advantage. The adoption of Intelligent Power Modules (IPMs) like the PM150RSD120 directly supports this goal. By integrating the gate drive, fault detection, and protection logic into a single, pre-validated component, engineering teams can bypass months of design, testing, and qualification work associated with discrete IGBT circuits. This high level of integration minimizes the risks of gate-drive oscillations, shoot-through currents, and improper protection implementation, leading to a more predictable and robust final product. This streamlined approach allows designers to allocate more resources to application-specific software and system-level innovation, ultimately delivering a more advanced product to market faster.
Technical Inquiries on the PM150RSD120 IPM
1. What is the primary benefit of using the PM150RSD120 IPM over discrete IGBTs and a separate gate driver?
The main advantage is design simplification and enhanced reliability. The module integrates optimized gate drivers and a suite of protection features (short-circuit, over-temperature, under-voltage). This reduces component count, minimizes PCB layout complexity, and eliminates common design errors associated with discrete solutions, leading to a faster and more robust development cycle.
2. How is the Over-Temperature (OT) protection implemented in this module?
The PM150RSD120 contains an internal temperature sensor (LVIC) directly on the substrate. If the substrate temperature exceeds a predefined threshold (typically around 125°C), the internal control logic triggers a fault condition. It shuts down the IGBTs to prevent thermal damage and outputs a fault signal (Fo) to the system's microcontroller, indicating an over-temperature event.
3. Can the control logic of the PM150RSD120 be powered by a 5V microcontroller supply?
No, the control circuit requires a dedicated 15V DC supply (Vcc) with tight regulation as specified in the datasheet. This supply powers the internal gate drive and protection logic. The logic-level I/O pins for control signals and fault outputs are, however, designed to be compatible with standard 3.3V or 5V CMOS/TTL logic levels from a microcontroller.
Deployment Snapshot: Streamlining a Servo Drive Design
A mid-sized robotics manufacturer was tasked with developing a compact, high-precision servo drive. Their initial design using discrete IGBTs and external gate drivers faced challenges with PCB space constraints and electromagnetic interference (EMI) coupling into the sensitive drive logic. By transitioning to the Mitsubishi PM150RSD120, the engineering team consolidated the entire three-phase inverter power stage into a single component. This change reduced the power circuit's footprint by over 40% and, due to the short, optimized internal connections within the IPM, significantly lowered parasitic inductance. The result was cleaner switching waveforms, reduced EMI, and a simplified thermal management solution. The integrated fault-reporting system also simplified the diagnostic software, contributing to a faster overall project completion.
Anatomy of an Intelligent Power Module: Inside the PM150RSD120
The PM150RSD120 is more than just a collection of switches; it is a subsystem designed to function as the core of a three-phase inverter. Its architecture is built around six 1200V IGBTs and six corresponding freewheeling diodes. What elevates it to an "intelligent" module is the co-packaged LVIC (Low Voltage Integrated Circuit). This IC serves as the brain of the module, performing several critical tasks that would otherwise require external components.
- Optimized Gate Drive: The LVIC provides the precise voltage and current required to turn the IGBTs on and off efficiently, with built-in logic to prevent shoot-through conditions.
- Real-Time Protection: It continuously monitors for destructive events. For instance, the isolation voltage of 2500Vrms acts like the robust insulation on a high-voltage cable, creating a crucial safety barrier between the dangerous high-power stage and the sensitive control circuits. This built-in barrier is essential for both operator safety and protecting the host microcontroller.
- Fault Communication: Upon detecting a fault, the LVIC not only disables the IGBTs but also communicates the status back to the system controller via a dedicated fault pin, enabling intelligent system shutdown or recovery procedures. For systems targeting high uptime, this integrated diagnostic capability is a fundamental asset.
Where Integration Creates Value: Key Applications
The highly integrated nature of the PM150RSD120 makes it an excellent component for power conversion systems where space, reliability, and development speed are key design drivers. Its specifications are well-matched for a variety of demanding industrial and commercial applications.
Primary Application Arenas
- Industrial Motor Drives: The module's robust construction and built-in protections are ideal for three-phase Variable Frequency Drives (VFDs) used to control induction motors in machinery, pumps, fans, and conveyor systems.
- Servo Drives: In robotics and CNC machines, the PM150RSD120 provides the fast and precise power switching needed for high-performance servo drives, where control accuracy is paramount.
- Uninterruptible Power Supplies (UPS): The module's high reliability and integrated fault handling contribute to the dependability required in commercial and industrial UPS systems, ensuring a stable power source for critical loads.
- Renewable Energy Systems: Suitable for the inverter stage in small to medium-sized solar power converters and other renewable energy applications requiring efficient DC-to-AC power conversion.
For high-frequency inverter designs where balancing VCE(sat) and switching speed is a primary consideration, the integrated nature of this Mitsubishi Electric IPM provides a pre-optimized solution. Its architecture makes it a superior fit for general-purpose drives up to approximately 30 kW where design simplification directly translates to lower total cost of ownership.
To further explore the foundational principles of these components, consider this in-depth analysis of IGBT modules.
To procure the PM150RSD120 for your design or to access detailed technical specifications, please contact our sales team for information on lead times and quoting.
