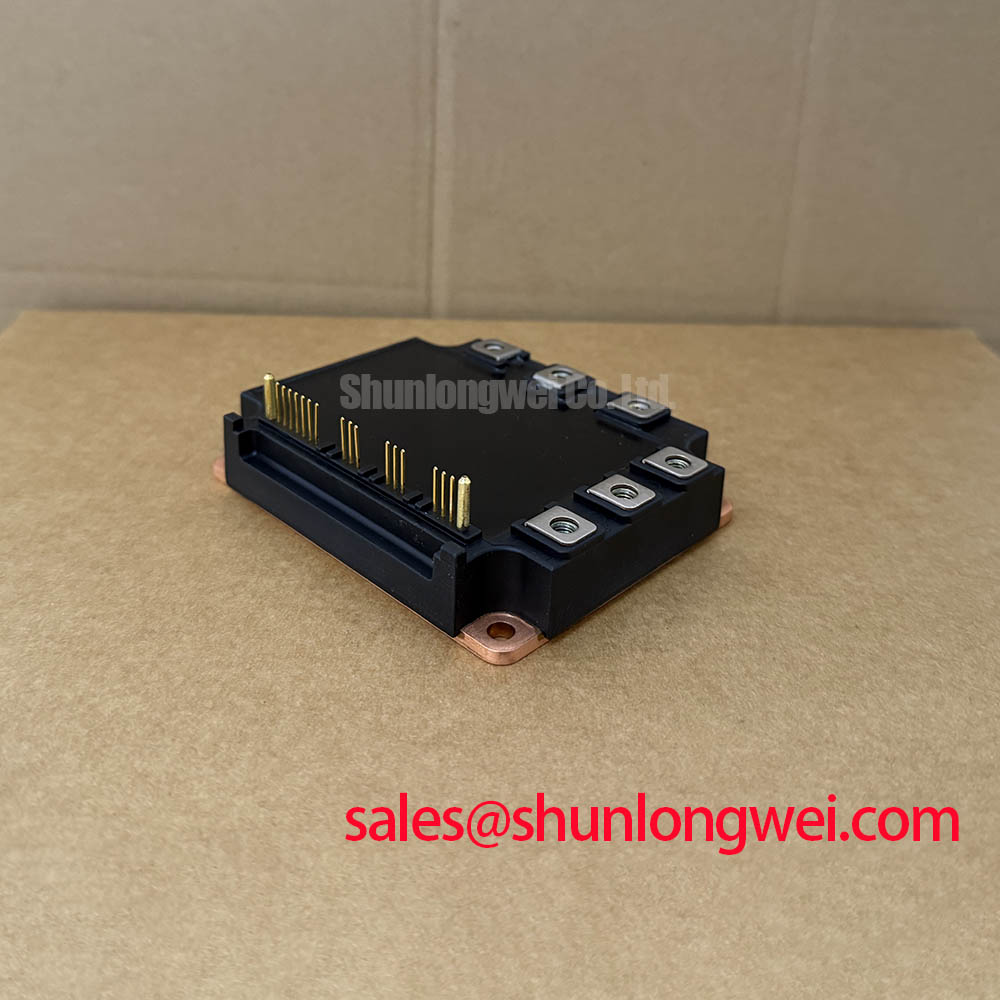

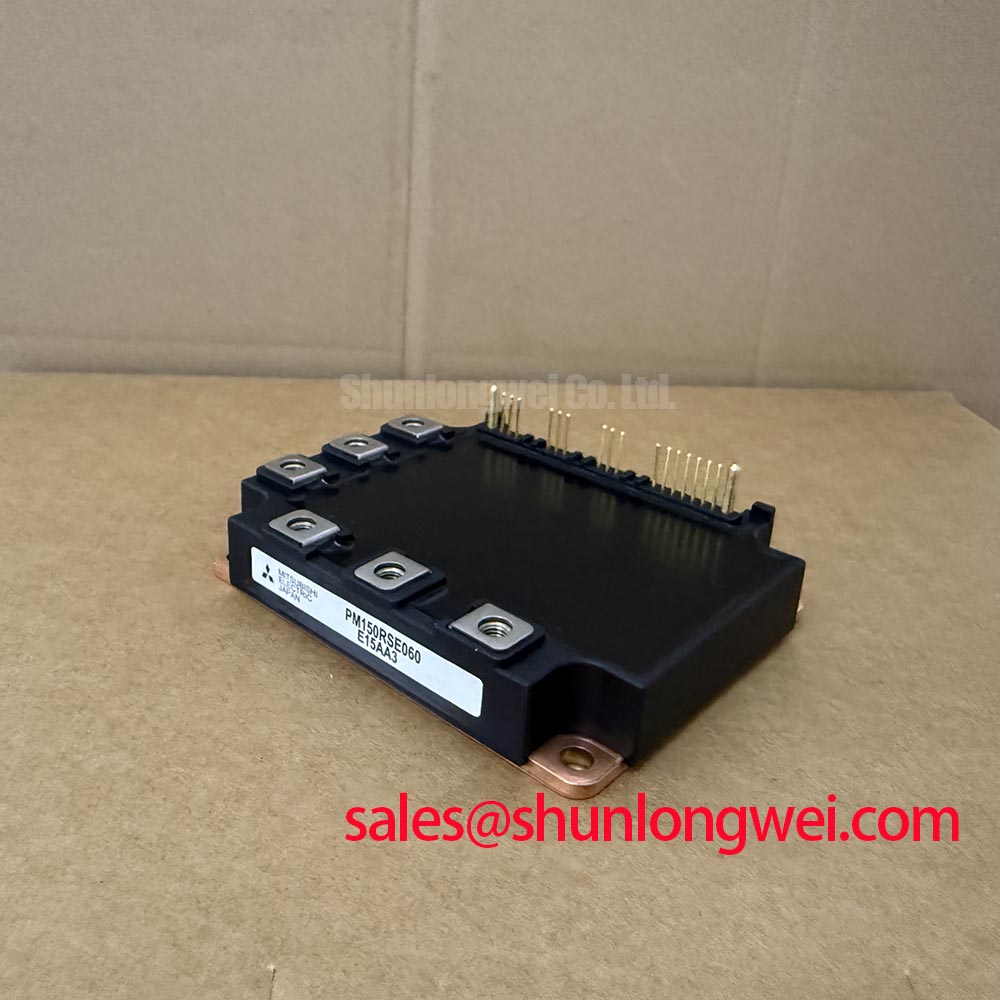

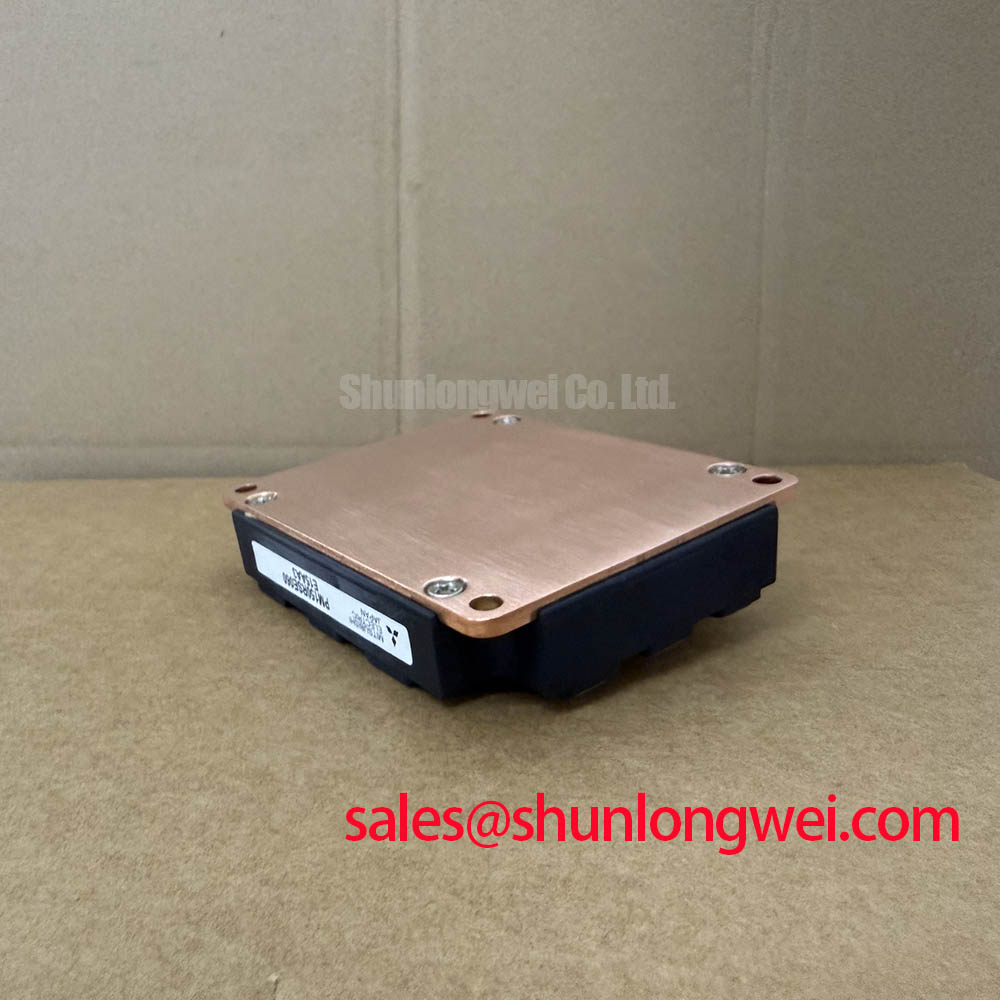

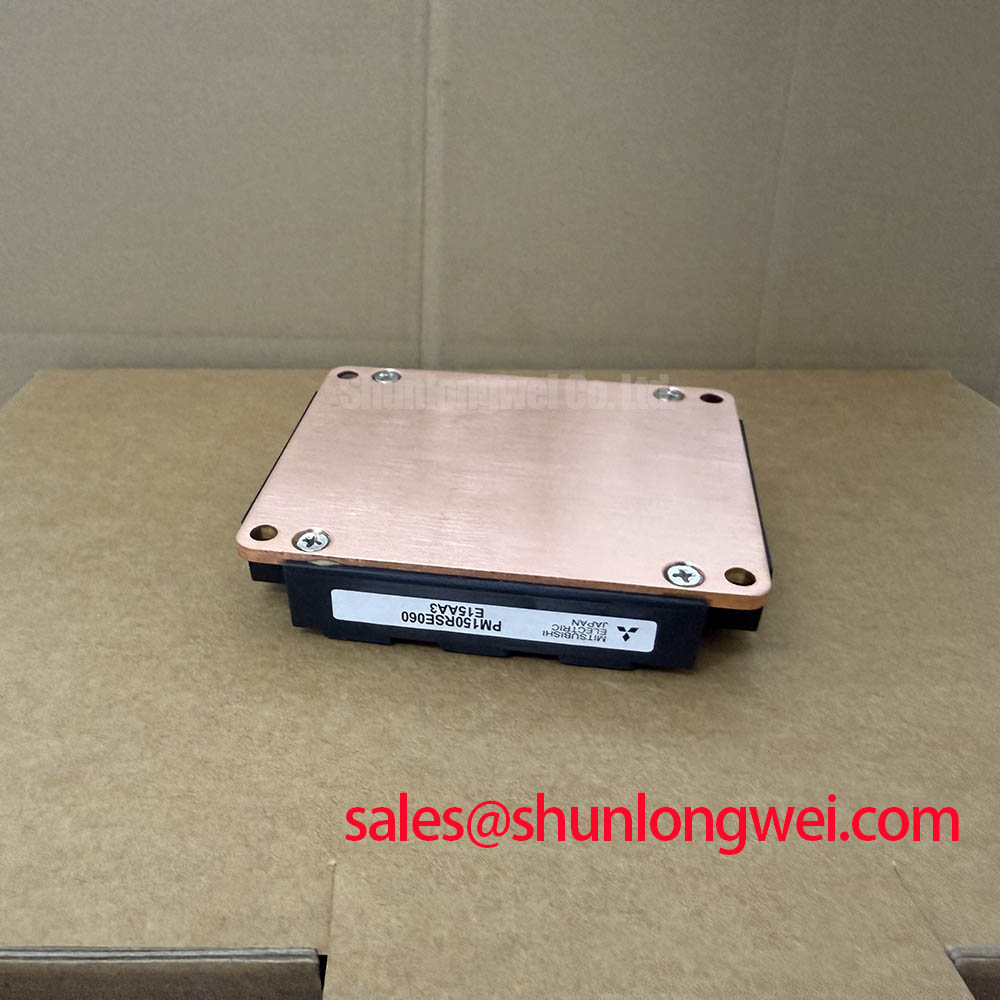

PM150RSE060 Mitsubishi 600V 150A Intelligent Power Module
The PM150RSE060, a flagship member of Mitsubishi Electric's R-Series Intelligent Power Modules (IPM), represents a highly integrated solution for 600V class power conversion. Designed to empower engineers with a streamlined development path, this module integrates high-performance IGBT chips with optimized gate drive circuitry and comprehensive protection logic. By housing the inverter bridge and a dedicated brake circuit in a single package, the PM150RSE060 significantly reduces parasitic inductance and simplifies the thermal management overhead for compact industrial drives.
For 220V three-phase inverter designs requiring high power density and integrated braking, the PM150RSE060 offers the most reliable 150A 600V solution.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The technical architecture of the PM150RSE060 is centered on minimizing conduction and switching losses while maintaining a robust safe operating area. The following table highlights the critical ratings derived from the official Mitsubishi documentation, focused on parameters that dictate system-level efficiency and longevity.
| Technical Specification | Rated Value / Condition | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 600V | Ideal for 200V-400V AC line applications. |
| Collector Current (Ic) | 150A (DC, Tc=25°C) | Sustained power handling for heavy industrial loads. |
| Saturation Voltage (Vce(sat)) | 1.8V (Typical at 150A) | Low conduction losses to maximize inverter efficiency. |
| Integrated Protection | SC, OT, UV | Autonomous fault handling independent of the MCU. |
| Package Topology | 7-Pack (Inverter + Brake) | Complete motor drive stage in a single footprint. |
| Junction-to-Case Resistance (Rth(j-c)) | 0.18 °C/W (Per IGBT) | Critical for high-frequency thermal cycling stability. |
Download the PM150RSE060 datasheet for detailed specifications and performance curves: Download Datasheet
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
In modern industrial environments, engineers often face the challenge of managing transient thermal spikes during heavy-load startup. For instance, in an industrial pump system, the startup surge current can stress power semiconductors to their limits. The PM150RSE060 addresses this through its 300A peak collector current rating and integrated Short-Circuit (SC) protection. When the module detects an over-current condition, it initiates a soft-shutdown, protecting the silicon dies from catastrophic failure before the system controller can even register the fault.
This module is particularly effective in Variable Frequency Drive (VFD) and Servo Drive applications where space is at a premium. The integrated gate drive eliminates the need for complex external layouts, which often introduce noise and signal integrity issues. For systems requiring even higher current handling, the PM200RSE060 offers a 200A rating within a similar architectural framework, while the PM150RSE120 provides a 1200V alternative for higher line voltages.
Beyond motor control, the PM150RSE060 is frequently utilized in high-capacity Uninterruptible Power Supplies (UPS). In these scenarios, the low Vce(sat) of 1.8V directly translates to lower heat dissipation, allowing for smaller heatsinks and contributing to a lower total cost of ownership (TCO). This aligns with the growing demand for energy-efficient power electronics under the Industry 4.0 paradigm.
Technical & Design Depth剖析
Integrated Intelligence: The Core of Voltage Control and Reliability
What distinguishes the PM150RSE060 from a discrete IGBT assembly is its internal intelligence. The "Intelligent" in IPM refers to the built-in gate drive and protection circuits that are matched precisely to the IGBT's characteristics. This "plug-and-play" approach for power stages reduces the engineering time required for Gate Drive optimization. One of the most significant features is the Control Supply Under-Voltage (UV) protection. If the control voltage drops below the threshold, the module inhibits switching to prevent the IGBTs from operating in the linear region, which would otherwise lead to rapid thermal destruction.
Furthermore, the Over-Temperature (OT) protection uses an internal thermistor located close to the IGBT chips. This provides a far more accurate temperature reading than an external heatsink-mounted sensor. To understand the strategic advantage of this integration, one might consider an IPM vs. discrete IGBT comparison, where the IPM consistently demonstrates higher reliability in harsh electromagnetic environments. By minimizing the loop area between the driver and the switch, the PM150RSE060 inherently mitigates Miller-effect induced false triggering, a common headache in high-speed switching applications.
How does the integrated protection of the PM150RSE060 enhance system uptime? By providing autonomous shutdown during short-circuit or over-temperature events without waiting for MCU intervention, it prevents hardware damage that typically leads to long maintenance cycles. This makes it an essential component for ensuring IGBT reliability in 24/7 manufacturing operations.
FAQ
What is the primary benefit of the PM150RSE060's integrated gate drive?
It minimizes parasitic inductance and simplifies the system-level PCB layout by providing pre-matched drive currents and timings, which reduces EMI and design complexity.
How does the Rth(j-c) of 0.18 °C/W impact the choice of a cooling solution?
This low thermal resistance indicates efficient heat transfer from the silicon to the case. It allows for higher power density, enabling the use of smaller forced-air or liquid cooling systems while maintaining safe junction temperatures.
Can the PM150RSE060 handle regenerative braking in motor applications?
Yes, the module includes a dedicated brake IGBT and diode (7-Pack configuration) specifically designed to dissipate regenerative energy through an external resistor, protecting the DC-link capacitors.
How should the fault-output (Fo) signal be utilized in a system design?
The Fo pin should be pulled up to the controller's logic voltage. When a protection event (SC, OT, or UV) occurs, the module pulls this pin low, providing an immediate signal to the MCU to halt operations and log the error for diagnostics.
In the evolving landscape of power electronics, the PM150RSE060 stands as a testament to the shift toward higher integration and autonomous reliability. As global industries transition toward electrified infrastructure and smarter automation, the role of Mitsubishi's IPM technology becomes increasingly critical. By providing a verified, data-backed foundation for power conversion, this module enables designers to focus on high-level system optimization rather than the intricacies of power semiconductor protection. Choosing an IPM like the PM150RSE060 is a strategic move toward building robust, energy-efficient systems that meet the stringent demands of the modern industrial market.
