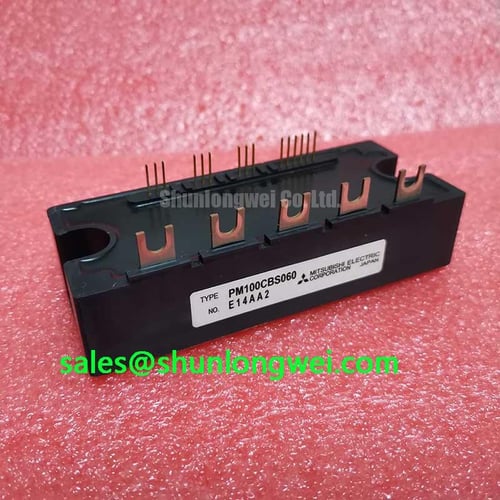

PM100CBS060 Mitsubishi Intelligent Power Module: An Engineer's Guide
Introduction / Highlights
Accelerating Reliable Motor Drive Design with Integrated Protection
The Mitsubishi PM100CBS060 is an Intellimod™ Intelligent Power Module (IPM) that integrates a complete three-phase inverter power stage with intelligent gate drive and protection circuits. It delivers robust performance with specifications of 600V | 100A | VCE(sat) 1.7V (typ). Key engineering benefits include significantly enhanced system reliability and a simplified design cycle. This module directly addresses the challenge of implementing comprehensive fault protection in space-constrained motor control systems. For motion control applications requiring robust, integrated fault handling, the PM100CBS060 provides a production-ready solution by embedding critical protection features directly into the power stage.
Key Parameter Overview
Specifications Translated into System-Level Advantages
The technical specifications of the PM100CBS060 are not just numbers; they are foundational elements that dictate its performance and suitability for demanding applications. This table translates the key parameters into their direct engineering value, providing a clear view of how this module benefits your design.
| Parameter | Value | Engineering Interpretation & Value |
|---|---|---|
| Collector-Emitter Voltage (VCES) | 600V | Provides a safe operating margin for standard 200/240V AC line-powered three-phase inverter systems, accommodating voltage transients and ensuring reliability. |
| Collector Current (IC) | 100A (TC=25°C) | Enables control of motors up to approximately 11kW, making it suitable for a wide range of industrial servo drives, pumps, and conveyor systems. |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 1.7V (typ) / 2.2V (max) | A low VCE(sat) signifies reduced conduction losses. This directly translates to higher inverter efficiency and lower heat generation, which can lead to smaller heatsink requirements and more compact system designs. |
| Over-Temperature Protection (OT) | Tj = 125°C (Trip) | Integrated on-chip temperature sensing provides direct, fast-acting protection against thermal runaway, safeguarding the module from damage due to cooling failures or overload conditions. This is a critical feature for building long-life, zero-maintenance systems. |
| Short Circuit Protection (SC) | VCC(PROT) = 400V | The module can withstand and protect against direct short-circuit events on the output, a critical safety and reliability feature in motor drive applications where phase-to-phase or phase-to-ground faults can occur. |
| Isolation Voltage (Viso) | 2500 Vrms | Ensures robust electrical isolation between the power circuit and the control logic/baseplate, meeting safety standards for industrial equipment and simplifying system-level safety compliance. |
Download the PM100CBS060 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Building Fault-Tolerant Servo and Motor Controls
The PM100CBS060 is engineered to excel in applications where operational reliability and system uptime are paramount. Its primary value lies in its integrated approach, which de-risks and simplifies the design of high-performance motor control systems.
High-Fidelity Engineering Scenario: Industrial Automation & Robotics
Consider the design of a multi-axis servo drive for an automated assembly line. A key challenge is protecting the power electronics from motor stalls or unexpected load surges, which can cause catastrophic over-current or short-circuit conditions. The PM100CBS060 directly solves this by incorporating dedicated protection logic. Its ability to detect over-current, short-circuit, over-temperature, and under-voltage conditions and provide a fault status indication (Fo pin) allows the system's microcontroller to take immediate corrective action. This built-in intelligence eliminates the need for complex external monitoring circuits, reducing PCB footprint, component count, and, crucially, development time. The result is a more robust, reliable, and compact Servo Drive that is less susceptible to common failure modes.
The module is an excellent fit for:
- AC Servo Drives
- General Purpose Variable Frequency Drive (VFD) systems
- Industrial Pumps and Fans
- Robotic Arm Actuators
For systems requiring higher power handling in a similar integrated package, the PM150CSD120 offers a 150A, 1200V rating, suitable for more demanding motor applications.
Technical Deep Dive
An Inside Look at the Integrated Protection Architecture
The core innovation of the PM100CBS060 lies in its integration of the power stage with a monolithic gate drive and protection logic IC. This isn't just about co-packaging components; it's a synergistic design that enhances performance and reliability beyond what's typically achievable with discrete solutions. The internal IC provides optimized gate drive signals tailored to the 4th generation Mitsubishi IGBTs, ensuring controlled switching characteristics to manage EMI and reduce losses.
The protection circuits function like a dedicated onboard supervisor for the power transistors. For instance, the short-circuit protection doesn't just rely on a simple trip level. It is carefully calibrated for the IGBT's Safe Operating Area (SOA) to ensure protection without nuisance tripping. When a fault is detected, the module not only shuts down the IGBTs safely but also asserts the open-collector Fault Output (Fo) pin. This provides an unambiguous signal to the host controller, enabling sophisticated fault logging and system-level diagnostics—a critical feature for implementing predictive maintenance in Industry 4.0 environments.
Frequently Asked Questions (FAQ)
Engineering-Focused Queries on the PM100CBS060
What is the primary benefit of the integrated gate driver in the PM100CBS060?
The integrated gate driver is factory-optimized for the specific IGBTs within the module. This eliminates the complex and time-consuming process of designing a discrete gate drive circuit, including component selection, layout, and tuning. It ensures reliable switching performance and protection from the first power-on.
How does the module signal a fault condition to the main system controller?
The module uses a dedicated open-collector Fault Output (Fo) pin. In normal operation, this pin is high (off). When an over-current, short-circuit, over-temperature, or under-voltage event occurs, the internal logic pulls this pin low (on), providing a clear interrupt signal to the host microcontroller for immediate action.
What is the function of the on-chip temperature sensor?
The integrated temperature sensor is embedded directly with the IGBT chips. This allows for a much faster and more accurate measurement of the actual junction temperature (Tj) compared to an external NTC thermistor mounted on the module's baseplate. This direct feedback enables the over-temperature protection to react almost instantaneously, preventing thermal damage.
Can the over-current (OC) and short-circuit (SC) protection levels be adjusted externally?
No, the trip levels for over-current and short-circuit protection are fixed internally. This is a deliberate design choice by Mitsubishi to ensure the protection is perfectly matched to the IGBTs' maximum ratings, guaranteeing safe and reliable operation under all specified conditions.
Is an external power supply required for the internal control logic?
Yes, a 15V DC supply is required for each of the control sections (P-side and N-side drivers). The module includes under-voltage lockout protection to ensure that the IGBTs are not driven with insufficient gate voltage, which could lead to excessive power dissipation and failure.
Design & Application Insights
From an Engineer's Perspective
Integrating a module like the PM100CBS060 fundamentally changes the design approach for a power stage. It shifts the focus from low-level component challenges—like gate drive optimization, parasitic layout inductance, and desaturation detection—to higher-level system integration. By providing a pre-validated, protected power block, it allows the design team to concentrate their efforts on control algorithms, user interface, and overall system performance. This not only accelerates the time-to-market but also significantly reduces the risk associated with a new power hardware design, making it a strategic choice for projects where reliability and development speed are critical drivers.
