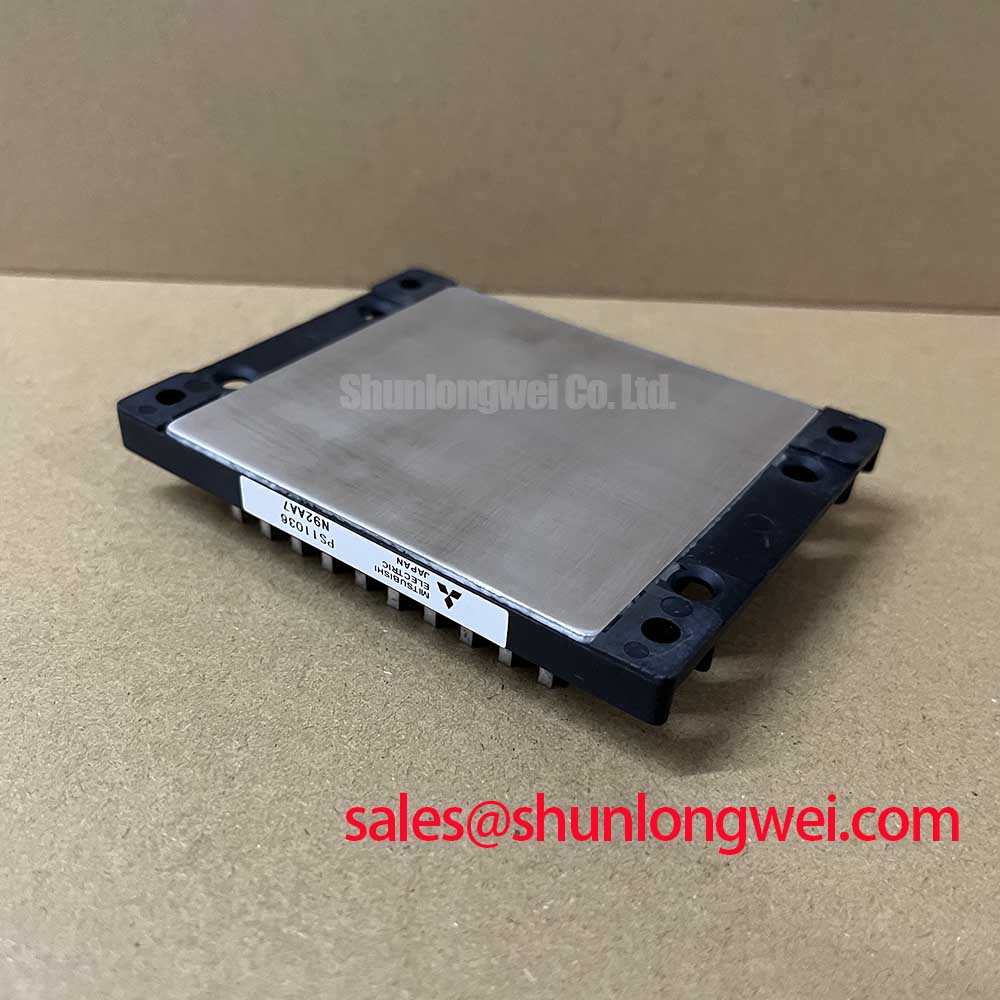

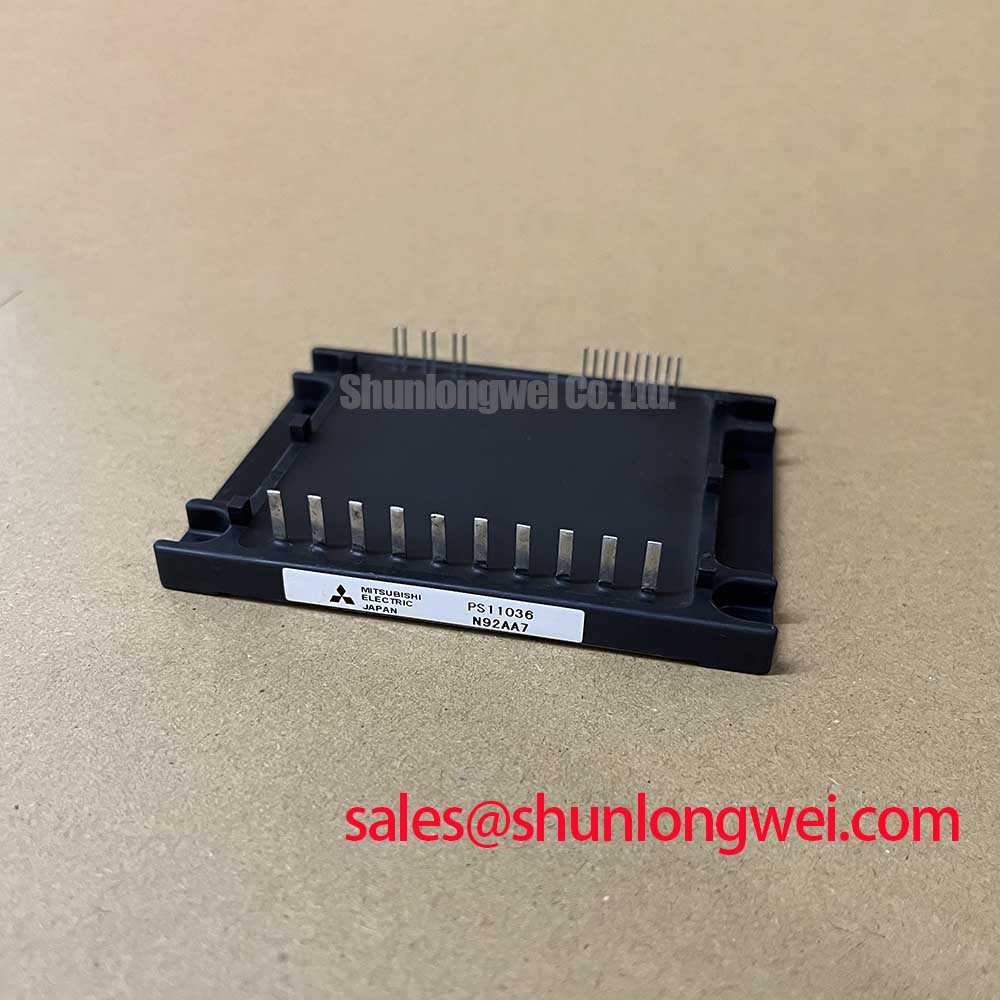

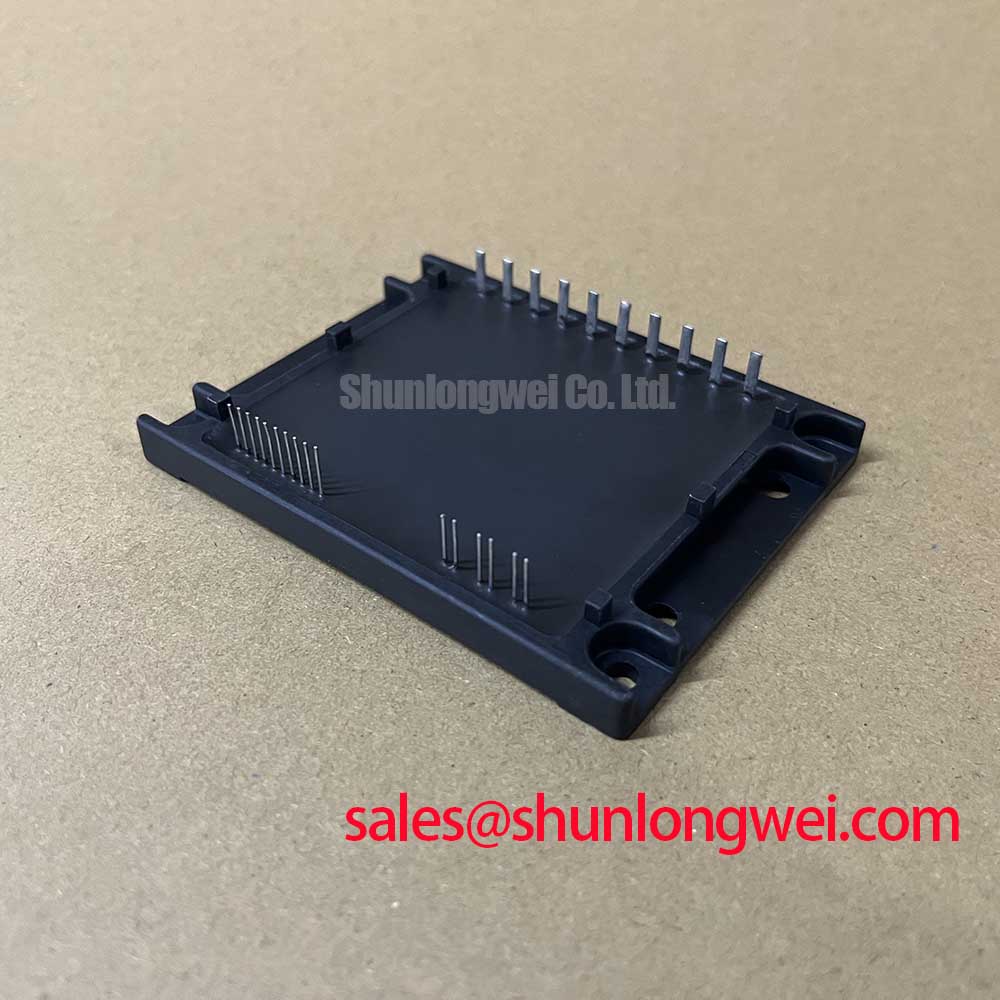

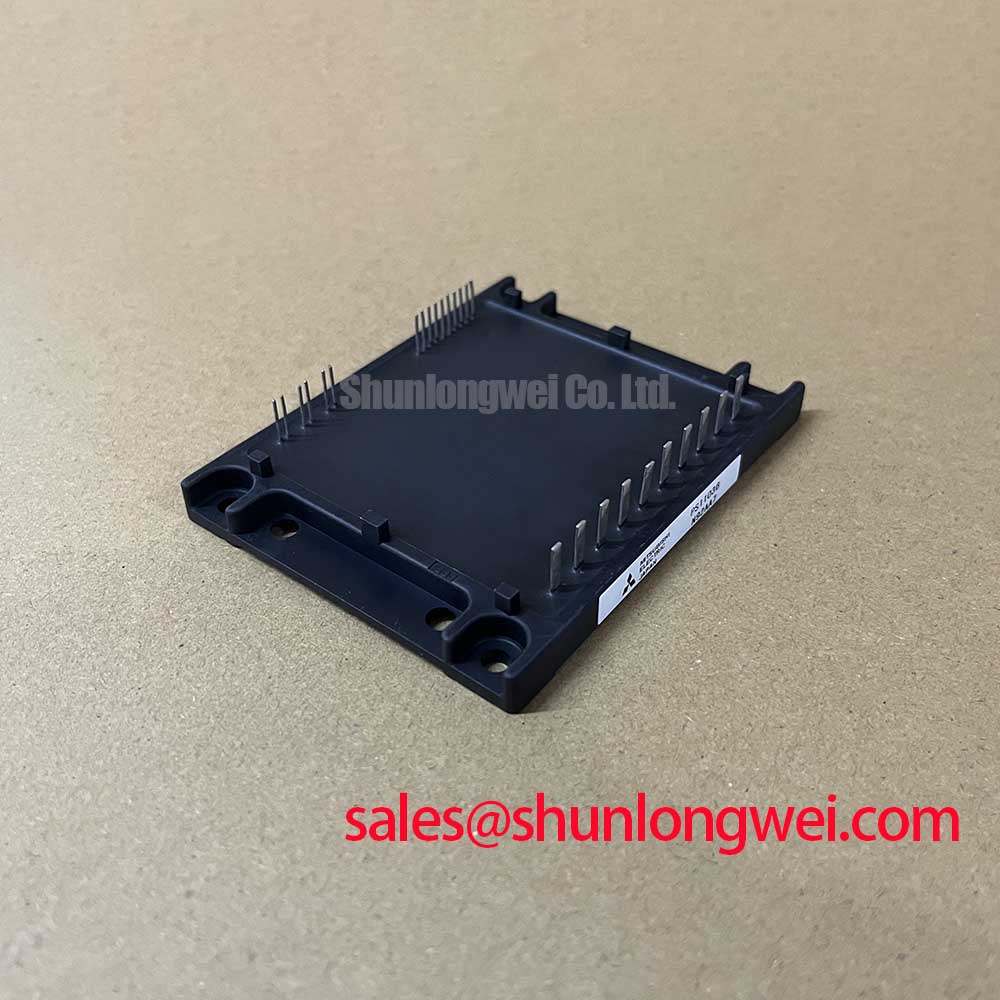

MITSUBISHI PS11036 IGBT Module

INTEGRATED FUNCTIONS AND FEATURES

• Converter bridge for 3 phase AC-to-DC power conversion.

• 3 phase IGBT inverter bridge configured by the latest 3rd.

generation IGBT and diode technology.

• Inverter output current capability IO (Note 1):

(Note 1) : The inverter output current is assumed to be sinusoidal and the peak current value of each of the above loading cases is defined as : IOP = IO × √2, TC < 100°C

INTEGRATED DRIVE, PROTECTION AND SYSTEM CONTROL FUNCTIONS:

• P-Side IGBTs : Drive circuit, high-level-shift circuit, bootstrap circuit supply scheme for Single Control-Power-Source drive, and under voltage (UV) protection.

• N-Side IGBTs : Drive circuit, DC-Link current sense and amplifier circuits for overcurrent protection, control-supply under-voltage

protection (UV), and fault output (FO) signaling circuit.

• Fault Output : N-side IGBT short circuit (SC), over-current (OC), and control supply under-voltage (UV).

• Inverter Analog Current Sense : N-Side IGBT DC-Link Current Sense.

• Input Interface : 5V CMOS/TTL compatible, Schmitt Trigger input, and Arm-Shoot-Through interlock protective function.

Supply voltage VCC 450V

Supply voltage (surge) VCC(surge) 500V

Each IGBT collector current ±Ic(±Icp) ±30 (±60) A

Repetitive peak reverse voltage VRRM 800V

Recommended AC input voltage Ea 220 Vrms

DC output current IO 30A

Surge (non-repetitive) forward current IFSM 300A

Supply voltage VD, VDB –0.5 ~ 20V

Input signal voltage VCIN –0.5 ~ +7.5 V

Fault output current IFO 15mA

INTEGRATED FUNCTIONS AND FEATURES 2.2 kW/200V AC 11.0Arms 16.5Arms
