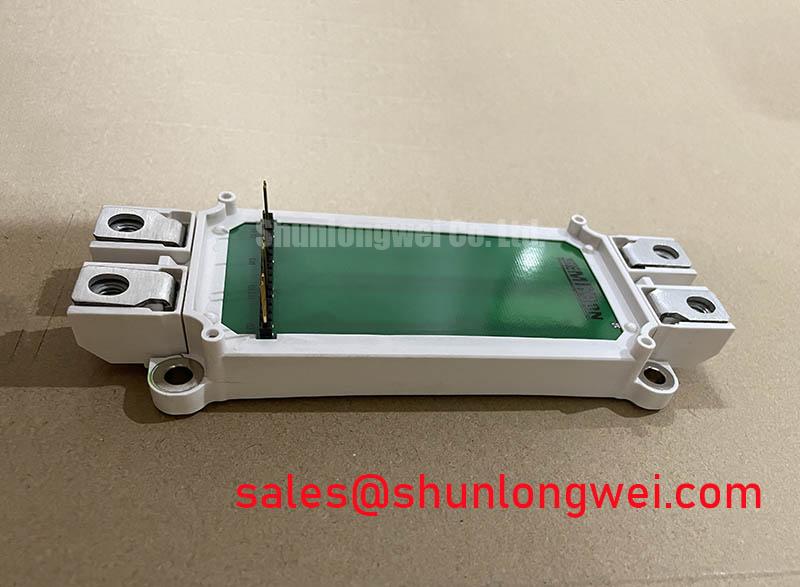

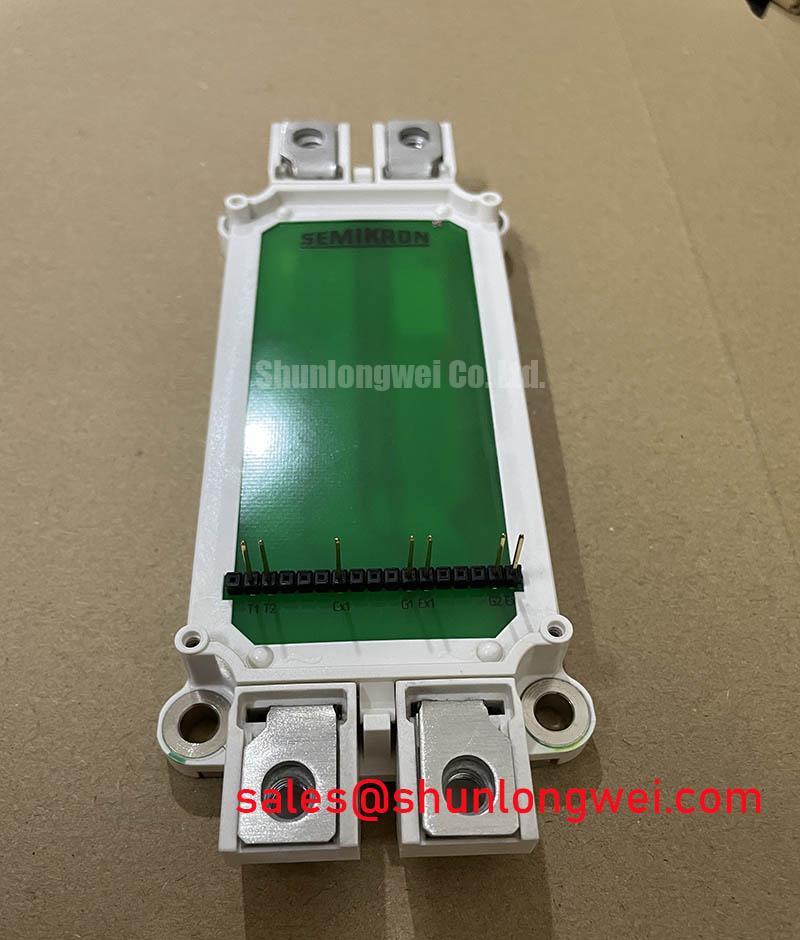

Semikron SEMIX653GB176D | Mastering Efficiency with 3-Level T-NPC Topology
The Semikron SEMIX653GB176D represents a significant leap forward in power conversion engineering, designed for high-voltage applications where efficiency and power quality are non-negotiable. This module leverages a sophisticated 3-level T-type Neutral Point Clamped (T-NPC) topology to deliver superior performance in a compact and reliable package. It's the go-to solution for next-generation solar inverters, large-scale Uninterruptible Power Supplies (UPS), and medium-voltage industrial drives.
Technical Deep Dive: The Power of 3-Level T-NPC
Unlike conventional 2-level inverters that switch between the full positive and negative DC-link rails, the SEMIX653GB176D introduces an intermediate "zero" voltage level. This seemingly simple change has profound implications for system performance.
- Reduced Switching & Conduction Losses: In a T-NPC topology, the high-frequency switching is handled by lower-voltage (e.g., 600V/1200V) IGBTs with significantly lower Vce(sat) and faster switching characteristics. The higher-voltage (1700V) IGBTs only switch at the line frequency. This intelligent division of labor drastically cuts down both switching and conduction losses, directly translating to higher overall system efficiency.
- Improved Output Power Quality: The 3-level output waveform is a closer approximation of a pure sine wave compared to a 2-level output. This reduces harmonic distortion (THD), lessens stress on motor insulation and bearings, and allows for the use of smaller, lighter, and less expensive output filters.
- Enhanced Thermal Performance: By distributing losses more evenly across the silicon and utilizing Semikron's robust SEMiX 3 package, the SEMIX653GB176D ensures excellent heat dissipation. This leads to lower junction temperatures, enhancing the module's reliability and operational lifespan, a critical factor in demanding industrial environments.
Application Scenarios & Value Proposition
The theoretical benefits of the SEMIX653GB176D translate into tangible value across multiple high-power applications:
- Utility-Scale Solar Inverters: In the competitive renewables market, every fraction of a percent in efficiency counts. The low losses of this module maximize the energy harvest (kWh), increasing the return on investment for solar farm operators. Its high power quality also ensures grid code compliance with less complex filtering. For more insights, explore this article on selecting the right IGBT for solar inverter applications.
- Data Center & Industrial UPS: For a data center, electricity is a major operational expense. The high efficiency of the SEMIX653GB176D reduces the energy consumed by the UPS, directly lowering the power bill. Furthermore, its enhanced reliability provides greater peace of mind for mission-critical infrastructure.
- Medium Voltage Drives: The cleaner output voltage from a 3-level topology reduces dv/dt stress on motor windings and minimizes the risk of bearing currents, extending motor life and reducing unscheduled maintenance downtime in industrial automation settings.
Key Technical Parameters
The following table highlights some of the critical specifications for the Semikron SEMIX653GB176D. For a comprehensive list, please refer to the official datasheet.
| Parameter | Value |
|---|---|
| Topology | 3-Level T-Type Neutral Point Clamped (T-NPC) |
| Collector-Emitter Voltage (Vces) | 1700 V |
| DC Collector Current (Ic) @ 80°C | 650 A |
| Total Power Dissipation @ 25°C | 3900 W |
| Vce(sat) (Typical) | 2.15 V |
| Package | SEMiX 3 |
Datasheet Link: SEMIX653GB176D Datasheet
Product Comparison & Selection Guidance
When should you choose the SEMIX653GB176D over a standard 2-level 1700V IGBT module? The decision hinges on your primary design goals.
- Choose a Standard 2-Level Module if: Your primary constraint is upfront cost and control simplicity for applications below ~100kW where top-tier efficiency is not the main driver.
- Choose the SEMIX653GB176D if: Your application demands the highest possible efficiency, superior power quality, and reduced filter size. The initial investment in a more advanced IGBT multilevel inverter module is often quickly offset by lower operating costs and improved system performance, especially in high-power systems (e.g., >100kW) operating at higher switching frequencies.
For designers looking to push the boundaries of power density and efficiency, this 3-level module is the clear choice. If you are working on a new high-efficiency power conversion project, we encourage you to contact our technical team to discuss your specific requirements. You can also explore more IGBT Modules in our portfolio.
