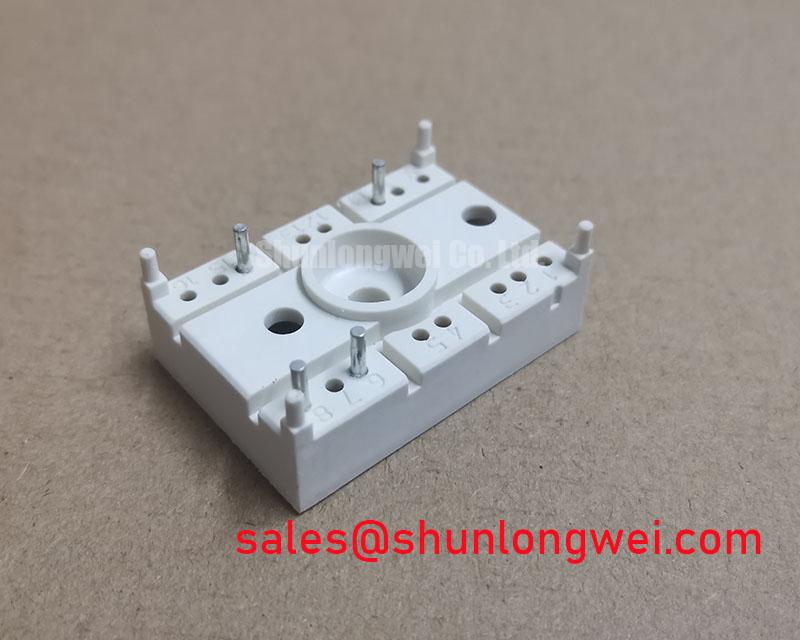

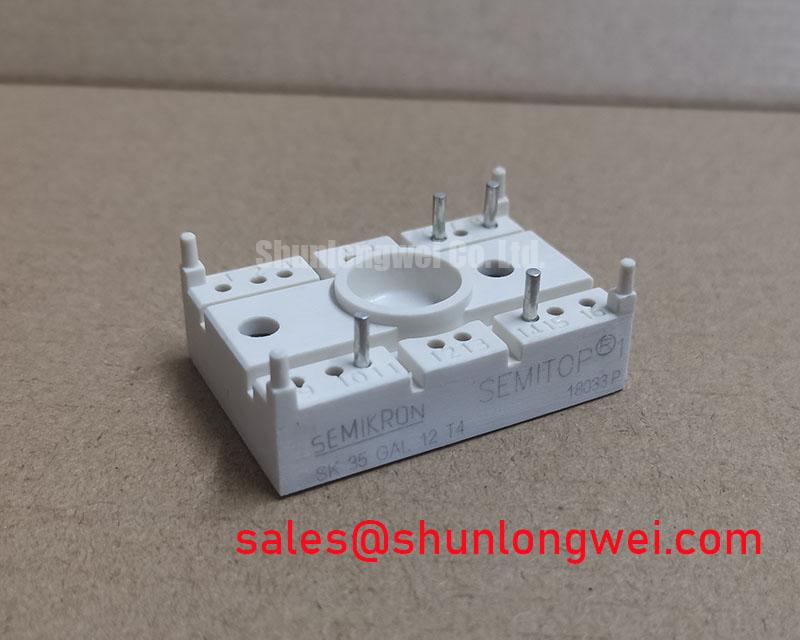

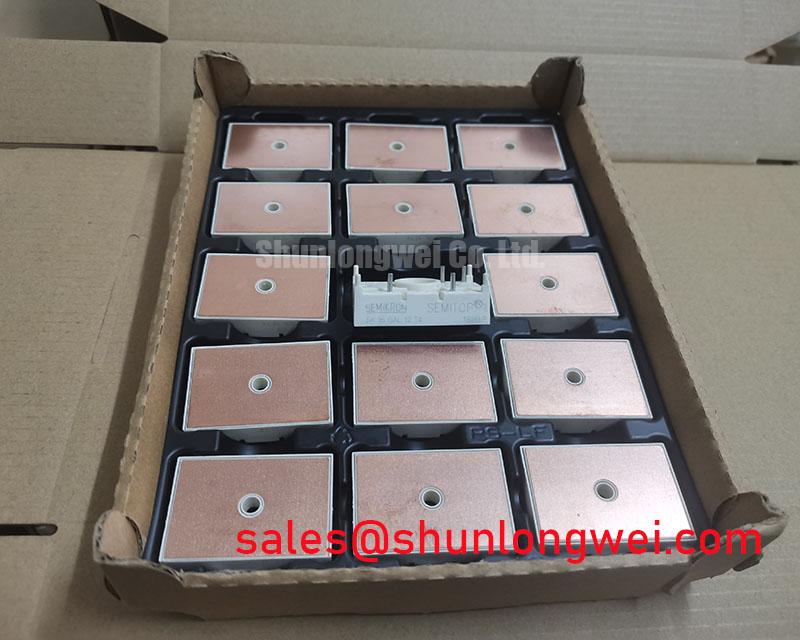

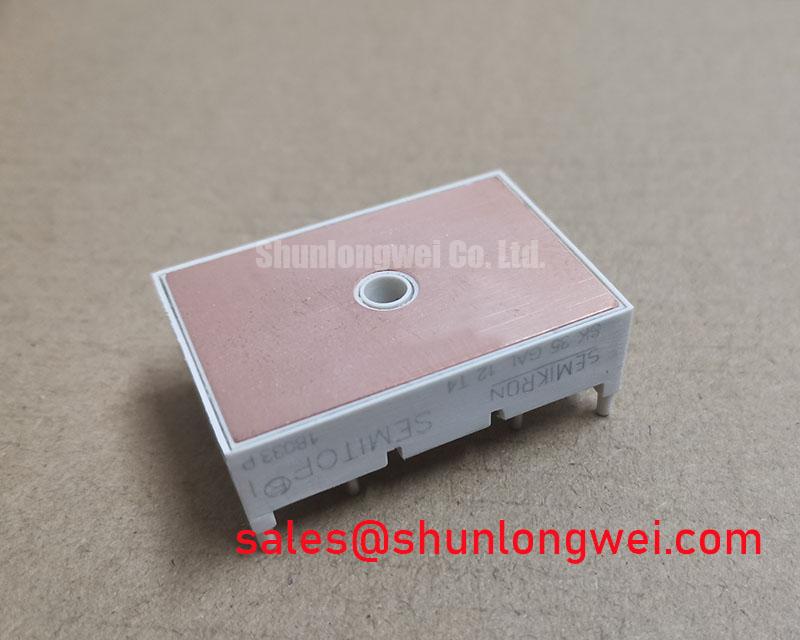

Semikron SK35GAL12T4 IGBT Module

Features

. Compact design

. One screw mounting

. Heat transfer and isolation through direct copper bonded aluminium oxide ceramis(DCB)

. High short circuit capability

. Trench4 IGBT techonlogy

. Cal4F diode technology

. VCE,sat with positive coefficient

Typical Applications*

. Inverter

. Motor drive

VCES Tj=25°C Values 1200V

ICnom 35A

ICRM = 3*ICnom 105 A

Gate-Emitter voltage VGES:±20V

Storage temperature Tj :-40 to +175°C

Visol AC, sinusoidal. t=1 min 2500V
