SKD-60-16 Semikron 600V 601A Bridge Rectifier Module

SKD-60-16 bridge rectifier for grid-tied SVC capacitor systems. Rated 600V and 601A. Request sourcing support from Shunlongwei.

· Categories: Diode Module
· Manufacturer: SEMIKRON
· Price: US$ 22 In-Stock Offer
· Date Code: Please Verify on Quote
. Available Qty: 456
MOQ: 1 PC
Express Shipping
90-Day Warranty
1-2 Days Lead Time
100% Tested
Whatsapp: 0086 189 2465 1869

Content last revised on October 6, 2026

SKD-60-16 Identification and Ratings

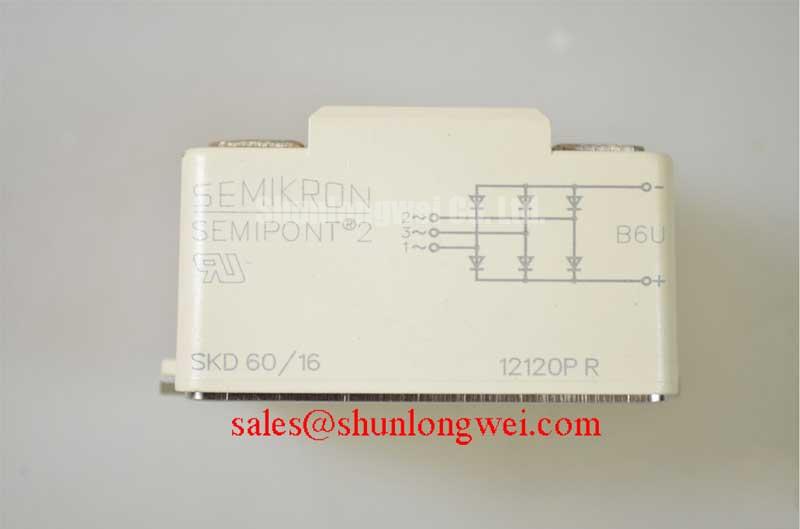

Verify the terminal identification, inspect the Semipont housing for cracks, and confirm the nameplate ratings before connecting SKD-60-16 to a test circuit. SKD-60-16 is a Semikron bridge rectifier module in the 1600 V, 60 A class, housed in a Semipont package. Its ratings should be checked against the equipment schematic and the applicable Semikron documentation before energization.

Benchtop Waveform Tuning: Dynamic Voltage Sharing and RC Damping

SKD-60-16 is specified here as a bridge rectifier module, so its integration differs from a gate-controlled thyristor assembly. A firing-angle control strategy, gate-drive dead time, Miller-platform management, or active gate clamp should not be assigned to this part unless the original circuit documentation identifies an associated controllable semiconductor. For a rectifier input stage, the practical bench task is to examine commutation behavior, reverse-recovery interaction, and voltage transients at the module terminals.

RC damping may be evaluated when measured ringing appears across the rectifier during switching events. The resistor and capacitor values are system-dependent and should be selected from oscilloscope measurements, switching frequency, source impedance, leakage inductance, and capacitor pulse-current capability. A saturable reactor may also be considered in a high-current input path where the system requires controlled current rise, but its behavior must be validated with the complete busbar and transformer arrangement.

Use the manufacturer’s fuse coordination and I2t information when available; the supplied product data does not include a verified coordination table. Do not infer short-circuit withstand from the voltage or current class. Terminal connections, conductor geometry, thermal interface, and mounting hardware should be checked against the original mechanical drawing.

AC Input Protection for Static Var Compensator Assemblies

For a grid-tied static Var compensator or thyristor-switched capacitor cabinet, SKD-60-16 may be evaluated as a rectification-stage component where its electrical topology and ratings match the equipment design. It should not be treated as a direct replacement for a controlled switch without verifying the circuit function, commutation path, and protection sequence.

Primary surge protection can include coordinated spark-gap or MOV stages, subject to the cabinet’s insulation system, prospective fault current, utility environment, and surge-test requirements. IEC 61000-4-5 testing concerns the assembled equipment and its defined ports; it does not establish independent EMC or surge compliance for this module. The engineer should verify clamping voltage, energy capability, temporary overvoltage behavior, and coordination with upstream fusing.

The Semikron-Danfoss power electronics hub and the MiniSKiiP power module information provide useful manufacturer-level context, but the exact electrical limits for this model must come from the applicable product documentation.

Thermal and Short-Circuit Coordination

Start fault evaluation by separating the module’s ratings from cabinet-level protection assumptions. The 1600 V voltage class is an electrical boundary, while the 60 A current class does not by itself define permissible overload duration, surge-current capability, thermal impedance, or repetitive operating conditions. Those values require the model-specific datasheet and test conditions.

Semiconductor fuse selection should be based on the documented I2t relationship, fuse clearing characteristics, available fault current, wiring inductance, and the energy that reaches the rectifier during the clearing interval. If the original equipment includes a coordination table, compare its fuse family and operating class with the replacement assembly rather than substituting a fuse by current label alone. Thermal testing should measure the case or heatsink temperature under the actual airflow, clamping arrangement, duty cycle, and load waveform.

💡 Pro Tip: Disconnect all power sources and verify the DC bus is discharged before removing terminals or touching the rectifier assembly.

Assembly Integrity and Harmonic-Current Layout

In an AC-to-DC front end, firing-angle analysis belongs to a controlled rectifier or thyristor stage, not automatically to SKD-60-16. If this module is installed downstream of a controlled switching section, evaluate the complete topology at each operating point and measure input current, displacement power factor, harmonic content, and DC-bus ripple. The result depends on transformer impedance, line reactor selection, switching sequence, load profile, and capacitor-bank interaction.

Keep high-current paths compact and symmetrical where possible, and route measurement or control wiring away from commutation loops to reduce coupled noise. Designers should verify peak terminal voltage during switching tests against the module’s voltage rating and assess current sharing when parallel paths are used. Dynamic imbalance and unequal busbar resistance can affect parallel operation, so thermal imaging and current-probe measurements are preferable to assumptions based on physical symmetry.

For an application comparison, engineers can review the related SKD82/18 while confirming that voltage, current, package, terminal arrangement, and protection requirements remain compatible. Broader switching-device considerations are discussed in Wide Bandgap Revolution; those principles should not be interpreted as additional specifications for SKD-60-16.
