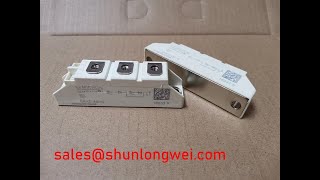

Semikron SKKD 46/12 Rectifier Diode Module: Engineering Reliability in Industrial Power Distribution
The SKKD 46/12 is a robust rectifier diode module designed by Semikron, featuring a dual-diode configuration within the industry-standard SEMIPACK 1 housing. Operating with a repetitive peak reverse voltage of 1200V and a mean forward current of 45A to 46A (at Tc = 85°C), this module is built for the high-duty cycles of industrial environments. By utilizing pressure contact technology and an isolated metal baseplate with aluminum oxide ceramic, the SKKD 46/12 ensures consistent thermal performance and high insulation voltage, making it a staple for line rectifiers and DC power supplies.
Top Specifications: 1200V VRRM | 46A IFAV | 700A IFSM Surge Current
- Enhanced Reliability: Pressure contact technology eliminates solder fatigue, significantly extending the service life under cyclic loads.
- High Thermal Margin: The aluminum oxide ceramic baseplate provides superior heat transfer with a junction-to-case thermal resistance of 0.85 K/W per diode.
What is the primary benefit of its pressure-contact design? It enhances long-term reliability by eliminating solder fatigue under high thermal stress. For industrial power systems prioritizing thermal headroom and mechanical durability, the SKKD 46/12 1200V module provides the necessary stability for 400V and 440V AC line applications.
Application Scenarios & Value
Optimizing Power Stage Reliability in Harsh Industrial Environments
In the design of non-controlled rectifiers for Variable Frequency Drives (VFD) and Servo Drives, the SKKD 46/12 serves as the critical input stage. Engineers facing the challenge of high inrush currents during motor startup rely on the 700A surge current (IFSM at 10ms, 100°C) rating of this module. This high surge capacity acts as a safety buffer, preventing catastrophic diode failure during sudden load transients or grid fluctuations.
The module is frequently integrated into battery chargers and DC power supplies for industrial automation. For systems requiring higher current handling beyond the 46A range, the related SKKD100/12 offers an increased IFAV of 100A while maintaining the same 1200V blocking capability. This allows procurement teams to standardize on the SEMIPACK footprint across different power tiers, simplifying mechanical layouts and heatsink designs. Its compliance with international standards like UL (File No. E 63 532) further streamlines the certification process for exported industrial machinery.
Key Parameter Overview
Technical Specifications and Operational Values
The following table outlines the critical electrical and thermal characteristics of the SKKD 46/12, sourced directly from the manufacturer’s technical documentation.
| Parameter | Value / Specification | Engineering Significance |
|---|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1200V | Safe operation on 400V/480V AC lines with voltage spikes. |
| Mean Forward Current (IFAV) | 46A (at Tc = 85°C) | Defines continuous current capacity for Rectifier Diode Modules. |
| Surge Forward Current (IFSM) | 700A (10ms, 100°C) | Protects the power stage from high startup inrush currents. |
| Forward Voltage (VF) | Max 1.45V (at IF = 150A) | Lower forward voltage reduces conduction losses and heat. |
| Thermal Resistance (Rth(j-c)) | 0.85 K/W (per diode) | Determines heat dissipation efficiency to the heatsink. |
| Isolation Voltage (Visol) | 3000V AC | Ensures safety and electromagnetic compliance in UPS systems. |
Download the SKKD 46/12 datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at Pressure-Contact Design and Thermal Management
The SKKD 46/12 differentiates itself through its internal construction. Unlike lower-tier modules that rely on soldered internal connections, Semikron utilizes a pressure-contact system. Think of this internal contact like a heavy-duty industrial spring-clamp versus a glue joint; the pressure contact remains stable even as materials expand and contract during extreme temperature swings, whereas solder joints can develop micro-cracks over thousands of cycles. This makes the SKKD 46/12 exceptionally "rugged" for applications involving intermittent heavy loads, such as Welding Power Supplies or crane controls.
Thermal management is the heartbeat of power electronics. The junction-to-case thermal resistance (Rth(j-c)) of 0.85 K/W is achieved through a high-performance aluminum oxide ceramic insulator. To visualize this, imagine a wide, multi-lane heat highway that allows thermal energy to move instantly from the semiconductor chip to the cooling baseplate. This efficiency prevents local "hotspots," ensuring that even at the maximum junction temperature of 125°C, the module remains within its Safe Operating Area. For designers, this translates to a smaller heatsink requirement, allowing for higher power density in the cabinet. Further insights into optimizing these thermal paths can be found in our guide on Mastering Thermal Management.
Industry Insights & Strategic Advantage
Supporting the Shift Toward High-Efficiency Industrial Automation
As global industries transition toward Industry 4.0 and more stringent energy efficiency regulations, the demand for reliable power conversion has never been higher. The SKKD 46/12 addresses this by providing a high-voltage blocking 1200V ceiling that is essential for modern grid-connected devices. In renewable energy sectors, specifically in solar inverters and wind turbine auxiliary power units, the SKKD 46/12 is used to rectify AC to DC with minimal switching noise and conduction loss.
Strategic procurement of the SKKD 46/12 also aligns with a "Total Cost of Ownership" (TCO) approach. While discrete components might offer a lower initial bill of materials, the integrated Diode Module reduces assembly time and potential points of failure. The use of an isolated baseplate allows multiple modules—such as the SKKH106/16E or SKKD162/16—to be mounted on a single common heatsink without additional insulation pads, significantly simplifying the thermal design of Solar Inverters and VFDs. This level of integration is a cornerstone of modern high-efficiency power systems.
FAQ
How does the 1200V VRRM rating protect the SKKD 46/12 in 400V AC systems?
In a 400V AC system, the peak line voltage is approximately 565V. A 1200V VRRM provides a 2x safety margin, protecting the diodes from transient overvoltages often found in industrial grids caused by inductive load switching or lightning strikes.
What are the benefits of the SEMIPACK 1 package for space-constrained designs?
The SEMIPACK 1 housing used by the SKKD 46/12 is a compact, standardized footprint. Its screw-terminal layout allows for easy busbar connection, which is essential for maintaining low parasitic inductance in high-speed power conversion stages.
To deepen your understanding of these technologies, consult the semikron technical library for detailed application notes on module paralleling and mounting torque specifications. For engineers comparing different power semiconductor topologies, our resource on IGBT vs. MOSFET vs. BJT provides a comprehensive framework for selection.
