Semikron SKKH 92/12E: High-Reliability 1200V Phase Control in SEMIPACK 1

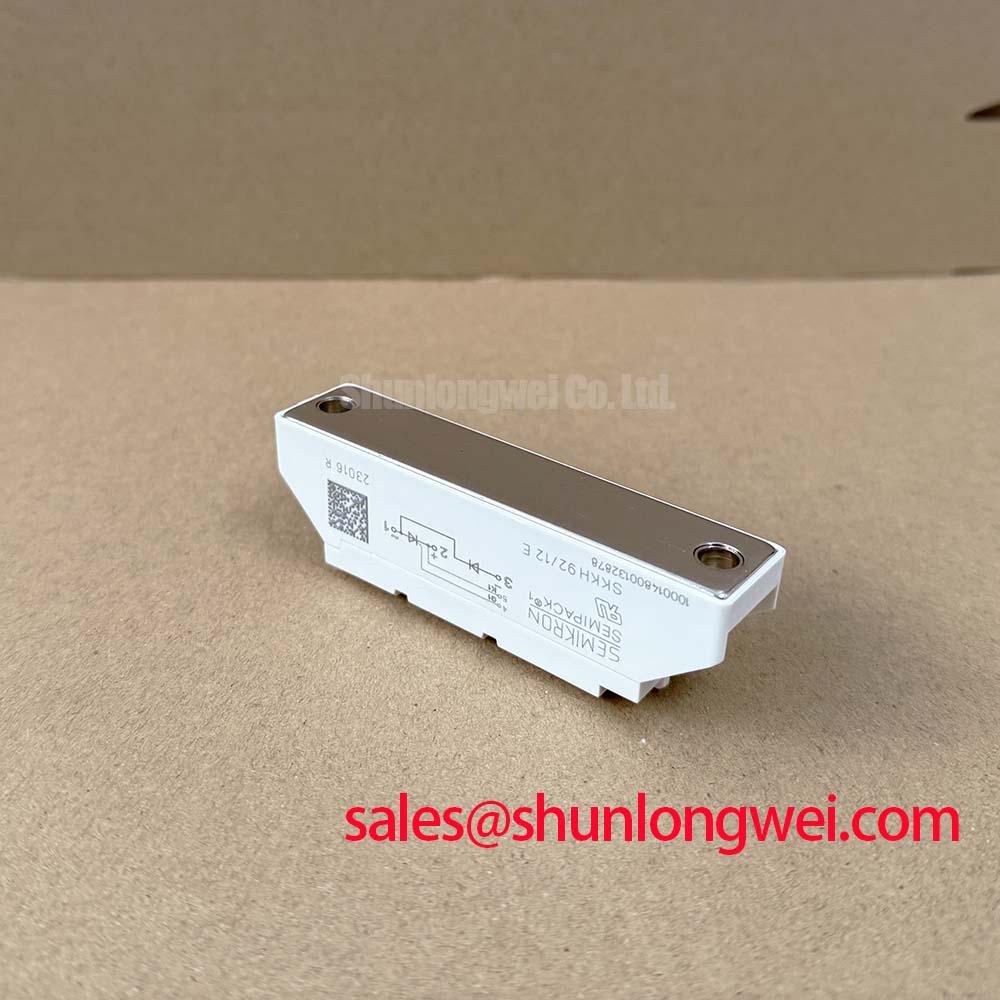

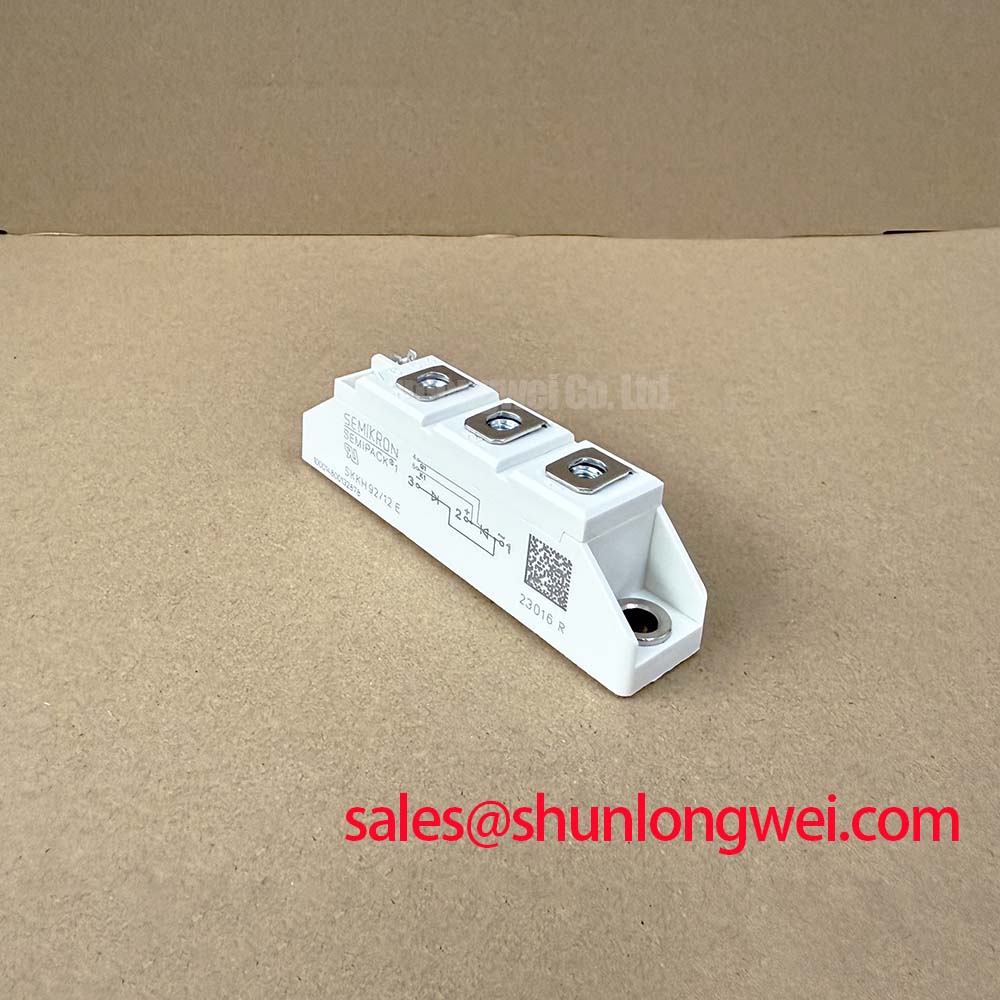

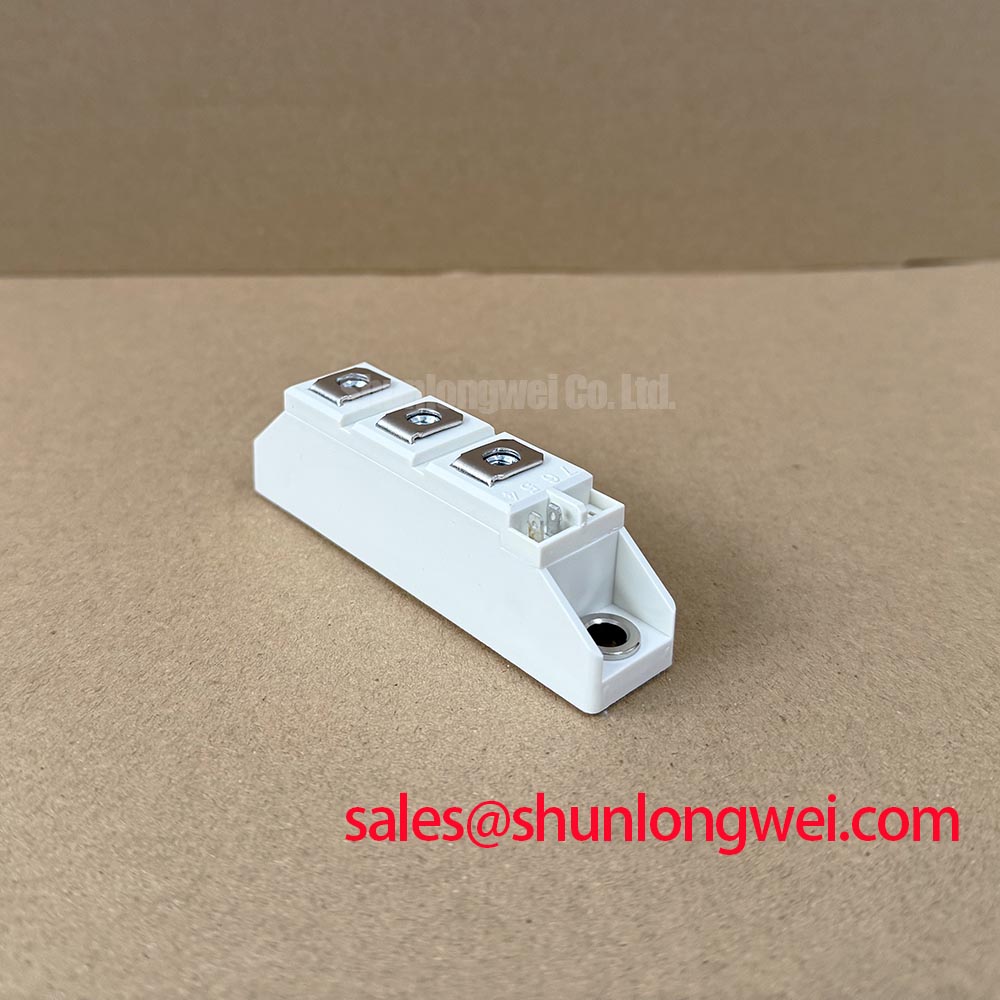

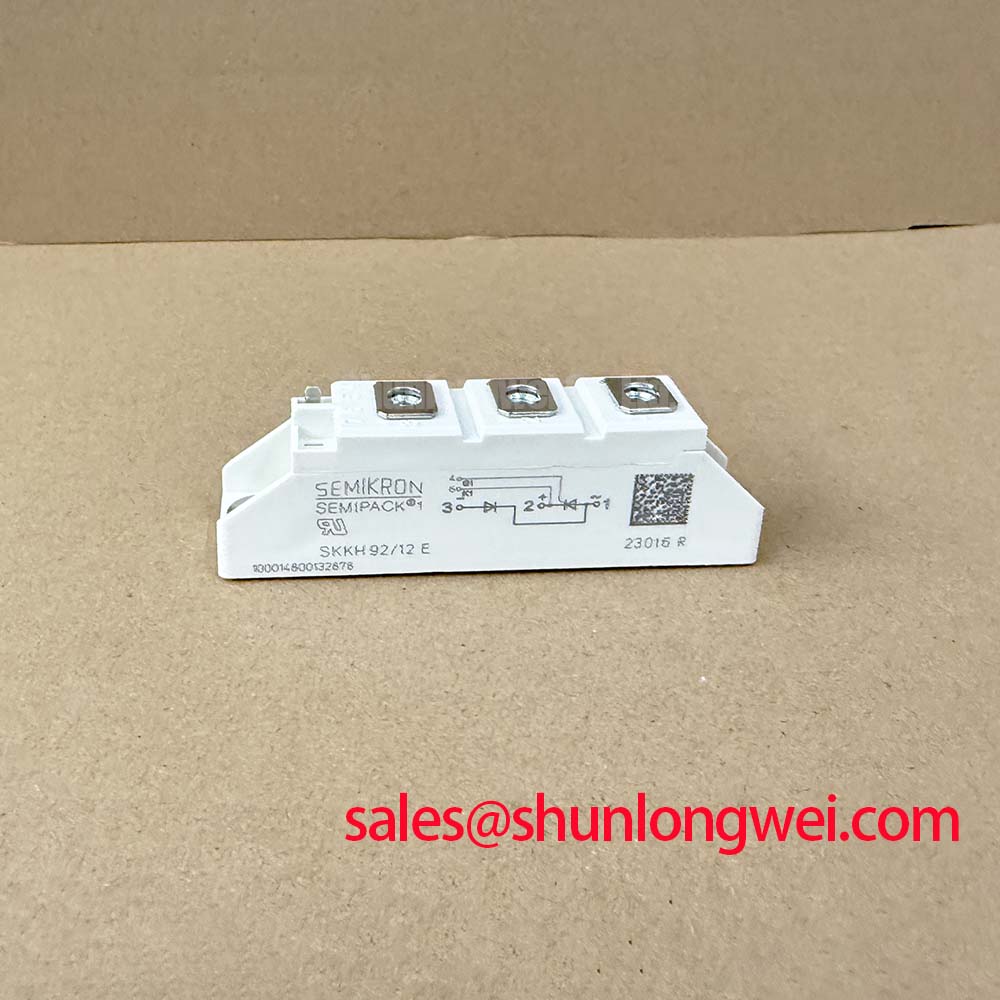

The SKKH 92/12E is a high-performance thyristor/diode module engineered for demanding industrial power applications where thermal stability and electrical isolation are non-negotiable. Featuring a 1200V repetitive peak off-state voltage and a 95A average on-state current, this module provides the ruggedness required for phase control and rectifying functions in 400V and 480V AC line systems. Designed with a ceramic isolated metal baseplate, it ensures efficient heat dissipation while maintaining a safe 3000V isolation voltage, making it a staple for engineers prioritizing long-term system uptime. For designs requiring higher voltage safety margins in volatile grids, the SKKH 92/16E offers a 1600V rating. What is the primary benefit of its isolated baseplate? It allows multiple modules to be mounted on a single heatsink, significantly reducing the system footprint. For engineers managing 400V industrial grids, the SKKH 92/12E provides the ideal balance of voltage headroom and thermal efficiency.
Application Scenarios & Value
Optimizing Thermal Efficiency in Professional Power Conversion
The SKKH 92/12E excels in environments where cyclic loading and high thermal stress are common. In soft starter applications, the module handles the high inrush currents typical of large induction motors. By utilizing its 95A current handling at Tc = 85°C, engineers can design more compact starters without risking thermal runaway. A specific challenge in industrial conveyor systems is the heat generated during frequent start-stop cycles; the SKKH 92/12E solves this through its hard-soldered joints, which offer superior power cycling capability compared to standard consumer-grade components.
Key application areas include:
- DC Motor Drives: Precise phase control for speed and torque management.
- Temperature Controllers: Reliable switching for high-power industrial heating elements.
- Professional Welding Equipment: Stable current rectification for consistent arc performance.
- Battery Chargers: Robust input rectification for high-capacity industrial charging stations.
In systems requiring even more precise control over the entire bridge, the related SKKT106/12E dual thyristor module provides a symmetrical switching alternative. These solutions often work in tandem with advanced gate drivers such as the SKHI 24 R to ensure synchronized timing and protection.
Key Parameter Overview
High-Visibility Specifications for Engineering Precision
The following table outlines the critical electrical and thermal boundaries of the SKKH 92/12E. These values are essential for calculating thermal margins and selecting appropriate gate drive circuitry.
| Parameter | Symbol | Value (Unit) | Engineering Significance |
|---|---|---|---|
| Max. Repetitive Peak Voltage | V_DRM / V_RRM | 1200 V | Provides a 2.5x margin for standard 400V AC lines. |
| Average On-state Current | I_TAV (85°C) | 95 A | Continuous current capability at high case temperatures. |
| Surge On-state Current | I_TSM (10ms) | 2000 A | Ability to survive temporary fault currents or motor inrush. |
| Isolation Voltage | V_isol (1 min) | 3000 V~ | Ensures safety and compliance with international standards. |
| Thermal Resistance | Rth(j-c) | 0.28 K/W | Critical for determining heatsink size and cooling requirements. |
Download the SKKH 92/12E datasheet for detailed specifications and performance curves.
Series Comparison & Positioning
Strategic Selection Within the SEMIPACK 1 Portfolio
When assessing the SKKH 92/12E, it is important to understand its position within the Semikron SEMIPACK 1 series. Unlike the SKKT series, which features two thyristors, the SKKH configuration (one thyristor and one diode) is optimized for half-controlled bridge designs or as the switching leg in specialized AC controllers. This hybrid configuration reduces the complexity of the gate drive system, as only one thyristor requires a trigger pulse per module. While the SKKH 92/12E handles 95A, engineers looking for a slight step up in current capacity for increased thermal overhead might consider the SKKH106/16E, which shares the same physical footprint, allowing for modular power scaling without mechanical redesign.
Industry Insights & Strategic Advantage
Enhancing Power Quality in the Era of Industrial 4.0
As industrial automation shifts toward higher efficiency and tighter control, the reliability of power semiconductors like the SKKH 92/12E becomes a cornerstone of TCO (Total Cost of Ownership). Modern Variable Frequency Drives (VFD) and soft starters must comply with stringent IEC 61800-3 EMC standards. The low electromagnetic interference profile of the SKKH 92/12E, combined with its high dv/dt immunity, ensures that it does not introduce noise into sensitive control logic or communication buses. Strategically, moving to a module with 1200V isolation rather than 600V or 800V variants safeguards the equipment against grid transients and voltage spikes, which are becoming more frequent as renewable energy sources introduce variability into industrial power networks.
FAQ
How does the Rth(j-c) of 0.28 K/W directly impact heatsink selection?
The thermal resistance of 0.28 K/W acts like an "express highway" for heat moving from the junction to the case. A lower Rth means the junction stays cooler for a given amount of power loss. For the SKKH 92/12E, this relatively low value allows engineers to use smaller heatsinks or less aggressive airflow, directly increasing the power density of the overall inverter or controller design.
Is the 1200V rating sufficient for 480V AC line applications?
Yes. In 480V systems, the peak voltage is approximately 678V. A 1200V rating provides nearly double the peak voltage margin, protecting the SKKH 92/12E against standard switching surges and common grid fluctuations.
What is the advantage of the aluminum oxide ceramic isolation used in this module?
Aluminum oxide provides an excellent combination of high electrical insulation (supporting the 3000V isolation rating) and high thermal conductivity. This ensures that the module remains electrically safe while efficiently transferring heat to the baseplate.
Does this module require a specific gate trigger current (I_GT)?
According to standard Semikron specifications for this series, the SKKH 92/12E typically requires an I_GT of approximately 150mA at 25°C. Engineers should ensure the gate drive circuit can provide a sharp, clean pulse to ensure simultaneous turn-on and prevent localized heating on the silicon die.
Can the SKKH 92/12E be used in parallel for higher current applications?
While possible, IGBT Paralleling or thyristor paralleling requires careful matching of forward voltage drops and symmetrical cabling to prevent current hogging. For currents significantly exceeding 95A, it is generally recommended to select a larger module from the SEMIPACK 2 or SEMIPACK 3 series to ensure long-term reliability.
For organizations looking to future-proof their industrial drives, the SKKH 92/12E represents a high-reliability choice that balances thermal management with electrical robustness. By selecting a module with proven SEMIPACK 1 heritage, designers ensure their power stages can withstand the rigors of the modern factory floor while maintaining compliance with global safety standards.
