SKKT122-16E Input Surge Protection and Rating Verification
With the power isolated, compare the SKKT122-16E terminal markings and mounting footprint against the equipment drawing before reconnecting the phase conductors. This Semikron SEMIPACK device belongs to a thyristor module product line; the Semikron SEMIPACK thyristor and diode module information provides product-line context, not a substitute for the exact part datasheet.
Do not treat unverified voltage and current figures as factory ratings for this part. Before sizing protection or approving a replacement, obtain the manufacturer document matching the full order code and confirm its repetitive blocking voltage, average current rating, specified cooling conditions and terminal diagram. A current figure without its case-temperature and conduction conditions cannot establish usable capacity in a cabinet.
As a Design Consideration, review the input spark gap, metal oxide varistor and RC snubber as a coordinated protection path rather than independent additions. Compare measured surge exposure and snubber waveforms with the confirmed thyristor blocking limit. IEC 61000-4-5 concerns surge immunity testing at equipment level; it does not certify this module by itself. The final protective-device selection belongs to the equipment designer and requires testing in the installed circuit.
SKKT122-16E Short-Circuit and Fuse Coordination Limits
Pull the existing semiconductor fuse part number and its clearing data before selecting a replacement module. The relevant comparison is between the fuse manufacturer’s total clearing I²t under the available fault conditions and the SKKT122-16E’s confirmed non-repetitive surge and I²t limits at the applicable initial junction temperature. No fuse coordination table or module I²t rating is provided here, so a numeric coordination result would be speculative. Even a satisfactory calculation cannot guarantee that a dead short causes no enclosure or equipment damage.
Inspect the fault path as well as the ratings: verify phase connections against the original schematic, check whether a contactor bypasses the thyristors during normal running, and examine busbar joints for heating or looseness. ⚡ Safety Interlock Note: Isolate and discharge the equipment before disconnecting gate leads or phase terminals. A cold resistance check can reveal an obvious short, but it cannot establish blocking performance at operating voltage or prove that a gate circuit is intact.
For an alternate device such as the SKKD81/14, compare the actual circuit function, terminal arrangement, cooling interface and manufacturer ratings first; its different model designation is not evidence of drop-in compatibility. For broader discussion of voltage and switching margins, The Ultimate IGBT Knowledge Base is background reading, not a source of SKKT122-16E thyristor limits.
Benchtop Gate-Trigger Checks for SKKT122-16E
Probe the gate pulse and the corresponding phase current together during controlled commissioning. A commanded pulse that appears at the controller output but not at the module terminal points toward the intervening driver, wiring or connector; a pulse present at the terminal still does not prove that the thyristor has latched. Compare the trace with the original equipment waveform and the manufacturer’s gate-trigger requirements at the tested temperature.
Gate trigger current, gate trigger voltage and latching behavior matter when a soft starter fires late in a mains half-cycle, when the available anode current is changing quickly. A Design Consideration is to assess whether the installed driver’s pulse duration and any pulse train sustain reliable firing across the intended operating range. Do not adopt a specified pulse-rise target or holding-current setting without the applicable module and driver documentation. The Semikron bare-die technology information describes separate semiconductor technologies and should not be used to infer the internal construction or gate specifications of this module.
SKKT122-16E Mounting and Soft-Starter Commissioning

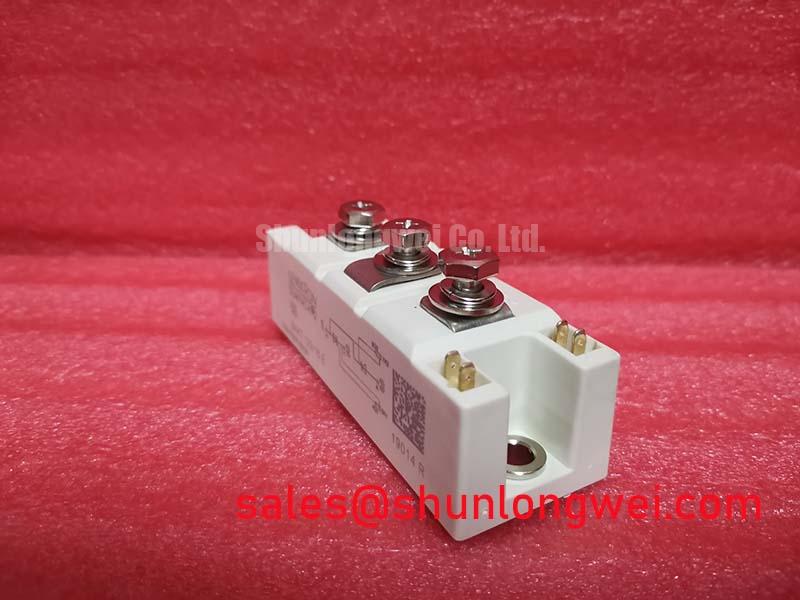

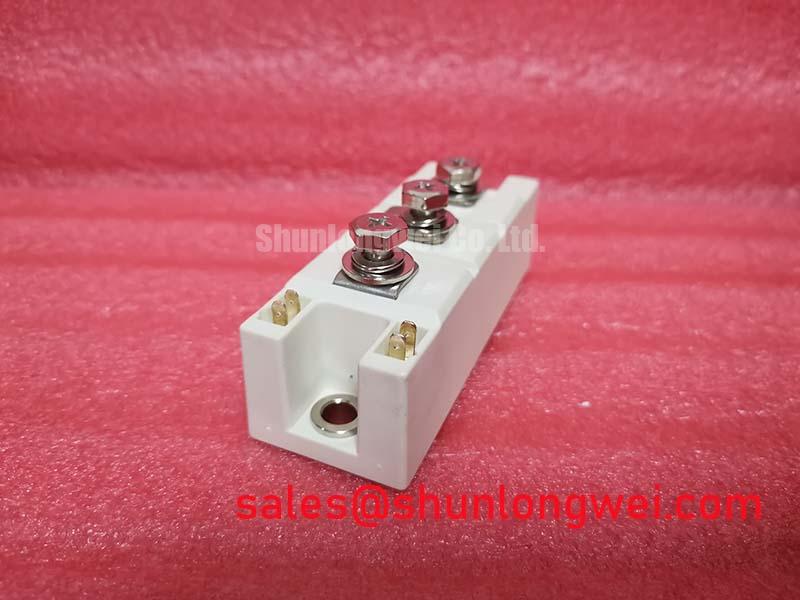

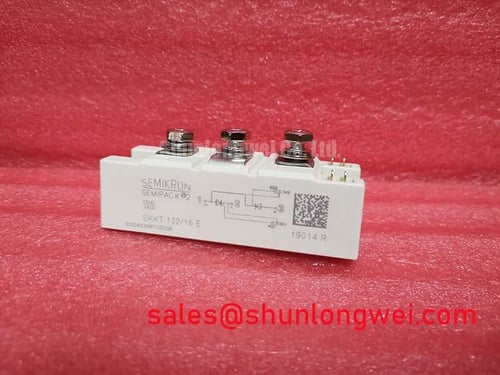

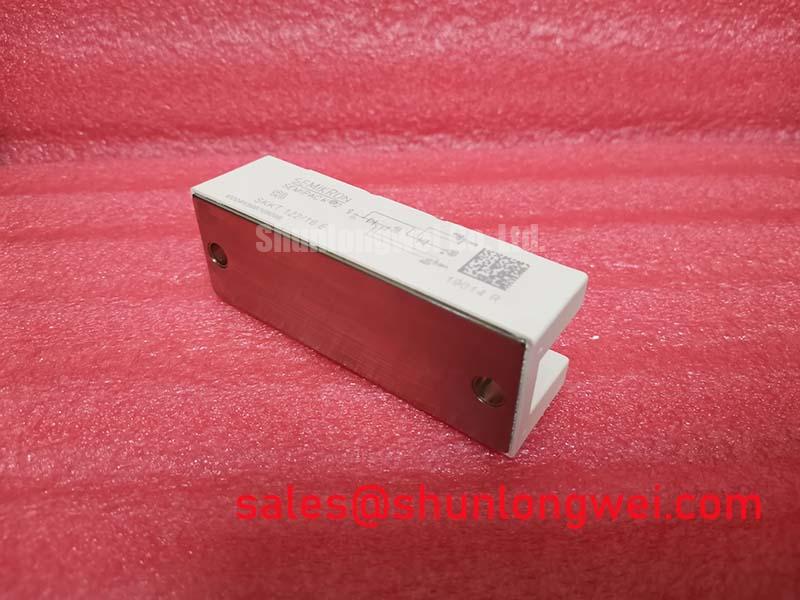

Seat the SEMIPACK base on a clean, flat heatsink and follow the matching manufacturer drawing for fastener sequence and torque. Inspect the thermal interface for complete, even contact rather than prescribing an unverified grease thickness or bolt setting. Record the original gate and power-terminal positions before removal, then confirm that the installed wiring follows the device-specific connection diagram. These checks are especially important when evaluating the part for a three-phase motor solid-state soft starter.
During a controlled start, capture phase currents, line voltage and acceleration behavior together. Phase-angle control can reduce applied motor voltage during acceleration, but the resulting starting current and torque depend on the motor, load and controller settings; no fixed reduction can be promised for this module. As an Engineering Recommendation, adjust the firing profile against measured motor acceleration while checking current imbalance and supply waveform distortion. 💡 Pro Tip: Keep phase power paths comparable so measured asymmetry can be assessed against gate timing and motor conditions rather than avoidable connection differences.
If a phase fails to conduct consistently, compare its gate waveform, terminal connections and current trace with the other phases before attributing the symptom to the module. Recheck heatsink contact and the confirmed electrical ratings before returning the starter to its normal duty cycle.
