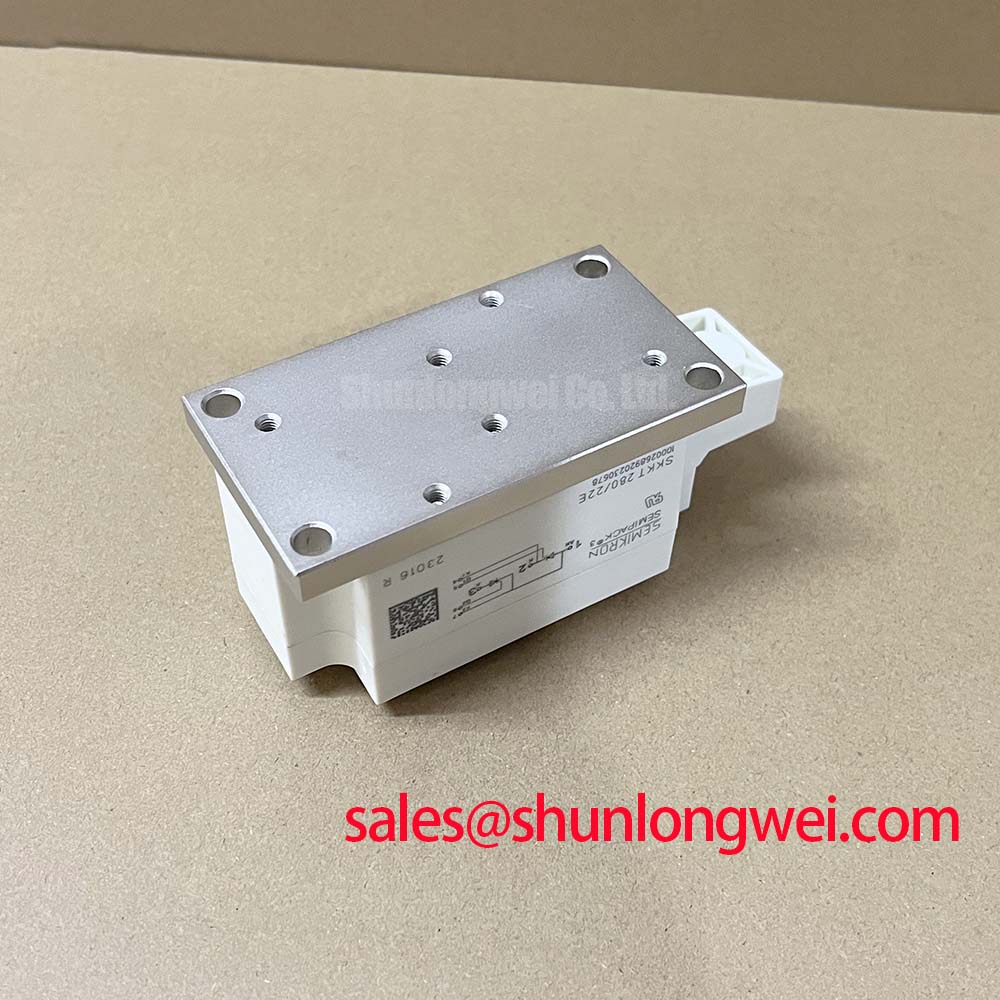

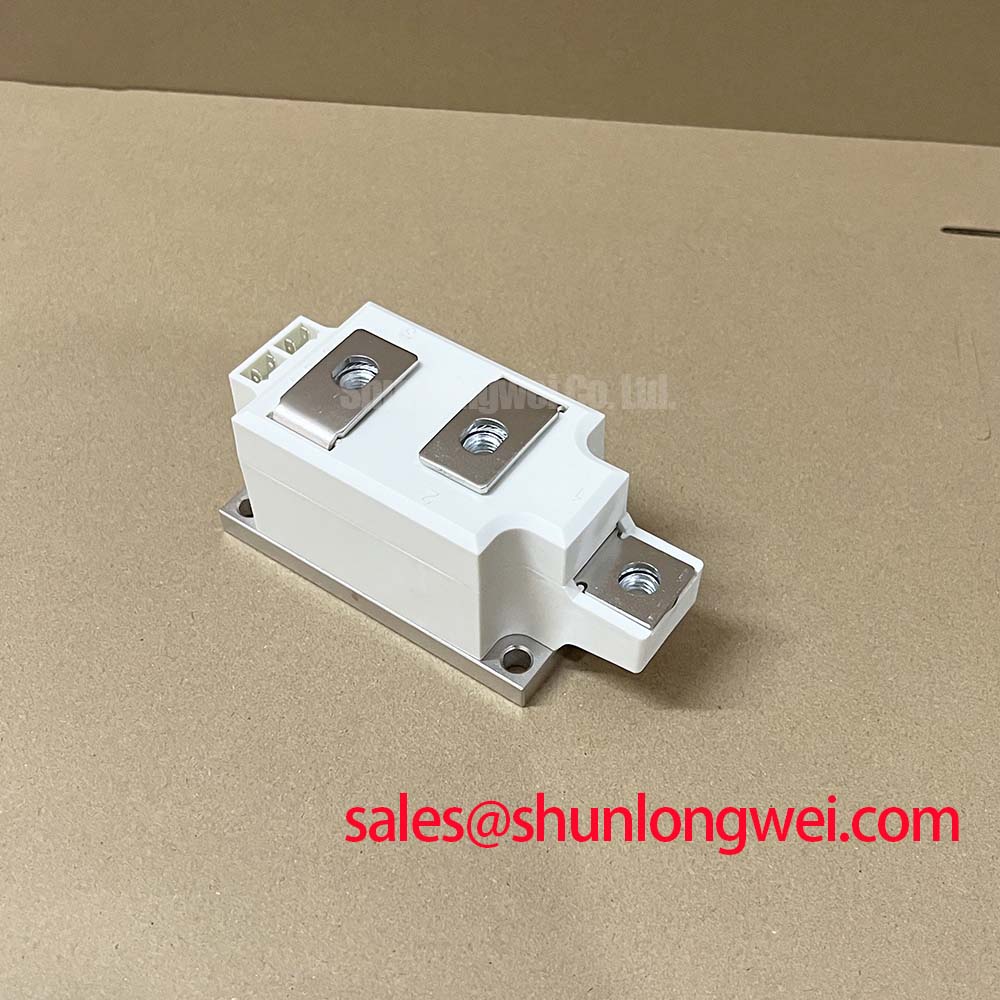

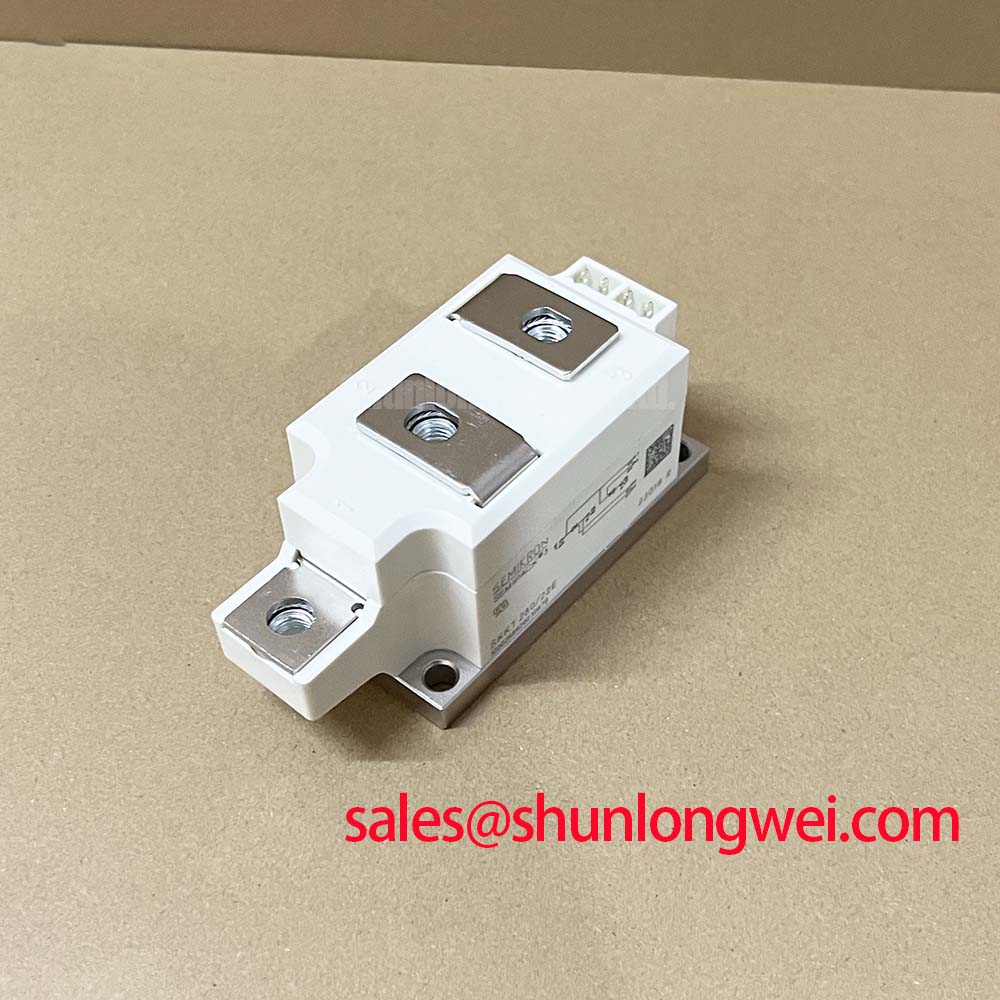

Semikron SKKT280/22E Thyristor Module | Robust High-Current AC Power Control

The Semikron **SKKT280/22E** is an industrial-grade dual thyristor module engineered for high-reliability power control in demanding applications. Far from being just a simple switch, this component is the cornerstone for building efficient and durable AC controllers, soft starters, and controlled rectifiers. It combines two series-connected thyristors (SCRs) in a single, isolated package, simplifying thermal management and mechanical assembly while delivering precise, high-current handling.

• Brand: Semikron
• Model: SKKT280/22E
• Core Function: Dual Thyristor (SCR) Module
• Key Benefit: Provides robust, phase-angle control for AC loads up to 280A and blocks voltages up to 2200V, ensuring operational stability under harsh electrical conditions.
• Typical Applications: Motor Soft Starters, AC Voltage Controllers, Controlled Rectifiers, Industrial Heating Controls.

Technical Deep Dive: What Drives the SKKT280/22E's Performance

Two core technologies set the **SKKT280/22E** apart, contributing directly to its longevity and electrical ruggedness. Understanding these is key to appreciating its value in your system.

• Glass Passivated Thyristor Chips

  The Principle: Each silicon thyristor junction within the module is protected by a hermetic layer of hard glass. This glass passivation process seals the sensitive semiconductor surface from ambient humidity, dust, and other contaminants that can cause performance degradation and premature failure over time.

  Application Value: For engineers and system operators, this translates to exceptional long-term stability and reliability. The module maintains its high voltage blocking capability (VDRM/VRRM) even after years of service in challenging industrial environments, reducing maintenance cycles and improving the overall uptime of your equipment.

• Isolated Copper Baseplate with DBC Technology

  The Principle: The module utilizes a Direct Bonded Copper (DBC) substrate. This structure consists of a ceramic insulator (Al2O3) directly bonded to a copper baseplate without any adhesive layers. This provides both excellent thermal transfer and high electrical isolation.

  Application Value: This design directly addresses two major pain points: heat and electrical safety. The superior thermal path allows heat generated during conduction to be efficiently transferred to a heatsink, keeping the junctions cooler and extending the module's life. The built-in 3600V isolation simplifies mounting, eliminates the need for messy and less-effective thermal pads, and ensures the safety of the overall system.

Multi-dimensional Application Scenarios

The true value of the **SKKT280/22E** is realized when its features are applied to solve specific industrial challenges.

• Industrial Motor Soft Starters: By using the module for phase-angle control, you can gently ramp up voltage to large AC motors. This prevents the severe mechanical shock and electrical inrush current of direct-on-line starting, drastically reducing wear on gearboxes and couplings and preventing disruptive voltage sags on the power line.
• AC Voltage Controllers for Heating: In applications like industrial furnaces or plastic extrusion, precise temperature is critical. The SKKT280/22E allows for smooth, continuous power regulation to heating elements, offering far superior control and efficiency compared to crude on/off cycling with mechanical contactors. Its back-to-back SCR topology is perfectly suited for this role.
• Controlled Rectifiers for DC Power Supplies: When configured in a single-phase or three-phase bridge, this module enables the creation of variable DC voltage sources. This is essential for applications like large-scale battery charging systems or legacy DC motor drives, where the output must be actively regulated.

Key Technical Specifications

The following parameters are critical for proper integration. For a comprehensive list, always refer to the official datasheet.

Frequently Asked Questions (FAQ)

• What is the main advantage of using a module like the SKKT280/22E instead of two discrete SCRs?
  Efficiency and reliability. A module offers a thermally and electrically matched pair of thyristors, ensuring balanced current sharing. More importantly, it provides a pre-isolated baseplate, which simplifies heatsink mounting, reduces assembly time, and minimizes stray inductance for cleaner switching.
• How critical is the gate drive circuit for this thyristor module?
  It's absolutely critical. Unlike transistors, a thyristor requires a specific current pulse to turn on reliably. Your gate drive circuit must supply the minimum gate current (IGT) and voltage (VGT) specified in the datasheet to ensure the entire silicon chip turns on simultaneously. A weak or slow-rising gate pulse can lead to localized heating and eventual device failure.

This robust module is a key enabler for modernizing and enhancing the reliability of high-power control systems. If your design demands stable, high-current AC power regulation, the Semikron SKKT280/22E is an industry-proven solution. Explore our full range of power semiconductor modules or contact us for a quote and specific application support.
