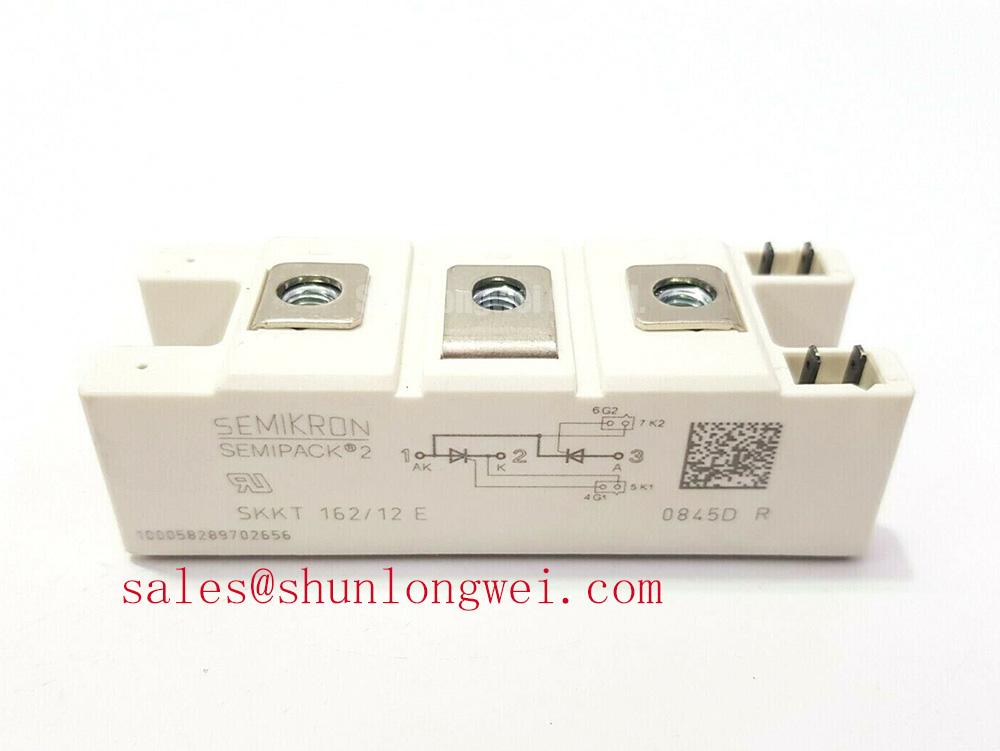

SKKT162-12E Semikron SEMIPACK Thyristor Module

Content last revised on October 1, 2026

Assembly Integrity and Baseplate Contact for SKKT162-12E

Measure cold resistance across the disconnected power terminals and compare each path with the circuit drawing before removing the failed assembly. An unexpectedly low reading calls for isolating the module from parallel components and measuring again; a reading taken in circuit cannot distinguish a module fault from another current path. Check the terminal labels against the equipment wiring rather than relying on the position of the existing leads.

Inspect the heatsink contact area for uneven paste transfer, raised burrs and gaps at the module edges. Junction-to-case thermal resistance describes heat flow within a specified device; it does not establish the quality of an installed heatsink interface. As a Design Consideration, clean the mating surfaces and spread thermal compound evenly so the module seats without distortion. Use the mounting and terminal torque specified for the actual hardware and module revision. ⚠️ Field Alert: Do not reuse a damaged mounting surface or guess a tightening torque when the specified assembly procedure is unavailable.

Confirm the exact package outline, terminal arrangement and circuit configuration before treating a SEMIPACK footprint as interchangeable. Semikron Danfoss describes the product family in its SEMIPACK thyristor and diode module information; family membership alone does not establish an electrical or mechanical match for a particular installation.

Commutation Waveforms and Turn-Off Stress

Probe the voltage across the installed device during a controlled commutation test and look for overshoot or ringing relative to the equipment’s known-good phase. A cold resistance check can screen for a short, but it cannot show whether the operating circuit maintains adequate voltage margin. Capture the waveform at the relevant operating conditions and compare its peak with the verified device rating.

The SKKT162-12E is evaluated as a thyristor module, so IGBT gate concepts such as Miller-platform charge, Kelvin-emitter routing and negative gate-off bias are not appropriate specifications for it. Examine the thyristor firing connections, pulse timing and the current path involved in commutation instead. As a Design Consideration, keeping the commutation loop compact can reduce inductive overshoot; the final layout and any snubber changes depend on measurements in the complete system.

Do not assign diode reverse-recovery figures to this part without a device-specific circuit diagram and datasheet value. Semikron Danfoss discusses diode technologies separately; that information is not an Irrm or trr specification for this module. If a three-phase motor soft starter uses a separate rectifier or another thyristor stage, identify each position on its schematic before comparing it with a different module such as SKKT107/22E.

Semiconductor Fuse Coordination During Fault Repair

Inspect the opened fuse, then check the associated power terminals for a persistent short before fitting a replacement fuse or module. A blown fuse establishes that a fault occurred; it does not by itself establish which device failed first. Examine the affected phase, its firing circuit and the load path before re-energizing.

For fuse selection, compare the fuse manufacturer’s total clearing I²t at the available fault current with the thyristor’s stated non-repetitive surge and I²t limits under their respective test conditions. Those values have not been established here, so no fuse size or guaranteed fault outcome can be inferred from the model name. Check interrupting capability, prospective short-circuit current and coordination with upstream protection as separate system requirements. Fuse coordination can limit damage, but it cannot guarantee that a dead-short event causes no enclosure or component damage.

If the installed part cannot be obtained in the required configuration, SKKD380/12 can be examined as a separate sourcing candidate, not an assumed drop-in replacement. Its device function, circuit arrangement, ratings, footprint and terminal positions all require comparison with the original drawing. For broader operating-context discussion, see industrial power semiconductor applications; service-life claims still require device-specific evidence.

Surge Checks and Spurious Firing in the Installed Circuit

Capture the incoming line transient and thyristor terminal voltage when a nuisance trip or unexpected firing event occurs. Compare the affected phase with an unaffected phase, including the trigger waveform, before attributing the event to surge exposure. Loose terminals, firing-pulse differences and upstream switching events can produce similar symptoms.

IEC 61000-4-5 defines surge-immunity test methods for equipment; it does not certify a standalone SKKT162-12E or prescribe one universal protection circuit. As a Design Consideration, an equipment designer may assess a metal-oxide varistor and an RC snubber where measured transients threaten the verified device voltage limit. Select their ratings from the equipment’s insulation design, supply conditions and measured waveforms, then test the assembled system. For a high-voltage three-phase motor soft starter in particular, verify the actual line and transient voltages against the manufacturer datasheet before evaluating this module for the position.
