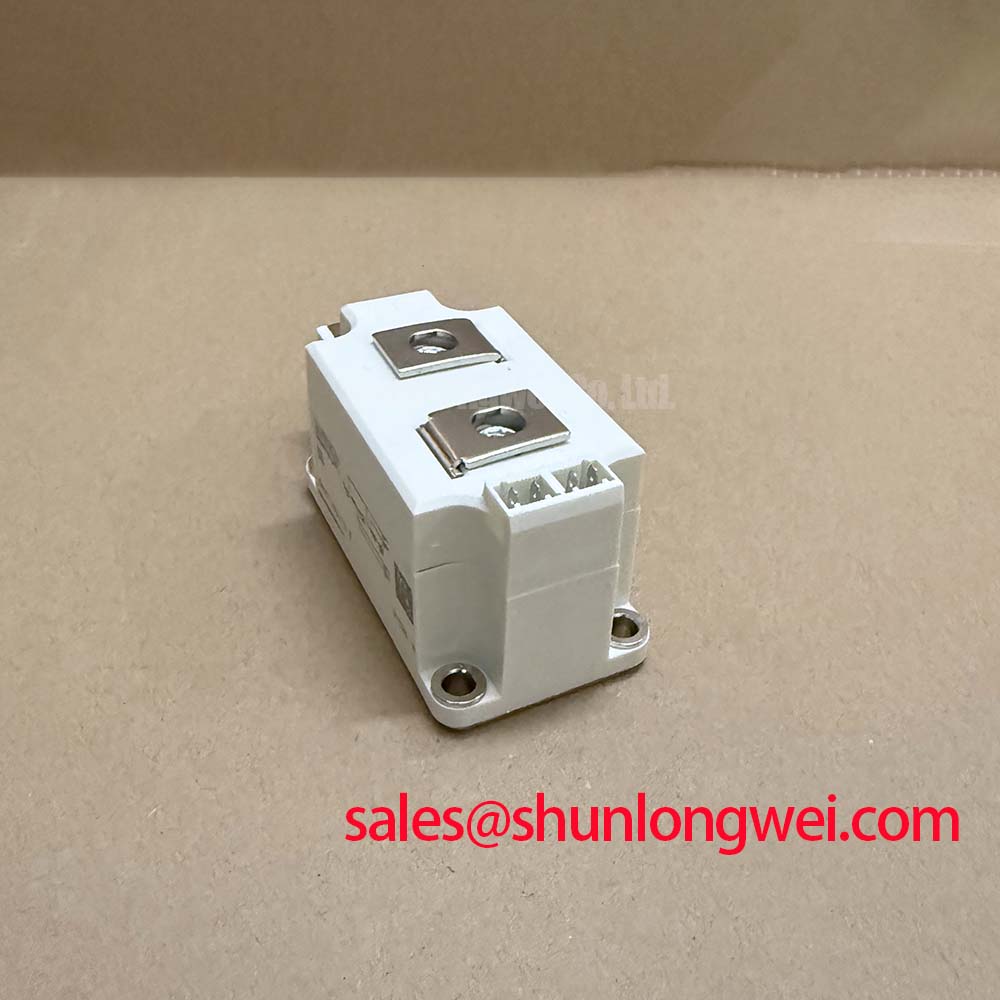

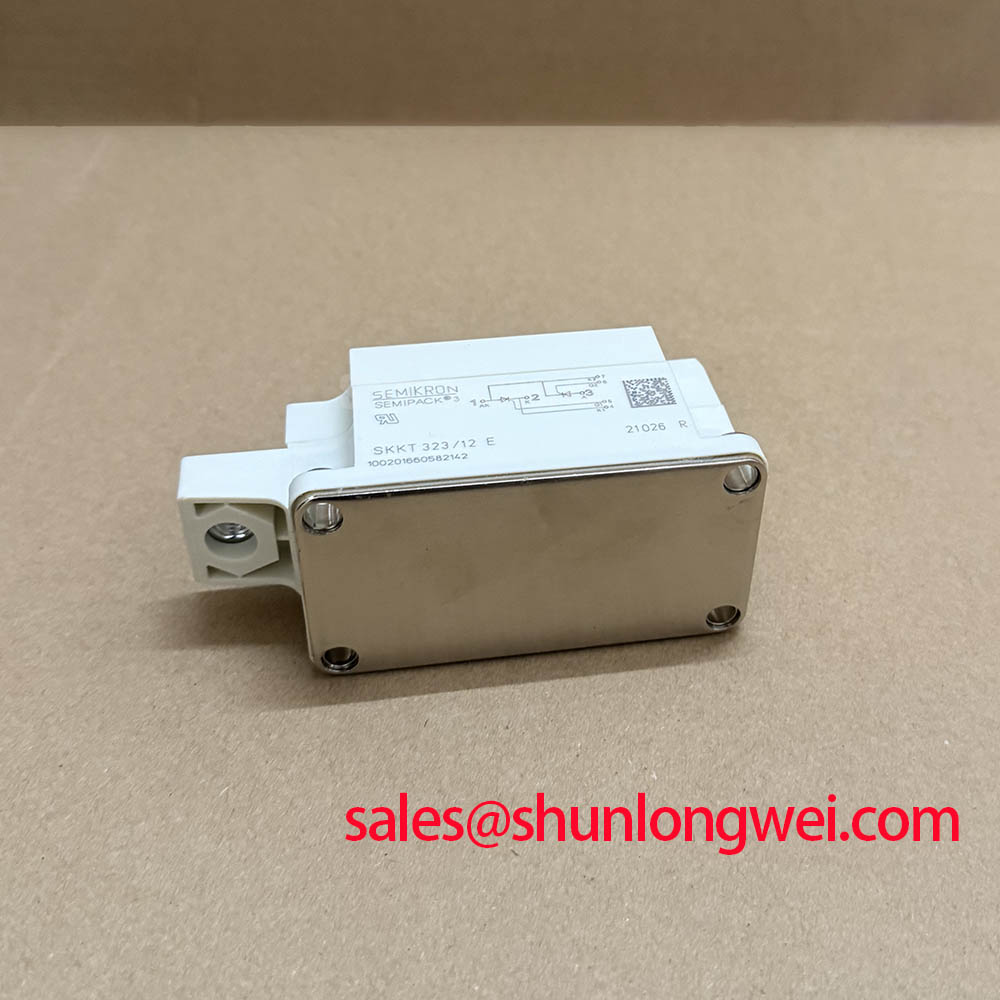

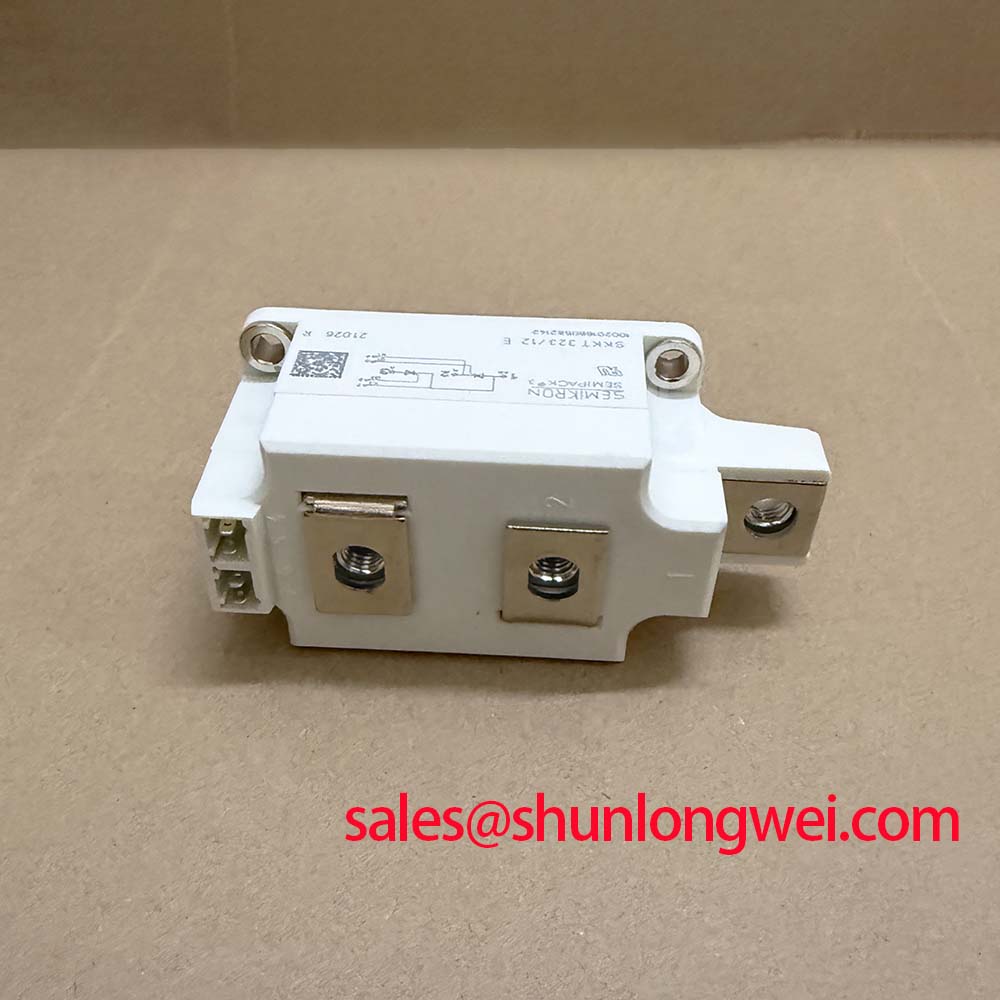

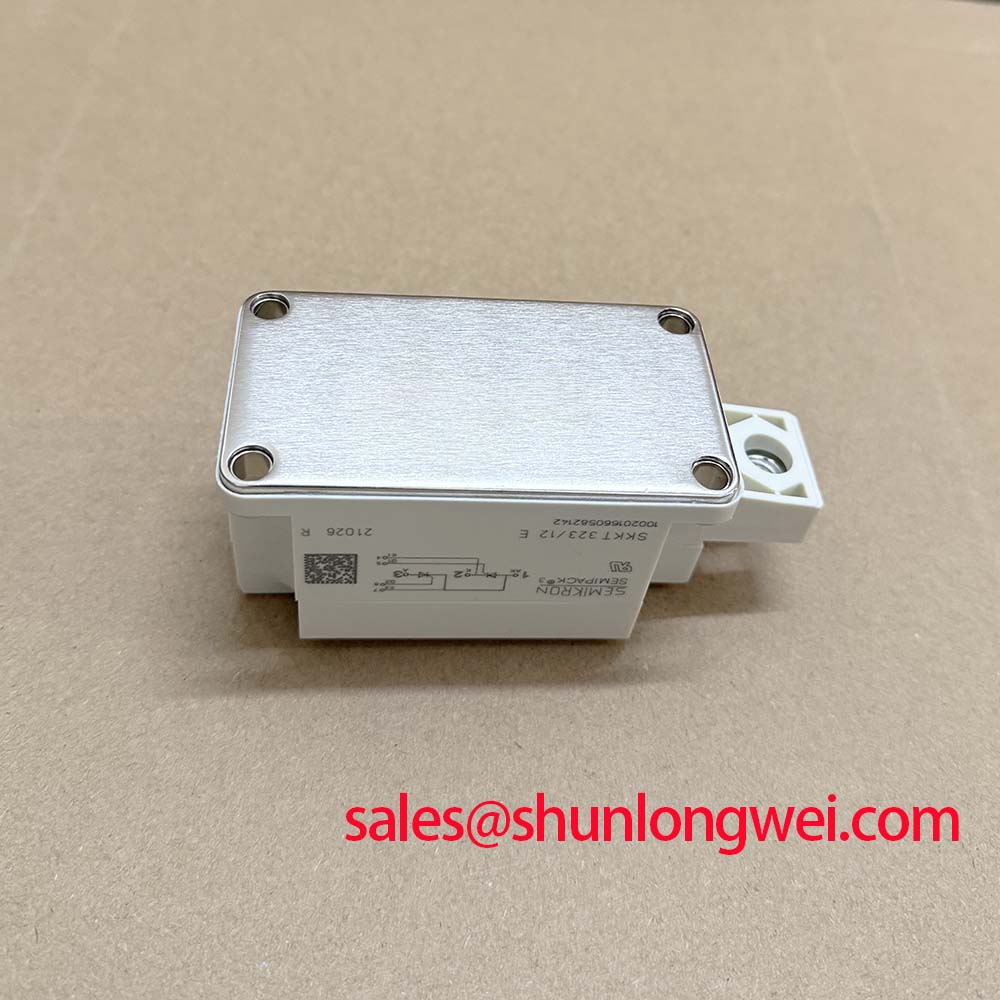

SEMIKRON SKKT 323/12 E | High-Reliability Thyristor Module for Precision Power Control
For engineers designing robust power control systems, the choice of switching component is paramount. While modern high-frequency devices have their place, the SEMIKRON SKKT 323/12 E Thyristor/Diode Module stands as a testament to reliability and performance in line-frequency applications. This is not a component for high-speed PWM; this is a rugged workhorse designed for precise, high-current phase-angle control and rectification where durability and surge survivability are non-negotiable. Its SEMITOP® 3 package offers a compact and efficient solution for controlling substantial power loads in demanding industrial environments.
Engineered for Demanding Industrial Applications
The true value of the SKKT 323/12 E is revealed in its performance within specific, challenging applications. Its design directly addresses the core problems engineers face in power regulation systems.
- DC Motor Control: In applications like machine tool spindles and industrial conveyors, this module provides the backbone for controlled rectifiers. It enables smooth and precise speed and torque regulation of DC motors by accurately managing the rectified voltage, ensuring operational stability and preventing the electrical and mechanical shock associated with direct-on-line starting.
- Industrial Heating & Temperature Control: For process heating, industrial ovens, and chemical reactors, stable temperature is critical. The SKKT 323/12 E allows for exceptionally fine-grained phase-angle control of AC power to heating elements. This eliminates the temperature cycling inherent in simple on/off control, leading to higher product quality and process efficiency.
- AC Soft Starters: The module's high surge current capability (ITSM) makes it ideal for building AC soft starters for large induction motors. By gradually ramping up the voltage, it effectively mitigates damaging inrush currents, reducing stress on both the electrical supply and mechanical components like gearboxes and belts. For a broader view on component choice, understanding the landscape of power semiconductor selection is invaluable.
A Deeper Look at the Engineering Behind the Reliability
The long-term performance of the SEMIKRON SKKT 323/12 E is not accidental; it's a direct result of proven semiconductor technology and intelligent package design.
- Glass Passivated Thyristors: The core of the module features glass passivated thyristor chips. This process creates a hermetic, stable junction seal that dramatically reduces surface leakage currents and enhances long-term voltage blocking stability. In dusty, humid, or fluctuating temperature industrial settings, this is a critical feature that prevents gradual degradation and ensures a long operational life.
- Isolated Copper Baseplate: The module is built on an isolated copper baseplate. This provides excellent thermal conductivity for efficient heat transfer to a heatsink, while also offering high electrical isolation (3600V). This simplifies the overall mechanical design, reduces the need for external insulating materials, and enhances the safety and reliability of the end system.
Key Electrical and Thermal Specifications
Below are the critical parameters for design engineers considering the SKKT 323/12 E. For a complete set of characteristics and performance curves, please refer to the official datasheet.
The full datasheet for the SEMIKRON SKKT 323/12 E is available for download here.
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1200 V |
| Average On-state Current (ITAV @ Tcase=85°C) | 320 A |
| RMS On-state Current (ITRMS) | 500 A |
| Surge On-state Current (ITSM @ 10ms, 50Hz) | 11500 A |
| Threshold Voltage (VT(TO)) | 0.85 V |
| Slope Resistance (rT) | 0.5 mΩ |
| Thermal Resistance, Junction to Case (Rth(j-c) per thyristor) | 0.085 K/W |
Expert Answers to Common Engineering Questions
Our experience with power electronics allows us to anticipate key design questions.
- What is the advantage of using a thyristor module like the SKKT 323/12 E over solid-state relays (SSRs) for high-power AC control?While SSRs are convenient, a thyristor module like this offers superior robustness. It has a significantly higher surge current rating (I²t value), making it far more resilient to line faults and the switching of large inductive loads. Furthermore, its lower on-state resistance at high currents results in lower conduction losses and less heat generation compared to many SSRs in the same power class.
- Can this module be used in a three-phase controlled bridge?Absolutely. The SKKT 323/12 E, with its two series-connected thyristors (SCRs), is an ideal building block for phase-controlled rectifiers. A full three-phase controlled bridge (B6C configuration) can be constructed using three of these modules. This configuration is common in high-power DC motor drives and industrial power supplies where adjustable DC output is required from a three-phase AC source. This approach highlights how high-efficiency power systems are architected using such fundamental components.
If your application requires high-frequency switching for systems like inverters or switched-mode power supplies, other components may be more suitable. We encourage you to explore our range of IGBT modules or contact our technical team to discuss your specific design requirements.
