SKM200GB123D: Engineering Analysis of a 1200V, 200A Dual IGBT Module
An In-Depth Look at a Workhorse for Industrial Power Conversion

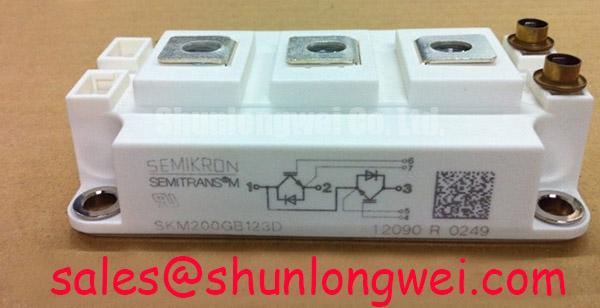

The SKM200GB123D is a half-bridge IGBT module from Semikron, engineered to provide a robust and efficient power switching solution for a wide range of industrial applications. It delivers a formidable combination of core specifications: 1200V collector-emitter voltage, 200A nominal collector current, and a typical VCE(sat) of 2.15V. This module's primary engineering value lies in its balanced design, which leverages proven Trench Field-Stop IGBT3 technology and integrated soft-recovery CAL diodes. This results in reduced overall system losses and enhanced operational reliability. For industrial motor drives up to 90kW requiring a balance of efficiency and reliability, the SKM200GB123D is a benchmark solution.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
The SKM200GB123D is engineered for performance in demanding power conversion systems. Its architecture provides tangible benefits for design engineers focused on maximizing efficiency and reliability while controlling system costs and complexity.
A primary application for this module is in the power stages of Variable Frequency Drives (VFDs) and servo drives. In a typical VFD design, engineers face the challenge of minimizing switching losses to improve efficiency, while also managing electromagnetic interference (EMI) to meet regulatory standards like IEC 61800-3. The integrated "fast & soft" inverse CAL (Controlled Axial Lifetime) diodes are a decisive feature in this context. Their soft recovery characteristic significantly reduces voltage overshoots during switching, which in turn lowers the conducted EMI generated. This can simplify, or even reduce the cost of, the required EMI filtering stage, providing both a performance and a bill-of-materials advantage. The module's robust 1200V blocking voltage provides a substantial safety margin for systems operating on 400V or 480V AC lines, ensuring resilience against voltage transients.
Other key applications where the SKM200GB123D provides significant value include:
- Uninterruptible Power Supplies (UPS): Its efficiency, defined by a low VCE(sat) and optimized switching behavior, contributes to lower operating temperatures and higher overall system reliability.
- Solar Inverters: The module's thermal performance and reliable switching are crucial for converting DC power from photovoltaic arrays into grid-compliant AC power.
- Welding Power Supplies: The module can reliably handle the high-current pulses and fast switching required in modern welding equipment.
While the SKM200GB123D is a versatile solution, for systems requiring higher current handling capabilities, the related SKM300GA123D offers a 300A rating. For designs seeking the benefits of a more recent IGBT generation, the SKM200GB128D may present an alternative path for evaluation.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The performance of the SKM200GB123D is defined by a set of critical parameters detailed in its datasheet. These specifications are essential for engineers to conduct accurate thermal modeling, calculate efficiency, and ensure system reliability. The following table highlights key indicators from the official documentation.
| Parameter | Symbol | Value | Conditions |
|---|---|---|---|
| Collector-Emitter Voltage | V_CES | 1200 V | T_j = 25 °C |
| Continuous DC Collector Current | I_C | 200 A | T_c = 25 °C |
| Collector-Emitter Saturation Voltage | V_CE(sat) | 2.15 V (typ.), 2.7 V (max) | I_C = 200 A, V_GE = 15 V, T_j = 125 °C |
| Gate-Emitter Threshold Voltage | V_GE(th) | 5.5 V (typ.) | I_C = 8 mA, V_GE = V_CE |
| Thermal Resistance, Junction-to-Case | R_th(j-c) | 0.14 K/W | per IGBT |
| Turn-On Energy | E_on | 27 mJ (typ.) | I_C = 200 A, T_j = 125 °C |
| Turn-Off Energy | E_off | 30 mJ (typ.) | I_C = 200 A, T_j = 125 °C |
| Short-Circuit Withstand Time | t_psc | 10 µs | V_GE ≤ 15 V, T_j = 150 °C |
Download the SKM200GB123D datasheet for detailed specifications and performance curves.
Technical Deep Dive
The Synergy of Trench IGBT and CAL Diode Technology
The performance of the SKM200GB123D hinges on the synergy between two core technologies: the Trench Field-Stop IGBT and the CAL (Controlled Axial Lifetime) freewheeling diode. This combination is engineered to optimize the trade-off between conduction losses (VCE(sat)) and switching losses (Eon/Eoff). The Trench Field-Stop IGBT3 structure creates a vertical gate, which increases cell density and reduces the on-state voltage drop compared to older planar technologies. This directly translates to lower power dissipation during the conduction phase, a critical factor in high-current applications.
However, the standout feature is the integrated CAL diode. The behavior of the freewheeling diode is paramount for the turn-on performance of the opposing IGBT. A diode with an abrupt or "snappy" reverse recovery can induce significant voltage spikes and oscillations, stressing the IGBT and generating substantial EMI. The CAL diode is designed for a "soft" recovery. Think of its reverse recovery characteristic like a high-performance car's advanced braking system. A standard diode might brake abruptly, causing a sharp jolt (a voltage spike). The CAL diode, in contrast, acts like an anti-lock braking system (ABS), decelerating the current flow rapidly but smoothly. This "smooth braking" of current prevents the jolt, significantly reducing electrical noise and stress on the entire power stage. This allows designers to operate at higher switching frequencies with greater confidence in system stability and simplified Thermal Management.
Frequently Asked Questions (FAQ)
What are the primary benefits of the CAL diode in the SKM200GB123D?
The integrated CAL (Controlled Axial Lifetime) freewheeling diode provides a "soft" reverse recovery characteristic. This directly reduces voltage overshoots and oscillations during IGBT turn-on, leading to lower switching losses, reduced electromagnetic interference (EMI), and improved overall system reliability. It can simplify the design of snubber circuits and EMI filters.
How does the Trench IGBT3 technology impact the trade-off between conduction and switching losses?
Trench Field-Stop IGBT3 technology provides a lower on-state voltage drop (VCE(sat)) for a given chip area compared to earlier planar technologies. This reduces conduction losses. While this can sometimes come at the cost of higher switching losses, the technology in the SKM200GB123D is optimized to offer a balanced performance, making it highly effective for applications operating in the medium-frequency range (e.g., 5-20 kHz) typical of industrial motor drives.
Is the SKM200GB123D suitable for paralleling to achieve higher current output?
Yes, modules like the SKM200GB123D can be paralleled. However, successful paralleling requires careful design considerations. The positive temperature coefficient of VCE(sat) provides a degree of self-balancing for thermal runaway. Nonetheless, it is critical to ensure symmetrical layout for busbars to equalize stray inductances and to use a well-designed Gate Drive circuit that provides identical gate signals to each module to ensure balanced dynamic current sharing.
A Strategic Component for Modern Power Electronics
The SKM200GB123D represents a strategic choice for designers of industrial power systems. Its integration of proven, complementary technologies addresses the persistent engineering goals of enhancing efficiency, ensuring reliability, and managing system-level complexity. By providing a balanced performance profile in a standard industrial package, it serves as a foundational building block for creating competitive and robust power conversion solutions.
