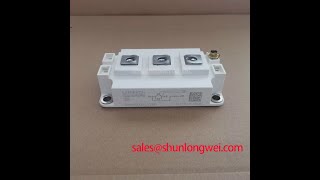

Semikron SKM400GAL176D | High-Voltage Chopper for Demanding Power Conversion
The Semikron SKM400GAL176D is not merely a high-power switch; it is a foundational component engineered for extreme reliability and efficiency in high-voltage power conversion systems. This 1700V, 400A single-switch (chopper) IGBT module is specifically designed for engineers developing next-generation renewable energy systems, high-power industrial drives, and resilient power supplies where operational headroom and low losses are non-negotiable.
An Engineer's Look at Core Technology
The performance of the SKM400GAL176D is rooted in two key technological pillars that directly address common engineering challenges: high-voltage robustness and thermal efficiency.
- Strategic 1700V Blocking Voltage: While 1200V modules are common, the 1700V rating of this device provides a critical safety margin for systems utilizing high DC bus voltages, such as 1000V solar arrays or industrial systems prone to significant voltage transients. This enhanced headroom translates directly into a more robust and reliable end-product, mitigating the risk of failures caused by overvoltage events during switching or fault conditions.
- Trench Gate Field-Stop Technology: At its heart, this module leverages Semikron’s advanced Trench Gate IGBT structure. Unlike older planar designs, this technology drastically reduces the collector-emitter saturation voltage (VCE(sat)), which is the primary source of conduction losses. For the design engineer, this means lower heat generation, smaller heatsink requirements, and ultimately, higher overall system efficiency—a crucial factor in applications like high-frequency induction heating where every watt counts.
Application Scenarios & Engineering Value
The specific characteristics of the Semikron SKM400GAL176D make it an ideal solution for several demanding applications, solving key problems in each domain.
- Solar & Wind Power Boost Converters: In large-scale renewable energy inverters, this module excels as the main switching element in the initial boost stage. Its 1700V rating comfortably handles the input from high-voltage PV strings, while its low switching and conduction losses ensure that a maximum amount of generated power is converted and delivered to the grid.
- High-Power UPS & Battery Charging Systems: For uninterruptible power supplies and large-scale battery chargers, reliability is paramount. The SKM400GAL176D provides the robust, high-current switching needed for the DC-DC converter stage, ensuring stable power delivery and efficient battery management under heavy load conditions.
- Industrial Motor Drives: In high-power AC motor drives, this IGBT can be used in the brake chopper circuit. It efficiently dissipates regenerative energy from the motor during deceleration, protecting the DC bus from overvoltage and enhancing the drive's dynamic performance and safety.
Key Parameter Overview
The following table provides a snapshot of the SKM400GAL176D's critical electrical and thermal parameters. For a complete understanding of its performance, it is essential to consult the full datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1700 V |
| Continuous Collector Current (I_C) @ T_case = 80°C | 400 A |
| Collector-Emitter Saturation Voltage (V_CE(sat)) (Typ. @ I_C,nom, T_vj=125°C) | 2.10 V |
| Total Power Dissipation (P_tot) @ T_case = 25°C | 2600 W |
| Operating Junction Temperature (T_vj op) | -40°C to +150°C |
For a comprehensive datasheet including characteristic curves and thermal models, please refer to the official Semikron-Danfoss documentation for this product series.
Frequently Asked Questions for Design Engineers
Why is a dedicated CAL (Controlled Axial Lifetime) freewheeling diode important in this module?The integrated CAL diode is co-packaged and optimized specifically for the IGBT. It features a soft recovery characteristic, which minimizes voltage overshoots and electromagnetic interference (EMI) during IGBT turn-off. This reduces the need for large, costly snubber circuits and simplifies the overall system design, saving both board space and component cost.
What are the critical gate drive considerations for the SKM400GAL176D?To ensure reliable and efficient switching, a robust gate drive is essential. We recommend a drive capable of providing a peak gate current of approximately 8A. Furthermore, implementing a negative gate voltage (e.g., -8V to -15V) during the off-state is a best practice. This provides a strong defense against parasitic turn-on caused by high dV/dt, a common issue in bridge configurations that can lead to shoot-through failures. For more guidance, review our best practices for robust IGBT gate drive design.
