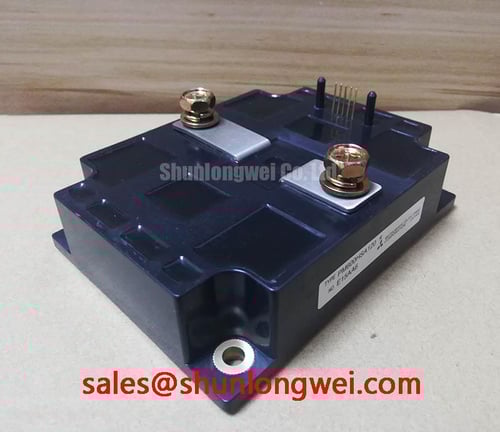

PM600HSA120 Mitsubishi 1200V 600A Intelligent Power Module (IPM)

Content last revised on November 14, 2025

PM600HSA120 IGBT Module: Datasheet & Specs for 1200V/600A Designs

Technical Introduction to the Mitsubishi PM600HSA120 IGBT Module

The Mitsubishi PM600HSA120 is a high-power H-Series IGBT module delivering a robust foundation for systems where thermal management is directly tied to operational longevity. With core specifications of 1200V collector-emitter voltage and a 600A collector current, this component is architected for demanding power conversion cycles. Key benefits include superior thermal conductivity and a mechanically simplified mounting process. Its design directly addresses how to maintain stable junction temperatures under heavy loads, featuring an electrically isolated baseplate that streamlines integration with system heatsinks, reducing both complexity and potential points of failure.

Strategic Advantage Through Thermal Integrity

In high-power industrial systems, the long-term cost of ownership is often dictated by component reliability rather than initial price. The operational stability of power modules like the PM600HSA120 is a critical factor in this equation. The module's low thermal resistance is not just a parameter on a datasheet; it represents a strategic design choice that enables more compact and cost-effective cooling systems. This allows designers to either shrink the overall system footprint or operate with a greater thermal margin, enhancing the equipment's resilience in environments with fluctuating ambient temperatures. This focus on efficient heat dissipation is essential for meeting the stringent uptime requirements of modern industrial automation and critical power infrastructure. For a deeper understanding of IGBT thermal performance, explore our guide on why thermal resistance (Rth) matters.

Operational Contexts Demanding Thermal Endurance

The robust thermal design of the PM600HSA120 makes it a suitable component for a range of high-stress power applications. Its ability to efficiently manage heat is paramount in systems that experience continuous, high-current operation or cyclical loading. For high-current (600A) inverter designs where long-term reliability is paramount, the PM600HSA120's low Rth(j-c) of 0.042°C/W provides a definitive thermal advantage. Specific use cases include:

• Variable Frequency Drives (VFDs): In large motor control systems, the module's capacity to handle significant current and dissipate the resulting heat ensures precise and reliable speed regulation without thermal derating.
• Uninterruptible Power Supplies (UPS): For data centers and critical facilities, the PM600HSA120 provides the dependable power switching needed to maintain seamless operation during power fluctuations, where component failure is not an option.
• Industrial Power Conversion: Used as a core switching element in high-power rectifiers, choppers, and inverters for applications such as industrial welding and induction heating.

Key Technical Specifications for Thermal Modeling

Accurate system modeling relies on precise component data. The parameters of the PM600HSA120 are specified to support detailed thermal and electrical simulations, enabling engineers to predict performance and optimize system design. For full details, please download the official datasheet.

Comparative Data for System Design Decisions

When evaluating high-power IGBT modules, comparing key performance indicators provides the data needed for an informed component selection. The PM600HSA120 is one of several options in the 1200V class. For systems that may require a different current rating or alternative packaging, the PM400HSA120 offers a 400A alternative in a similar package, while the PM800HSA120 provides a higher current rating of 800A for applications with greater power demands. The selection process often involves a trade-off between conduction losses, indicated by VCE(sat), and the thermal impedance, which dictates cooling requirements. The PM600HSA120's specifications are balanced to provide a reliable solution for many high-current applications.

Frequently Asked Questions (FAQ)

What is the primary engineering benefit of the PM600HSA120's low thermal resistance?
Its low junction-to-case thermal resistance (Rth(j-c)) of 0.042°C/W for the IGBT is crucial for thermal management. This parameter acts like a wide highway for heat, allowing it to escape the semiconductor junction quickly and efficiently. For engineers, this translates directly to lower operating junction temperatures, which is the single most important factor for improving the module's lifespan and reliability. It also permits the use of smaller, more cost-effective heatsinks while maintaining safe operating temperatures.

How does the isolated baseplate impact the assembly process?
The module features an electrically isolated baseplate, which is a significant advantage in system assembly. This design eliminates the need for a separate, fragile insulating layer (like a silicone pad or mica sheet) between the module and the heatsink. This simplification reduces parts count, lowers the risk of installation errors (e.g., inadequate thermal grease application or insulation damage), and improves the consistency and reliability of the thermal interface, ultimately streamlining the manufacturing process.

Empowering Your High-Power Designs

The Mitsubishi PM600HSA120 provides the documented electrical and thermal characteristics required for rigorous design and simulation. To further explore how to leverage this module in your next power conversion project, review the datasheet and consult with our technical specialists to discuss your specific application requirements. For more information on the foundational principles of these components, see our guide on IGBT module analysis.
