PM800HSA120: An 800A, 1200V Intelligent Power Module Engineered for High-Reliability Power Conversion
Product Overview
System Protection and Simplified Design in a High-Power Package

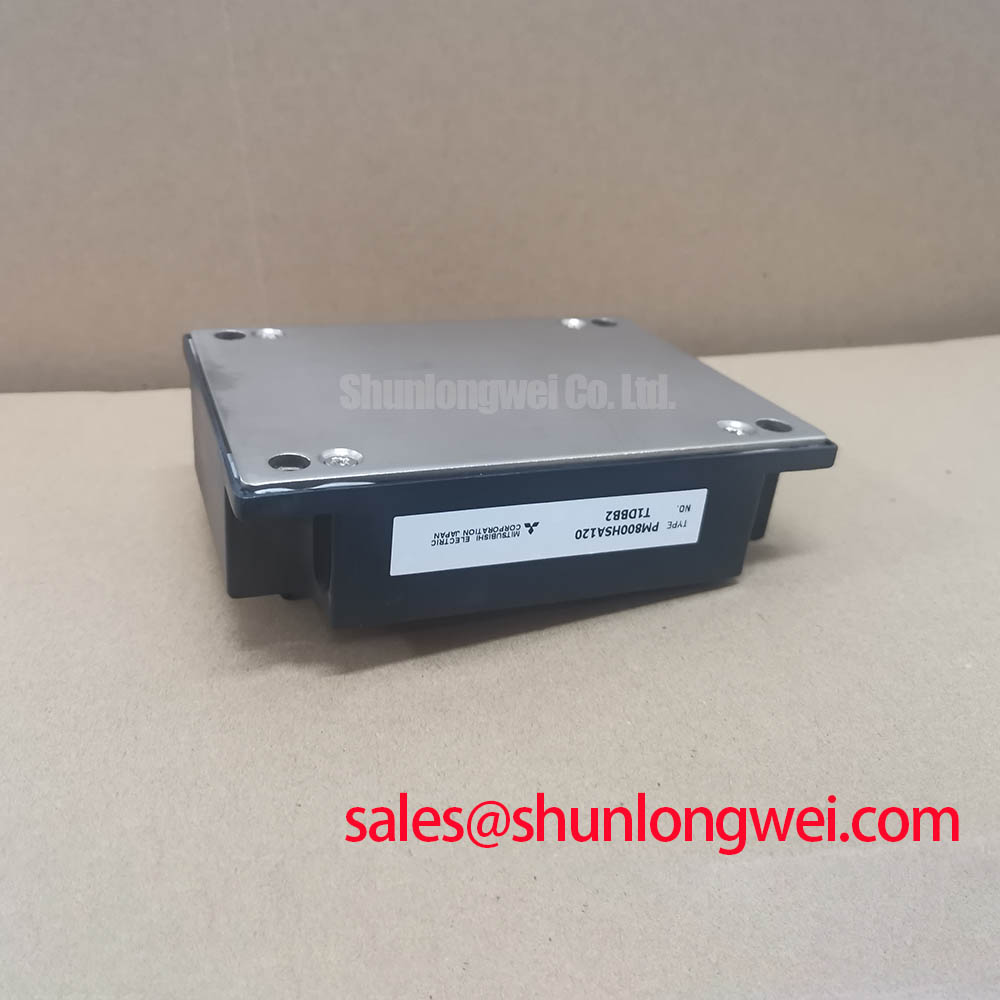

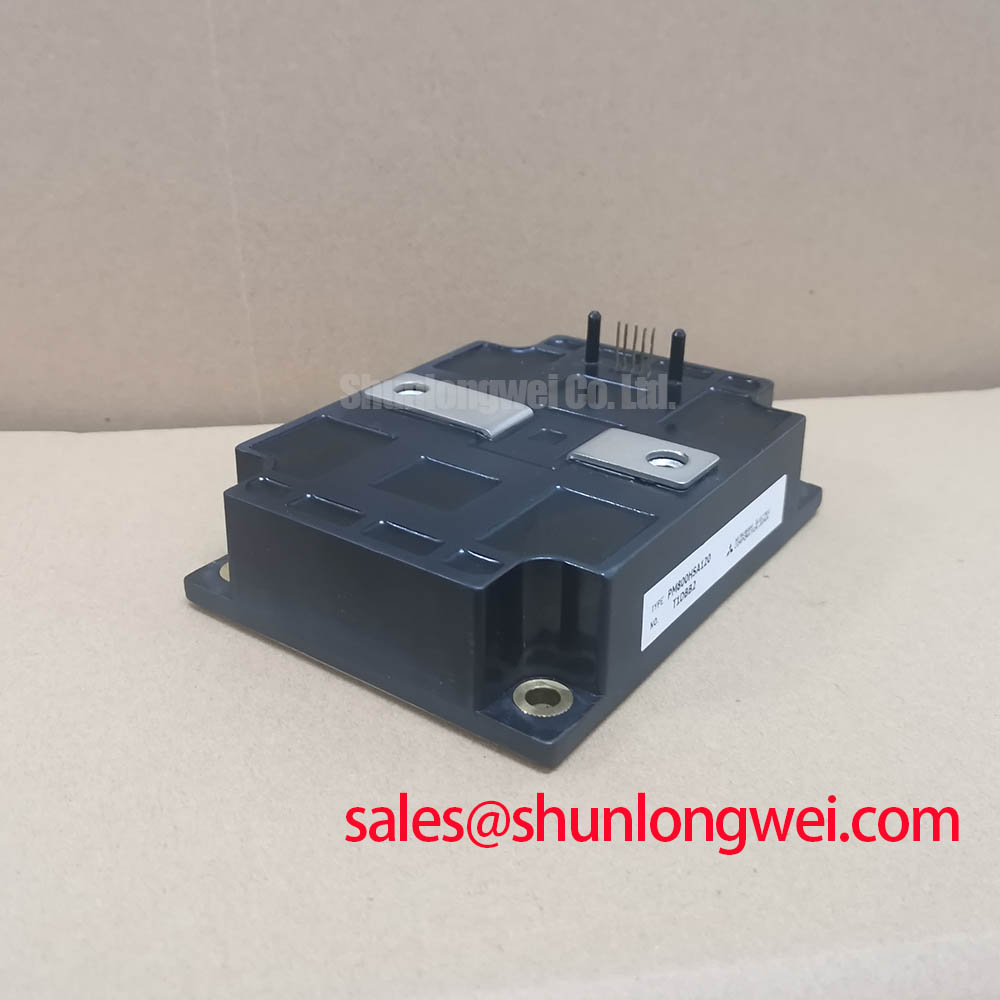

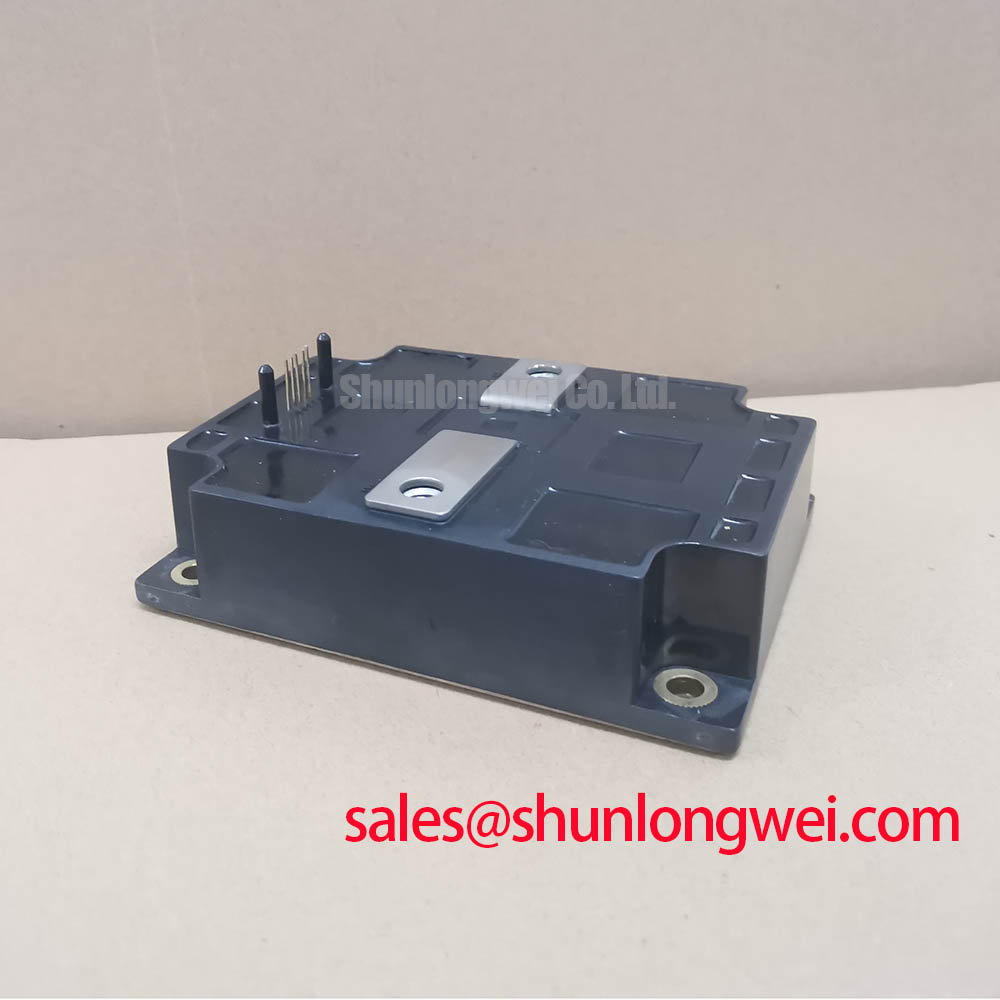

The Mitsubishi PM800HSA120 is an Intellimod™ Intelligent Power Module (IPM) designed to streamline the development of high-power switching applications. It integrates a complete single-phase IGBT inverter power circuit with optimized gate drive and critical protection logic into a single, isolated flat-base package. With robust ratings of 1200V and 800A, this module provides a foundation for building reliable and efficient power systems. The key benefit of this integrated approach is the significant reduction in design complexity, as the module inherently manages gate drive optimization and provides built-in protection against short-circuit, over-current, over-temperature, and under-voltage events. For systems requiring robust performance in demanding applications up to 20kHz, the PM800HSA120 offers a pre-validated power stage. The integrated protection features make it a strong candidate for high-power inverters where minimizing failure risk is a primary design consideration.
Key Parameter Overview
Decoding the Specs for Integrated System Protection
The specifications of the PM800HSA120 reflect its design as a comprehensive power solution. The high collector current (Ic) of 800A and peak collector current (Icp) of 1600A allow it to handle substantial loads and transient conditions found in large motor drives and uninterruptible power supplies. A standout feature is the comprehensive set of built-in protection circuits, which are factory-set for optimal performance. The Over-Current (OC) trip level, typically set at 1300A, and the Short-Circuit (SC) trip level at 1700A provide a wide safe operating area, protecting the internal IGBTs from destructive events. This integration is like having a dedicated bodyguard for the power devices, constantly monitoring conditions and intervening before catastrophic failure can occur, a feature that significantly enhances the reliability of the end equipment, such as a Variable Frequency Drive (VFD).
| Absolute Maximum Ratings (Tj = 25°C) | |||
|---|---|---|---|
| Parameter | Symbol | Value | Unit |
| Collector-Emitter Voltage | VCES | 1200 | V |
| Collector Current (TC = 25°C) | IC | 800 | A |
| Peak Collector Current | ICP | 1600 | A |
| Power Device Junction Temperature | Tj | -20 to 150 | °C |
| Case Operating Temperature | TC | -20 to 100 | °C |
| Isolation Voltage (AC, 1 min.) | Viso | 2500 | Vrms |
| Key Electrical Characteristics (Tj = 25°C) | |||
|---|---|---|---|
| Parameter | Symbol | Typical Value | Unit |
| Over Current Trip Level | OC | 1300 | A |
| Short Circuit Trip Level | SC | 1700 | A |
| Over Temperature Trip Level | OT | 110 | °C |
| Under Voltage Trip Level | UV | 12.0 | V |
Download the PM800HSA120 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Reliability in High-Power Industrial Systems
The PM800HSA120 is ideally suited for demanding, high-power applications where reliability and simplified design cycles are paramount. Its integrated nature significantly benefits the design of large-scale industrial motor drives, uninterruptible power supplies (UPS), and motion/servo control systems. What is the primary benefit of its integrated protection? It drastically reduces the risk of IGBT failure due to common fault conditions. For instance, in a large UPS (Uninterruptible Power Supply) system, a sudden short circuit on the output could prove catastrophic for discrete IGBTs if the protection circuit isn't perfectly tuned and fast enough. The PM800HSA120 solves this challenge by co-packaging the power switches with a gate driver and protection logic specifically matched to their characteristics, ensuring a swift and controlled shutdown. This makes the module a robust foundation for power conversion platforms that must operate reliably for years. For applications requiring a lower current rating but similar integration benefits, the related PM600HSA120 offers a 600A alternative.
Technical Deep Dive
A Closer Look at the Integrated Protection for Enhanced System Uptime
The true engineering value of the PM800HSA120 lies in its "Intelligent Power Module" designation. This isn't just a component; it's a subsystem. The built-in control circuits provide more than just gate drive; they form a protective shield around the expensive power silicon. The over-current (OC) and short-circuit (SC) protections are fundamental. Think of the IGBT as a tightly controlled valve for electricity. An over-current event is like forcing too much water through the pipe, causing stress. A short-circuit is like the pipe bursting instantly. The PM800HSA120's internal logic senses these dangerous conditions in microseconds and safely closes the "valve," preventing a system-wide failure. Furthermore, the over-temperature (OT) and under-voltage (UV) lock-out functions prevent the module from operating outside its specified safe conditions, guarding against common causes of degradation and failure in high-power systems. This level of integration simplifies meeting safety and reliability standards like IEC 61800 for adjustable speed electrical power drive systems.
Frequently Asked Questions (FAQ)
What is the main advantage of using an Intelligent Power Module (IPM) like the PM800HSA120 over discrete IGBTs?
The primary advantage is system reliability and design simplification. The PM800HSA120 integrates the IGBTs with their own optimized gate drive and a suite of protection features (SC, OC, OT, UV). This pre-validated subsystem eliminates the complex and critical task of designing and tuning these external circuits, reducing component count and accelerating time-to-market.
How does the built-in Short Circuit (SC) protection work and why is it critical?
The SC protection senses a dangerously rapid rise in collector current. When the current exceeds the typical 1700A threshold, the internal logic immediately and safely shuts down the IGBT. This is critical because a short-circuit event can destroy an IGBT in microseconds, long before a traditional fuse or circuit breaker can react. This feature is vital for protecting the module and the surrounding system from catastrophic damage.
Is an external power supply required for the control logic in the PM800HSA120?
Yes, a control supply voltage (VD) is required to power the internal gate drive and protection logic circuits. According to the datasheet, this voltage should be maintained between 13.5V and 16.5V for proper operation of the module's intelligent features.
Strategic Outlook
As industrial automation and green energy applications continue to demand higher power density and unwavering reliability, integrated power solutions like the Mitsubishi PM800HSA120 become increasingly strategic. The trend towards simplifying complex power stages allows engineering teams to focus on system-level innovation rather than component-level tuning and protection. By providing a robust, pre-protected power block, this module serves as an enabler for developing next-generation inverters, large-scale UPS systems, and high-performance motor controls with improved reliability and a faster path to market.
