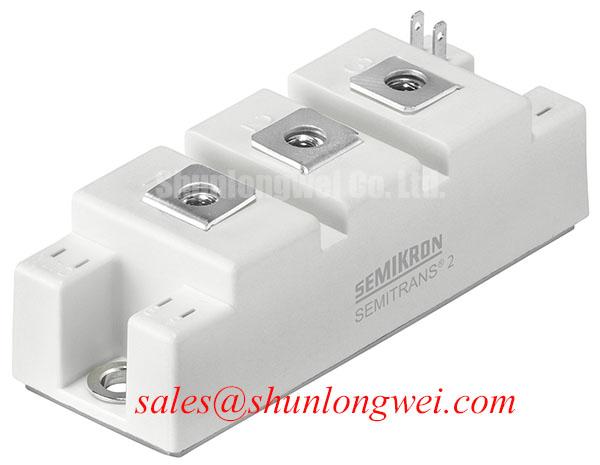

SEMIKRON SKM40GDL123D 1200V 40A Sevenpack IGBT Module
The SEMIKRON SKM40GDL123D delivers an integrated three-phase inverter bridge and dynamic brake chopper in a compact SEMITRANS package for optimized motor drive efficiency. Built with homogeneous silicon technology and an isolated copper baseplate, this module simplifies power stage layout while maintaining robust electrical isolation.
Key Specifications:
- Collector-Emitter Breakdown Voltage (VCES): 1200V
- Continuous Collector Current (IC): 40A at Tcase = 25°C
- Saturation Voltage (VCE(sat)): 2.5V (typical)
- Total Power Dissipation (Ptot): 200W per IGBT element
Key Benefits:
- Compact sevenpack footprint reducing cabinet space.
- Low thermal resistance via Direct Copper Bonding.
Engineers designing compact motor drive stages often require built-in regenerative braking without adding discrete external chopper switches. The SEMIKRON SKM40GDL123D addresses this challenge by integrating a six-switch three-phase inverter and an independent brake chopper into a single housing. For 400V AC motor drives requiring an integrated dynamic brake, this 1200V 40A module is the optimal choice.
Key Parameter Overview
Decoding the Electrical and Thermal Ratings for Power Stage Design
Evaluating power modules requires a balance between conduction losses, switching speeds, and thermal dissipation. The SEMIKRON SKM40GDL123D features a low collector-emitter saturation voltage VCE(sat) of 2.5V, which minimizes on-state conduction losses during continuous operation. What is the primary advantage of the sevenpack configuration? It combines a three-phase inverter bridge with a dynamic brake chopper in one housing.
In dynamic motion systems, the integrated brake chopper functions like a pressure relief valve for the DC bus. When motor deceleration generates excess electrical energy, the chopper diverts current into an external braking resistor, preventing destructive bus overvoltage. Understanding these parameters helps engineers optimize their thermal management and heatsink design.
| Functional Group | Parameter Symbol | Technical Specification | Engineering Value |
|---|---|---|---|
| Absolute Maximum Ratings | VCES | Collector-Emitter Voltage | 1200V |
| IC | Continuous Collector Current (Tc=25°C / 80°C) | 40A / 30A | |
| Tj | Operating Junction Temperature Range | -40°C to +150°C | |
| Inverter Characteristics | VCE(sat) | Collector-Emitter Saturation Voltage (IC=40A) | 2.5V (typ.) / 3.1V (max.) |
| VF | CAL Diode Forward Voltage Drop | 2.0V (typ.) | |
| Brake Chopper Stage | IC(chopper) | Chopper Collector Current | 40A |
| Rth(j-c)chop | Chopper Thermal Resistance (Junction to Case) | 0.65 K/W | |
| Thermal & Isolation | Rth(j-c) | Thermal Resistance per IGBT | 0.60 K/W |
| Visol | AC Insulation Voltage (1 min) | 2500V AC |
Application Scenarios & Value
System-Level Benefits in Compact Industrial Motor Drives
The SEMIKRON SKM40GDL123D is widely utilized in industrial automation, robotics, and commercial HVAC equipment. In a standard Variable Frequency Drive (VFD), space constraints within the control cabinet often dictate component selection. By consolidating seven IGBT switches and matching freewheeling diodes into a single module, engineers eliminate the parasitic inductance associated with separate discrete packages.
Consider an automated conveyor system experiencing frequent start-stop cycles. As the drive decelerates heavy mechanical loads, kinetic energy feeds back into the DC link capacitors. The integrated 40A brake chopper switch activates instantly to discharge excess voltage across a braking resistor. This integrated approach simplifies PCB layout, lowers assembly costs, and improves system reliability.
For systems operating on 400V to 480V AC mains, this 1200V rated module provides sufficient voltage headroom against transient spikes. While this model is ideal for compact machinery, for systems requiring higher current handling, the related SKM75GDL123D offers an increased current rating within a similar architectural family.
Technical Deep Dive
A Closer Look at the DCB Substrate and Low-Inductance Sevenpack Architecture
The internal architecture of the SEMIKRON SKM40GDL123D relies on Direct Copper Bonding (DCB) technology. The ceramic substrate acts as a thermal superhighway, conducting heat directly away from the silicon dies to the aluminum baseplate while maintaining 2500V AC electrical isolation. This structure minimizes mechanical stress caused by thermal cycling during heavy industrial duty.
Complementing the IGBT switches are integrated Semikron CAL Diode structures. How do CAL diodes improve inverter reliability? They deliver soft recovery switching that limits peak reverse recovery current and reduces electromagnetic interference.
During high-frequency switching, the CAL diode acts like a mechanical shock absorber, smoothing out sharp voltage spikes caused by stray inductances in the motor leads. When paired with proper gate drive circuits, this module achieves superior 1200V IGBT switching efficiency and helps equipment meet stringent EMC standards. For broader design principles, consult our comprehensive guide to IGBT modules.
Frequently Asked Questions
Design Considerations and Operational Inquiries for Engineering Teams
How does the integrated brake chopper in the SEMIKRON SKM40GDL123D manage regenerative energy?
The integrated brake chopper consists of an independent 1200V 40A IGBT and free-wheeling diode connected across the DC bus terminals. When the DC link voltage exceeds a preset threshold during motor deceleration, the gate driver turns on the chopper IGBT to route excess current through an external power resistor, protecting the inverter bridge from overvoltage faults.
What engineering advantages do the CAL inverse diodes provide during inductive switching?
The Controlled Axial Lifetime (CAL) diodes feature a tailored carrier lifetime profile. This design ensures soft reverse recovery characteristics, significantly reducing peak reverse recovery current (IRRM) and minimizing voltage overshoot (dv/dt) during fast turn-off transitions in motor drive circuits.
Procurement & Engineering Support
As a specialized distributor of power semiconductors, we supply authentic SEMIKRON SKM40GDL123D modules to OEMs and repair facilities worldwide. Our technical support team assists engineering departments with datasheet verification, thermal calculation support, and component sourcing. Submit your project requirements or request an official price quotation today.
