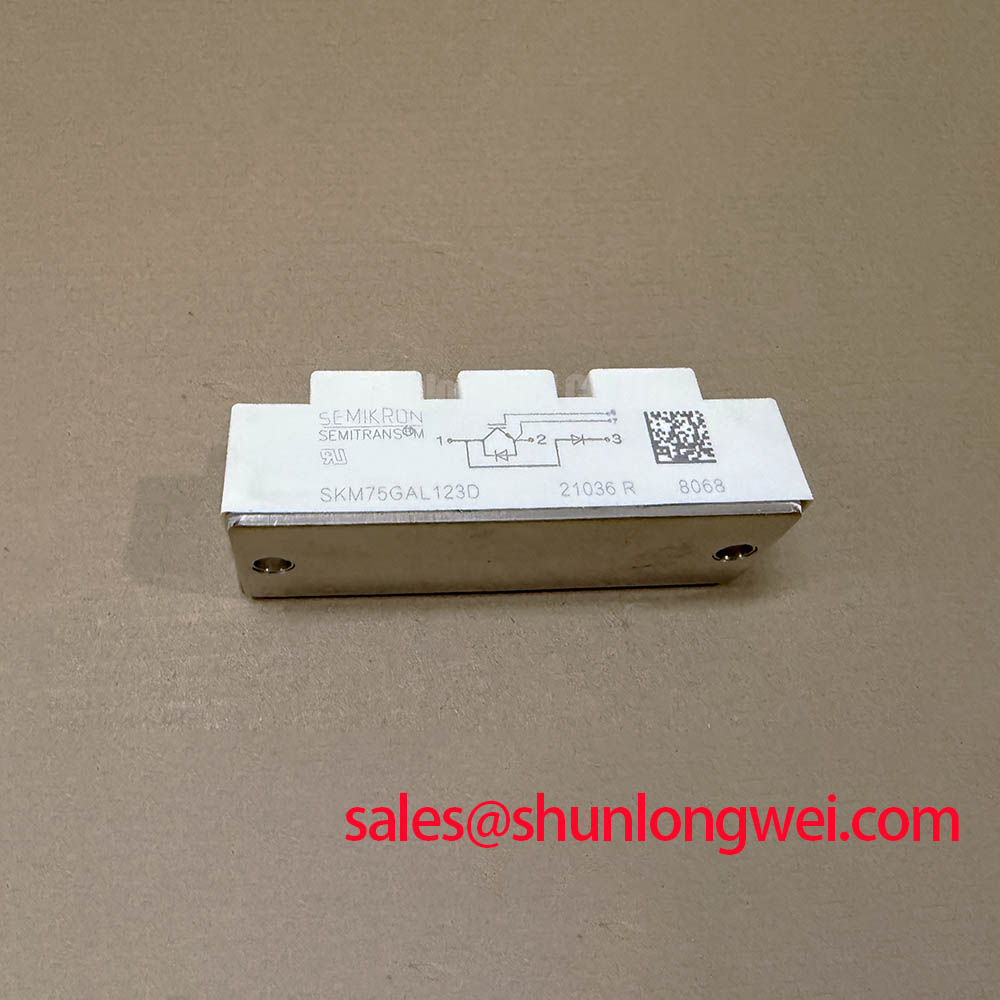

SEMIKRON SKM75GAL123D | Robust 1200V Trench IGBT for High-Reliability Power Conversion
The SEMIKRON SKM75GAL123D is a cornerstone IGBT module engineered for durability and consistent performance in demanding power systems. Housed in the industry-proven SEMITRANS 2 package, this 1200V / 75A half-bridge (chopper) module provides a perfect balance of efficiency, thermal stability, and ruggedness, making it a go-to choice for engineers designing long-life industrial equipment.
Key Performance Highlights
- Voltage and Current Rating: Rated for 1200V collector-emitter voltage and a 75A continuous collector current, providing ample headroom for industrial motor drives and power supplies.
- Advanced Diode Technology: Integrates a CAL (Controlled Axial Lifetime) freewheeling diode, engineered for soft recovery characteristics. This minimizes voltage overshoot and reduces EMI, simplifying system design.
- Trench Gate IGBT: Utilizes Trench Gate IGBT technology to achieve a favorable trade-off between conduction losses and switching performance.

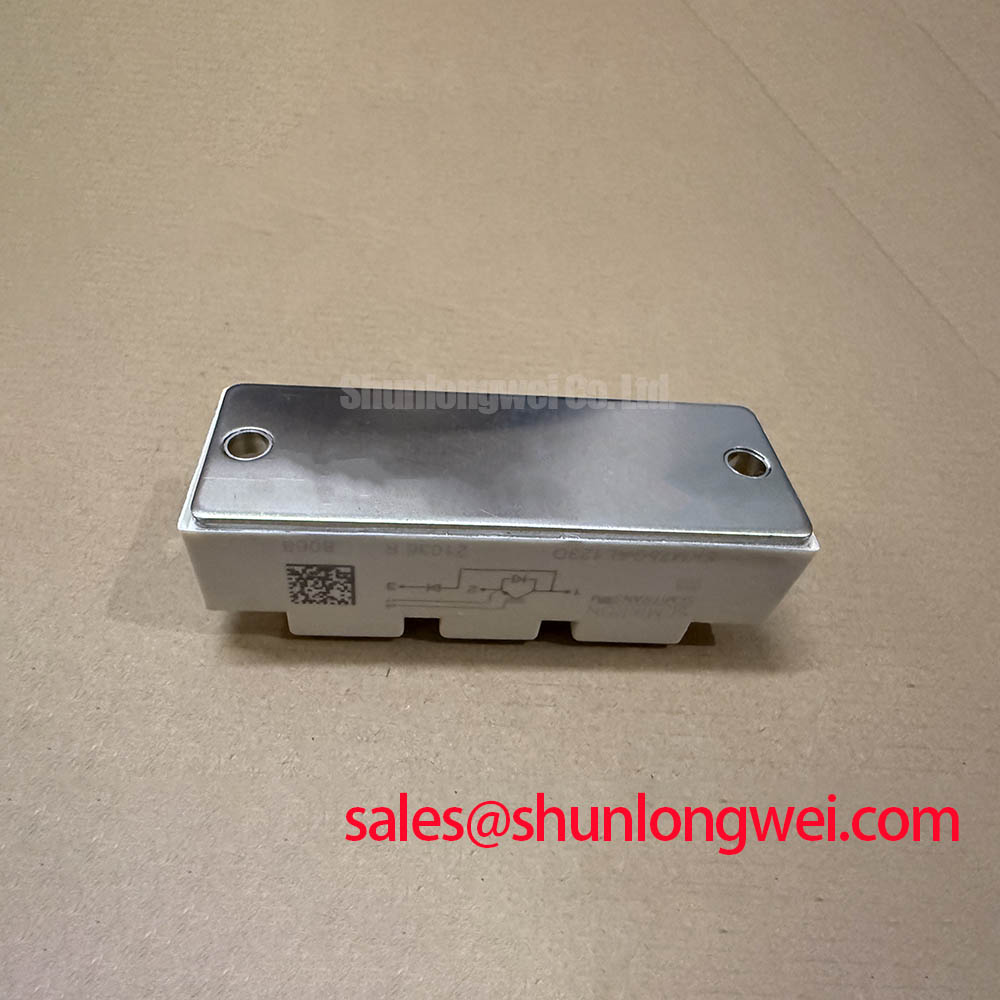

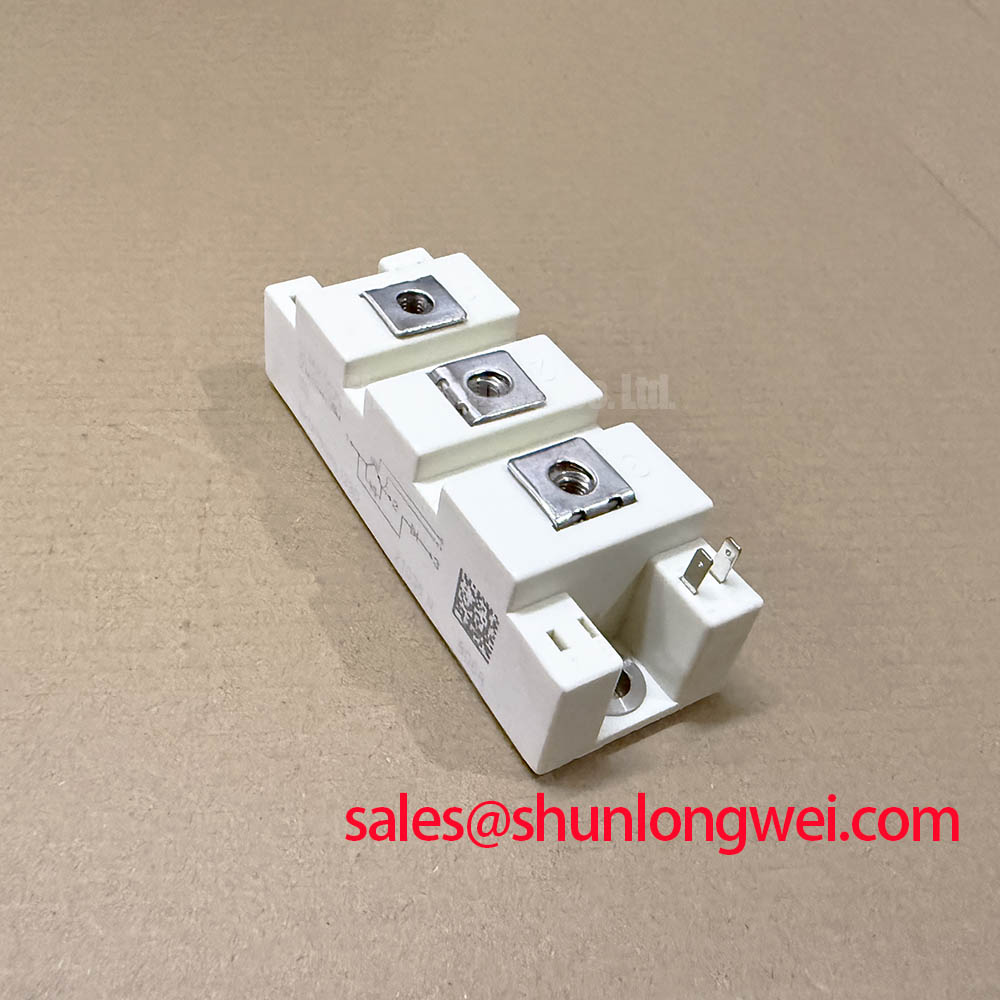

- Robust Packaging: Built on the SEMITRANS 2 platform with an isolated copper baseplate, ensuring excellent thermal transfer and high mechanical stability.
Technical Specifications at a Glance
For detailed operational curves and application notes, you can Download the SKM75GAL123D Datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current (IC @ Tcase=80°C) | 75 A |
| Collector-Emitter Saturation Voltage (VCE(sat), typ. @ IC=75A, Tj=25°C) | 2.1 V |
| Diode Forward Voltage (VF, typ. @ IF=75A, Tj=25°C) | 2.0 V |
| Thermal Resistance, Junction-to-Case (Rth(j-c) per IGBT) | 0.45 K/W |
| Short Circuit Withstand Time (tpsc) | 10 µs |
Engineering Deep Dive: The Core Technologies
The performance of the SEMIKRON SKM75GAL123D is not just defined by its ratings, but by the underlying silicon technology. Two elements are critical:
- Trench IGBT Structure: Unlike older planar IGBTs, the trench gate design creates a vertical current path that significantly increases channel density. The direct engineering benefit is a lower on-state resistance, leading to a reduced VCE(sat). This directly translates to lower conduction losses and less heat generation, a critical factor in achieving high power density and reliability.
- CAL Freewheeling Diode: In hard-switching applications like Variable Frequency Drives (VFDs), the recovery behavior of the freewheeling diode is paramount. SEMIKRON's CAL technology ensures a "soft" recovery, meaning the reverse recovery current (Irr) ramps down smoothly. This prevents high di/dt and dv/dt transients that cause voltage ringing and electromagnetic interference (EMI), improving the overall robustness of the power stage.
Application Focus: Where the SKM75GAL123D Excels
This module's combination of reliability and balanced performance makes it a superior choice for several core industrial applications:
- Industrial Motor Drives: The module's robust SOA (Safe Operating Area) and excellent thermal cycling capability can withstand the demanding, cyclical loads of AC motor control. The soft-recovery CAL diode is particularly effective at protecting the IGBT from turn-on stress during inductive switching.
- Uninterruptible Power Supplies (UPS): In UPS systems, long-term reliability is non-negotiable. The proven SEMITRANS package and mature Trench IGBT technology in the SKM75GAL123D provide the dependability needed for critical power backup infrastructure.
- Welding and Induction Heating: These applications involve high-power, high-frequency switching. The module's efficient thermal management and ability to handle pulsed loads make it a workhorse for welding power supplies and induction heating systems.
Frequently Asked Engineer Questions (FAQ)
What are the primary thermal management considerations for this module?
The low thermal resistance (Rth(j-c)) is a key advantage, but effective heat dissipation is crucial. Ensure a flat, clean mounting surface and use a high-quality Thermal Interface Material (TIM). The system's heatsink must be adequately sized to keep the case temperature (Tcase) well within the datasheet limits under worst-case load conditions to guarantee performance and a long operational life.
Can the SKM75GAL123D be used in parallel for higher current applications?
Yes, paralleling is possible and common with SEMITRANS modules. However, successful implementation requires careful design. The positive temperature coefficient of VCE(sat) provides a degree of self-balancing for thermal runaway. For optimal current sharing, it is critical to ensure symmetrical PCB layout for the gate drives, use separate gate resistors for each module, and ensure thermal coupling by mounting them on the same heatsink. For complex designs, contact our technical team for application-specific advice.
