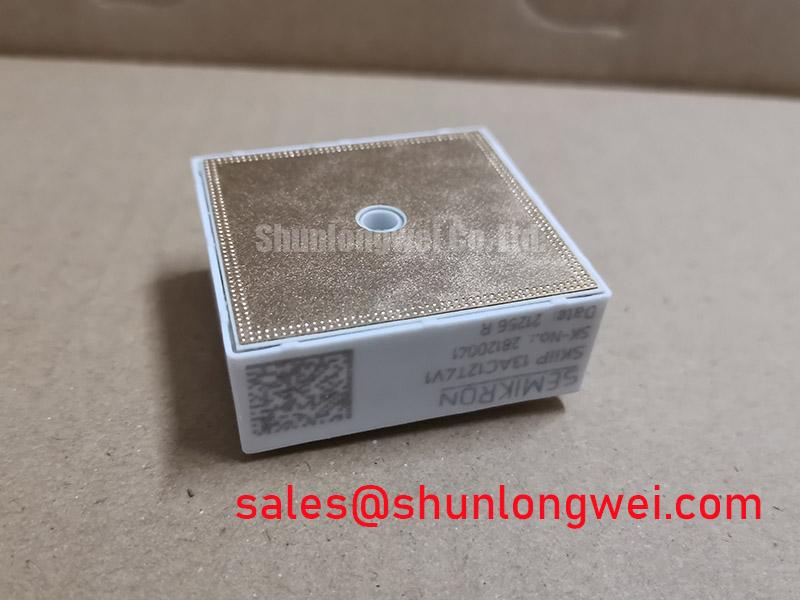

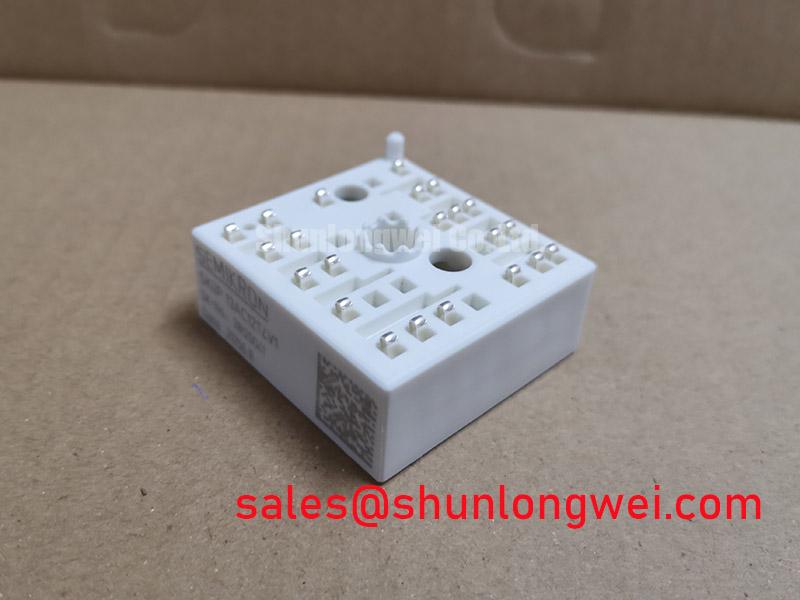

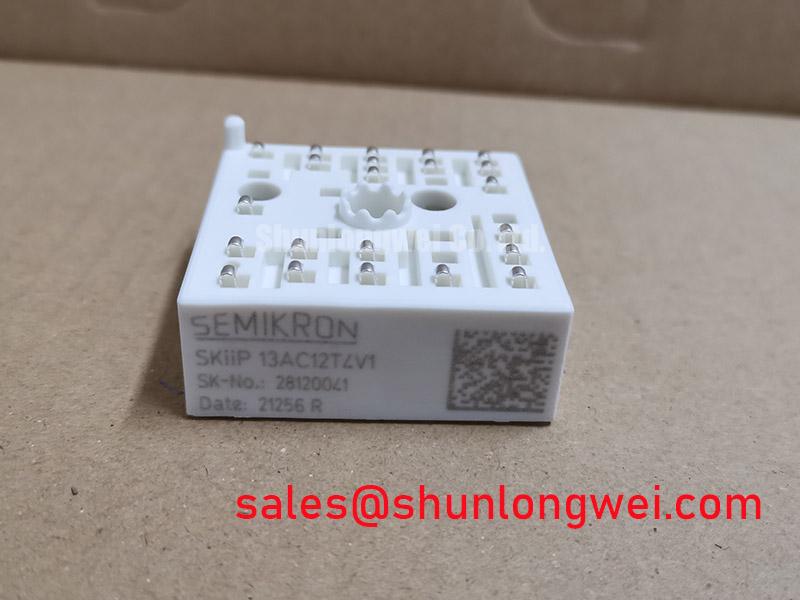

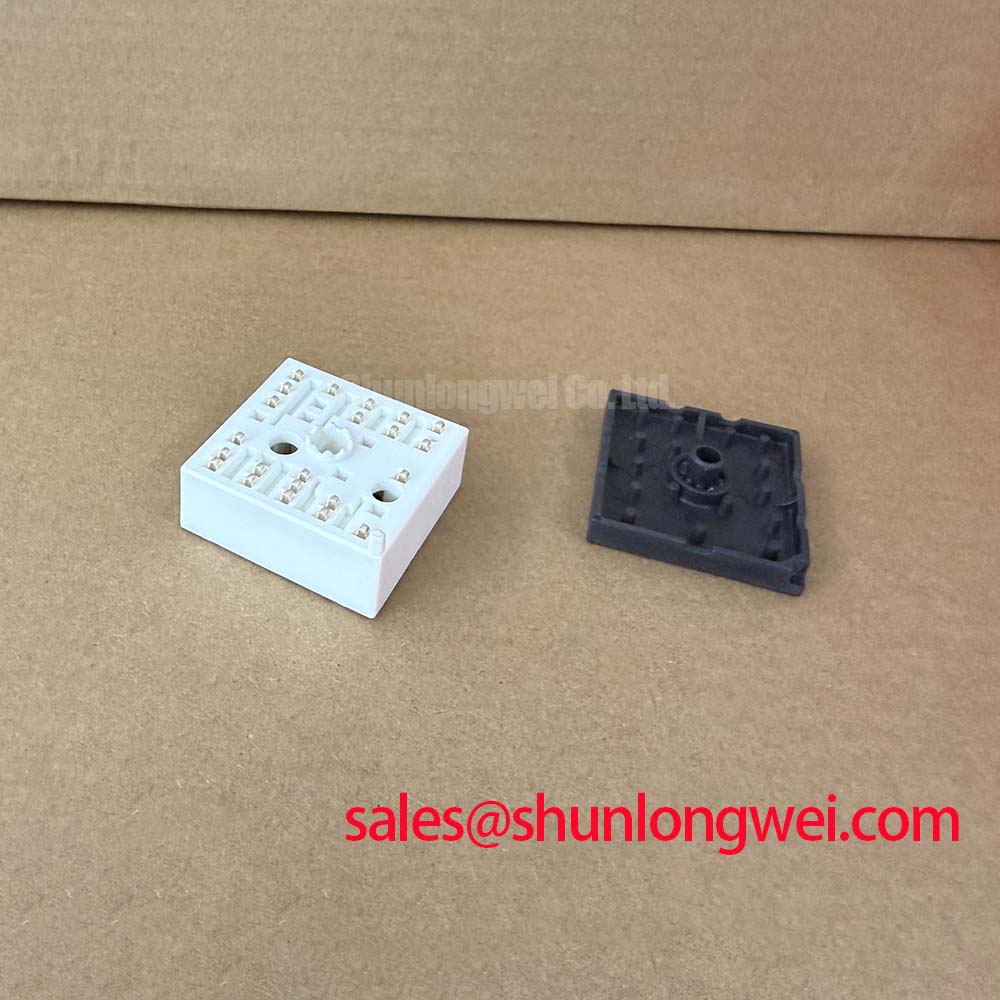

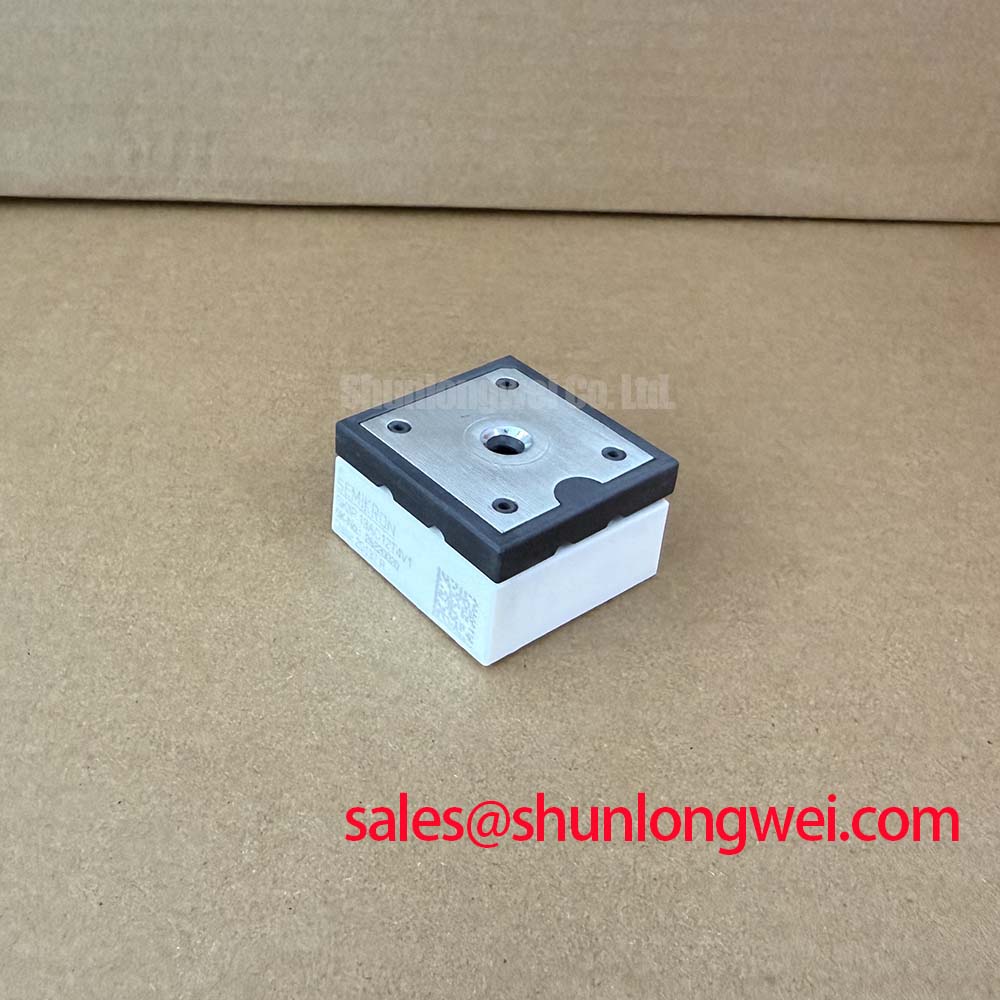

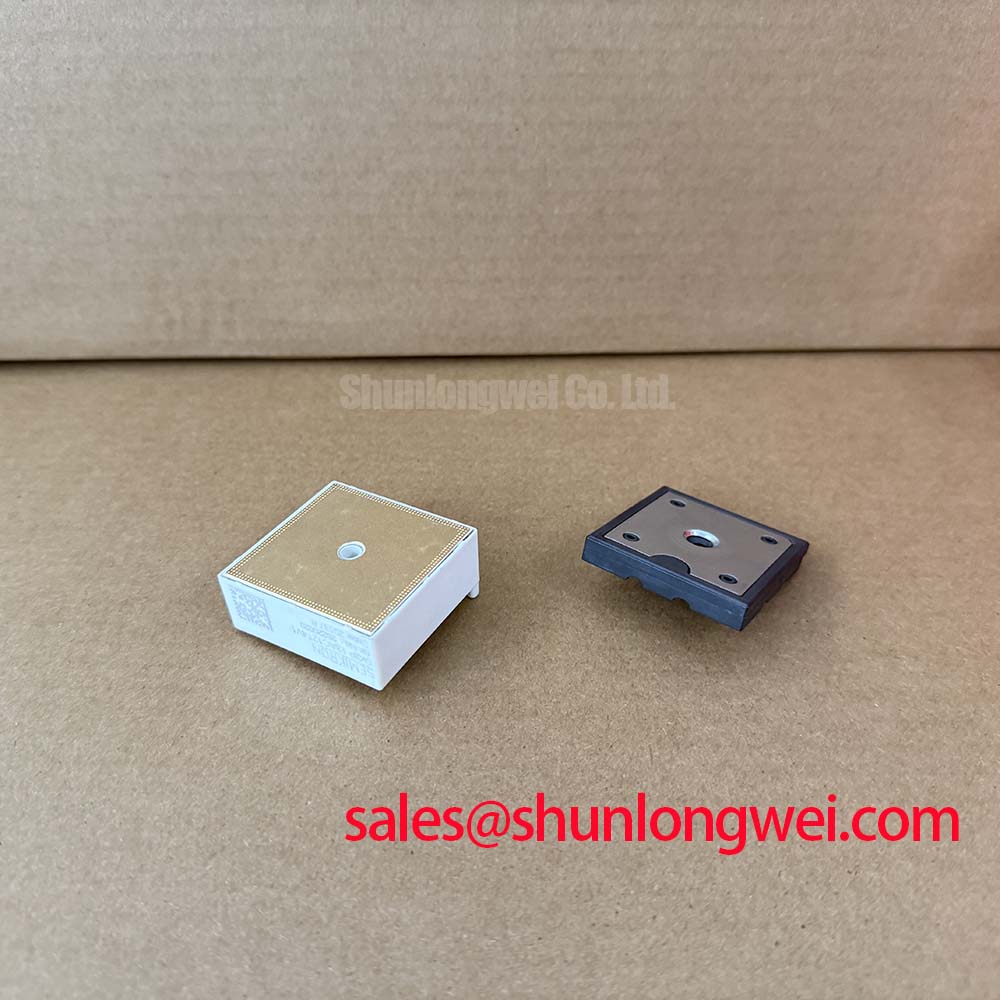

Semikron SKiiP 13AC12T4V1 | Advanced T-Type NPC Inverter Module
The Semikron SKiiP 13AC12T4V1 is not just another power module; it is a highly integrated solution engineered to redefine efficiency standards in modern power conversion systems. As part of the renowned SKiiP family (Semikron integrated intelligent Power), this module leverages a sophisticated T-type Neutral Point Clamped (T-NPC) topology. It is specifically designed for demanding applications such as high-efficiency solar inverters, uninterruptible power supplies (UPS), and advanced motor drives where superior power quality and minimal energy loss are non-negotiable.
Technical Deep Dive: The Core of the SKiiP 13AC12T4V1
Understanding the engineering behind the SKiiP 13AC12T4V1 reveals its significant advantages over conventional designs. Two key features stand out:
- Integrated T-NPC Topology: Unlike standard 2-level inverters, this module implements a 3-level output voltage waveform. This is achieved through a clever arrangement of IGBTs that allows the output to connect to the positive DC rail, the negative DC rail, or a neutral point. The immediate benefit is a drastic reduction in output voltage steps, which significantly lowers harmonic distortion (THD). For engineers, this translates to smaller, lighter, and less expensive output filters, simplifying the overall system design and reducing EMC challenges.
- Advanced Trench Field-Stop IGBT4 and CAL4F Diodes: The module incorporates state-of-the-art Trench Field-Stop IGBT4 chips, which are optimized for low collector-emitter saturation voltage (Vce(sat)). This directly minimizes conduction losses, a major source of heat in high-current applications. Paired with Controlled Axial Lifetime (CAL4F) freewheeling diodes that offer soft-recovery characteristics, the SKiiP 13AC12T4V1 also curbs switching losses and voltage overshoots, leading to enhanced IGBT efficiency and system reliability.
Multi-Dimensional Application Value
The theoretical benefits of the SKiiP 13AC12T4V1 translate into tangible gains across various industrial sectors:
- Solar Inverters: The 3-level topology allows for higher DC-link voltages and boosts the overall conversion efficiency, maximizing the energy harvested from photovoltaic arrays. The low THD ensures cleaner power is fed back to the grid, easily meeting stringent utility standards.
- Uninterruptible Power Supplies (UPS): In critical power applications, the quality of the output sine wave is paramount. This module’s T-NPC design delivers a superior waveform, reducing stress on downstream equipment and improving the reliability of the entire backup power system.
- Industrial Motor Drives: By generating a smoother output voltage, the module reduces torque ripple and audible noise in high-performance motors. This is crucial for applications like servo drives and robotics, where precision control and quiet operation are essential.
- Power Conversion Systems: For any application requiring high-efficiency AC power synthesis, this module offers a path to reduced cooling requirements, higher power density, and lower operating costs over the system's lifetime.
Key Technical Parameters at a Glance
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current (IC @ 80°C) | 150 A |
| Topology | 3-Level T-Type Neutral Point Clamped (T-NPC) |
| VCE(sat) (Typ. @ 125°C) | 1.9 V |
| Integrated Components | IGBTs, Freewheeling Diodes, Temperature Sensor |
Selection Guidance: SKiiP 13AC12T4V1 vs. Standard 6-Pack Modules
Engineers often face a choice between a traditional 6-pack IGBT module and an advanced topology like this T-NPC module. While a 6-pack is a versatile choice for standard 2-level inverters, the SKiiP 13AC12T4V1 is the superior option for applications demanding the highest efficiency and power quality. The key trade-off is upfront complexity versus long-term system benefits. If your design prioritizes minimal filter size, lower energy consumption, and superior output characteristics, the investment in a multilevel inverter topology like the T-NPC pays significant dividends. For a broader selection of power modules, you can Explore More IGBT Modules on our website.
Frequently Asked Questions
- What is the primary advantage of the T-NPC configuration?The main advantage is higher efficiency and lower output harmonic distortion compared to conventional 2-level inverters. This allows for smaller passive components (inductors and capacitors), increasing power density and reducing system cost.
- Does the SKiiP 13AC12T4V1 require a special gate driver?Yes, a 3-level T-NPC topology requires a more sophisticated gate driver capable of managing the unique switching states of the IGBTs. The SKiiP module's integrated design simplifies this, but the external driver circuitry must be compatible with the topology.
