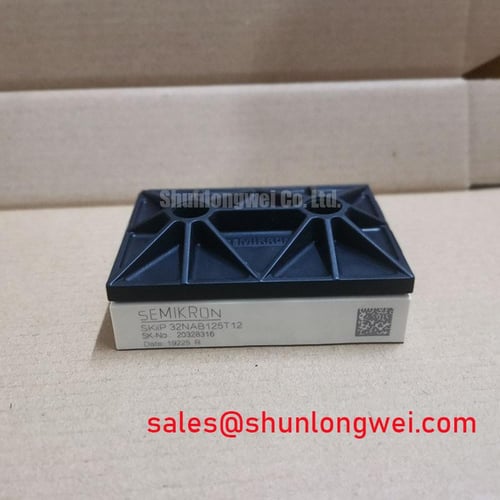

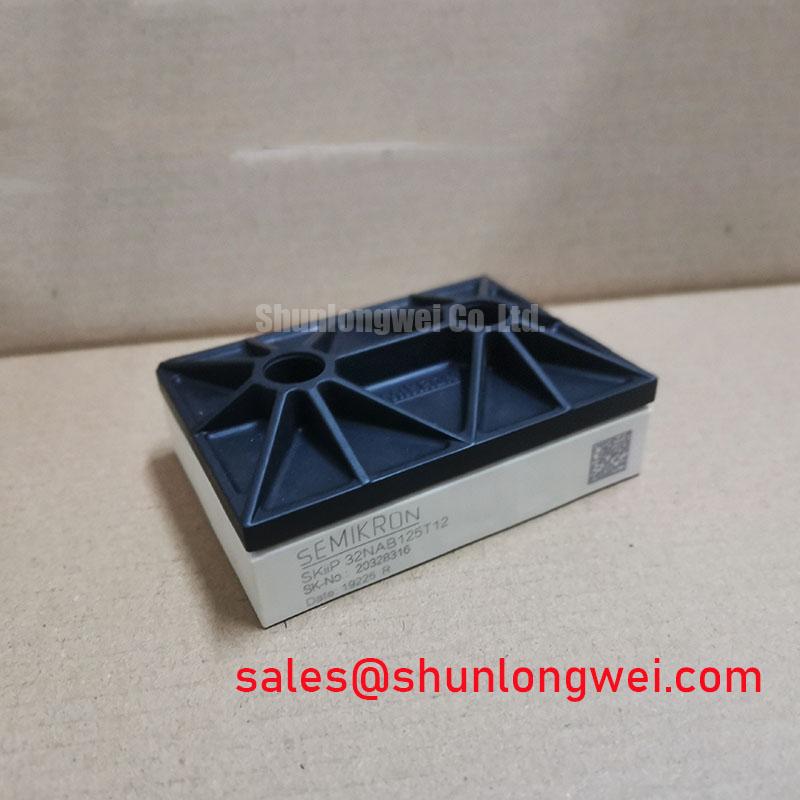

Semikron SKiip 32NAB125T12 | Integrated PIM for High-Reliability Motor Drives
The Semikron SKiip 32NAB125T12 is an intelligent power module (IPM) engineered not just for power conversion, but for system-level reliability and design simplification. As a fully integrated Power Integrated Module (PIM) featuring a Converter-Inverter-Brake (CIB) topology, it provides a robust, single-package solution for demanding three-phase motor control applications. This module is purpose-built for engineers seeking to accelerate development, reduce assembly complexity, and significantly enhance the operational lifetime of their power systems.
- All-in-One CIB Topology: Integrates the input rectifier, output inverter, and brake chopper into a single, thermally efficient package, minimizing footprint and simplifying system architecture.
- Advanced SKiiP® Technology: Utilizes Semikron's proven solder-free pressure contact system, delivering exceptional thermal cycling and power cycling capabilities for unmatched reliability.
- 1200V Trench Field-Stop IGBTs: Employs robust and efficient IGBTs paired with soft-recovery CAL freewheeling diodes, ensuring low conduction and switching losses.
- Integrated Intelligence: Features a digital signal processing (DSP) based gate driver with integrated current and temperature sensors for precise control and comprehensive protection.
A Technical Deep Dive into the SKiiP Advantage
The true value of the Semikron SKiip 32NAB125T12 lies in its foundational technologies, which directly address common points of failure in conventional power modules.
First is the revolutionary Semikron SKiiP® Technology. Traditional modules rely on soldered connections, which are susceptible to fatigue and cracking under the thermal stress of repeated power cycles. The SKiip 32NAB125T12 eliminates these weak points by using a pressure contact system. This not only creates a highly reliable electrical and thermal connection but also significantly lowers the thermal resistance from junction to heatsink. For design engineers, this translates to improved heat dissipation, higher power density, and a drastically extended service life, particularly in applications with frequent start/stop or load-varying cycles. For a deeper understanding of thermal performance, exploring why thermal resistance (Rth) matters is crucial.
Second, the integration of a DSP-driven gate unit with built-in sensors transforms this component from a simple power switch into a smart subsystem. The integrated hall-effect current sensors provide real-time feedback for sophisticated control algorithms and overcurrent protection, while the on-board temperature sensor allows for direct thermal monitoring. This level of integration eliminates the need for external sensor circuits and complex isolated signal routing, reducing BOM costs and potential sources of noise and failure.
Application Scenarios & Value Proposition
The unique features of the Semikron SKiip 32NAB125T12 deliver tangible benefits across several high-stakes industrial applications.
- Variable Frequency Drives (VFDs): In general-purpose VFDs, the CIB topology is the industry standard. This module streamlines the design of compact and robust inverter-based AC drives. Its high thermal cycling capability ensures longevity even when subjected to the harsh operating conditions of industrial automation.
- Robotic Servo Drives: Precision is paramount in robotics. The integrated DSP and fast-response current sensors provide the high-fidelity feedback needed for accurate positioning and dynamic torque control, making it an excellent choice for powering robotic servo drives.
- Renewable Energy Systems: In solar and wind power converters, reliability is non-negotiable. The robust, solder-free construction of this IPM ensures it can withstand the environmental and operational stresses, maximizing uptime and energy yield.
Key Parameter Overview
The following table outlines the critical electrical and thermal characteristics for the Semikron SKiip 32NAB125T12. For comprehensive specifications and application notes, please download the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current (IC) @ Tcase = 25°C (Inverter) | 125 A |
| Output Current (IRMS) (Rectifier) | 150 A |
| Topology | CIB (Converter-Inverter-Brake) |
| IGBT Technology | Trench Field-Stop IGBT 4 |
| Diode Technology | CAL (Controlled Axial Lifetime) |
| Isolation Voltage (Visol) | 4000 V |
Frequently Asked Questions (FAQ)
What are the main advantages of the CIB topology in this module?
The Converter-Inverter-Brake (CIB) topology, a type of Power Integrated Module (PIM), integrates the three essential stages of a motor drive into one component: the AC-to-DC converter (rectifier), the DC-to-AC inverter, and the dynamic brake chopper. This integration drastically reduces the physical footprint, simplifies the busbar layout, lowers assembly costs, and minimizes stray inductance, which can improve overall system efficiency and EMC performance.
How does the integrated gate driver in the SKiip 32NAB125T12 simplify design?
An integrated gate driver removes significant design complexity. Engineers no longer need to design, source, and validate separate driver boards, opto-couplers, and power supplies. The driver in this IPM is perfectly matched to the IGBTs' characteristics, ensuring optimal switching performance. Furthermore, it includes critical protection features like short-circuit detection (SCSOA), undervoltage lockout (UVLO), and feedback on error conditions, saving development time and improving system safety. For questions on selection or system integration, please contact our technical team.
