Semikron SKM75GB128D | Robust 1200V Half-Bridge IGBT for High-Reliability Power Conversion

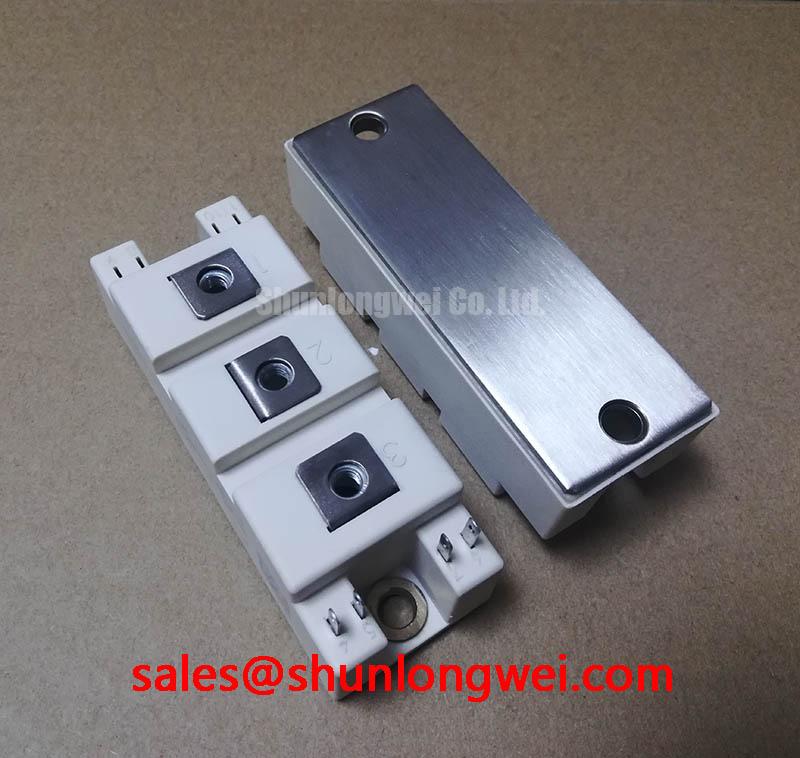

The Semikron SKM75GB128D is a cornerstone IGBT module engineered for durability and consistent performance in demanding industrial applications. Housed in the industry-standard SEMITRANS 2 package, this half-bridge module delivers a proven solution for designers prioritizing long-term operational reliability and thermal stability over cutting-edge switching speeds.
- Voltage and Current Rating: 1200V / 75A capability, ideal for 380V - 480V AC line applications.
- Core Technology: Features Semikron's Trench Gate IGBTs and CAL (Controlled Axial Lifetime) freewheeling diodes for balanced performance.
- Robust Packaging: The SEMITRANS 2 package with an isolated copper baseplate ensures excellent thermal transfer and mechanical ruggedness.
- Configuration: Half-bridge (two IGBTs in series) topology simplifies inverter leg design.
Key Technical Specifications
The following table provides a high-level overview of the SKM75GB128D's performance characteristics. For comprehensive design data, including thermal curves and safe operating areas, we recommend a full review of the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Continuous Collector Current (I_C) @ T_case = 25°C | 107 A |
| Continuous Collector Current (I_C) @ T_case = 80°C | 75 A |
| Collector-Emitter Saturation Voltage (V_CE(sat)) @ I_C = 75A, T_j = 125°C | 2.1 V (Typ.) |
| Total Power Dissipation per IGBT (P_tot) @ T_case = 25°C | 520 W |
| Thermal Resistance, Junction to Case (R_th(j-c)) per IGBT | 0.24 K/W |
For detailed specifications, download the full SKM75GB128D datasheet here.
Application Scenarios & Value Realized
The Semikron SKM75GB128D is not a module for every design; it is a specialist for applications where reliability is paramount. Its engineering strengths are most evident in the following areas:
- Industrial Motor Drives: In variable frequency drives (VFDs) for pumps, fans, and conveyors, its robust thermal design and ability to withstand cyclic loading ensure long service life. The moderate VCE(sat) provides a solid balance between conduction losses and system cost.
- Uninterruptible Power Supplies (UPS): For commercial and industrial UPS systems, the module's proven reliability is critical. The soft-recovery characteristics of the integrated CAL diode minimize voltage stress and EMI, contributing to overall system stability during power transitions.
- Welding Power Supplies: The rugged SEMITRANS package and excellent short-circuit withstand capability make it a suitable choice for the harsh electrical and thermal environment of welding applications.
Technical Deep Dive: The Engineering Behind the Performance
Two key technologies define the value proposition of the SKM75GB128D:
1. Trench Gate IGBT Technology: While not the latest generation, the trench gate structure represents a significant advancement over older planar IGBTs. By creating a vertical gate channel, it achieves a lower on-state voltage drop (V_CE(sat)) for a given die area. For the design engineer, this directly translates to lower conduction losses, reducing the heat that must be dissipated and improving overall system efficiency, particularly in applications with high duty cycles.
2. Semikron CAL Diode Technology: The integrated freewheeling diode utilizes Controlled Axial Lifetime technology. This provides a "soft" reverse recovery behavior. A "snappy" or abrupt diode recovery can induce significant voltage overshoots and high-frequency ringing, leading to EMI issues and increased stress on the IGBT. The CAL diode's soft recovery mitigates these effects, simplifying the requirements for snubber circuits and improving the electromagnetic compatibility (EMC) of the entire inverter.
Engineer's FAQ
Is the SKM75GB128D a good choice for new, high-frequency solar inverter designs?
Frankly, for new designs targeting high switching frequencies (>20 kHz) to reduce the size of magnetics, more modern IGBTs (like IGBT7) or SiC modules would be a better fit. The SKM75GB128D is optimized for reliability in the sub-15 kHz range, typical of industrial drives. It excels as a replacement part for existing systems or in new designs where cost-effectiveness and proven robustness are the primary engineering goals.
What is the most critical factor for ensuring the longevity of this module?
Effective thermal management. The low R_th(j-c) value indicates excellent potential, but it relies on proper implementation. This means ensuring a flat, clean heatsink surface, applying the correct mounting torque to the terminals, and using a high-quality thermal interface material (TIM). Understanding the principles of thermal resistance is key to unlocking its full potential and reliability.
For application support, cross-referencing, or to discuss integrating the SKM75GB128D into your power system, please contact our technical team.
