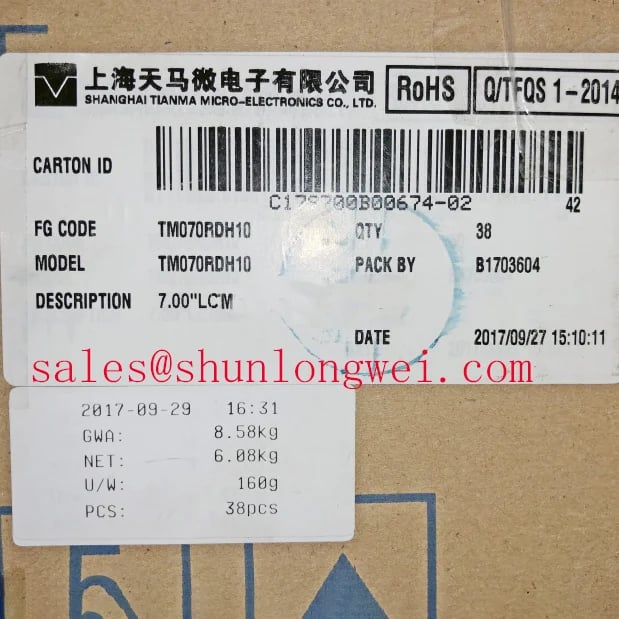

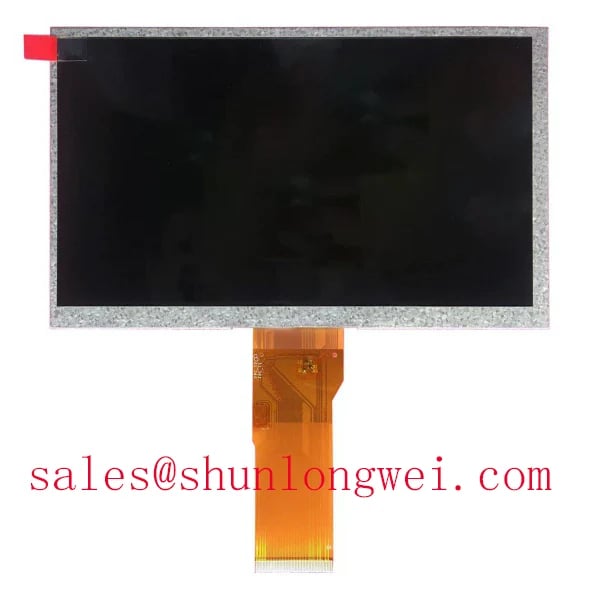

Tianma TM070RDH10-42 | A Workhorse Display for Industrial HMIs
The Tianma TM070RDH10-42 is a 7.0-inch WVGA display engineered for consistency and longevity in demanding industrial environments. It's not designed to be the flashiest screen on the market; instead, it is built to be a reliable, cost-effective, and easily integrable visual interface for a wide range of machinery and instrumentation. For system architects and design engineers, this display represents a pragmatic choice that balances performance with long-term operational stability.
Key Performance Characteristics at a Glance
Engineers value data-driven decisions. The following table outlines the core specifications that define the TM070RDH10-42's performance envelope. For a comprehensive list of all electro-optical characteristics, download the full TM070RDH10-42 datasheet.
| Parameter | Specification |
|---|---|
| Screen Size | 7.0 inches |
| Resolution | 800(RGB) x 480 (WVGA) |
| Technology | a-Si TFT-LCD, Transmissive |
| Brightness | 350 cd/m² (Typical) |
| Contrast Ratio | 800:1 (Typical) |
| Interface | Parallel RGB (1 ch, 6/8-bit) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
Application Scenarios & Engineering Value
The true value of a component is measured by its performance in the field. The Tianma TM070RDH10-42 is engineered to excel in applications where reliability and functional clarity are paramount.
- Industrial HMI Panels: Its wide operating temperature range ensures consistent performance from cold-start factory floors to warm, enclosed control cabinets. The standard WVGA resolution is perfectly suited for displaying critical machine parameters, status indicators, and simple control interfaces without overburdening the system's processor.
- Medical Diagnostic Equipment: In non-patient-facing diagnostic tools, such as lab analyzers or monitoring stations, the TM070RDH10-42 provides a clear and stable display for numerical data, simple waveforms, and user prompts. Its proven WLED backlight technology offers a long operational life, a critical factor for devices with high uptime requirements.
- Test and Measurement Instruments: For portable or benchtop oscilloscopes, multimeters, and signal generators, the Parallel RGB interface allows for straightforward, low-latency integration with a wide variety of microcontrollers and FPGAs, simplifying the hardware design process.
Technical Deep Dive: Design & Integration Advantages
Two core characteristics of the Tianma TM070RDH10-42 provide significant advantages during the system design phase.
First, the -20°C to +70°C operating temperature range is not just a specification; it's an assurance of robustness. This thermal resilience is achieved through careful selection of liquid crystal fluid and internal components. For engineers, this eliminates the need for costly and complex active heating or cooling systems in many applications, reducing the overall bill of materials (BOM), power consumption, and potential points of failure.
Second, the use of a Parallel RGB interface is a deliberate choice for industrial applications. While serial interfaces like MIPI DSI are common in consumer electronics, Parallel RGB offers direct, timing-based control that is less complex to implement on many industrial-grade MCUs. This can significantly shorten development cycles and simplify debugging, a tangible benefit for engineering teams under tight deadlines. This interface is a core component of many reliable industrial LCD displays.
Frequently Asked Engineering Questions (FAQ)
- Is the TM070RDH10-42 suitable for outdoor use?With a brightness of 350 nits, this display is not designed for direct sunlight applications. It performs exceptionally well indoors or in heavily shaded outdoor environments. For applications requiring direct sun exposure, a dedicated sunlight-readable display with a brightness of 1000 nits or more would be the appropriate choice.
- What are the main considerations when designing for the Parallel RGB interface?Signal integrity is key. Keep trace lengths from the graphics controller to the display's FPC connector as short and equally matched as possible, especially for the clock and data lines. Proper grounding and shielding are also critical to minimize EMI, which is a common challenge in industrial settings.
The TM070RDH10-42 is a testament to purposeful engineering. It delivers the exact performance needed for a significant segment of the industrial market, prioritizing reliability and ease of integration over superfluous features. For your next HMI or instrumentation project, if the requirements call for a dependable, no-nonsense display, this model warrants serious consideration. For detailed integration support or to discuss your specific application needs, please contact our engineering team.
