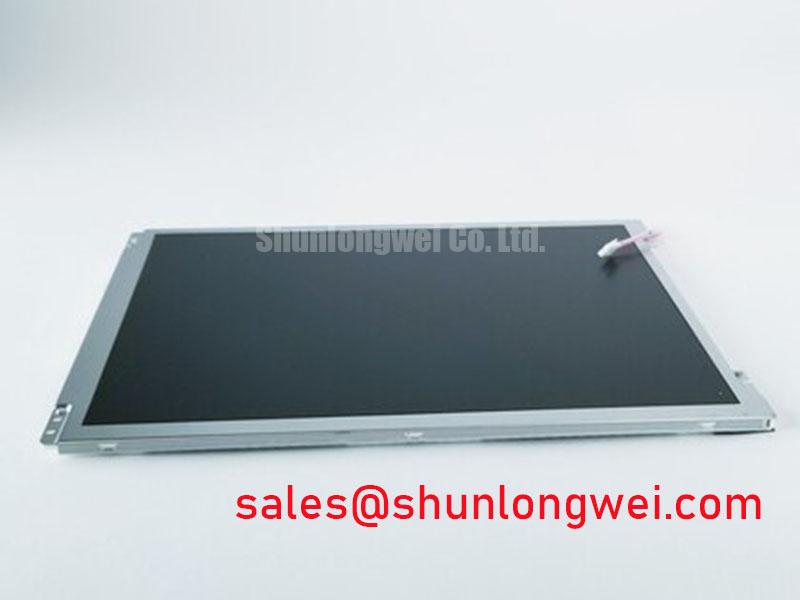

TM104SDH01: An Engineer's Guide to this 10.4" SVGA Industrial Display
Content last revised on October 6, 2025.
Engineered for longevity and consistent performance in demanding environments, the Tianma TM104SDH01 is a 10.4-inch a-Si TFT-LCD module delivering reliable visuals for industrial and medical applications. This display balances proven technology with a robust operational profile, featuring key specifications of 800x600 SVGA resolution | 400 cd/m² brightness | -20°C to 70°C operating range. Its primary engineering benefits include a durable WLED backlight system and a wide operational temperature tolerance. For engineers designing systems for challenging thermal conditions, this module offers a predictable and stable HMI foundation. With its wide operating temperature range and long-life backlight, the TM104SDH01 is an excellent fit for unconditioned indoor or sheltered outdoor terminals where reliability is paramount.
Key Parameter Overview
Decoding the Specs for Operational Resilience
The specifications of the TM104SDH01 are tailored for industrial applications where environmental stability and long-term performance are critical design criteria. The parameters below highlight its suitability for integration into a variety of control panels, diagnostic equipment, and information terminals.
| Parameter Category | Specification | Engineering Value & Interpretation |
|---|---|---|
| Display Characteristics | 10.4" Diagonal, 800x600 (SVGA), 4:3 Aspect Ratio | Provides a standard, space-efficient resolution suitable for displaying critical operational data, GUIs, and diagnostics without requiring high-end graphics processing. The 4:3 format is well-suited for legacy HMI software and compact panel layouts. |
| Optical Performance | Brightness: 400 cd/m² (Typ.)Contrast Ratio: 400:1 (Typ.)Viewing Angle: 70/70/60/70 (L/R/U/D) | The 400-nit brightness ensures clear readability in typical indoor industrial and medical settings. This level of luminance is like having a clear view of your instruments inside a factory, away from direct sunlight, ensuring that operators can read data without error. |
| Environmental Tolerance | Operating Temp: -20°C to 70°CStorage Temp: -30°C to 80°C | This wide operating range is a key differentiator for industrial use, guaranteeing functionality in environments from cold storage facilities to factory floors with significant heat-generating machinery. It removes the need for complex and costly external heating or cooling systems in many designs. |
| Backlight System | WLED, 30,000 Hours (Typ.) Lifetime | The WLED backlight offers excellent energy efficiency and a long operational life. A 30,000-hour lifespan translates to over 3.4 years of continuous, 24/7 operation before the brightness is expected to degrade to 50%, minimizing maintenance cycles and total cost of ownership. |
| Physical & Electrical | Dimensions: 236 x 176.9 x 5.9 mmInterface: LVDS (1 ch, 6-bit)Supply Voltage: 3.3V (Typ.) | A slim 5.9mm profile allows for integration into space-constrained enclosures. The standard LVDS Interface is a common, low-noise standard in industrial systems, simplifying connection to single-board computers and custom controller boards. |
Download the TM104SDH01 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial HMI and Control Systems
The TM104SDH01 is engineered specifically for environments where consumer-grade displays would fail. Its primary value lies in its operational resilience, making it a reliable choice for human-machine interfaces (HMIs), process control terminals, and medical diagnostic equipment. Consider the challenge of designing an operator panel for a semi-enclosed manufacturing line control station. Temperatures can fluctuate significantly, from a cold start-up on a winter morning to elevated temperatures near machinery during peak operation. The TM104SDH01's certified -20°C to 70°C operating range directly addresses this challenge, ensuring the display remains functional and readable without flicker or failure, thereby preventing costly downtime. The SVGA resolution is perfectly adequate for displaying SCADA interfaces, process flow diagrams, and equipment status indicators, which are common in industrial automation. For systems requiring a similar form factor but with higher resolution for more detailed graphical content, the G104XVN01.0 offers XGA resolution.
Frequently Asked Questions (FAQ)
What is the primary advantage of the -20°C to 70°C operating temperature range?
This wide temperature range ensures the TM104SDH01 can be reliably deployed in environments with poor or no climate control, such as factory floors, warehouses, or sheltered outdoor kiosks. It significantly reduces the engineering overhead and cost associated with designing external thermal management systems for the display.
How does the 30,000-hour backlight lifetime impact the total cost of ownership (TCO)?
A 30,000-hour backlight lifetime, which equates to roughly 3.4 years of continuous operation, means fewer replacements and less maintenance over the life of the host equipment. For industrial machinery or medical devices with long service life requirements, this enhances system reliability and lowers the TCO by minimizing service calls and downtime.
Is the 800x600 SVGA resolution sufficient for modern industrial applications?
Yes, for a large number of industrial control and monitoring applications, SVGA is an ideal resolution. It is more than capable of clearly displaying key performance indicators, system alerts, and graphical user interfaces for machine control. It also has lower processing and power requirements compared to higher-resolution displays, which can simplify system design.
What does the 6-bit LVDS interface mean for system integration?
A 6-bit LVDS interface allows the display to render 262,144 colors. This is a standard, cost-effective interface for industrial embedded systems that is robust against electrical noise typically found in factory environments. It is widely supported by single-board computers and display controllers, making integration straightforward.
Can the TM104SDH01 be used in bright ambient light?
With a typical brightness of 400 cd/m², the TM104SDH01 is best suited for indoor industrial environments or areas without direct, bright sunlight. For applications requiring direct sunlight readability, a display with significantly higher brightness (typically 1000 cd/m² or more) would be necessary. Within its intended operating environments, however, its brightness provides excellent clarity.
Industry Insights & Strategic Advantage
Meeting the Durability Demands of Industry 4.0
As manufacturing and logistics move towards the Industry 4.0 model, the demand for reliable, decentralized data visualization tools at the operational edge is increasing. Devices like the Tianma TM104SDH01 serve as a critical link, providing operators with direct access to machine performance data and control interfaces. The strategic advantage of this display lies not in cutting-edge features, but in its commitment to industrial-grade fundamentals: thermal resilience and long-term operational consistency. While consumer displays prioritize pixel density and color gamut, the TM104SDH01 prioritizes uptime. In a connected factory, a failed HMI on a critical piece of machinery can cause a bottleneck that halts an entire production line. By specifying a component with a robust thermal design and a long-life backlight, design engineers are building a foundation of reliability into their systems, a cornerstone of any successful Industry 4.0 implementation.
An Engineer's Perspective
From an engineering standpoint, the TM104SDH01 represents a commitment to functional reliability over superfluous specifications. It is a component designed for integration into systems that are built to last and perform under less-than-ideal conditions. Its feature set—the wide temperature range, the proven LVDS interface, and the long-life WLED backlight—is a direct response to the real-world challenges faced in industrial and medical environments. This is not a display for a consumer tablet; it is a workhorse for a factory control panel or a portable diagnostic tool, where consistent, predictable performance is the most valuable attribute. Integrating the TM104SDH01 allows engineers to focus on their core system logic, confident that the visual interface is built upon a solid and dependable foundation.
