## TX14D23VM5BAA by KOE: A 5.7-inch VGA Display Engineered for High-Ambient-Light Industrial Environments
Content last revised on October 16, 2025.

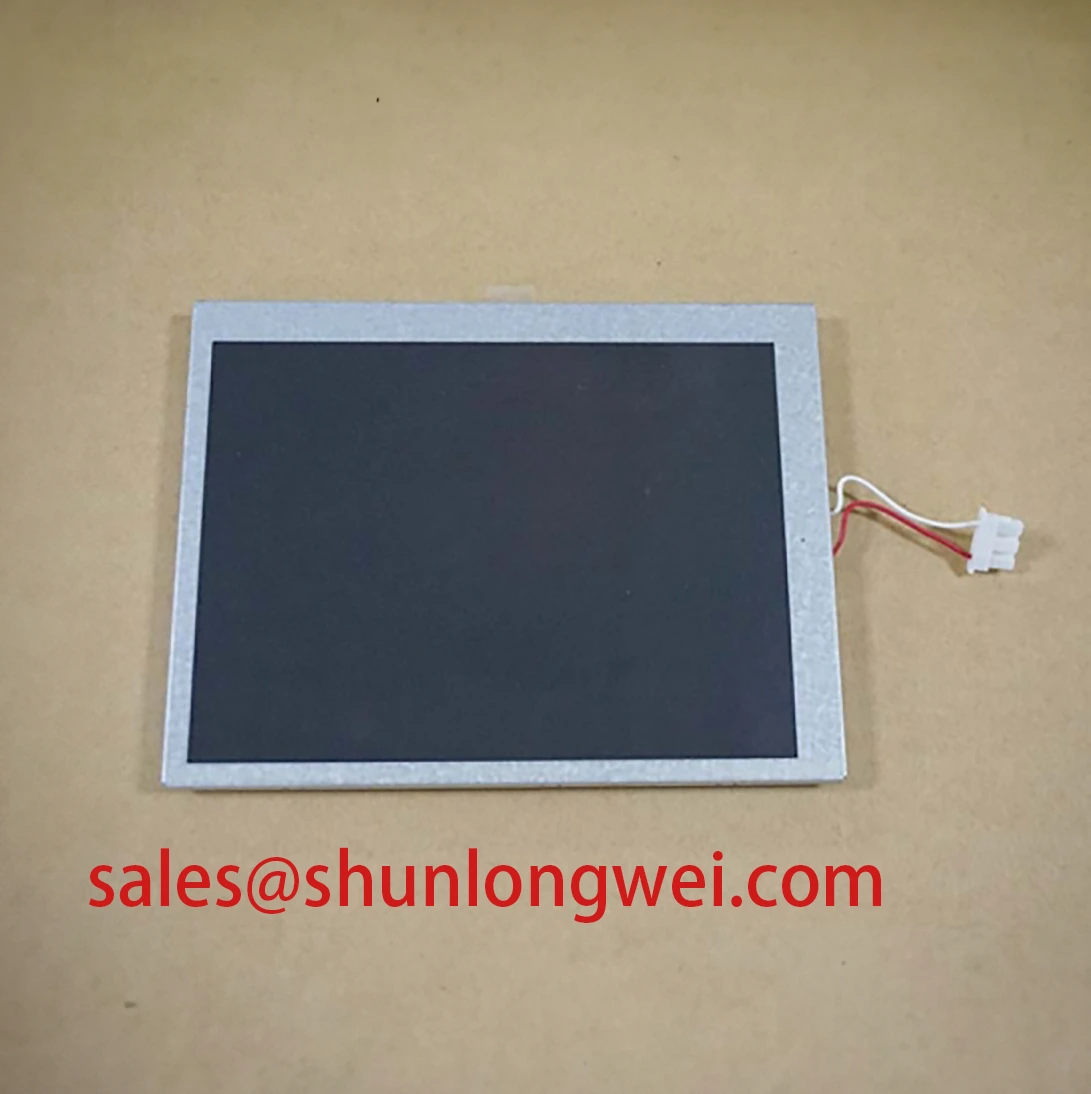

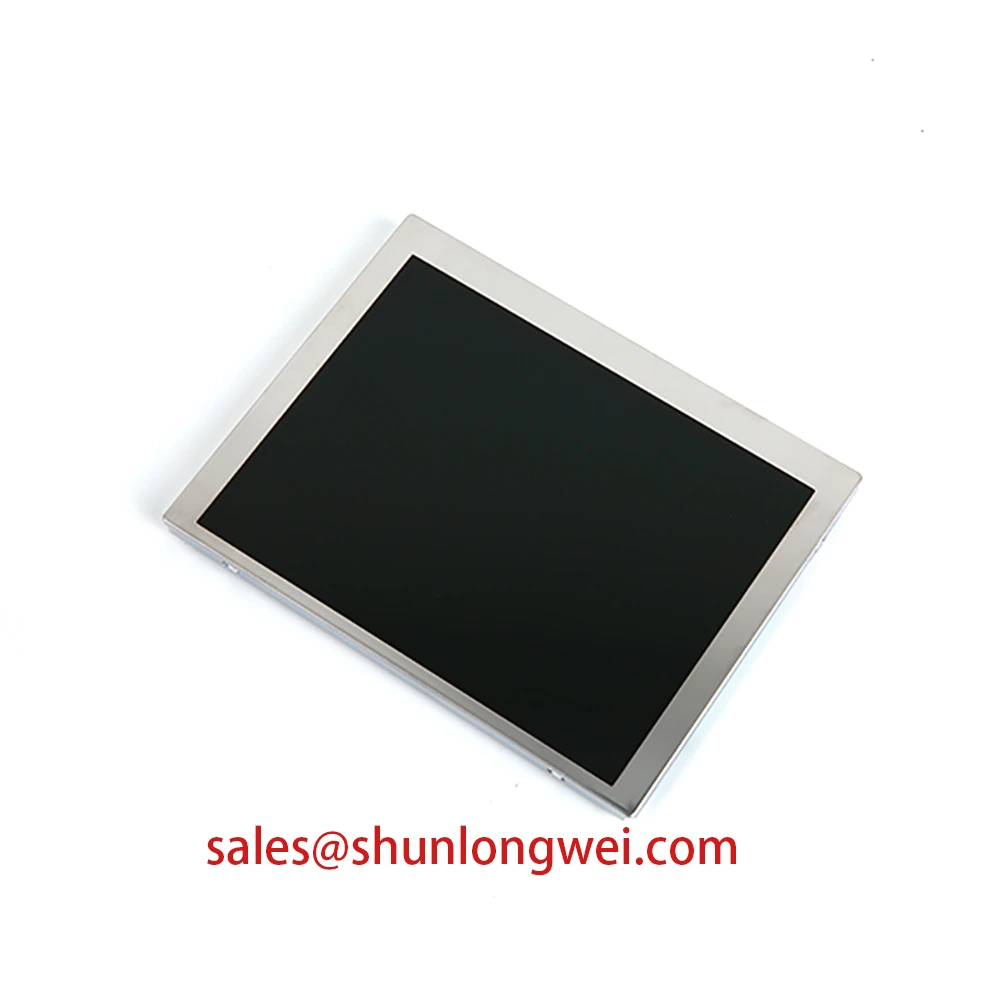

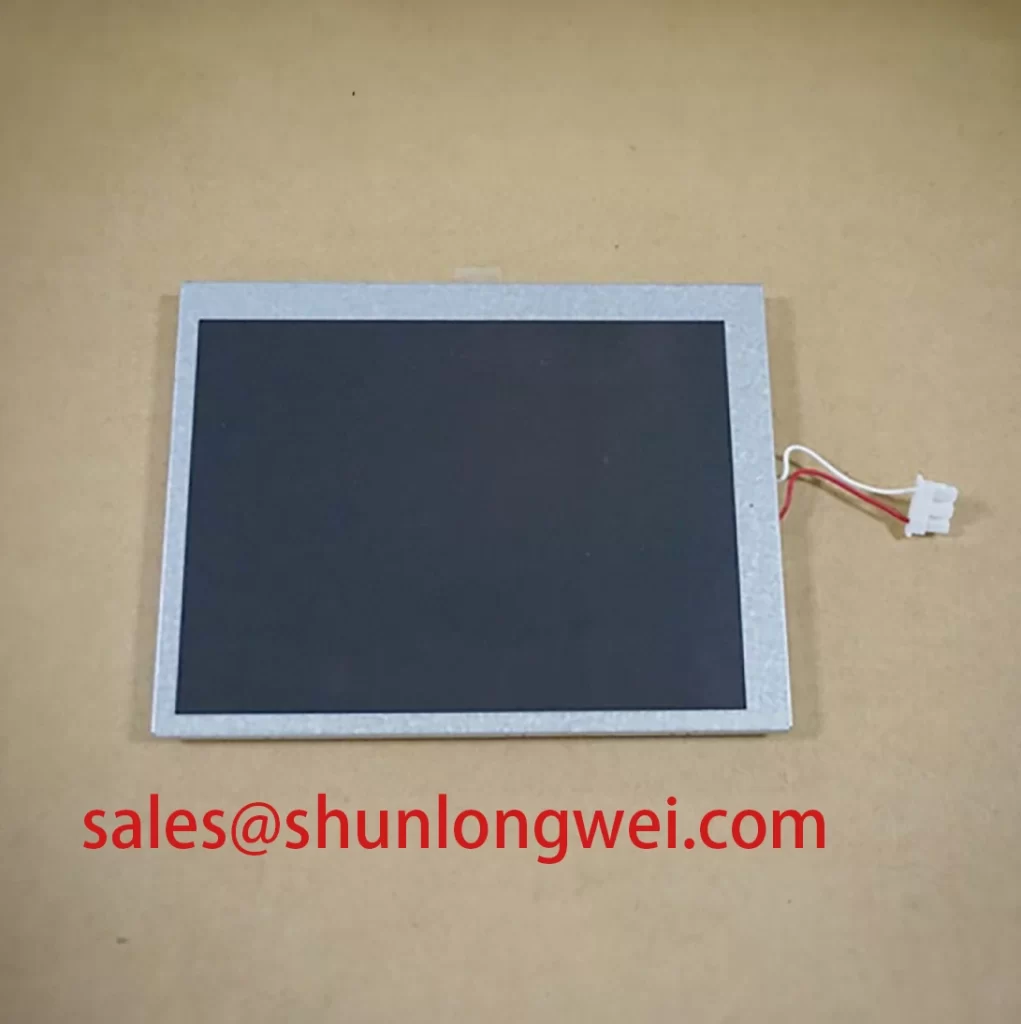

The KOE TX14D23VM5BAA is a 5.7-inch a-Si TFT-LCD module delivering robust optical performance and environmental resilience, specifically tailored for demanding industrial applications. With its exceptional brightness and extremely wide operating temperature range, this display provides a reliable human-machine interface (HMI) solution where visual clarity and operational stability in harsh conditions are non-negotiable. For industrial systems requiring consistent readability from bright factory floors to outdoor settings, the TX14D23VM5BAA’s combination of 800 nits brightness and a -30 to 80°C operating range ensures dependable performance. What is the primary benefit of its high brightness? Superior visibility in high-ambient-light conditions, ensuring data is always readable. Best fit for systems where operational uptime across extreme temperatures is critical, this display is an optimal choice for unconditioned enclosures and mobile machinery.
### Application Scenarios & Value
Delivering Readability and Reliability in Challenging Field Conditions
The TX14D23VM5BAA is engineered for scenarios where standard displays fail to perform. Its 800 cd/m² high-brightness output directly addresses the challenge of screen washout in sunlit or intensely lit environments, a common issue for portable diagnostic tools, marine chart plotters, and outdoor kiosks. Consider a geological surveying instrument used in the field; operators require immediate, clear readings from the device, regardless of direct sun exposure. The display's high luminance, combined with a 400:1 contrast ratio, ensures that graphical data and critical readouts remain sharp and discernible, directly impacting data accuracy and operational efficiency.
Furthermore, its expansive operating temperature range of -30°C to 80°C is a decisive factor for equipment deployed in environments with no climate control. This includes industrial freezers, foundry control panels, or agricultural vehicle dashboards, where electronics are subjected to severe temperature swings. The ability to function reliably without heaters or cooling fans simplifies system design, reduces power consumption, and eliminates potential points of mechanical failure, thus lowering the total cost of ownership. For applications in more controlled environments or requiring different interface options, the related NL6448BC33-70C could be a consideration for system designers.
### Key Parameter Overview
Specifications Interpreted for Industrial Integration
The technical specifications of the TX14D23VM5BAA are optimized for durability and clear visual output in industrial settings. Each parameter contributes to its role as a reliable component in ruggedized systems.
| Core Optical & Mechanical Specifications | |
|---|---|
| Parameter | Value & Engineering Implication |
| Display Size | 5.7 inch (14.48 cm) - A compact form factor suitable for portable devices and space-constrained control panels. |
| Resolution | 640(RGB)×480 [VGA] - Provides sufficient pixel density (141 PPI) for clear rendering of GUIs and data in industrial control applications. |
| Brightness | 800 cd/m² (Typ.) - This high luminance is the key to its sunlight-readable performance, ensuring screen visibility in outdoor or high-ambient-light industrial environments. Think of it as having powerful headlights on a car, allowing you to see clearly even when external conditions are bright. |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) - Symmetrical wide viewing angles ensure that information is accurately displayed to operators from multiple perspectives without color distortion, crucial for collaborative environments. |
| Operating Temperature | -30 ~ 80 °C - An exceptionally wide range that guarantees operational stability in extreme cold and hot conditions, reducing the need for auxiliary thermal management hardware. |
| Backlight System | WLED with 50,000-hour typical lifetime - Offers a long operational life, minimizing maintenance cycles and ensuring consistent performance over the product's lifespan. |
| Interface | Parallel RGB (1 ch, 6-bit) - A standard interface that allows for straightforward integration with a wide array of industrial motherboards and single-board computers. |
Download the TX14D23VM5BAA datasheet for detailed specifications and performance curves.
### Technical Deep Dive
The Engineering Behind Environmental Resilience and Optical Stability
The true value of the TX14D23VM5BAA lies in the synergy between its optical and environmental specifications. The specified operating temperature of -30°C to 80°C is not merely a number; it's an assurance of functional integrity. At the molecular level, the liquid crystals within the TN panel are formulated to maintain their viscosity and response characteristics across this thermal spectrum. This prevents common cold-weather issues like ghosting or slow response times (rated at 50 ms Typ.) and avoids blackouts or degradation under high heat. This thermal stability is analogous to using an all-season lubricant in a gearbox; it ensures consistent performance whether starting on a freezing morning or running hot under continuous load.
This resilience is complemented by a robust mechanical design, including a vibration tolerance of 2.0G (19.6 m/s²), making it suitable for high-vibration environments like construction equipment or industrial machinery. The combination of a long-life WLED backlight (50K hours) with this rugged construction creates a display subsystem engineered for minimal intervention and maximum uptime, directly supporting the reliability goals of any industrial product it is designed into.
### Frequently Asked Questions (FAQ)
What makes the TX14D23VM5BAA "sunlight readable"?Its high brightness of 800 cd/m² is the primary factor. This allows the light emitted from the display to overpower the ambient light from the sun, maintaining a strong contrast between the screen content and its background, which is essential for outdoor visibility.
How does the -30°C to 80°C operating temperature impact system design?This wide range significantly simplifies enclosure design. It often eliminates the need for dedicated heating or cooling components for the display, which saves space, reduces the overall power budget, and increases the system's mean time between failures (MTBF) by removing potential failure points like fans.
Is the 640x480 VGA resolution sufficient for modern industrial HMIs?For many dedicated industrial control, monitoring, and diagnostic applications, a VGA resolution on a 5.7-inch screen provides excellent clarity for displaying key performance indicators, system schematics, and user interface controls. It prioritizes readability and reliability over the high pixel density required for consumer media.
What is the significance of the 80/80/80/80 viewing angle?This specification means the display can be viewed from up to 80 degrees in any direction (up, down, left, or right) without significant degradation in image quality or color accuracy. This is critical for control panels that may be viewed by multiple operators from different positions simultaneously.
Does the WLED backlight offer advantages beyond a long lifespan?Yes. Compared to older CCFL technology, WLED backlights are more power-efficient, contain no mercury, offer better durability against shock and vibration, and provide more stable brightness over their operational life. This contributes to both lower running costs and a more environmentally friendly design.
An Engineer's Perspective
Integrating for Reliability
From an integration standpoint, the TX14D23VM5BAA is a pragmatic choice for engineers prioritizing long-term field reliability over cutting-edge resolution. Its standard parallel RGB interface ensures broad compatibility and a straightforward design-in process. The critical takeaway is that this display's value is not defined by a single specification, but by the thoughtful combination of high brightness, extreme temperature tolerance, and a durable WLED backlight. This blend results in a component that solves the fundamental HMI challenge in harsh environments: delivering clear, reliable information to the operator, every time. The focus here is on operational assurance, which is the cornerstone of successful industrial system design.
