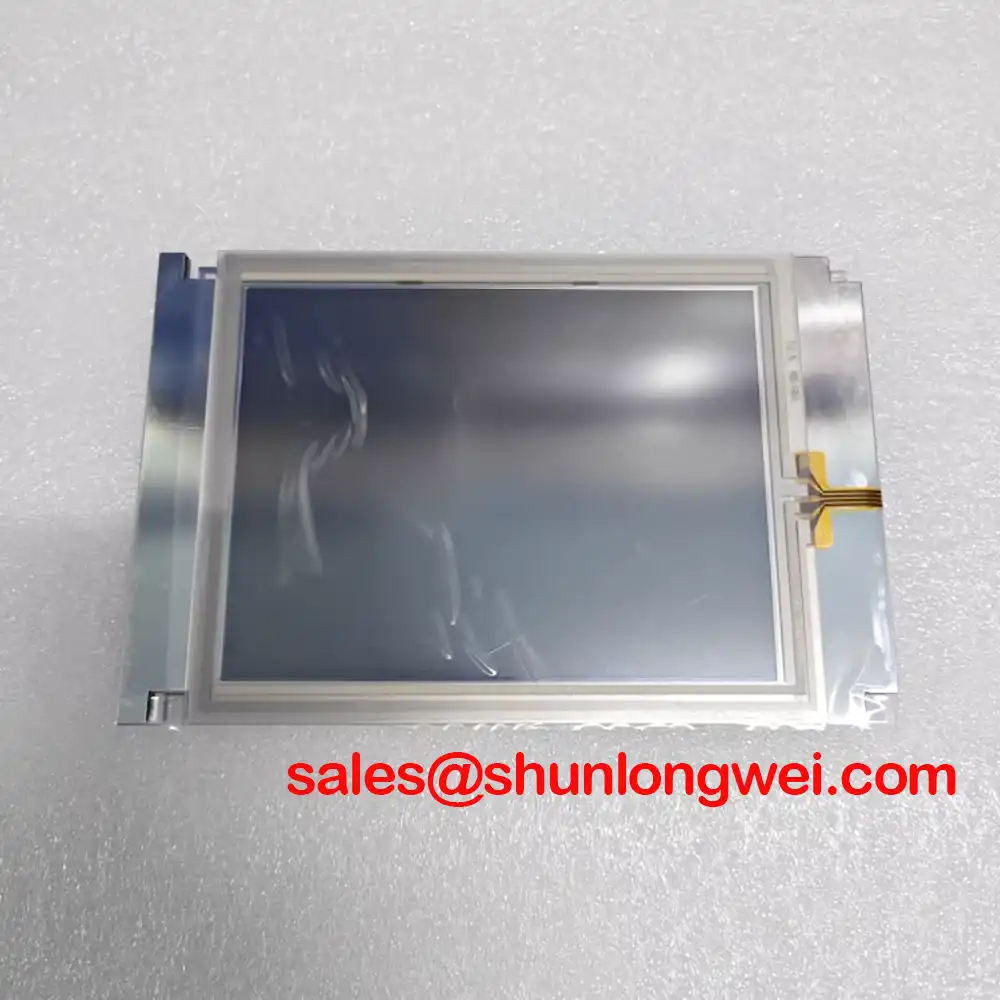

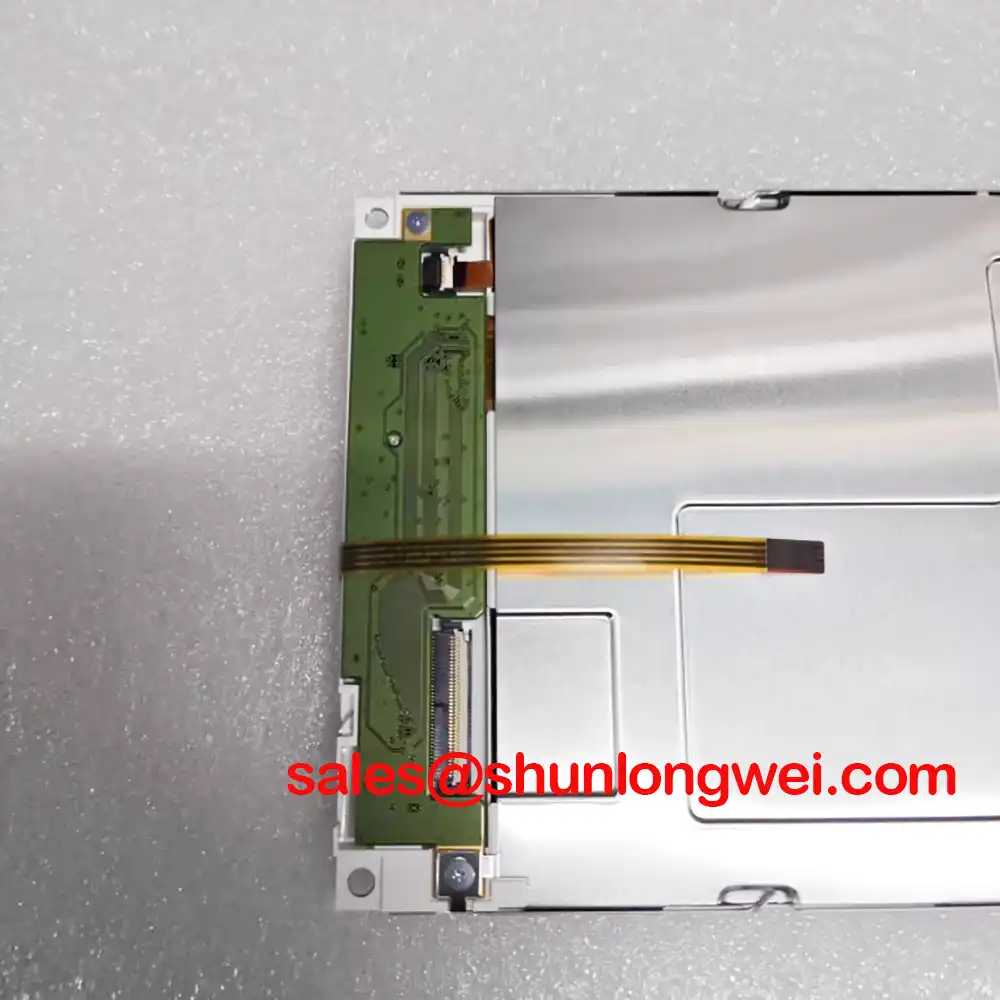

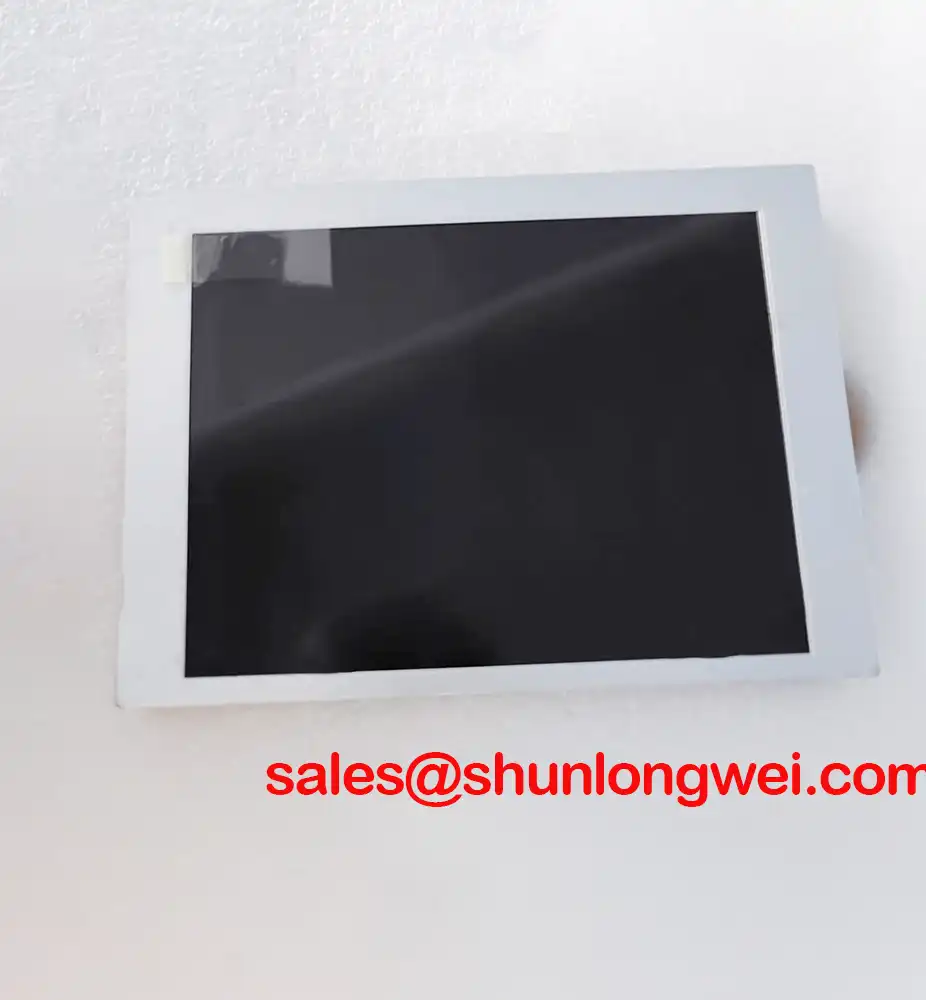

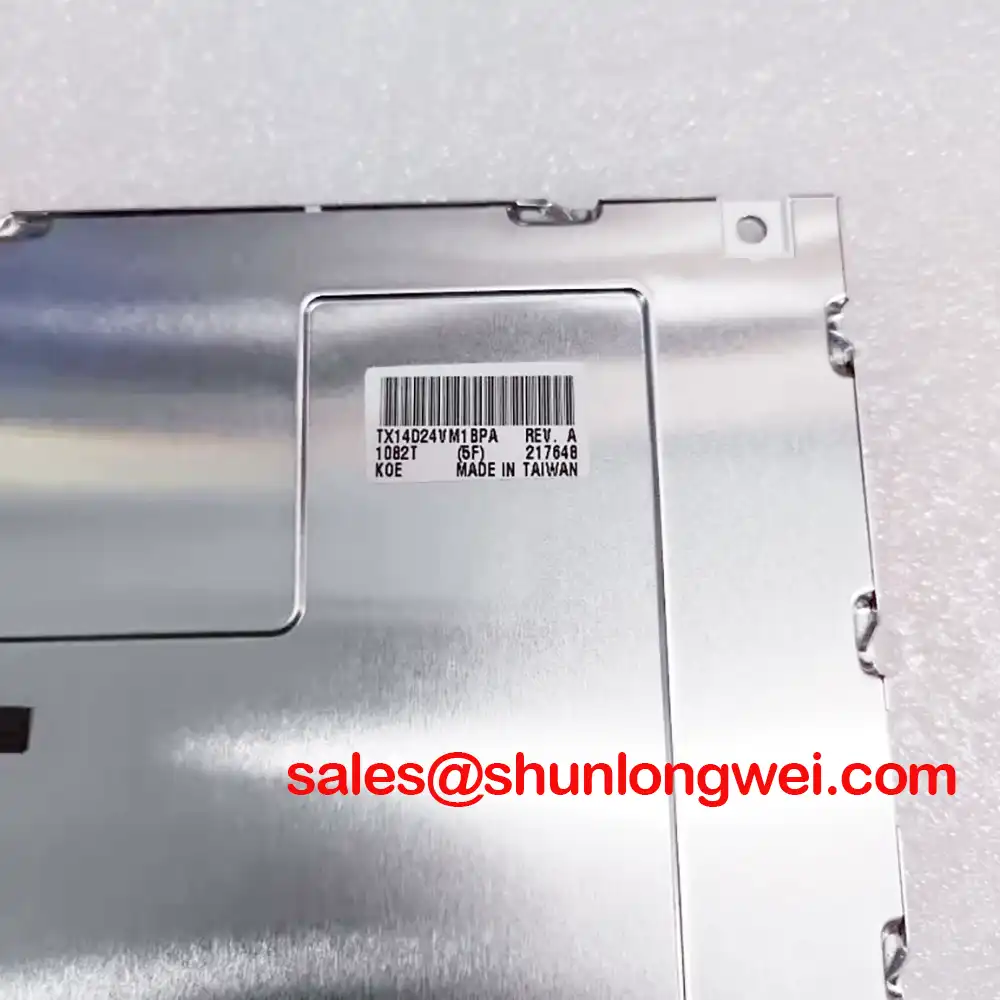

KOE TX14D24VM1BPA | 5.7" VGA IPS Display for Uncompromised Visual Clarity
The KOE TX14D24VM1BPA is an industrial-grade 5.7-inch VGA TFT-LCD engineered for applications where visual precision and operational reliability are non-negotiable. This display moves beyond standard specifications, delivering superior image quality and robust performance through advanced IPS technology and a design optimized for demanding environments. It's an ideal human-machine interface (HMI) solution for medical diagnostics, industrial control, and high-performance portable instrumentation.
Core Strengths of the TX14D24VM1BPA
- Exceptional Viewing Angles: Utilizes advanced IPS-Pro (In-Plane Switching) technology, ensuring consistent color and brightness from nearly any viewing direction.
- High Brightness & Contrast: Features a 700 cd/m² brightness and a 1000:1 contrast ratio, delivering crisp, readable images even in brightly lit conditions.
- Industrial-Grade Durability: Built to withstand a wide operating temperature range of -30°C to 80°C, making it suitable for unconditioned factory floors, outdoor kiosks, and mobile equipment.
- Standard LVDS Interface: Employs a 20-pin LVDS interface, which provides excellent noise immunity and supports longer cable runs between the display and the driver board.
- Long-Life LED Backlight: Equipped with an LED backlight system rated for a 70,000-hour lifetime, significantly reducing maintenance overhead and total cost of ownership.
Technical Deep Dive: Where Performance Originates
Two core technologies set the TX14D24VM1BPA apart from conventional industrial displays.
-
IPS-Pro for Diagnostic Confidence
Standard TN displays often suffer from color and contrast shifts when viewed off-axis. For critical applications like medical imaging or precision calibration, this is unacceptable. The TX14D24VM1BPA integrates IPS-Pro technology, which aligns liquid crystals horizontally. This fundamental difference virtually eliminates off-angle color distortion, ensuring that multiple users viewing a screen simultaneously see the exact same information. This is crucial for collaborative diagnostics or complex machinery operation where misinterpretation is not an option.
-
Synergy of Brightness and Thermal Resilience
A high-brightness display is only useful if it can survive its operating environment. The module's 700-nit backlight is paired with a construction that supports an extreme temperature range. This robust thermal design ensures the display performs reliably without degradation, whether installed in a hot industrial enclosure or a cold-storage facility HMI. The robust design also speaks to the quality of its internal components, including the high-voltage ICs that drive the display.
Application Scenarios & Value Proposition
The KOE TX14D24VM1BPA is not just a component; it's a problem-solver across multiple industries.
- Medical Diagnostic Systems: In devices like patient monitors and ultrasound machines, the consistent, accurate color fidelity of IPS technology is critical for correct diagnosis. The wide viewing angle allows multiple healthcare professionals to view the screen without compromising image integrity.
- Industrial Control Panels: On a bustling factory floor, operators need to glance at an HMI from various positions. The display's high brightness cuts through ambient glare, and its wide temperature tolerance ensures flawless operation next to heat-generating machinery.
- Portable Test & Measurement Gear: For field engineers using devices like network analyzers or environmental testers, readability in sunlight is key. The high brightness and anti-glare surface of the **TX14D24VM1BPA** provide excellent performance outdoors, while the LVDS interface maintains signal integrity in electrically noisy environments.
Key Technical Parameters
For a comprehensive overview, please refer to the TX14D24VM1BPA Datasheet. Below are the essential specifications:
| Parameter | Value |
|---|---|
| Screen Size | 5.7 inch (14.5 cm) |
| Resolution | 640 x 480 (VGA) |
| Display Technology | IPS-Pro TFT-LCD |
| Brightness | 700 cd/m² (typ.) |
| Contrast Ratio | 1000:1 (typ.) |
| Operating Temperature | -30°C to +80°C |
| Interface | 20-pin LVDS |
| Backlight Lifetime | 70,000 hours (typ.) |
Frequently Asked Questions (FAQ)
- Can the backlight be replaced?
Yes, the backlight unit for the **KOE TX14D24VM1BPA** is designed to be replaceable, further extending the display's service life in long-term deployments and protecting your investment. - Is this display compatible with single-board computers (SBCs)?
Absolutely. Its standard LVDS interface makes it highly compatible with a wide range of industrial motherboards and SBCs that feature an LVDS output. Always verify pin assignments with your board's technical documentation. - Does the display support touch functionality?
This model, TX14D24VM1BPA, is the non-touch version. However, its robust glass surface makes it an excellent candidate for integration with a third-party capacitive or resistive touch panel.
Choosing the right display module is critical for the success of your final product. With its superior IPS technology, industrial-grade ruggedness, and long operational life, the KOE TX14D24VM1BPA provides a reliable and high-performance visual interface. To explore more industrial LCD displays or to discuss your specific project requirements, please contact us for a quote.
