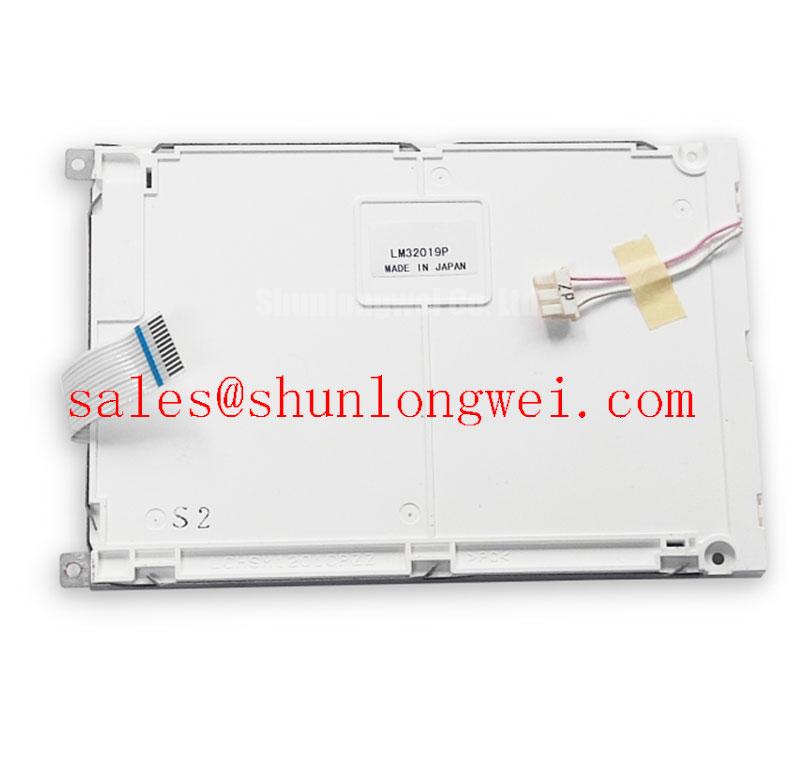

Sharp LM32019P 5.7-Inch QVGA Monochrome LCD Module Overview
The Sharp LM32019P is a compact 5.7-inch monochrome graphic LCD panel delivering a 320x240 resolution in standard QVGA format. Built on Film-compensated Super-Twisted Nematic (FSTN) technology, this display offers high-contrast black-and-white visual representation with a logic power consumption of just 46 mW. Designed for embedded Human-Machine Interfaces (HMIs) and industrial instrumentation, the Sharp LM32019P pairs a transmissive panel structure with an integrated single CCFL backlight to ensure consistent readability across indoor operating environments. For 5.7-inch industrial HMI systems requiring low panel power consumption, the 320x240 Sharp LM32019P is the optimal choice.
Key Technical Baseline: 5.7-inch Diagonal | 320x240 Resolution | FSTN Transmissive | 70 cd/m² Brightness | 10:1 Contrast Ratio
Application Scenarios & Value
Solving Power and Thermal Constraints in Industrial Automation Terminals
Engineers often face significant thermal and power budget limits when updating legacy control panels or designing compact test equipment. Modern high-brightness color screens frequently consume excess power and generate unwanted internal heat within sealed enclosures. The Sharp LM32019P resolves this engineering trade-off by separating logic power requirements from illumination. With an ultra-low panel logic consumption of 46 mW and total module dissipation of 1.45W under active CCFL illumination, hardware designers can maintain strict thermal margins inside dust-tight IP65 enclosures without requiring active cooling fans.
In factory automation control units, medical diagnostic devices, and field measurement instrumentation, display reliability hinges on clean data representation. The 320x240 dot format, paired with a 0.36 x 0.36 mm dot pitch, provides sharp detail for real-time waveform plotting, numerical readout arrays, and step-by-step operator menus. When upgrading legacy hardware or sourcing replacements for legacy systems, engineers evaluating industrial display HMI solutions often rely on this standardized 4:3 graphic layout. What is the primary benefit of the FSTN transmissive design? It provides high monochrome legibility and a sharp 10:1 contrast ratio under indoor ambient lighting.
System designers requiring alternative physical footprints or color graphic capabilities for updated machine interfaces can evaluate related options within our catalog. For instance, applications needing higher resolution and larger active viewing areas may consider the LM64183PR, while compact installations seeking color TFT options can reference the KCG057QV1DB-G000 for direct physical layout comparison.
Technical Deep Dive
FSTN Electro-Optical Efficiency and Timing Dynamics
Understanding TFT and monochrome LCD technologies requires looking into liquid crystal phase compensation and drive duty cycles. The Sharp LM32019P utilizes a 1/240 multiplexing duty ratio, driving the 320x240 matrix through dedicated column and row IC drivers. Think of the 1/240 duty ratio as a high-speed multiplexing highway where row driver pulses refresh pixels in precise synchronization to eliminate visual artifacts without straining system memory controllers.
How does the parallel data interface impact controller integration? The 4-bit parallel bus enables direct compatibility with standard 8-bit or 16-bit industrial microcontrollers. Operating on a nominal 5.0V supply voltage, the 12-pin FPC signal connector routes four parallel data lines alongside frame synchronization signals (FLM), line latch clocks (LP), and shift clocks (CP). This low-overhead digital timing architecture drastically simplifies driver software development compared to high-speed serial displays.
From an optical perspective, operating a transmissive liquid crystal layer under cold-cathode fluorescent illumination is like placing a precision stencil over a uniform light source—allowing maximum contrast with minimal thermal dissipation on the logic board. The transmissive negative mode (black background with bright pixels) paired with a 70 cd/m² luminance level ensures optimal contrast when mounted in dim control rooms or integrated into laboratory equipment.
Key Parameter Overview
Highlighting Core Metrics for Hardware Integration
| Technical Specification | Nominal Specification Value | Engineering Significance |
|---|---|---|
| Display Diagonal | 5.7-inch (14 cm) | Standardized medium-format footprint for compact industrial panels |
| Pixel Resolution | 320x240 (QVGA) | Ideal dot density for graphical plots, text menus, and diagnostic status |
| Panel Technology | FSTN (Negative Mode) | High-contrast monochrome display mode optimized for indoor clarity |
| Active Area | 115.2 x 86.4 mm | Optimized screen real estate within a 160.0 x 109.0 mm frame |
| Dot Pitch | 0.36 x 0.36 mm | Square pixel arrangement ensuring distortion-free graphic rendering |
| Supply Voltage | 5.0V (Logic) | Direct interfacing with standard 5V industrial control logic |
| Panel Power | 46 mW (Typ.) | Minimizes board-level thermal load and logic power draw |
| Backlight Type | 1 x CCFL (Edge Light) | Provides uniform 70 cd/m² surface illumination |
| Signal Interface | Parallel Data (4-bit) | Low-overhead bus compatible with embedded MCUs |
Download the Sharp LM32019P datasheet for detailed specifications and performance curves.
Frequently Asked Questions
Engineering Considerations for System Deployment
What are the mechanical outline dimensions and mounting specifications for the Sharp LM32019P?
The module features outer dimensions of 160.0 x 109.0 x 7.5 mm with a total mass of 160g. Mounting is supported via face-mounting chassis holes (3-Φ3.0 and 1-Φ2.8), allowing straightforward mechanical alignment within custom front bezels.
What precautions should engineering teams take regarding display cleaning and environmental exposure?
Because the front polarizer layer is sensitive to surface abrasion and chemical exposure, proper industrial display maintenance guidelines should be followed. Clean the surface using soft micro-fiber wipes dampened only with neutral detergents, avoiding harsh solvents like acetone or high-concentration alcohol.
What external components are required to drive the CCFL backlight system?
The Sharp LM32019P incorporates a single CCFL tube connected via a 3-pin JST connector (BHR-03VS-1). An external high-voltage DC-to-AC inverter module is required to drive the lamp at its specified operating voltage and current levels.
Navigating hardware lifecycles in industrial automation requires balancing electrical specs with long-term mechanical availability. By maintaining strict adherence to standard QVGA pinouts and physical dimensions, legacy displays like the Sharp LM32019P continue to offer dependable service across critical control architectures.
