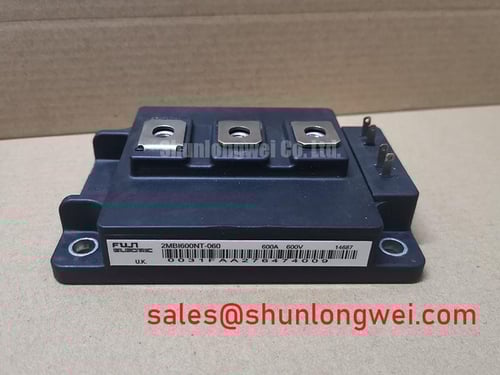

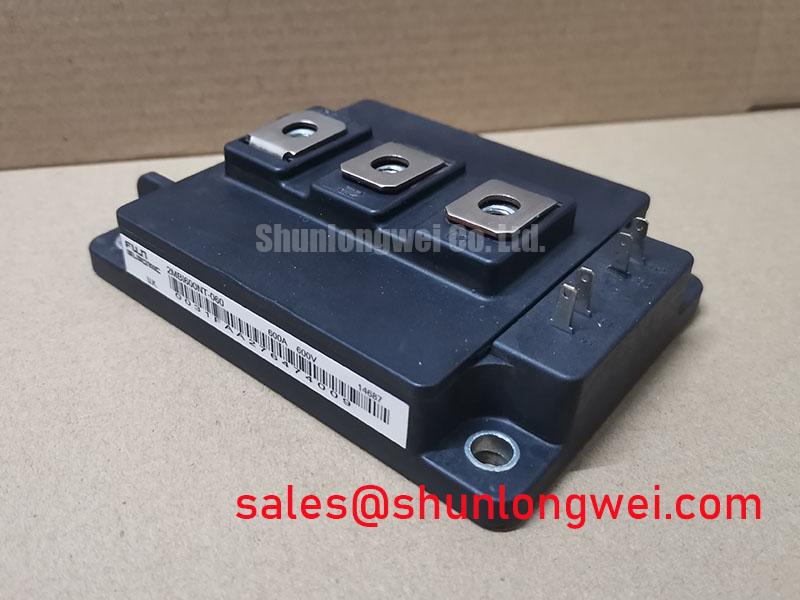

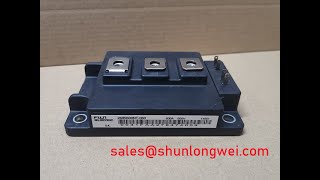

2MBI600NT-060: Fuji Electric 600V 600A N-Series Dual IGBT Module
Introduction: High-Current Switching for Demanding Power Systems
The Fuji Electric 2MBI600NT-060 is a high-current dual IGBT module engineered for robust performance in high-power conversion systems. This N-Series module provides a strategic combination of low conduction loss and proven reliability, delivering a cornerstone component for designers of industrial motor drives, high-capacity UPS, and welding systems. Key specifications include: 600V | 600A | VCE(sat) (typ) 1.70V. The primary engineering benefits are minimized thermal load and enhanced operational ruggedness. For engineers evaluating options for high-power 600A inverters, the 2MBI600NT-060 offers a well-balanced solution prioritizing efficiency and durability. With its low saturation voltage and substantial current handling, this module is an optimal choice for high-power motor drives requiring stable performance under heavy, continuous loads.
Key Parameter Overview
Decoding Key Electrical and Thermal Specifications
The technical specifications of the 2MBI600NT-060 are foundational to its performance in demanding power circuits. The parameters detailed below highlight the module's capacity for efficient power handling and thermal stability. These values are extracted from the official datasheet and are critical for accurate system modeling and thermal management design.
| Parameter | Symbol | Value | Conditions |
|---|---|---|---|
| Absolute Maximum Ratings (Tc=25°C) | |||
| Collector-Emitter Voltage | VCES | 600V | |
| Continuous Collector Current | IC | 600A | Tc=80°C |
| Gate-Emitter Voltage | VGES | ±20V | |
| Maximum Power Dissipation | PC | 2500W | |
| Electrical Characteristics (Tj=25°C) | |||
| Collector-Emitter Saturation Voltage | VCE(sat) | 1.70V (Typ.) / 2.20V (Max.) | IC=600A, VGE=15V |
| Gate-Emitter Threshold Voltage | VGE(th) | 4.0V to 7.5V | IC=600mA, VCE=20V |
| Thermal Characteristics | |||
| Thermal Resistance (Junction to Case) | Rth(j-c) | 0.05 °C/W (IGBT) | Per device |
Download the 2MBI600NT-060 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in High-Power Motor Drives and Inverters
The 2MBI600NT-060 is engineered to address the core challenges of efficiency and reliability in high-current power conversion. Its value is most evident in applications where thermal performance directly impacts system longevity and operational cost.
A high-fidelity engineering scenario for this module is in the power stage of a large-scale Variable Frequency Drive (VFD) used for process control in manufacturing or material handling. In such systems, the VFD must handle high inrush currents during motor startup and sustain high continuous currents under load. The 600A capability of the 2MBI600NT-060 directly meets this need. More critically, its low VCE(sat) of 1.70V (typ.) minimizes conduction losses. This is not just an abstract efficiency gain; it means less heat is generated within the module for every amp delivered to the motor. This reduction in waste heat allows for a less aggressive, and therefore more cost-effective, cooling solution, while also improving the overall reliability of the drive by reducing thermal stress on all components. What is the primary benefit of its low VCE(sat)? It directly reduces power loss as heat, improving system efficiency.
The module is also a strong candidate for high-power UPS (Uninterruptible Power Supply) systems and industrial welding power supplies, where its robust design and Square RBSOA (Reverse Bias Safe Operating Area) ensure dependable operation during demanding switching cycles. While the 2MBI600NT-060 is optimized for 600V systems, for applications requiring higher blocking voltage capabilities, the related 2MBI600VE-120-50 provides a 1200V alternative.
Frequently Asked Questions (FAQ)
How does the VCE(sat) of 2.20V (max) impact thermal design in a 600A application?
A low VCE(sat) is a critical parameter for thermal management. At 600A, the maximum conduction power loss per IGBT can be calculated as P_loss = VCE(sat) * IC = 2.20V * 600A = 1320W. A lower VCE(sat) value directly reduces this power loss, which is dissipated as heat. This reduction means the heatsink has less thermal energy to dissipate, potentially allowing for a smaller, lighter, or less expensive cooling system while maintaining the junction temperature within safe operating limits. This is analogous to a car engine running more efficiently; less waste heat is produced, reducing the burden on the radiator.
Is the 2MBI600NT-060 suitable for parallel operation to achieve higher current output?
Yes, the datasheet indicates features that facilitate paralleling, such as a tightly controlled VCE(sat) distribution. For effective current sharing, engineers must implement a symmetrical busbar layout and ensure the gate drive signals are matched for both timing and impedance. This careful design practice prevents one module from taking a disproportionate share of the current, ensuring the long-term reliability of the paralleled array. For comprehensive design support, consulting Fuji Electric's application notes on IGBT paralleling is highly recommended.
Engineering Perspective
From an engineering standpoint, the 2MBI600NT-060 represents a mature and reliable choice for high-power applications. Its design prioritizes fundamental performance metrics—low conduction losses and robust thermal characteristics—over niche features. This focus makes it a predictable and dependable building block for systems where uptime and efficiency are paramount. For design teams working on next-generation industrial drives or power supplies, this module offers a solid foundation built on proven Fuji Electric technology. To further optimize your design, explore our guide on unlocking IGBT thermal performance.
