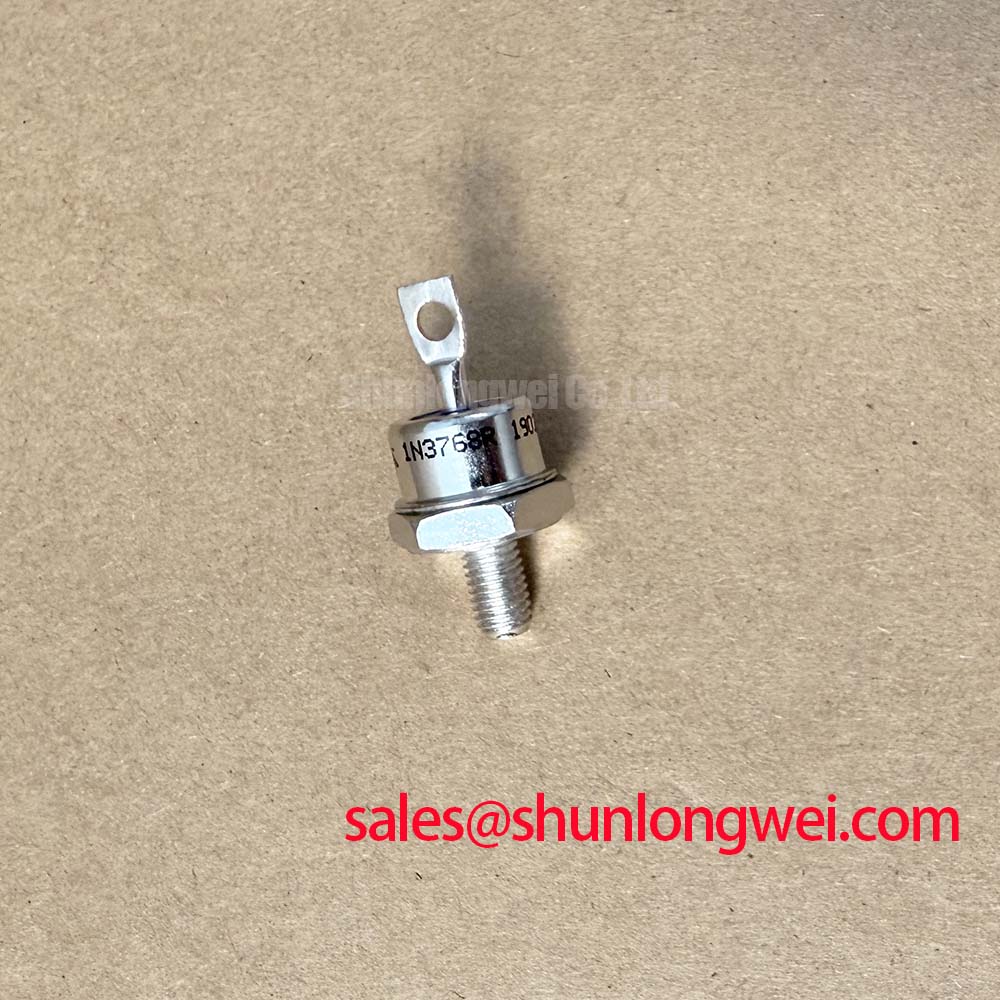

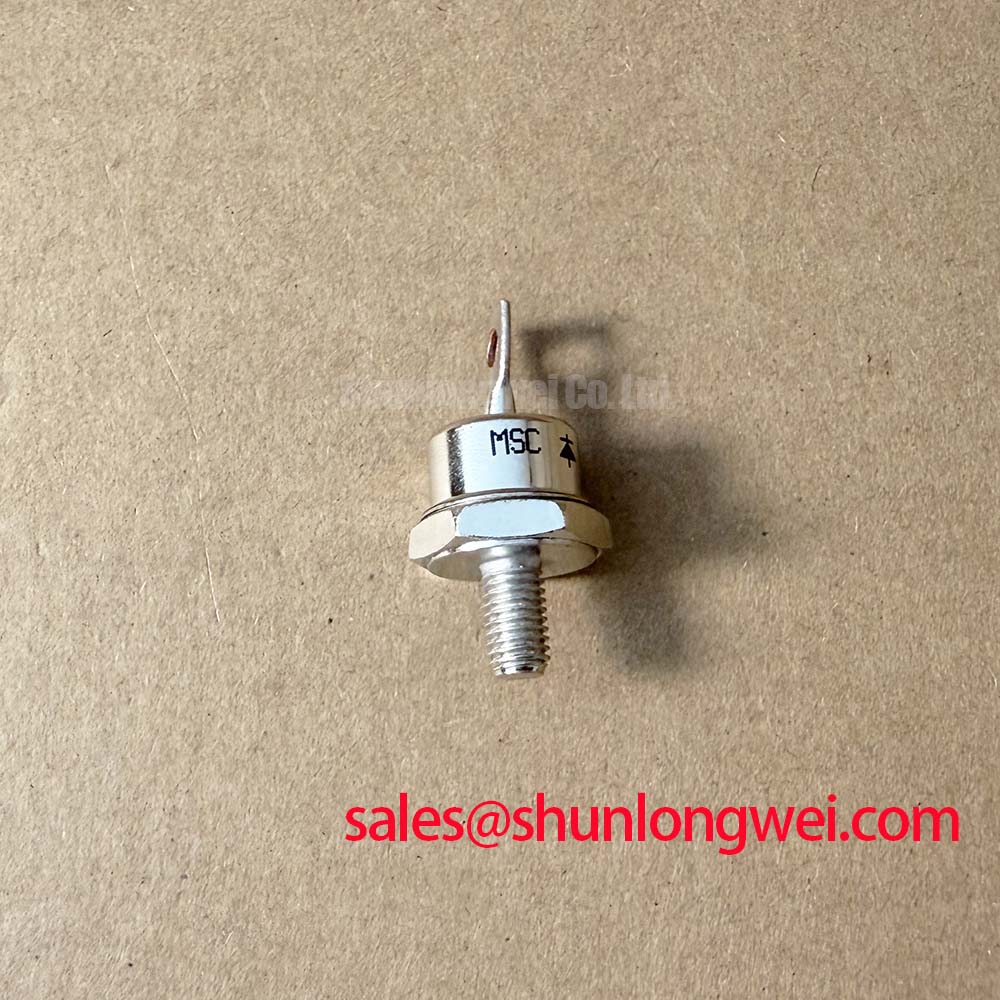

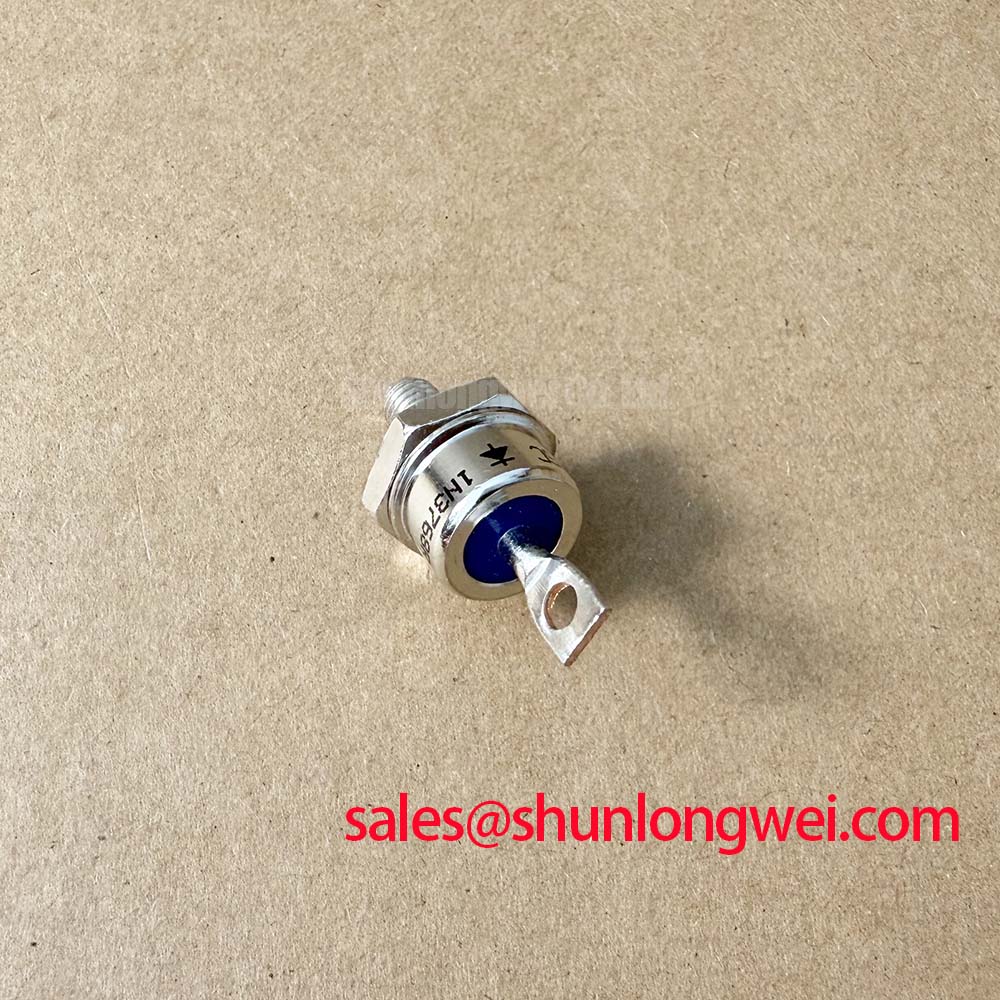

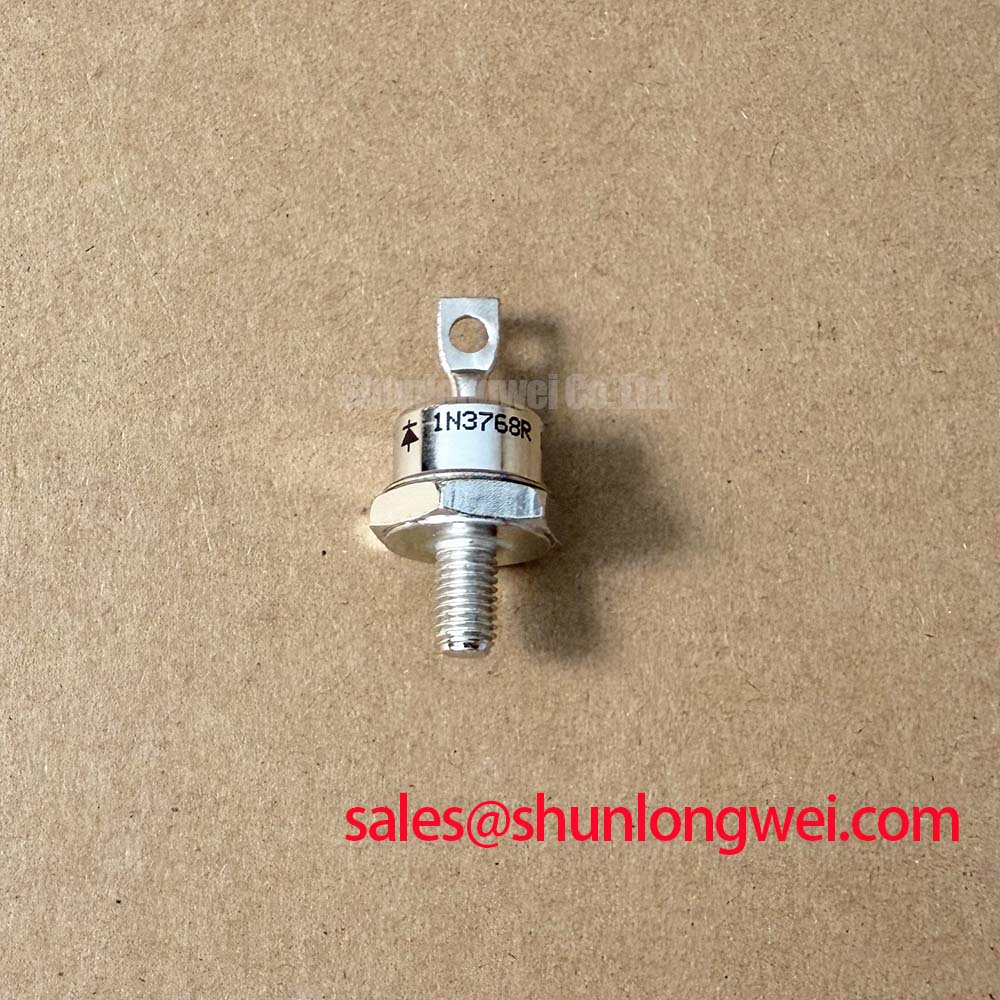

1N3768R GeneSiC 400V 35A Stud Mount Silicon Rectifier Diode
The 1N3768R serves as a high-reliability, reverse-polarity silicon rectifier designed for demanding industrial power conversion environments. Featuring a 400V maximum repetitive peak reverse voltage and a 35A average forward current, this device is engineered for chassis-mount applications where efficient heat dissipation and mechanical ruggedness are paramount. It effectively addresses the engineering challenge of maintaining long-term electrical stability in legacy and high-current power systems. For industrial power supplies requiring robust thermal anchoring to a metal chassis, the 1N3768R is the reliable choice.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The following technical data represents the operational boundaries and thermal characteristics of the 1N3768R. These specifications are critical for ensuring the device operates within its Safe Operating Area (SOA).
| Specification Characteristic | Value / Parameter | Engineering Significance |
|---|---|---|
| Repetitive Peak Reverse Voltage (Vrrm) | 400 V | Ensures headroom for 120V/240V AC rectified lines. |
| Average Forward Current (If(av)) | 35 A | High current density for compact stud-mount enclosures. |
| Peak Forward Surge Current (Ifsm) | 495 A | Handles high-energy inrush currents during startup. |
| Maximum Forward Voltage Drop (Vf) | 1.2 V | Defines conduction losses and overall system efficiency. |
| Thermal Resistance (Rth j-c) | 0.65 °C/W | Critical for high-power density Thermal Management. |
| Mounting Torque (DO-5 Package) | 3.4 N-m | Ensures optimal physical contact for heat transfer. |
Download the 1N3768R datasheet for detailed specifications and performance curves via the manufacturer's technical portal.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
Engineers often face the challenge of managing thermal creep in high-current rectification stages. The 1N3768R, with its DO-5 (DO-203AB) stud-mount package, provides a physical anchoring system that facilitates direct thermal conduction to the system heatsink or metal enclosure.
In industrial welding power supplies, for instance, the ability to handle a 495A surge current is vital for surviving the rapid load transitions typical of arc ignition. By utilizing the reverse-polarity configuration (where the Anode is connected to the stud), designers can simplify the mechanical layout of the Rectifier Bridge, allowing multiple diodes to be mounted directly to a common ground plate without requiring complex insulation kits that increase Thermal Resistance.
While the 1N3768R is ideal for standard 400V rectification, for systems requiring higher current handling and integrated modularity, the related MDS200A1600V offers a more compact three-phase bridge solution. For engineers focusing on the underlying physics of these power switches, understanding how an IGBT works provides complementary insight into the total power path design.
Technical & Design Deep Dive
A Closer Look at the Pressure-Contact Design for Long-Term Reliability
The 1N3768R utilizes a high-reliability diffused junction technology housed within a hermetically sealed DO-5 package. This "stud" design acts like a thermal foundation for a building; just as a foundation transfers the weight of a structure to the earth, the DO-5 stud transfers electrical heat directly to the chassis.
A critical design consideration for the 1N3768R is the management of the 0.65 °C/W junction-to-case thermal resistance. In high-current applications, even minor increases in interface resistance can lead to thermal runaway. Proper application of thermal compound and adherence to the 3.4 N-m torque specification are essential. By keeping the junction temperature well below the 175°C limit, designers can extend the device's lifecycle in continuous-duty applications like battery chargers or electrochemical processing power supplies.
In modern power architectures, the 1N3768R is often paired with active switching components. Understanding the nuances of IGBT vs MOSFET selection helps in optimizing the entire power stage, ensuring that the passive rectification provided by this diode aligns with the switching speeds of the active elements.
FAQ
How does the "R" suffix in 1N3768R impact my circuit layout?
The "R" indicates reverse polarity, meaning the Anode is connected to the threaded stud. This is critical for layout design, as it determines which part of the diode is electrically common with the heatsink. Confusing this with a standard 1N3768 (Cathode to stud) will result in a direct short circuit if mounted to a grounded chassis.
What are the primary benefits of the DO-5 stud mount package?
The DO-5 package offers superior mechanical stability and significantly lower thermal resistance compared to axial-leaded devices. It is specifically designed to handle the vibration and thermal cycling common in Heavy Machinery and industrial motor controls.
Can the 1N3768R be used in high-frequency switching applications?
As a standard recovery diode, the 1N3768R is optimized for 50/60Hz rectification and low-frequency power applications. For high-frequency switching power supplies (SMPS), a fast-recovery or Schottky diode would be necessary to minimize switching losses.
How does the 495A surge rating contribute to system safety?
The 495A surge current rating allows the 1N3768R to survive momentary faults or capacitive inrush currents without catastrophic failure. This provides a robust safety margin, reducing the need for oversized fuses or complex soft-start circuitry in traditional power supply designs.
The strategic integration of the 1N3768R into industrial platforms ensures a balance between electrical performance and mechanical endurance. By prioritizing thermal management through its stud-mount design, engineers can build power systems that meet the rigorous standards of modern industry while maintaining the simplicity and reliability of discrete silicon rectification.
