Performance and Application Analysis: SKKD380/18 vs PD100KN16 Rectifier Diode Modules

What Rectifier Diode Modules Are and Their Industrial Significance

In modern industrial power distribution and conversion, the uncontrolled diode rectifier forms the primary gateway between alternating current (AC) utility grids and intermediate direct current (DC) links. Solid-state rectifiers convert multi-phase alternating voltages into unipolar direct voltages, serving as the essential front-end stage in frequency converters, variable-speed motor drives, high-power DC battery chargers, uninterruptible power supplies (UPS), and electrochemical rectifiers. The operational integrity of downstream high-frequency switching circuits—such as those governed by principles outlined in Power Electronics Principles—depends fundamentally on the thermal ruggedness and transient surge tolerance of these line-frequency rectifier stages.

Historically, high-current power rectification relied on individual discrete chassis-mount or stud-mount diodes. While functional, stud-mounted components presented significant assembly challenges: they required discrete electrical insulation washers, complex heatsink isolation schemes, and labor-intensive mechanical wiring. The modern industrial standard shifted toward isolated baseplate power modules. In these packaged configurations, multiple semiconductor dies (typically paired in series, common-cathode, or common-anode arrangements) are mounted directly onto an electrically isolated internal ceramic substrate. This architecture permits multiple semiconductor devices to share a common, electrically grounded heatsink without external isolation barriers, thereby dramatically decreasing assembly volume, lowering thermal impedance, and improving mechanical reliability.

Within this engineering landscape, the Semikron SKKD380/18 and the Kyocera/SanRex PD100KN16 represent two distinct performance classes of dual-diode rectifier modules. Both components are configured as series-connected diode pairs (often referred to as half-bridge or phase-leg diode pairs), designed primarily for constructing single-phase and three-phase full-wave bridge rectifiers. However, their physical scale, current-handling thresholds, and target operating environments differ significantly:

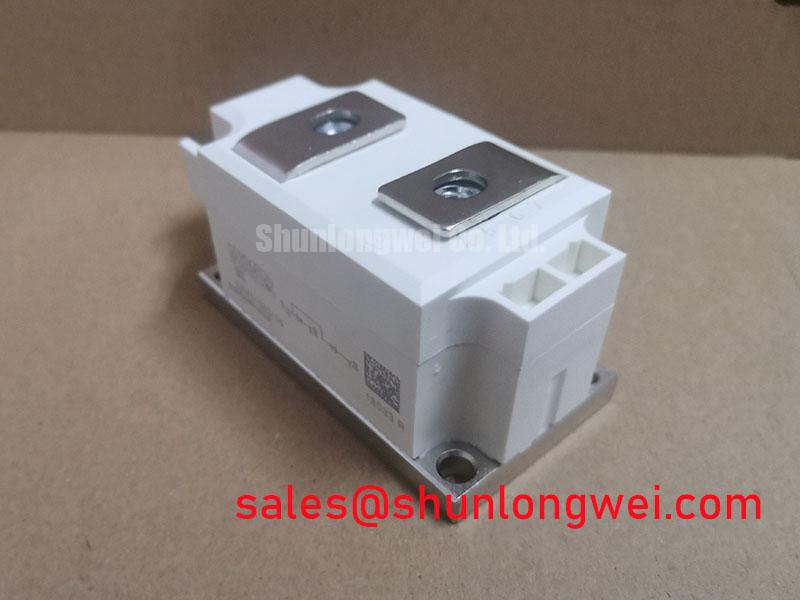

• SKKD380/18: A heavy-duty power module housed in a SEMIPACK 3 footprint, rated for a repetitive peak reverse voltage (V_RRM) of 1800 V and an average forward current (I_FAV) of approximately 380 A per diode at industrial case temperatures. It is engineered for utility-scale motor controllers, heavy industrial electrolysis, mining equipment, and large megawatt-class DC bus power supplies.

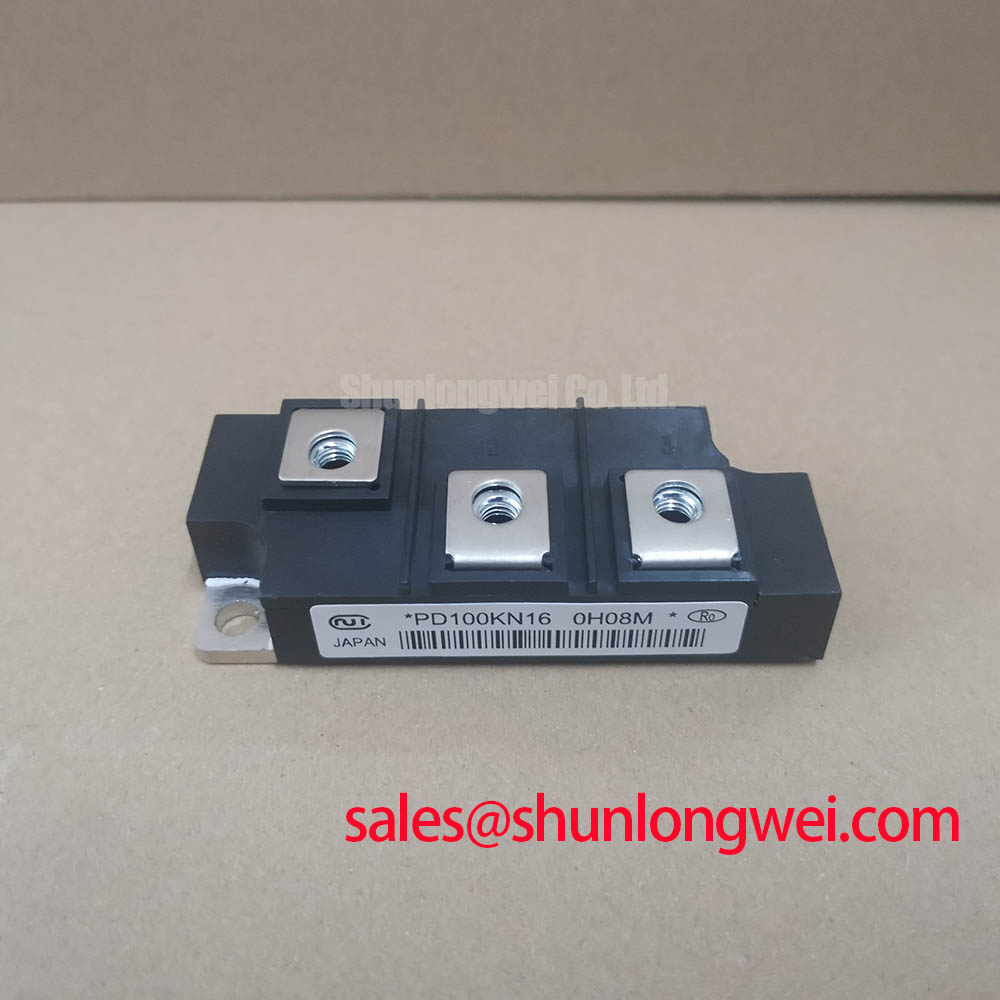

• PD100KN16: A medium-power industrial module rated for a repetitive peak reverse voltage (V_RRM) of 1600 V and an average forward current (I_FAV) of 100 A. It serves widespread automation needs, such as 30 kW to 55 kW variable frequency drives (VFDs), factory robotic cells, machine tool spindle drives, and auxiliary power supplies.

Selecting between these two device tiers requires an exhaustive evaluation of system throughput, electrical line transients, thermal dissipation constraints, and fault-current let-through energy. An improperly sized module will lead to either costly over-engineering or premature thermal fatigue and catastrophic avalanche breakdown under grid-induced voltage surges.

Working Principle and Physical Structure

Rectifier diode modules operate on the fundamental physical principles of the high-voltage P-i-N (P-type/intrinsic/N-type) or lightly doped P-N junction. Unlike low-voltage planar diodes, power rectifier diodes engineered for blocking voltages above 1000 V incorporate a wide, lightly doped N-drift region between the heavily doped P+ anode and N+ cathode regions. When reverse-biased, this wide drift region supports the entire electric field, preventing premature punch-through or avalanche breakdown. The breakdown voltage depends on the physical thickness and resistivity of this drift zone, with higher voltage ratings (such as 1800 V on the SKKD380/18) requiring a thicker silicon drift layer than 1600 V devices like the PD100KN16.

Under forward-bias conditions, electrons and holes are injected into this central drift region from opposite terminals, a phenomenon known as conductivity modulation. This high-level carrier injection swamps the natural high resistivity of the drift region, allowing the device to conduct hundreds of amperes with a forward voltage drop (V_F) typically maintained between 1.0 V and 1.35 V. When the AC line voltage reverses, these stored minority carriers must be removed before the junction can re-establish its space-charge depletion barrier. This brief evacuation manifests as reverse recovery current (I_RRM) over a finite reverse recovery time (t_rr). Because line-frequency rectifiers switch at 50 Hz or 60 Hz, their silicon structure is optimized for ultra-low forward conduction losses and high surge current capability, rather than ultra-fast reverse recovery speeds.

The mechanical and thermal architecture of both the SKKD380/18 and PD100KN16 is centered around Direct Copper Bonded (DCB) ceramic substrates. The multi-layer internal stack comprises:

1. Copper Baseplate: A heavy, precision-machined copper plate (often nickel-plated) that provides mechanical rigidity and serves as the primary heat spreader. In the SKKD380/18, this plate is substantially thicker and wider to accommodate high instantaneous thermal energy.
2. Ceramic Insulation Layer: An aluminum oxide (Al₂O₃) or aluminum nitride (AlN) ceramic wafer bonded directly between two pure copper foils at high temperature. This ceramic layer delivers electrical isolation between the live power circuit and the metal baseplate (rated up to 3000 V_RMS or 3600 V_RMS for 1 minute), while maintaining high thermal conductivity.
3. Semiconductor Silicon Dies: Large-area, solderable rectifier dies soldered directly to the upper copper layer of the DCB substrate. The SKKD380/18 utilizes vastly larger die surface areas compared to the PD100KN16 to keep current density within safe limits at 380 A continuous conduction.
4. Ultrasonic Wire Bonds: Heavy aluminum wire bonds (typically 300 µm to 500 µm in diameter) connect the top metallization of the silicon dies to the heavy power terminals. Multiple parallel stitch bonds are deployed to minimize parasitic inductance and distribute current evenly across the die face.
5. Encapsulation: The internal cavity is filled with high-dielectric silicone gel to prevent moisture ingress, suppress partial electrical discharge, and absorb mechanical stresses caused by coefficient of thermal expansion (CTE) mismatches during thermal cycling. An outer thermoplastic housing covers the assembly.

These diode stages feed the DC bus that powers downstream insulated-gate bipolar transistor arrays, such as the DP15H1200TO101982 compact power module or high-current half-bridge architectures like the QM300HA-H, ensuring clean, continuous DC rail delivery to switching circuits.

Key Features, Advantages, and Technology Comparison

Evaluating the SKKD380/18 against the PD100KN16 involves direct parametric comparison across electrical ratings, thermal limits, and physical packaging. While both utilize a series-pair (half-bridge) diode schematic, their design criteria address completely different power classes.

The SKKD380/18 provides a maximum repetitive reverse voltage (V_RRM) of 1800 V, providing a 200 V margin over the 1600 V rating of the PD100KN16. In nominal 400 V_AC or 480 V_AC industrial mains, peak phase-to-phase line voltages reach approximately 565 V to 680 V under steady conditions. However, line disturbances, power factor correction capacitor switching, and inductive load disconnection frequently induce transient overvoltages exceeding 1400 V. While a 1600 V device like the PD100KN16 is standard for 400 V/480 V grids with proper varistor suppression, the 1800 V rating of the SKKD380/18 offers critical design margin for 525 V_AC to 690 V_AC systems, where transient spikes would quickly exceed a 1600 V breakdown threshold.

The most stark contrast lies in surge current handling (I_FSM) and the resulting fusing index (I²t). When a large filter capacitor bank in a downstream inverter charges from a zero-energy state, or when a dead short develops on the DC rail, the input rectifiers absorb thousands of amperes of surge current before protective devices can act. The SKKD380/18 withstands a half-cycle surge of up to 12,000 A, translating to an I²t rating exceeding 700,000 A²s. This massive surge tolerance enables direct coordination with robust industrial fuses and contactor pre-charge systems. In contrast, the PD100KN16 withstands surges up to 2,500 A (approx. 31,000 A²s), requiring precise ultra-rapid semiconductor fuses and tightly controlled soft-charge resistors to prevent junction destruction during inrush periods.

Furthermore, the thermal resistance (R_th(j-c)) of the SKKD380/18 (0.110 °C/W per chip) is roughly one-third that of the PD100KN16 (0.350 °C/W). This reflects the much larger die surface area and thicker copper baseplate of the SEMIPACK 3 packaging, allowing the SKKD380/18 to dissipate more than 400 W of thermal loss per module while maintaining junction temperatures well within the typical 150 °C maximum limit.

Real-World Applications and Operating Precautions

Rectifier diode modules operate across diverse sectors of heavy manufacturing, motion control, and grid conversion. The selection of either the SKKD380/18 or the PD100KN16 depends primarily on continuous kilowatt demand and the configuration of the front-end rectifying circuit.

Application Environments

• High-Power Industrial Inverters and DC Drives (SKKD380/18): In heavy-duty AC variable-frequency drives rated between 150 kW and 350 kW, three SKKD380/18 modules are connected in parallel phase branches to form a six-pulse, three-phase bridge. They supply continuous current to massive DC capacitor banks that feed downstream three-phase inverters built around architectures like Insulated-Gate Bipolar Transistor (IGBT) Fundamentals. In continuous high-torque industrial machinery, such as rolling mills, mine hoists, and extruders, the 380 A continuous rating provides generous headroom against continuous thermal degradation.
• Commercial Galvanic and Electrolysis Systems (SKKD380/18): Industrial metal plating and hydrogen electrolysis require high continuous direct current at relatively low to medium voltages. Multiple SKKD380/18 modules are arranged in multi-pulse (12-pulse or 24-pulse) configurations using phase-shifting transformers, delivering thousands of amperes of DC current while suppressing harmonic distortion reflected into the grid.
• Factory Automation and Compact Motor Drives (PD100KN16): Industrial machine tools, conveyor lines, packaging plants, and pump skids operating between 22 kW and 55 kW utilize the PD100KN16. Its compact packaging allows integration into high-density control cabinets. The 100 A continuous capability satisfies moderate power demands without consuming excessive heatsink surface area.
• Auxiliary Pre-Charge and Power Supply Circuits (PD100KN16): In mega-watt converters, small secondary diode modules like the PD100KN16 are frequently used in auxiliary power supplies, excitation circuits for synchronous motors, or standalone dynamic braking setups alongside integrated brake choppers such as the SKD75GAL123D.

Critical Installation and Operating Precautions

To avoid field failures, application engineers must observe strict mounting and protection procedures when deploying both module types:

1. Heatsink Surface Preparation: The mounting faceplate of the aluminum or copper heatsink must have a surface flatness error of less than 20 µm across a 100 mm span, with a surface roughness (R_z) of 6.3 µm or better. Scratches, metal burrs, or curvature create air pockets that drastically increase contact thermal resistance (R_th(c-s)), causing rapid junction overheating.
2. Thermal Compound Application: High-performance thermal grease must be applied evenly across the baseplate using a screen printer or calibrated roller. The optimal layer thickness is strictly between 50 µm and 100 µm. Excessive thermal paste acts as a thermal insulator, while insufficient paste leaves micro-voids; both scenarios cause module failure under heavy load.
3. Sequential Fastening and Torque Limits: Modules must be fastened using a calibrated torque wrench following a two-step tightening sequence:
   • First step: Finger-tighten all baseplate bolts evenly to 0.5 N·m to distribute the thermal grease uniformly across the mating interface.
   • Final step: Tighten sequentially in a cross pattern to the final specified torque. For the larger SKKD380/18 (M6 screws), tightening torque must be maintained between 4.5 N·m and 6.0 N·m. For the PD100KN16 (typically M5 screws), maintain torque between 2.5 N·m and 4.0 N·m. Over-torquing will crack the internal brittle ceramic substrate (DCB), destroying electrical isolation and causing internal short circuits.
   • Terminal Connections: Terminal screws must be torqued strictly to specifications (typically 5.0 N·m for SKKD380/18 power terminals). Loose connections cause localized resistive heating that melts terminal plastic and solders internal bond wires loose.
4. Transient Voltage and di/dt Suppression: Diode rectifiers must be shielded from utility spikes using Metal Oxide Varistors (MOVs) connected phase-to-phase and phase-to-ground on the AC input side. Furthermore, a high-frequency RC snubber network across the AC terminals or DC output absorbs inductive kickback energy generated during line commutation.

Engineering Selection Guidelines and Field Diagnostics

Selecting between the SKKD380/18 and PD100KN16 requires a methodical calculation of maximum steady-state current, thermal resistance budgets, line transient probabilities, and fault-current let-through parameters.

Selection Mathematical Framework

For a three-phase full-bridge rectifier feeding a DC load, the relationship between continuous DC output current (I_out(DC)) and the average forward current per diode branch (I_FAV) is defined by line-frequency conduction geometry:

I_FAV = I_out(DC) / 3

In real-world engineering, a safety derating factor of 1.5 to 2.0 must be applied to account for ambient cabinet temperatures (often exceeding 45 °C), poor air velocity across heatsinks, and harmonic loading. Therefore, the required module rating is determined by:

I_FAV(rated) ≥ (I_out(DC) / 3) × Safety Factor

Applying this formula reveals clear boundaries:

• If an industrial drive supplies a continuous DC current of 150 A (approximately 75 kW at 500 V_DC), the current per diode is 50 A. Applying a 2.0 safety factor indicates a required continuous rating of 100 A. The PD100KN16 is well suited for this operating envelope.
• If the system demands 600 A of continuous DC link current (approx. 300 kW), the current per diode is 200 A. Applying a conservative 1.8 safety factor yields 360 A. In this scenario, the SKKD380/18 is the mandatory choice; attempting to parallel multiple smaller PD100KN16 modules risks current-hogging and thermal runaway due to slight mismatches in individual diode forward voltage characteristics.

Field Diagnostic and Troubleshooting Protocol

When an industrial system trips due to overcurrent, ground faults, or blown line fuses, field technicians must quickly determine whether the rectifier diode module has degraded or failed entirely. The diagnostic steps below detail the verification procedure using a standard Digital Multimeter (DMM) and a high-voltage insulation tester (Megohmmeter):

Through systematic sizing, correct thermal interface preparation, and reliable field diagnosis, electrical engineers can maximize the operating life of rectifier diode modules, ensuring stable input power for downstream conversion topologies across all industrial operating environments.
