What These Industrial Displays Are and Their Industry Significance
Industrial visual interfaces serve as the primary communication bridge between complex machine logic and human operators. In heavy industrial automation, computer numerical control (CNC) machining centers, automated test equipment, marine navigation consoles, and medical diagnostic hardware, display components must maintain optical clarity and operational reliability under demanding operating conditions. Unlike commercial-grade consumer screens designed for stable office or indoor environments, industrial display modules must withstand extreme temperature fluctuations, mechanical shock, high electromagnetic interference (EMI), and continuous 24/7 duty cycles over lifespans often exceeding ten to fifteen years.
Within this industrial landscape, two distinct display architectures have established substantial footprints: Super-Twisted Nematic Liquid Crystal Displays (STN-LCD), exemplified by the classic OPTREX DMF5005NY-EB, and Thin-Film Electroluminescent (TFEL) displays, represented by the ruggedized Lumineq EL512.256-H2 FRB. While both units are engineered for demanding legacy and field installations, they approach the core challenge of information display from completely different physical and electrical paradigms. The Optrex DMF5005NY-EB is a passive-matrix monochrome STN liquid crystal panel designed for cost-efficient, low-power alphanumeric and graphic rendering. In contrast, the Lumineq EL512.256-H2 FRB is a solid-state, self-emissive electroluminescent display built for extreme thermal resilience, wide viewing angles, and instant response times down to sub-zero temperatures.
Modern plant managers, maintenance engineers, and hardware designers frequently encounter these technologies during machine overhauls, drop-in panel replacements, or system retrofits. While modern active-matrix solutions such as the NL6448BC26-27 or specialized color panels like the TX20D208VM0BAA are prevalent in new system designs, understanding the fundamental physical behavior, interface protocols, and electrical driving requirements of both STN-LCD and TFEL displays remains essential for ensuring reliable legacy system maintenance and executing successful display retrofits.

Working Principle and Physical Structure
To understand the operational differences between the Optrex DMF5005NY-EB and the Lumineq EL512.256-H2 FRB, field engineers must examine the internal physical construction and electro-optical mechanisms that generate visible pixels on each panel.
STN Liquid Crystal Modulation (OPTREX DMF5005NY-EB)

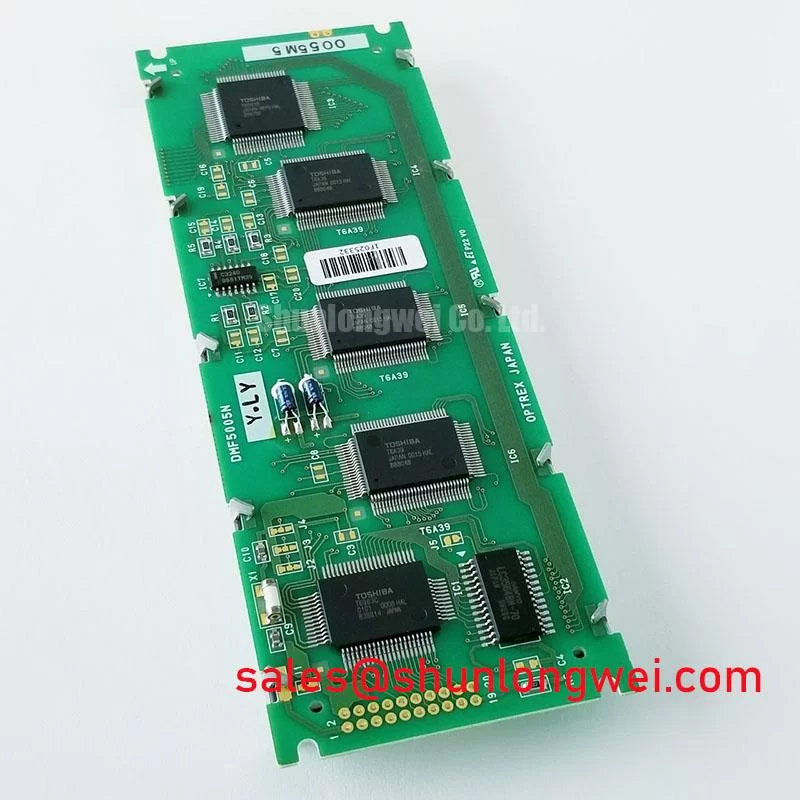

The Optrex DMF5005NY-EB relies on established Liquid Crystal Display Technology, utilizing a Super-Twisted Nematic fluid layer sandwiched between two glass substrates. The inner surfaces of the glass are coated with transparent Indium Tin Oxide (ITO) electrode stripes arranged in an orthogonal grid (rows and columns) and treated with a polymer alignment layer that induces a 180° to 270° molecular twist across the liquid crystal cell gap.
The display operates via light modulation rather than direct light emission:
- Off-State (Unenergized): Ambient light or light emitted by the integrated backlight passes through an entry polarizer, follows the molecular helix of the twisted nematic fluid, rotates its polarization plane, and exits through an analyzer polarizer, producing a transmissive or reflective bright pixel state.
- On-State (Energized): When a multiplexed electric field is applied across a specific row and column intersection via driver ICs, the dielectric anisotropy of the elongated liquid crystal molecules forces them to untwist and align parallel to the electric field. In this perpendicular orientation, the polarization rotation is altered, blocking light through the outer polarizer and generating an opaque dark pixel.
- Temperature Dependency: Liquid crystals are viscous fluids. When operating temperatures drop below 0°C, the fluid viscosity increases significantly, causing pixel transition times (rise time tr and decay time td) to degrade from approximately 150 ms at room temperature to more than 1,000 ms at -20°C, resulting in visible image ghosting and sluggish refresh cycles.
Thin-Film Electroluminescent Solid-State Emission (Lumineq EL512.256-H2 FRB)
In contrast, the Lumineq EL512.256-H2 FRB is a completely solid-state, self-luminous display. It contains no liquid crystal fluid, organic layers, or mechanical backlighting subassemblies. Instead, the device uses a high-voltage alternating-current (TFEL) multi-layer thin-film stack deposited onto a single ruggedized glass substrate.
The physical structure consists of a transparent ITO row electrode array, a bottom inorganic dielectric insulating layer, an active phosphor emission layer composed of Zinc Sulfide doped with Manganese (ZnS:Mn), a top dielectric insulating layer, and an array of metallic aluminum column electrodes. The entire stack is hermetically sealed with a silicone or dry oil barrier.
The emission process operates through pure solid-state electrophysics:
- High-Field Carrier Acceleration: When an alternating electrical potential exceeding the dielectric threshold (typically 160 V to 190 V peak-to-peak generated by internal step-up driving circuitry) is applied across the dielectric boundaries, electrons trapped at the insulator-semiconductor interface tunnel into the conduction band of the ZnS host lattice.
- Impact Excitation: Under an electric field intensity approaching 1.5 to 2.0 MV/cm, these free electrons accelerate to ballistic velocities and collide with the localized Manganese (Mn2+) luminescent centers within the phosphor film.
- Photon Emission: The impact energy excites the 3d inner-shell electrons of the Mn2+ dopant ions. When these electrons relax back to their ground state, they release photons at a precise yellow-amber wavelength of 585 nm.
- Thermal Immunity: Because quantum electron collision and radiative relaxation are solid-state atomic phenomena entirely independent of fluid dynamics, the response time of the Lumineq EL512.256-H2 FRB remains below 1 ms across its entire operating envelope, functioning smoothly from -20°C up to +65°C (and down to -40°C in specialized EL configurations such as the EL552-256-Q1) without latency, ghosting, or contrast reduction.
Key Features, Advantages, and Technology Comparison
Choosing between an STN-LCD module and a TFEL display requires evaluating optical clarity, operating environment, power architecture, and structural durability. The table below outlines the core technical specifications and physical performance boundaries of the Optrex DMF5005NY-EB and the Lumineq EL512.256-H2 FRB.
| Engineering Parameter | OPTREX DMF5005NY-EB | Lumineq EL512.256-H2 FRB |
|---|---|---|
| Display Technology | Super-Twisted Nematic (STN) Passive LCD | Thin-Film Electroluminescent (TFEL) |
| Emission Type | Non-emissive (Requires CCFL/LED Backlight) | Self-Emissive Solid-State Phosphor |
| Resolution / Array | 240 × 64 Dots (Graphic) | 512 × 256 Dots (Graphic) |
| Pixel Color / Spectrum | Monochrome (Yellow-Green / Dark Blue) | Broadband Amber / Yellow (585 nm) |
| Luminance (Typical) | 70 to 120 cd/m2 (Backlight dependent) | 65 to 110 cd/m2 (Internal Phosphor) |
| Contrast Ratio | 4:1 to 8:1 (Viewing angle dependent) | 50:1 to 100:1 (High ambient immunity) |
| Response Time (25°C) | 150 ms to 220 ms (tr + td) | < 1.0 ms |
| Response Time (-20°C) | > 1,200 ms (Severe fluid sluggishness) | < 1.0 ms (No change across temperature) |
| Viewing Angle (CR ≥ 2) | Horizontal: ±35°, Vertical: -20° / +40° | > 160° Omnidirectional Cone |
| Logic Power Supply (VDD) | +5.0 V DC (±0.5 V) | +5.0 V DC (±5%) / +12.0 V DC (Module dependent) |
| Auxiliary Drive Voltage | Negative Contrast Rail: V0 / VEE (-8 V to -22 V) | Internal DC-to-AC High-Voltage Generator |
| Operating Temperature | 0°C to +50°C (Extended: -20°C to +70°C) | -20°C to +65°C (Storage: -40°C to +85°C) |
| Shock & Vibration Rating | Standard Industrial (~10g Shock) | Severe Duty (100g Shock, 8g Vibration) |
| Physical Construction | Dual Glass Substrate with Edge Polarizers | Monolithic Inorganic Multi-Layer Thin-Film |
Key Comparative Insights
The comparative data highlights distinct technical trade-offs between the two units:
- Optical Performance and Viewing Field: The Optrex DMF5005NY-EB provides adequate contrast within a restricted viewing cone directly facing the operator. However, off-axis viewing results in contrast inversion and hue shifting. The Lumineq EL512.256-H2 FRB delivers a solid-state lambertian emission pattern with an effective viewing angle exceeding 160°, maintaining consistent contrast and readability from sharp side, top, or bottom angles.
- Environmental Robustness: In applications involving extreme vibrations, mechanical shocks, or high-altitude depressurization, the solid-state architecture of the EL512.256-H2 FRB eliminates risk of cell gap variations, polarizing film delamination, or fluid cavitation. The STN-LCD panel remains better suited for standard climate-controlled control cabinets.
- System Resolution and Density: The EL512.256-H2 FRB provides a 512 × 256 pixel grid within a compact footprint, supporting complex process schematics, diagnostic curves, and multi-line operator text, whereas the 240 × 64 dot format of the DMF5005NY-EB is designed primarily for basic status readouts and simple alphanumeric menus.
Real-World Applications and Operating Precautions
Both display panels are deployed extensively across global industrial automation, though their distinct physical characteristics align with different application profiles.
Primary Application Scenarios
The Optrex DMF5005NY-EB is widely installed in legacy CNC control panels (such as vintage Fanuc, Mitsubishi, and Siemens operator stations), analytical laboratory instruments, water treatment monitoring stations, automated weighing scales, and stationary warehouse automation terminals. In these environments, cost efficiency, simple parallel microprocessor interfacing, and moderate indoor ambient temperatures make the STN module a practical solution.
The Lumineq EL512.256-H2 FRB is preferred in mission-critical and harsh operating environments, including commercial marine engine consoles, deep-mine extraction control pods, commercial transport telemetry, military ground support hardware, high-altitude avionic systems, and outdoor oil and gas drilling equipment. In these applications, sub-zero cold-starts, intense physical vibration, and wide-angle visibility without secondary heaters are operational requirements.

Critical Electrical and Operating Precautions
Field maintenance technicians and hardware replacement engineers must adhere to key electrical and handling rules during installation or retrofit procedures:
1. Power Supply Rail Sequencing (Optrex DMF5005NY-EB)
Passive STN displays require two distinct power rails: the primary logic supply (VDD = +5.0 V) and a negative liquid crystal driving bias voltage (VEE or V0, typically between -8.0 V and -22.0 V relative to GND). Technicians must enforce strict power-up sequencing. The logic rail VDD must rise and stabilize within a window of 0.5 ms < t1 < 10 ms before the negative driving voltage VEE is switched on. If VEE is applied while the logic circuitry is unpowered, the internal CMOS shift registers and level shifters on the driver ICs can enter a destructive SCR latch-up state, causing immediate and permanent module failure. During system shutdown, the sequence must reverse: VEE must drop to 0 V before VDD is removed.
2. Inrush Current and EMI Management (Lumineq EL512.256-H2 FRB)
Because TFEL panels utilize internal high-voltage switching inverters to generate the AC phosphor excitation waveforms, the +5 V and +12 V DC supply inputs experience periodic current surges corresponding to the row scan frequency (typically 60 Hz to 240 Hz). System designers and field retrofitter teams must ensure low-impedance power distribution with high-quality, low-ESR ceramic decoupling capacitors (10 µF to 47 µF parallel with 0.1 µF) positioned directly at the display input header. Ground loops must be avoided by routing the chassis shield ground separately from the high-speed digital return path to prevent switching EMI from bleeding into sensitive sensor circuits.
3. High-Voltage Inverter Safety and ESD Protection
Although the Lumineq panel is fully enclosed, its internal driving layers operate at potentials exceeding 180 V AC. The module must never be handled or probed while energized. Furthermore, both STN and TFEL controller lines interface directly with CMOS driver arrays; technicians must utilize grounded ESD wrist straps, static-dissipative workstations, and non-conductive tooling during field servicing.
Engineering Selection Guidelines and Field Diagnostics
When maintaining, repairing, or modernizing industrial operator panels, engineers must evaluate whether to replace an existing unit with its original component type or execute a modernization retrofit using alternative solutions, such as modernized Thin-Film Transistor Liquid-Crystal Display (TFT LCD) panels.
Engineering Decision Criteria
- Temperature Range Requirements: If the operating environment drops consistently below 0°C without integrated internal heating elements, the Lumineq EL512.256-H2 FRB or related units like the EL552-256-Q1 are the correct technical choice due to their sub-millisecond switching and temperature-independent luminance. If the enclosure is climate-controlled (15°C to 35°C), the Optrex DMF5005NY-EB provides a cost-effective solution.
- Vibration and Mechanical G-Force: Mobile industrial machinery, heavy drop-forge presses, and marine propulsion bays subject to continuous structural resonance require the solid-state architecture of TFEL technology. Standard panel-mount enclosures with minimal mechanical shock are well-served by STN panels.
- Power and Thermal Budget: The Optrex STN module consumes minimal power (typically under 1.5 W including backlight), making it ideal for compact, sealed NEMA enclosures with limited heat dissipation. The EL512.256-H2 FRB draws between 5 W and 15 W depending on illuminated pixel density, requiring careful thermal airflow analysis inside the housing.
Field Diagnostic, Measurement, and Troubleshooting Table
The diagnostic guide below outlines systematic troubleshooting workflows for field technicians investigating visual faults, power anomalies, or communication failures on these display modules using standard multimeters and digital storage oscilloscopes (DSOs).
| Visual Fault / Symptom | Suspected Root Cause | Test Points & Measurement Methods | Corrective Action |
|---|---|---|---|
| Complete Display Blank (Backlight on, no pixels on Optrex STN) | Missing or collapsed negative bias voltage (V0 / VEE); open contrast potentiometer. | Measure DC voltage at V0 (Pin 4 or 5) relative to GND using a DMM. Verify reading is between -12 V and -22 V. | Inspect onboard negative voltage charge pump / external DC-DC converter circuit. Replace damaged contrast trim-pot or bias resistor network. |
| Severe Ghosting or Extremely Slow Refresh (Optrex STN) | Ambient temperature below minimum operational threshold; degraded LC fluid viscosity. | Measure ambient internal enclosure temperature with a calibrated thermocouple. Check refresh rate timing on DSO (FLM / CP pins). | Install an internal enclosure heating element or replace the STN module with an ultra-wide temperature TFEL display unit. |
| Completely Blank Display (No emission on Lumineq EL) | Tripped internal high-voltage protection circuit; logic power rail (VDD) drop or missing pixel clock. | Check +5 V / +12 V rail under load using a DMM. Probe DCLK (Pixel Clock), HS, and VS lines on an oscilloscope for clean 3.3V/5.0V square waves. | Verify timing controller FPGA/MCU clock output. Ensure power supply delivers adequate instantaneous surge current without rail sagging. |
| Flickering, Missing Lines, or Horizontal Banding | Defective row driver output or fractured flexible flat cable (FFC) conductor traces. | Probe column/row signal lines at the interface connector with a 100 MHz oscilloscope. Check for clock jitter or broken continuity. | Inspect ribbon cable connections for pin fretting or oxidation. Clean contact pads with isopropyl alcohol; replace damaged interconnect harnesses. |
| Erratic Pixel Noise or Snow Artifacts | Improper grounding, high bus impedance, or excessive logic rise/fall ringing. | Probe data lines (D0-D7 or serial differential pairs) using an oscilloscope with a 10:1 passive probe; verify logic transitions exhibit <10% overshoot/undershoot. | Add source-termination series resistors (22 Ω to 47 Ω) on high-speed clock/data lines; verify shield grounding connection to chassis ground. |
Summary of Technical Verification
When servicing or upgrading industrial visual systems, technicians must verify voltage rail tolerances, signal integrity, and timing parameters against official component datasheets. Verifying that the logic supply (VDD = 5.0 V ± 0.5 V) and auxiliary bias rails remain within specified bounds prevents field failures and ensures consistent display performance over extended operating lifetimes.
