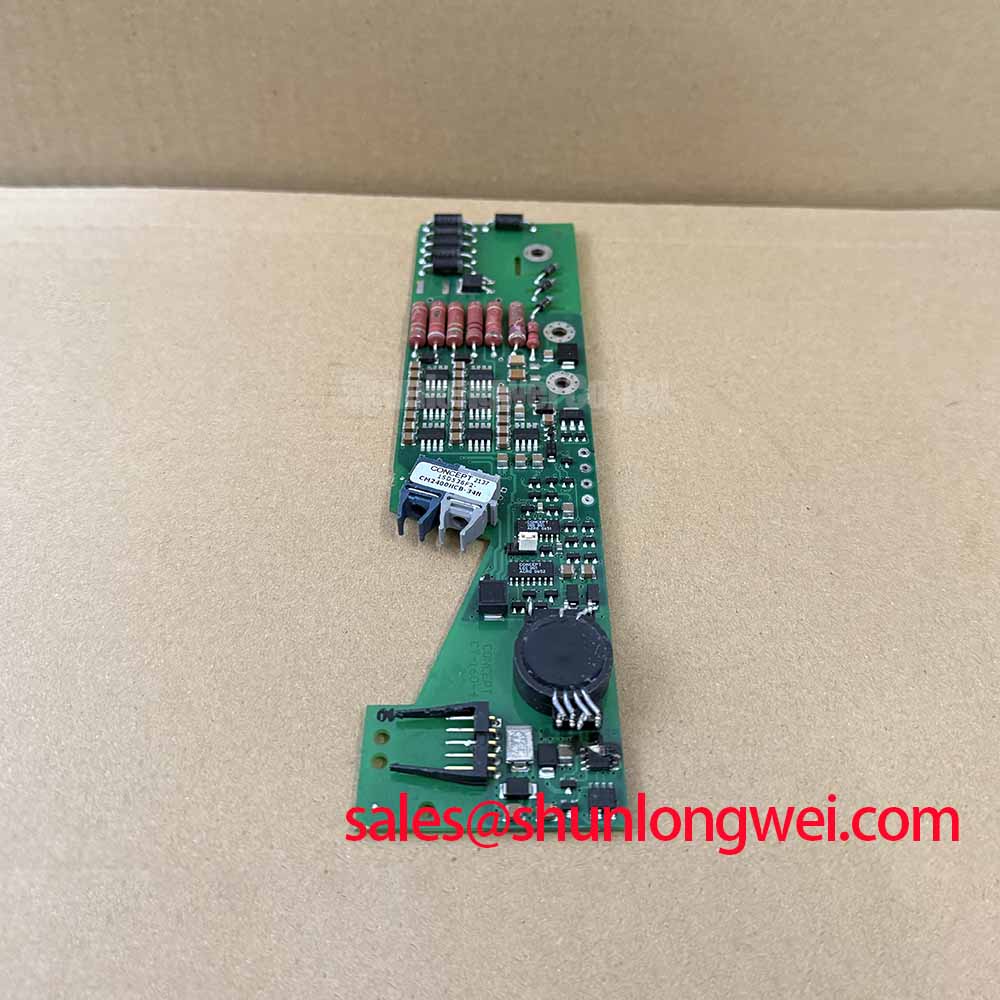

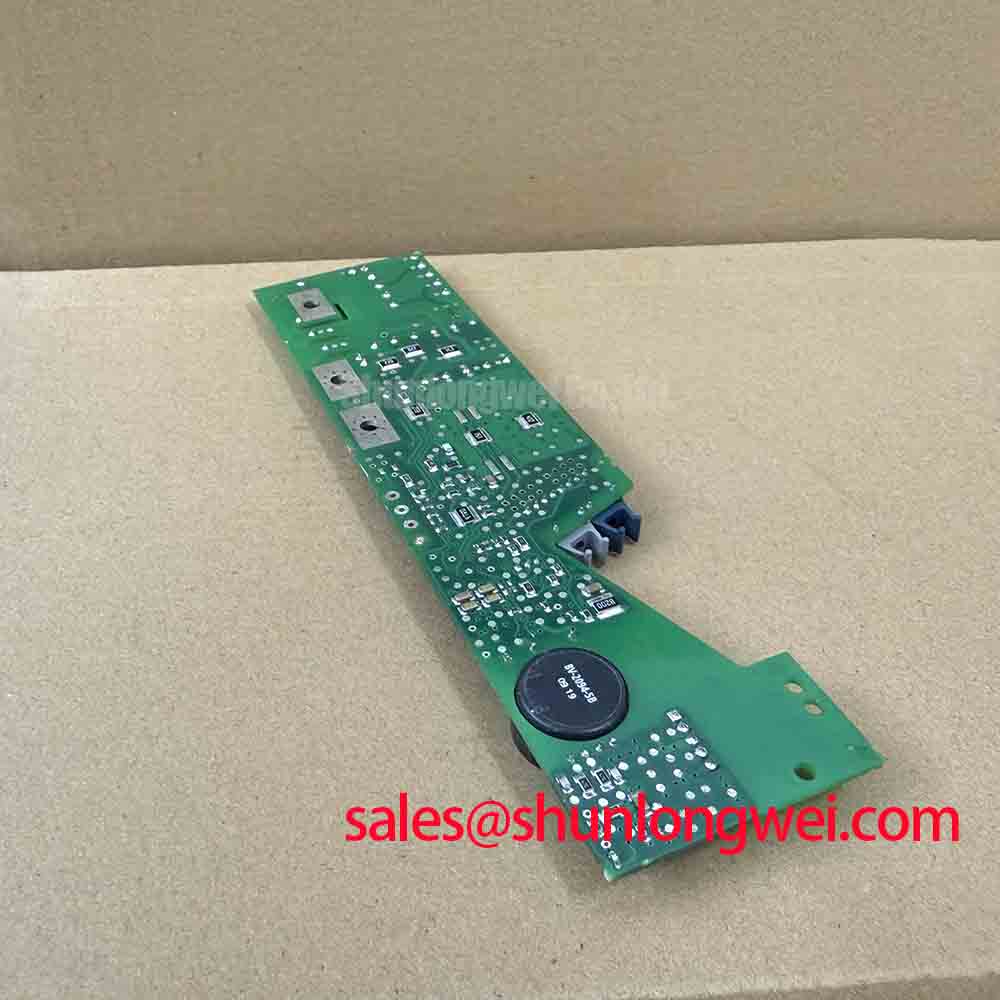

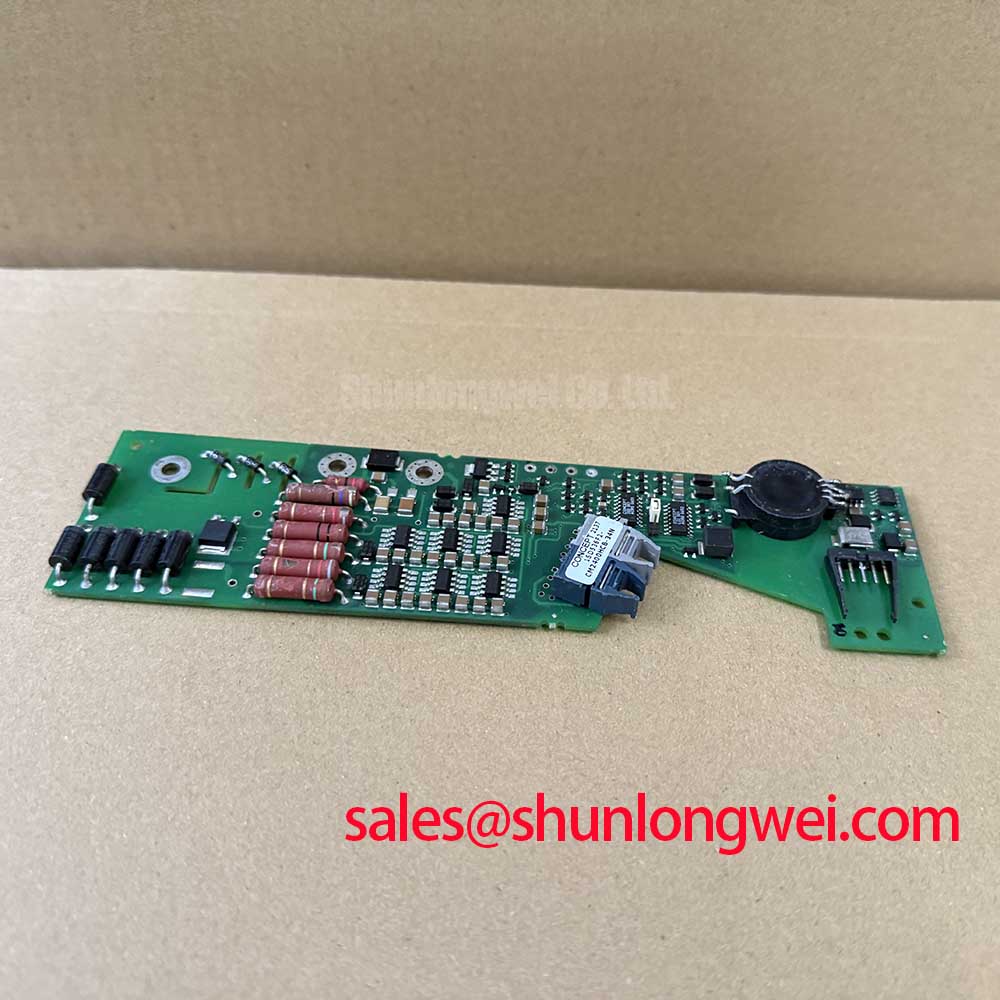

Power Integrations 1SD536F2-CM2400HCB-34N: Precision SCALE-1 Driver for 1700V 2400A IGBT Modules
Optimizing High-Power Switching Reliability via Precision-Matched SCALE-1 Technology
Engineers designing high-capacity inverters often struggle with the precise synchronization of gate signals and reliable desaturation protection for massive High-Voltage IGBTs (HVIGBTs). The 1SD536F2-CM2400HCB-34N, a member of the SCALE-1 plug-and-play driver family from Power Integrations, is specifically engineered to drive the Mitsubishi CM2400HCB-34N module. By integrating the gate driver, DC/DC converter, and protection logic into a single board, it addresses the critical challenge of parasitic turn-on in high-current 1700V systems through a stable negative gate drive voltage. 1700V | 2400A Class | SCALE-1 Technology. Key benefits include fiber-optic isolation for absolute noise immunity and integrated short-circuit protection via Vce monitoring. For 1700V rail traction or grid-scale wind power systems prioritizing long-term driver-to-module compatibility, the 1SD536F2-CM2400HCB-34N is the definitive engineering choice.
Frequently Asked Questions
Addressing Integration and Protection Challenges in High-Power Designs
How does the 1SD536F2-CM2400HCB-34N manage the massive gate charge requirements of a 2400A module?
The driver is designed with a high-current output stage capable of delivering peak currents up to 36A. This ensures that the large input capacitance of the CM2400HCB-34N is charged and discharged rapidly, maintaining sharp switching edges to minimize Switching Loss and prevent thermal runaway during high-frequency operation.
Why is the fiber-optic interface critical for 1700V HVIGBT applications?
In high-voltage environments, electromagnetic interference (EMI) can corrupt electrical control signals. The fiber-optic interface provides perfect Galvanic Isolation and immunity to dV/dt transients. This prevents false triggering and ensures that the Gate Drive signal remains clean even when the 1700V bus is switching thousands of amperes.
What happens if the driver detects a short circuit in the IGBT module?
The 1SD536F2-CM2400HCB-34N utilizes advanced Vce monitoring. If the collector-emitter voltage exceeds a predefined threshold (indicating desaturation or a short circuit), the driver immediately initiates a "Safe Turn-Off" sequence and transmits an error signal back through the fiber-optic link to the central controller, protecting the CM2400HCB-34N from catastrophic failure.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal and Electrical Reliability
The following table summarizes the critical technical specifications for the 1SD536F2-CM2400HCB-34N driver board, based on official SCALE-1 architecture documentation.
| Parameter | Technical Value / Range | Engineering Significance |
|---|---|---|
| Nominal Voltage | 1700V | Directly matched for 1700V HVIGBT insulation requirements. |
| Output Gate Current | +/- 36A (Peak) | Required for high-speed switching of 2400A class modules. |
| Gate Voltage (On) | +15V | Ensures full saturation and minimal Vce(sat) losses. |
| Gate Voltage (Off) | -15V | Provides high immunity against parasitic Miller-effect turn-on. |
| Interface Type | Fiber Optic (Versatile Link) | Eliminates electrical noise coupling between power and control. |
| Protection Mode | Vce Monitoring | Real-time desaturation detection for system-level safety. |
Technical & Design Deep Dive
The Engineering Logic of SCALE-1 Plug-and-Play Integration
The 1SD536F2-CM2400HCB-34N represents a "system-on-a-board" approach to IGBT Module control. At its core, the SCALE-1 chipset handles the complex logic of signal processing, while an integrated DC/DC converter provides isolated power to the high-potential side. This eliminates the need for external isolated power supplies, significantly reducing system complexity and PCB footprint.
Think of the gate driver as the "nervous system" of a high-power inverter. Just as a human's nervous system must react instantly to pain to prevent injury, the Vce Monitoring on this driver acts as a reflex. If it senses the CM2400HCB-34N is exiting its safe linear region, it shuts down the power flow in microseconds—faster than any central CPU could process. This level of autonomous protection is vital for maintaining high Power Cycling Capability in demanding industrial environments. Furthermore, the use of a robust gate drive design is essential to mitigate the risks associated with Short-Circuit Withstand Time limitations in ultra-high-power semiconductors.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
The 1SD536F2-CM2400HCB-34N is primarily deployed in Rail Traction inverters and large-scale Variable Frequency Drive (VFD) systems. In these applications, the 1700V operating environment demands components that can withstand extreme Thermal Management challenges and constant vibration. By using a driver that is pre-matched to the Mitsubishi CM2400HCB-34N, procurement teams reduce the risk of multi-vendor compatibility issues, while engineers save months of validation time during the prototyping phase.
In renewable energy, specifically wind-to-grid conversion, the reliability of the Gate Drive directly impacts the uptime of the entire turbine. The fiber-optic interface ensures that lightning strikes or grid surges do not travel back to the sensitive control electronics. For systems requiring slightly different power densities, the CM1200DB-34N offers a 1700V/1200A alternative, while those needing Infineon-based high-power solutions might evaluate the FZ2400R17HP4_B2. Detailed IGBT failure analysis proves that the majority of field failures stem from inadequate drive signal integrity, a risk neutralized by the SCALE-1 architecture. For more technical context, engineers may reference the Infineon RCDC (Reverse Conducting IGBT) application notes to understand the complexities of high-current diode recovery and its impact on driver design.
From a strategic perspective, adopting the 1SD536F2-CM2400HCB-34N simplifies the bill of materials (BOM) and streamlines maintenance, as the driver is essentially a replaceable module that requires no field calibration. This "plug-and-play" capability is a cornerstone of modern industrial power electronics, where reducing Mean Time to Repair (MTTR) is a critical performance metric for global infrastructure projects.
