Fuji Electric 2DI150-050 | Proven Reliability for High-Current Power Conversion

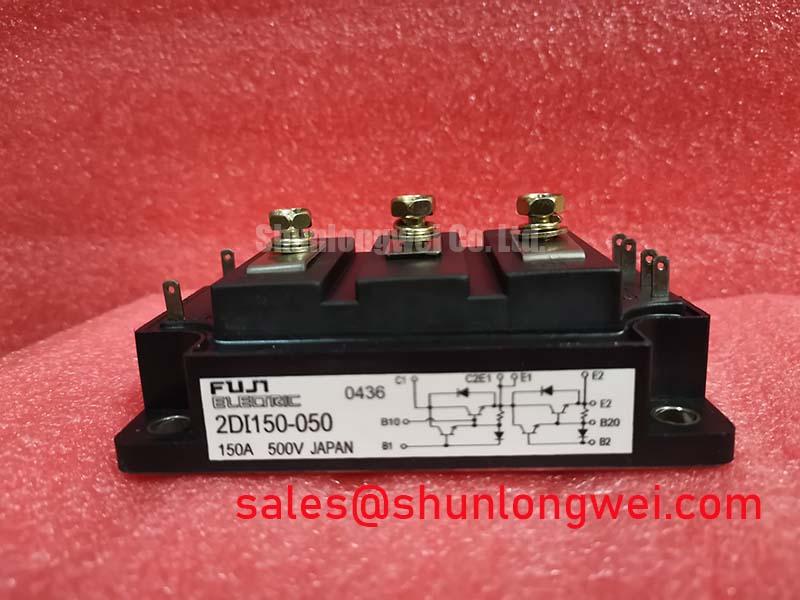

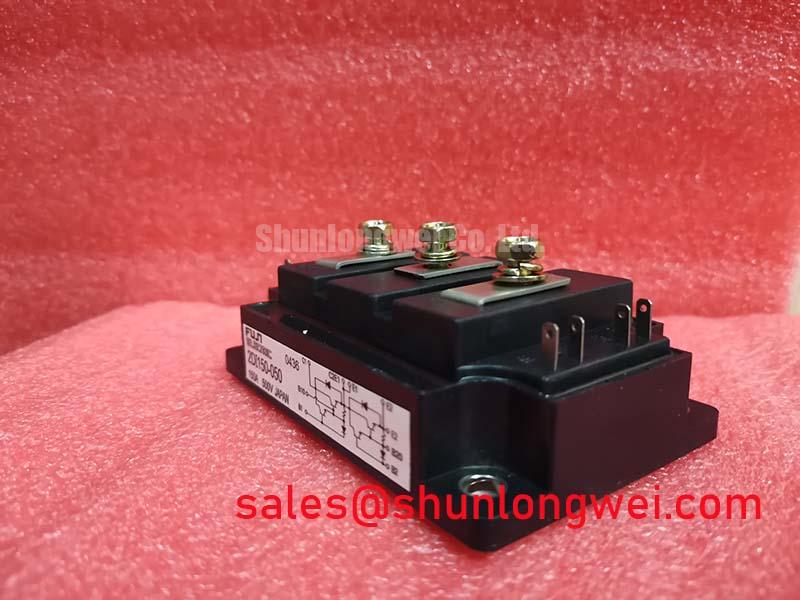

The Fuji Electric 2DI150-050 is a classic dual IGBT module engineered for robust performance and long-term reliability in demanding power electronics applications. While newer technologies push frequency boundaries, the 2DI150-050 has carved out a legacy as a go-to component for systems where durability, thermal stability, and high-current handling are paramount. It represents a cost-effective and proven solution for engineers designing or maintaining industrial power systems.
At a Glance: Core Strengths
- Configuration: Dual IGBT (Half-Bridge) in a single compact package, simplifying inverter and chopper circuit design.
- High Current Capability: Rated for 150A collector current (IC), making it ideal for medium-power motor control and power supply applications.
- Robust Voltage Rating: 500V collector-emitter voltage (VCES) provides a substantial safety margin for 200/240V line applications.
- Superior Thermal Performance: Features an electrically isolated baseplate, ensuring efficient heat transfer to the heatsink and enhancing system reliability.
Key Technical Specifications
The following parameters are critical for design engineers evaluating the 2DI150-050 for their specific application. These values underscore its suitability for lower-frequency, high-current switching tasks.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 500V |
| Continuous Collector Current (IC) at Tc=80°C | 150A |
| Collector-Emitter Saturation Voltage (VCE(sat)) Typ. at IC=150A | 2.2V |
| Total Power Dissipation (PC) at Tc=25°C | 690W |
| Isolation Voltage (Visol) | 2500V (AC, 1 minute) |
For a comprehensive overview of all electrical and thermal characteristics, you can download the official datasheet.
Application Deep Dive: Where the 2DI150-050 Excels
The specific design trade-offs of the Fuji Electric 2DI150-050 make it an optimal choice for several core industrial applications where ruggedness is more critical than ultra-high switching speed.
- Industrial Motor Drives: For AC motor drives and Servo Drives in the 15kW to 30kW range, this module's high current rating and excellent thermal dissipation provide the muscle needed to handle high-torque startup currents and continuous operation without compromising reliability.
- Welding Power Supplies: The module's robust Safe Operating Area (SOA) and low conduction losses are critical for welding applications, which involve high-current pulses. Its dual configuration is perfectly suited for building the main inverter stage.
- Uninterruptible Power Supplies (UPS): In legacy and industrial UPS systems, efficiency and reliability are the primary concerns. The 2DI150-050 provides a dependable switching element for the inverter, ensuring critical loads remain powered.
Technical Analysis: The Engineering Behind the Reliability
The enduring value of the Fuji Electric 2DI150-050 lies in its fundamental design principles. Its performance is rooted in a well-understood IGBT technology optimized for low-frequency power conversion, prioritizing low on-state voltage (VCE(sat)) to minimize conduction losses. This is a crucial factor in applications like motor drives, where the device spends a significant portion of its cycle in the 'on' state. Understanding the reasons behind its durability requires a closer look at its construction and the principles of unlocking IGBT thermal performance.
Furthermore, the module's industry-standard package and isolated baseplate are not just for convenience; they are integral to its thermal management strategy. This design facilitates a low thermal resistance path from the semiconductor die to the heatsink, which is essential for managing the heat generated during high-current operation and achieving a long operational lifespan.
Frequently Asked Questions (FAQ)
1. Can the 2DI150-050 be used in modern, high-frequency applications like EV chargers or solar inverters?While technically possible, it is not the ideal choice. The 2DI150-050 is optimized for lower switching frequencies (typically below 20 kHz) where conduction losses dominate. For applications demanding higher frequencies to reduce the size of magnetic components, engineers should explore newer IGBT modules with lower switching losses (Eon/Eoff).
2. What are the best practices for the gate drive design for this module?A robust gate drive is critical for reliability. We recommend a dual-polarity supply, typically +15V for turn-on and a negative voltage (e.g., -5V to -15V) for a firm turn-off, which helps prevent parasitic turn-on caused by the Miller effect. For a deeper understanding, explore these practical tips for robust IGBT gate drive design to prevent system failure.
If your design requires a reliable, high-current switching solution for industrial-grade power conversion, the Fuji Electric 2DI150-050 remains a formidable and cost-effective contender. For selection assistance or to discuss your specific application needs, please contact our technical team.
