2MBI200SB120-50 IGBT Module: An Engineer's Technical Review for High-Efficiency Power Conversion
Introduction: Core Specifications and Engineering Value

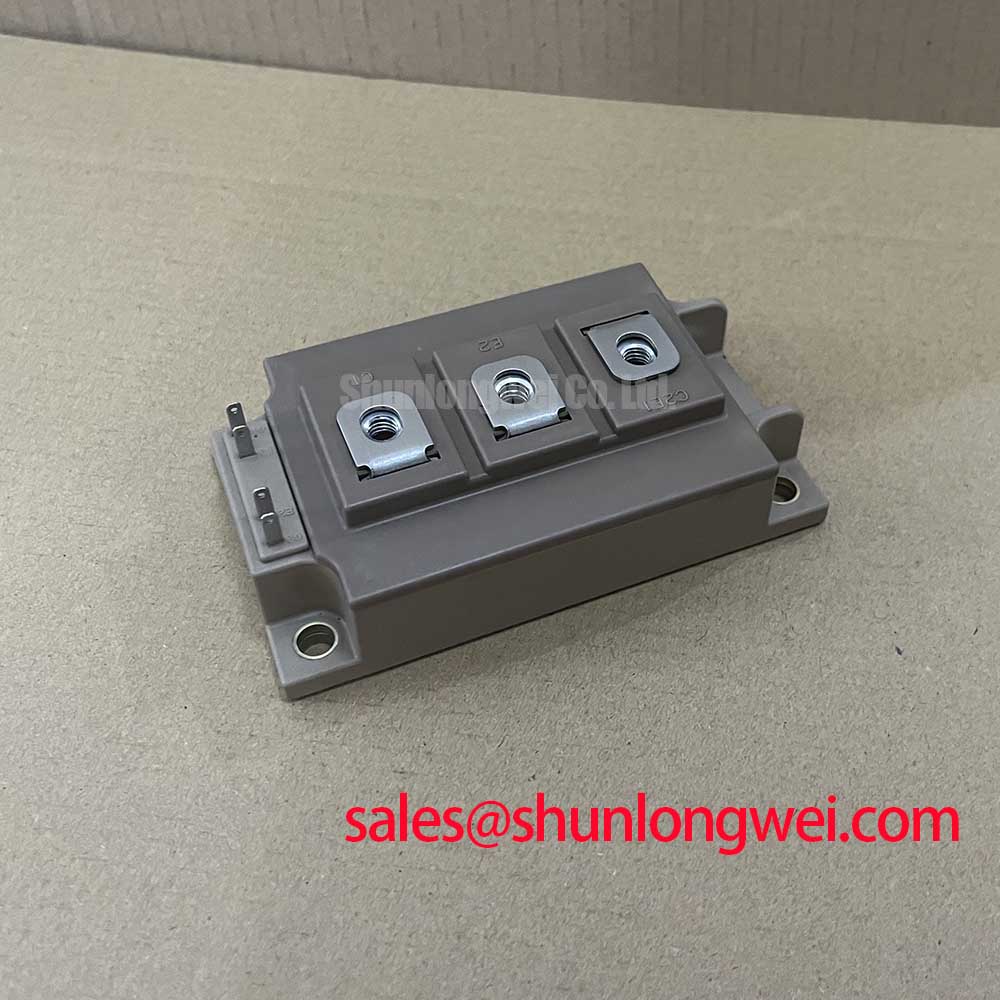

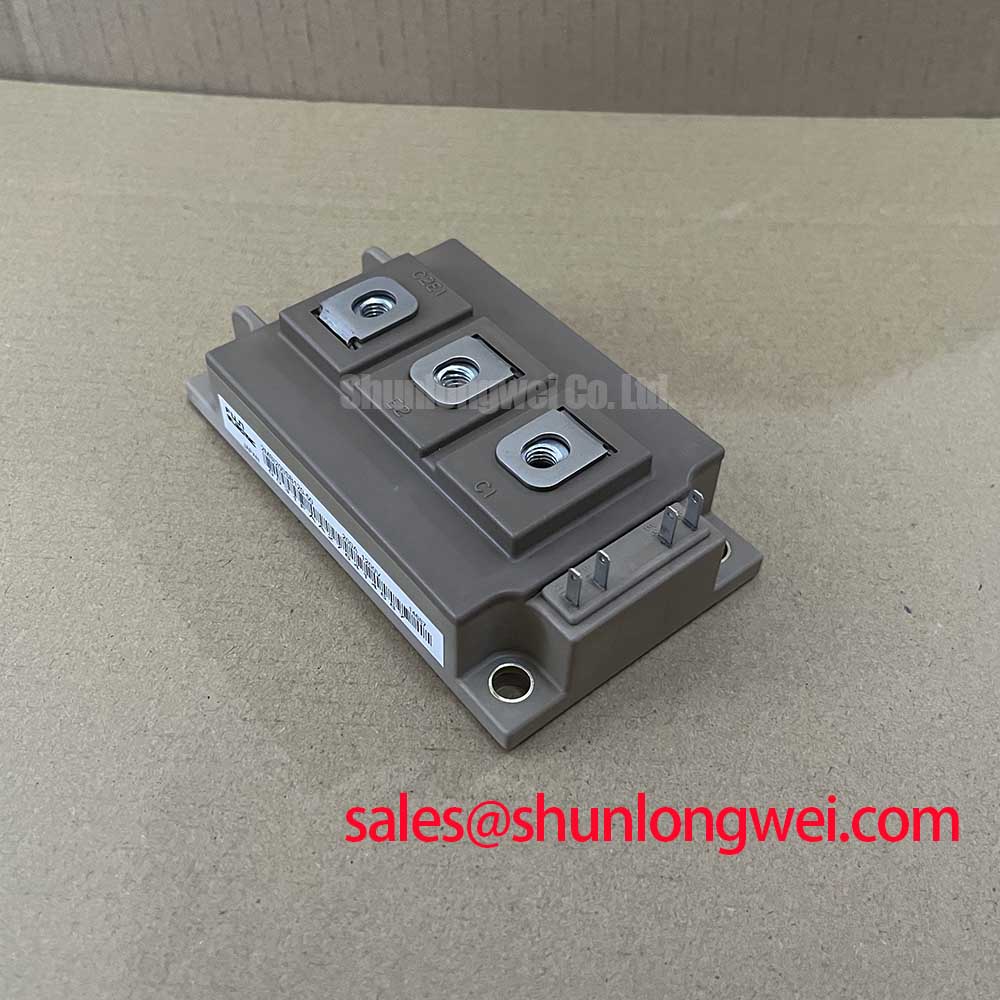

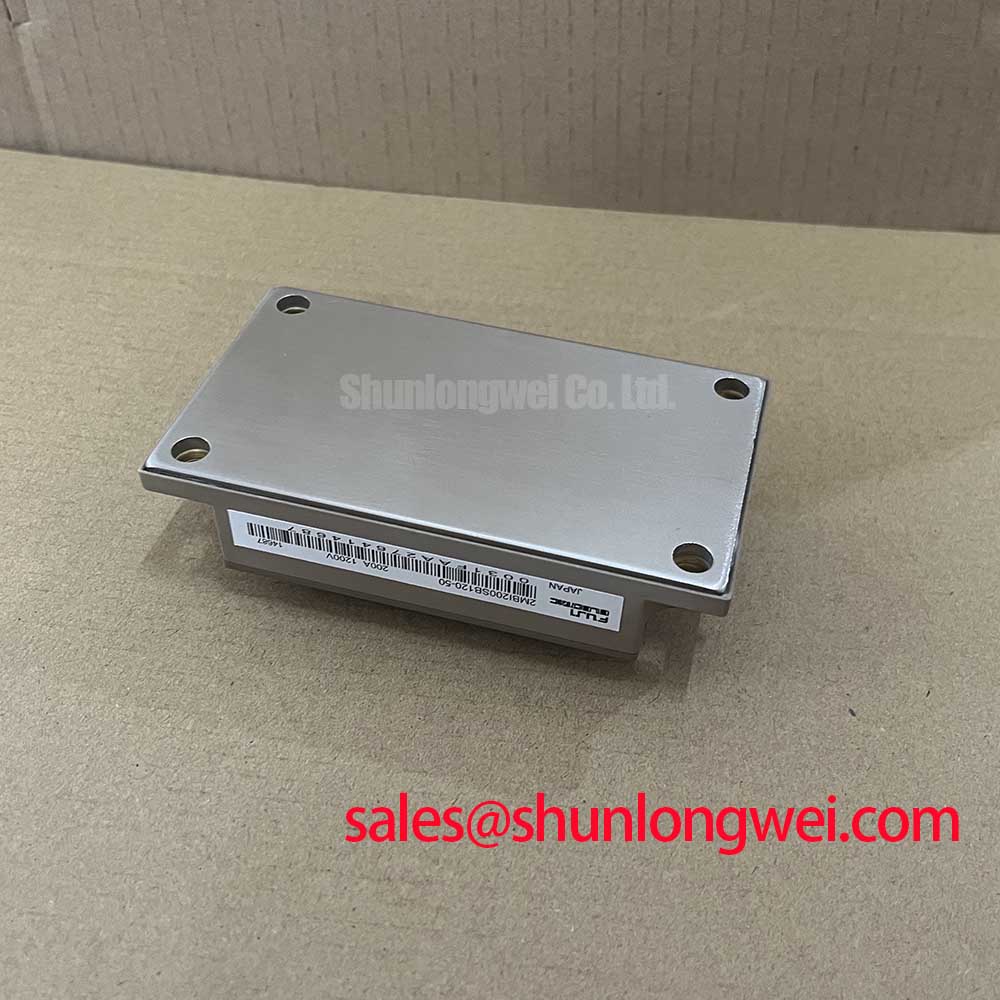

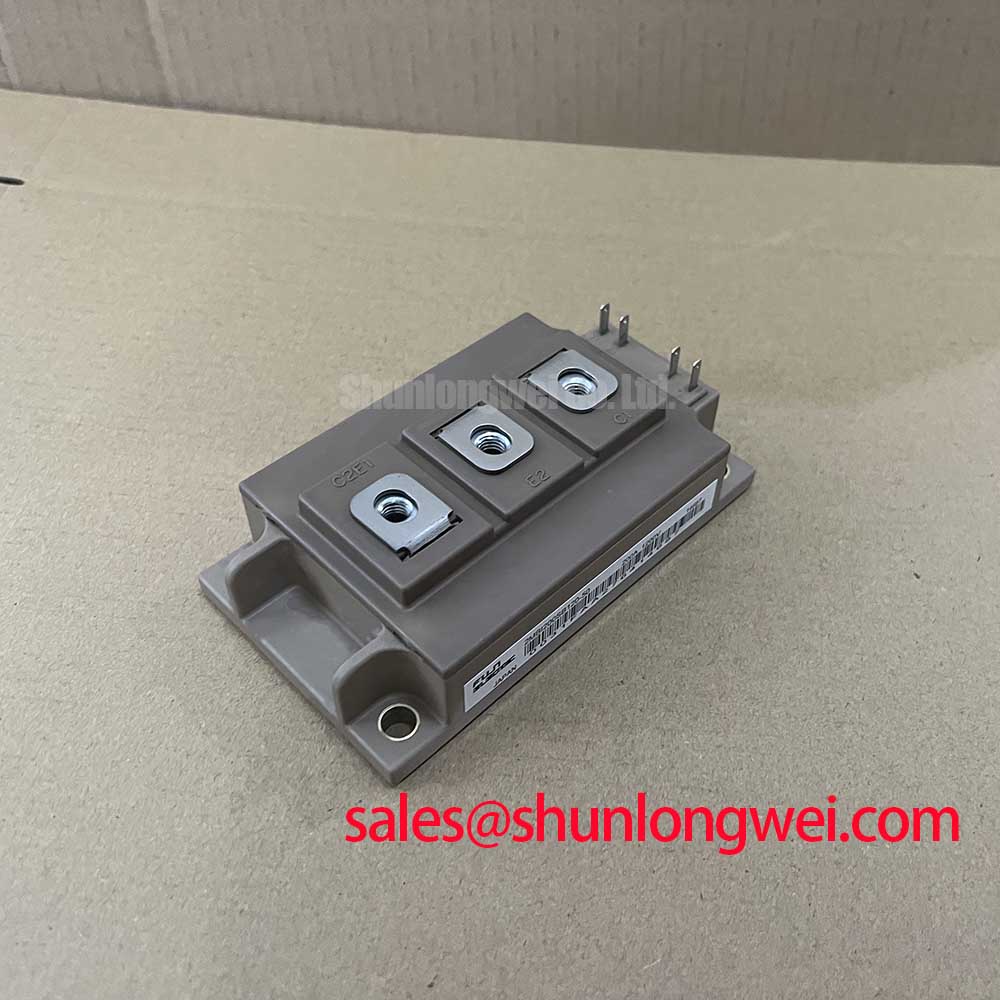

The 2MBI200SB120-50 from Fuji Electric is a 1200V, 200A dual IGBT module engineered to deliver a superior balance of low power loss and robust thermal performance in demanding power conversion systems. With its key specifications of 1200V | 200A | VCE(sat) of 2.2V (typ), this module provides two primary engineering benefits: minimized conduction losses and enhanced thermal stability. It directly addresses the challenge of achieving higher efficiency in inverter designs by featuring a low saturation voltage, which reduces the power dissipated as heat during operation. For medium-power industrial drives and power supplies where efficiency and reliability are paramount, the 2MBI200SB120-50 offers a well-optimized solution.
Application Scenarios & Value
System-Level Benefits in Industrial Motor Drives and Power Systems
The 2MBI200SB120-50 is engineered for high-performance applications where switching efficiency and long-term reliability are critical design criteria. Its capabilities are particularly valuable in the inverter stages of industrial systems.
A primary engineering challenge in designing Variable Frequency Drives (VFDs) is managing the heat generated by the power switching devices. The 2MBI200SB120-50 directly addresses this with its low collector-emitter saturation voltage (VCE(sat)) of 2.2V at its rated current. This parameter is analogous to the voltage drop across a mechanical switch when it's closed; a lower drop means less energy is wasted as heat. In a VFD application, this lower conduction loss translates into higher overall inverter efficiency and a reduced thermal load on the heatsink. This allows engineers to either design a more compact cooling system, thereby increasing power density, or operate the system with a greater thermal margin, enhancing long-term reliability.
- Industrial Motor Drives: The module's 2-in-1 (half-bridge) configuration simplifies the topology for three-phase motor inverters, providing a robust building block for systems up to approximately 75 kW.
- Uninterruptible Power Supplies (UPS): In high-power UPS systems, the module's efficiency contributes to lower operating costs and improved battery runtime during power outages.
- Welding Power Supplies: The device's ability to handle high currents makes it suitable for the demanding load cycles found in modern welding equipment.
For systems requiring higher current handling capabilities, the related 2MBI300N-120 offers a 300A rating within a similar voltage class.
Key Parameter Overview
Decoding the Specifications for Efficient and Reliable Design
The technical specifications of the 2MBI200SB120-50 are foundational to its performance in high-power applications. The following table highlights the key parameters derived from the official datasheet.
| Absolute Maximum Ratings (at Tc = 25°C unless otherwise specified) | |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200V |
| Gate-Emitter Voltage (Vges) | ±20V |
| Continuous Collector Current (Ic) @ Tc=80°C | 200A |
| Peak Collector Current (Icp) (1ms pulse) | 400A |
| Total Power Dissipation (Pc) @ Tc=25°C | 1250W |
| Operating Junction Temperature (Tj) | +150°C |
| Isolation Voltage (Visol) (AC, 1 min.) | 2500V |
| Electrical Characteristics (at Tvj = 25°C unless otherwise specified) | |
| Collector-Emitter Saturation Voltage (VCE(sat)) (Typ. @ Ic=200A) | 2.2V |
| Gate-Emitter Threshold Voltage (VGE(th)) | 5.0V to 7.0V |
| Input Capacitance (Cies) | 18.0 nF (typ) |
| Turn-On Switching Time (ton) | 350 ns (typ) |
| Turn-Off Switching Time (toff) | 550 ns (typ) |
| Thermal Resistance (Rth(j-c)) per IGBT | 0.1 K/W (max) |
Download the 2MBI200SB120-50 datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
How does the typical VCE(sat) of 2.2V impact thermal management in an inverter design?
A lower VCE(sat) directly reduces conduction losses, which are a major source of heat in an IGBT. With less power being dissipated as heat for the same amount of current, the module operates at a lower junction temperature. This provides engineers with two options: use a smaller, less expensive heatsink for the same operating conditions, or run the module cooler with an existing heatsink design, thereby increasing the system's overall reliability and lifespan.
What is the significance of the 2500V isolation voltage (Visol) for system safety and integration?
The 2500Vrms isolation rating ensures robust electrical separation between the live power circuit and the module's baseplate, which is typically mounted to a grounded heatsink. This high isolation barrier is crucial for meeting safety standards like UL and IEC, preventing electrical shock hazards, and ensuring reliable operation in noisy industrial environments by providing high immunity to common-mode voltage transients.
For assistance with your power system design or to request more information on the 2MBI200SB120-50, please contact our technical support team for expert guidance.
