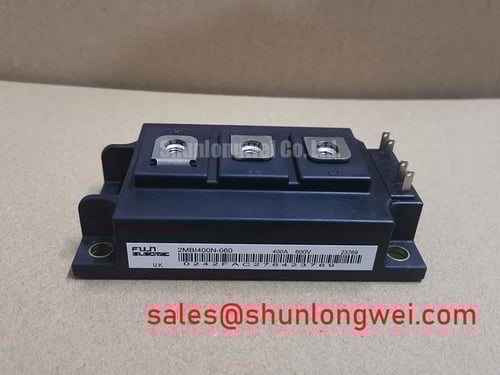

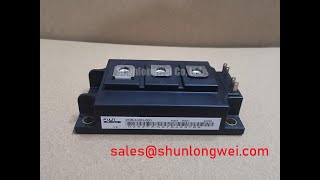

Fuji Electric 2MBI400N-060 | High-Performance 600V/400A IGBT Module for Demanding Inverters
The Fuji Electric 2MBI400N-060 is a testament to robust engineering, designed to be the powerhouse at the core of high-current, high-frequency power conversion systems. This dual IGBT module, configured as a half-bridge, delivers an exceptional balance of low conduction and switching losses, high reliability, and thermal efficiency, making it an ideal choice for engineers developing demanding industrial applications.
Product Highlights at a Glance
- High Current & Voltage Rating: 400A collector current (Ic) and 600V collector-emitter voltage (Vces) to handle substantial power loads.
- Low Conduction Losses: Features a remarkably low saturation voltage (Vce(sat)) of 2.2V (typical), directly translating to higher system efficiency and reduced thermal stress.
- Optimized for Speed: Engineered for high-speed switching, enabling more compact system designs and improved performance in applications like high-frequency motor control.

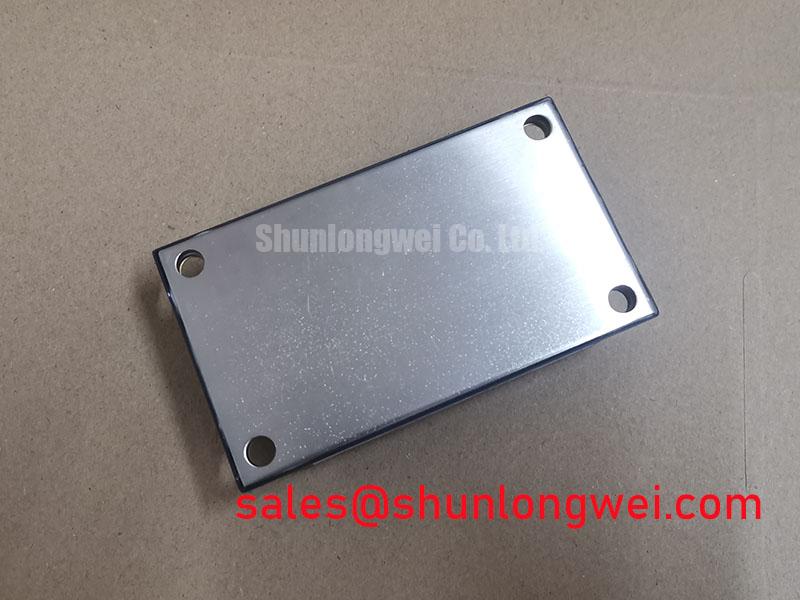

- Robust Construction: Housed in a standard package with an isolated mounting base, ensuring high reliability and simplifying thermal management.
- Integrated FWD: Includes a soft and fast-recovery free-wheeling diode (FWD) co-packed with the IGBT, optimized for motor drive applications.
Technical Deep Dive: The Engineering Advantage
The performance of the 2MBI400N-060 is not accidental; it is the result of Fuji Electric's advanced semiconductor design. Two core technologies are key to its superior capabilities.
First, the module leverages an advanced Trench Gate and Field-Stop (FS) IGBT structure. The trench gate design lowers the on-state voltage, significantly reducing the VCE(sat) compared to older planar technologies. This directly cuts down on conduction losses, which are dominant in high-current applications. The Field-Stop layer works in tandem to reduce the thickness of the N- drift region, resulting in lower switching losses (Eoff) and enabling the module to operate efficiently at higher frequencies.
Second, the internal layout and package construction are meticulously engineered for low stray inductance. This is critical in high-current, fast-switching circuits where parasitic inductance can cause significant voltage overshoots and ringing. By minimizing this inductance, the 2MBI400N-060 provides cleaner switching waveforms, improves reliability, and simplifies the design of snubber circuits, saving both board space and component cost.
Application Scenarios & Value Proposition
The technical strengths of the Fuji 2MBI400N-060 translate into tangible benefits across several key industrial sectors:
- Variable Frequency Drives (VFDs): In motor drives, efficiency is paramount. The module's low Vce(sat) reduces heat dissipation in the inverter, allowing for smaller heatsinks or higher power density. Its robust Safe Operating Area (SOA) ensures reliability under demanding motor start-up and load-change conditions.
- AC and DC Servo Drives: Precision and speed are the metrics of success in servo applications. The fast switching capability of this IGBT module allows for higher PWM frequencies, leading to smoother motor operation, reduced torque ripple, and enhanced positioning accuracy. This is a critical advantage when powering precision robotic servo drives.
- Uninterruptible Power Supplies (UPS): For high-power UPS systems, reliability and efficiency are non-negotiable. The 2MBI400N-060's proven design and low-loss characteristics ensure maximum power is delivered to the load with minimal energy wasted as heat, contributing to a lower total cost of ownership (TCO).
Key Technical Parameters
The following table provides a summary of the critical specifications for design engineers. For a complete overview, please refer to the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 600V |
| Continuous Collector Current (Ic) @ Tc=80°C | 400A |
| Collector-Emitter Saturation Voltage (Vce(sat)) Typ. @ Ic=400A | 2.2V |
| Total Power Dissipation (Pc) @ Tc=25°C | 1650W |
| Short-Circuit Withstand Time (Tsc) | 10µs |
| Operating Junction Temperature (Tj) | +150°C |
For comprehensive electrical and thermal characteristics, download the Fuji Electric 2MBI400N-060 Datasheet.
Frequently Asked Questions (FAQ)
What are the primary considerations for the gate drive circuit for this module?
Given its 400A rating and fast switching speed, a robust gate drive design is crucial. Key considerations include: 1) Providing sufficient peak gate current (typically >10A) to ensure rapid and complete turn-on/turn-off. 2) Using a negative gate voltage (e.g., -5V to -15V) during the off-state to prevent parasitic turn-on induced by dV/dt. 3) Placing the gate driver as close as possible to the module's gate and emitter terminals to minimize loop inductance.
How critical is thermal management for the 2MBI400N-060?
Extremely critical. While the module is efficient, operating at 400A will generate significant heat. Proper thermal management is essential for reliability. Ensure a high-quality thermal interface material (TIM) is used between the module baseplate and heatsink. The heatsink must be adequately sized based on calculated power losses and the maximum ambient operating temperature. Understanding the module's thermal resistance, or why Rth matters, is key to preventing overheating and premature failure.
