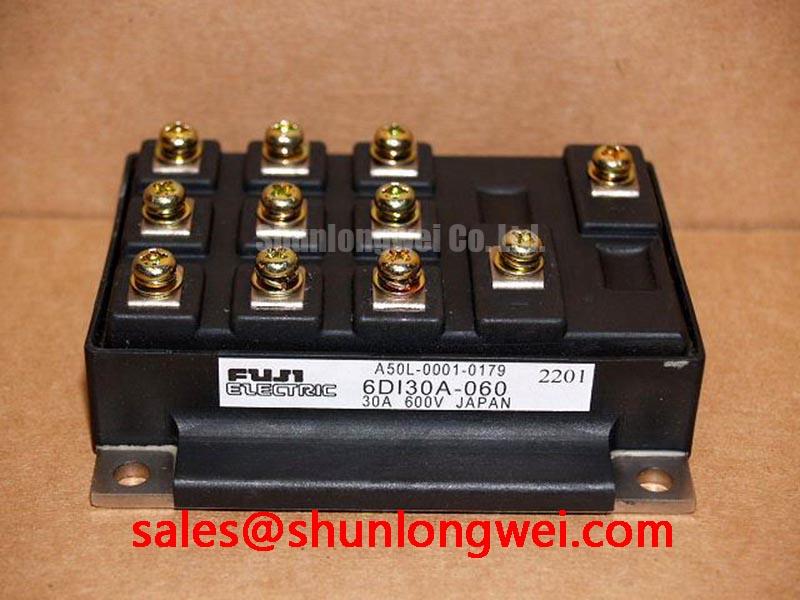

Fuji Electric 6DI30A-060 Power Transistor Module: High-Density 6-Pack Darlington Solution for Industrial Switching
The Fuji Electric 6DI30A-060, a cornerstone of the Power Transistor Module family, provides a high-density switching solution designed for precision motor control and power conversion. This module integrates six Darlington Transistors into a single insulated package, significantly reducing the footprint and assembly complexity in three-phase inverter stages. By offering a 600V collector-emitter voltage rating and a 30A continuous collector current, it serves as a reliable building block for legacy industrial systems and modern power supplies requiring robust bipolar technology.
UVP Statement: Maximizing system-level density through a pre-configured 6-pack topology that simplifies 3-phase wiring while maintaining high thermal isolation for industrial longevity.
Top Specs: 600V | 30A | 6-Pack Configuration
Key Benefits: Lower assembly costs via integrated topology; high-speed switching capability for PWM applications.
Core Insight: Engineers often ask if this module can handle the inductive spikes of AC motors; the 6DI30A-060 includes integrated Fast Recovery Epitaxial Diodes (FRED) to clamp inductive kickback, ensuring the transistors remain within their Safe Operating Area (SOA).
For systems prioritizing thermal margin in compact drives, the 6DI30A-060 with its 600V rating and 30A capacity is the optimal choice for 240V/440V AC line applications.
Key Parameter Overview
Specifications and Engineering Value Interpretation
The following table outlines the critical electrical and thermal boundaries of the 6DI30A-060. Understanding these parameters is essential for calculating the thermal overhead and ensuring the module operates efficiently under variable load conditions.
| Main Parameter | Official Value | Engineering Interpretation |
|---|---|---|
| Collector-Emitter Voltage (Vcex) | 600V | Provides sufficient headroom for 400V DC bus systems commonly found in industrial AC Motor Drives. |
| Collector Current (Ic) | 30A | Supports medium-power loads; for higher current demands, consider the 6DI150AH-060. |
| DC Current Gain (hFE) | 100 (Min) | High gain Darlington structure allows for low-power gate drive circuitry to control high-power loads. |
| Isolation Voltage (Viso) | 2000V AC | Ensures safety and prevents ground loops by electrically isolating the live circuit from the heatsink. |
| Operating Junction Temp (Tj) | -40 to +150°C | Broad thermal window suitable for harsh factory environments where ambient temperatures may fluctuate. |
Application Scenarios & Value
Achieving System-Level Benefits in Industrial Automation
The 6DI30A-060 is frequently deployed in Numerical Control (NC) Machines and Uninterruptible Power Supplies (UPS). Engineers often face the challenge of managing space constraints in control cabinets while ensuring that power components do not overheat during continuous operation. The 30A rating of this Fuji Electric module is particularly effective at handling the steady-state currents required by servo amplifiers in high-precision robotics.
Consider a high-fidelity engineering scenario involving an industrial conveyor system. During the motor start-up phase, the system experiences a significant inrush current. The 6DI30A-060, with its high pulsed collector current capability, manages these transient peaks without exceeding its thermal limits. This prevents the "nuisance tripping" often associated with underrated components. Furthermore, the integrated diode structure provides a low-impedance path for freewheeling currents, which is critical for maintaining efficiency in high-frequency Variable Frequency Drives (VFD).
For more insights on choosing between different power structures, you may find our guide on IGBT vs MOSFET vs BJT helpful for your next design phase.
Technical Deep Dive
Optimizing Thermal Reliability through Isolated Package Design
A critical technical advantage of the 6DI30A-060 is its insulated base design. In power electronics, managing Thermal Resistance (Rth) is the equivalent of managing traffic flow on a highway; any bottleneck results in heat buildup that can lead to catastrophic failure. The ceramic isolation within the module acts as an "electrical firewall"—it blocks the 600V potential from reaching the chassis while allowing thermal energy to pass through to the heatsink with minimal resistance.
The Darlington configuration used in the 6DI30A-060 consists of two bipolar transistors where the first transistor amplifies the current for the second. This cascaded arrangement is like a multi-stage water pump, where a small input effort results in a high-volume output. This allows the 6DI30A-060 to be driven by simple logic-level signals through a buffer, simplifying the Gate Drive design. However, engineers must account for the slightly higher Vce(sat) (Saturation Voltage) compared to standard single transistors, which can influence the total Switching Loss in PWM applications.
To maximize the lifespan of these modules, implementing a robust Thermal Management strategy is non-negotiable. Proper application of thermal grease and precise torque on mounting screws are essential to minimize the contact resistance between the module and the cooling surface.
Frequently Asked Questions
What is the primary benefit of the 6-pack design in the 6DI30A-060?
It reduces assembly space and simplifies complex wiring by integrating a full three-phase bridge into a single, pre-tested package.
How does the hFE gain of 100 impact the drive circuit design?
A high hFE means the module requires very low base current to switch 30A, allowing for smaller, more cost-effective drive components and reducing power consumption on the control board.
Can the 6DI30A-060 be used in 480V AC line systems?
With a Vcex of 600V, the voltage margin is tight for 480V AC lines (which have peaks near 680V). It is generally recommended for 240V or 380V AC systems where the DC bus remains safely below the 600V limit.
Does this module require external snubber circuits?
While it features integrated freewheeling diodes, a Snubber Circuit is still recommended in high-speed switching applications to suppress voltage spikes caused by stray inductance in the busbars.
How do I verify if a 6DI30A-060 is still functional after a system fault?
Engineers can perform a junction test using a multimeter. For detailed steps, refer to our guide on how to test a module with a multimeter.
From a strategic engineering perspective, the 6DI30A-060 remains a vital component for maintaining industrial infrastructure and designing high-reliability, low-complexity power stages. By balancing current density with simplified integration, it empowers procurement and design teams to sustain legacy performance without the overhead of complete system redesigns.
