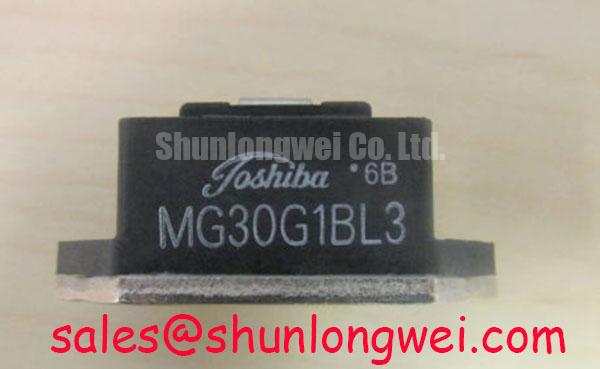

MG30G1BL3 Toshiba 600V 30A Darlington Transistor Module
The MG30G1BL3 is a high-performance NPN Darlington transistor module designed by Toshiba for industrial power switching applications. As part of a specialized generation of Giant Transistor (GTR) modules, this component provides a robust solution for medium-power requirements, featuring a high DC current gain and a simplified drive interface. Engineers frequently utilize this module in applications where reliability and ease of integration are prioritized over high-frequency switching speeds. With a Collector-Emitter Voltage (Vces) of 600V and a Continuous Collector Current (Ic) of 30A, it bridges the gap between discrete transistors and high-power IGBT assemblies.
For legacy motor drives requiring high-voltage Darlington switching at 30A, the MG30G1BL3 remains a standard engineering choice for maintenance and system repair.
Key Parameter Overview
Functional Grouping of Electrical and Thermal Specifications
| Parameter Category | Technical Specification | Value / Condition |
|---|---|---|
| Maximum Ratings | Collector-Emitter Voltage (Vces) | 600V |
| Maximum Ratings | Collector Current (Ic) | 30A |
| Maximum Ratings | Collector Power Dissipation (Pc) | 200W |
| Electrical Characteristics | Collector-Emitter Saturation Voltage | 2.0V (Typical) |
| Electrical Characteristics | DC Current Gain (hFE) | 100 (Minimum) |
| Thermal Properties | Storage Temperature Range | -40 to +125°C |
Application Scenarios & Value
Achieving Robust Power Control in Industrial Environments
The MG30G1BL3 is specifically engineered for reliability in heavy-duty environments. Its primary application lies in Variable Frequency Drive (VFD) brake circuits and small-scale AC motor control systems. In these scenarios, the module acts as a rugged switch capable of handling inductive loads without the sensitivity often associated with modern high-speed MOSFETs. The Darlington configuration ensures that a relatively small base current can control a significant 30A load, effectively simplifying the Gate Drive requirements for the system designer.
Engineers often face challenges with voltage spikes in inductive switching; the 600V rating provides a necessary safety margin for 240V AC rectified systems. For systems requiring higher current handling, the related MG150Q2YS50 offers a Collector Current of 150A. Understanding the transition from GTR to modern structures is essential for system upgrades; for more context, refer to our guide on IGBT vs MOSFET vs BJT selection.
Technical Deep Dive
Optimization of Darlington Saturation and Drive Design
The internal architecture of the MG30G1BL3 consists of two bipolar transistors connected in a Darlington pair. This structure is designed to maximize current gain, which is critical for reducing the complexity of the control electronics. By using a Darlington Transistor Module, designers can avoid the high-current drive stages required by single bipolar transistors. However, this comes with a trade-off in Vce(sat), which is typically higher than a single transistor but managed effectively within this module's thermal envelope of 200W.
In terms of thermal design, the module's isolated base plate allows for direct mounting to heatsinks, simplifying the mechanical assembly of UPS and Inverter systems. When compared to modern counterparts, the MG30G1BL3 emphasizes ruggedness over switching frequency, making it less susceptible to the EMI issues that plague faster modules. For more information on maintaining these components in the field, see our practical guide to testing power modules.
Frequently Asked Questions
Engineering Insights for Implementation and Reliability
How does the high DC current gain (hFE) of the MG30G1BL3 impact the overall gate drive circuit design?
The minimum hFE of 100 significantly reduces the base drive current required to saturate the module at its full 30A rating. This allows engineers to use smaller, less expensive drive components and reduces the total power consumption of the control logic board compared to using standard bipolar power transistors.
What is the primary benefit of the MG30G1BL3's NPN Darlington structure in legacy power supply maintenance?
The primary benefit is its inherent compatibility with older control topologies that rely on current-driven signals rather than the voltage-driven signals used by IGBT modules. This makes the MG30G1BL3 an essential drop-in replacement that maintains original system timing and thermal profiles without requiring a complete redesign of the drive stage.
The MG30G1BL3 represents a proven technological milestone in power electronics, offering a reliable and simplified approach to 600V switching. For procurement professionals and maintenance engineers, ensuring the availability of these specific Toshiba modules is vital for the continued operation of existing industrial infrastructure.
