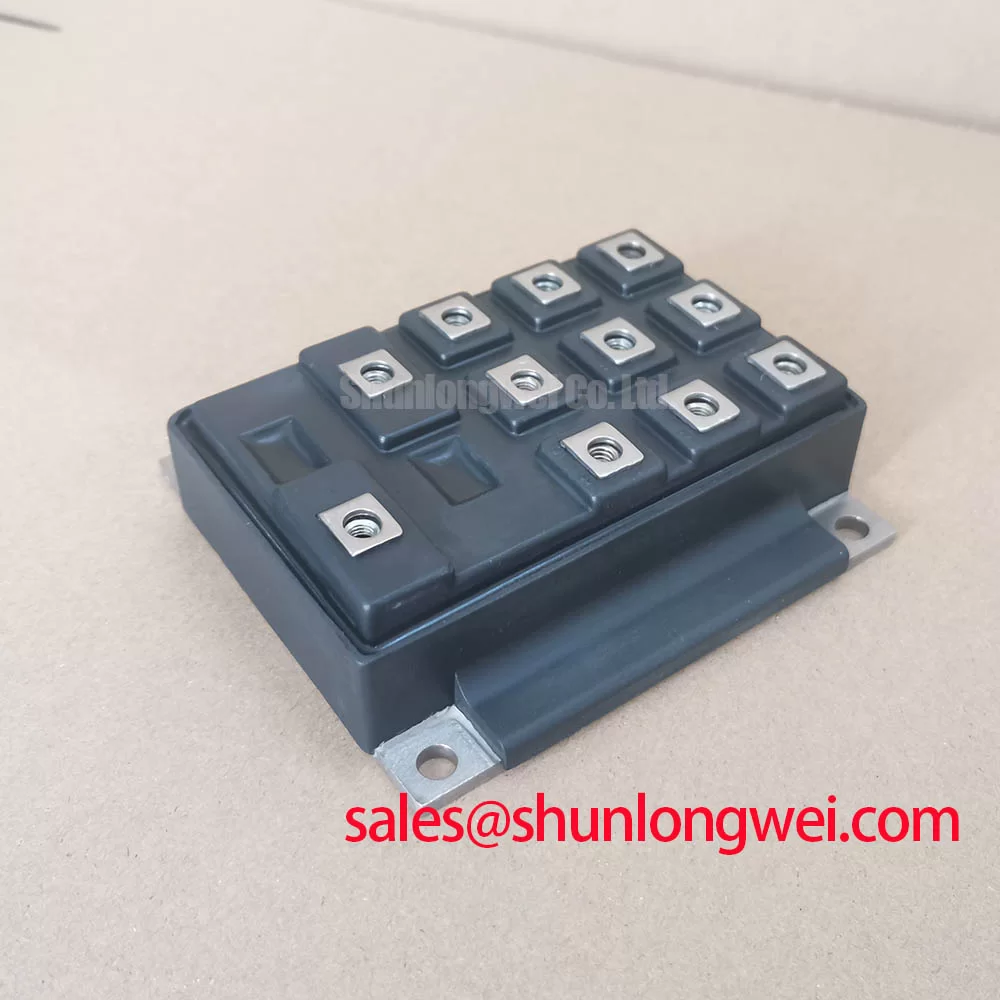

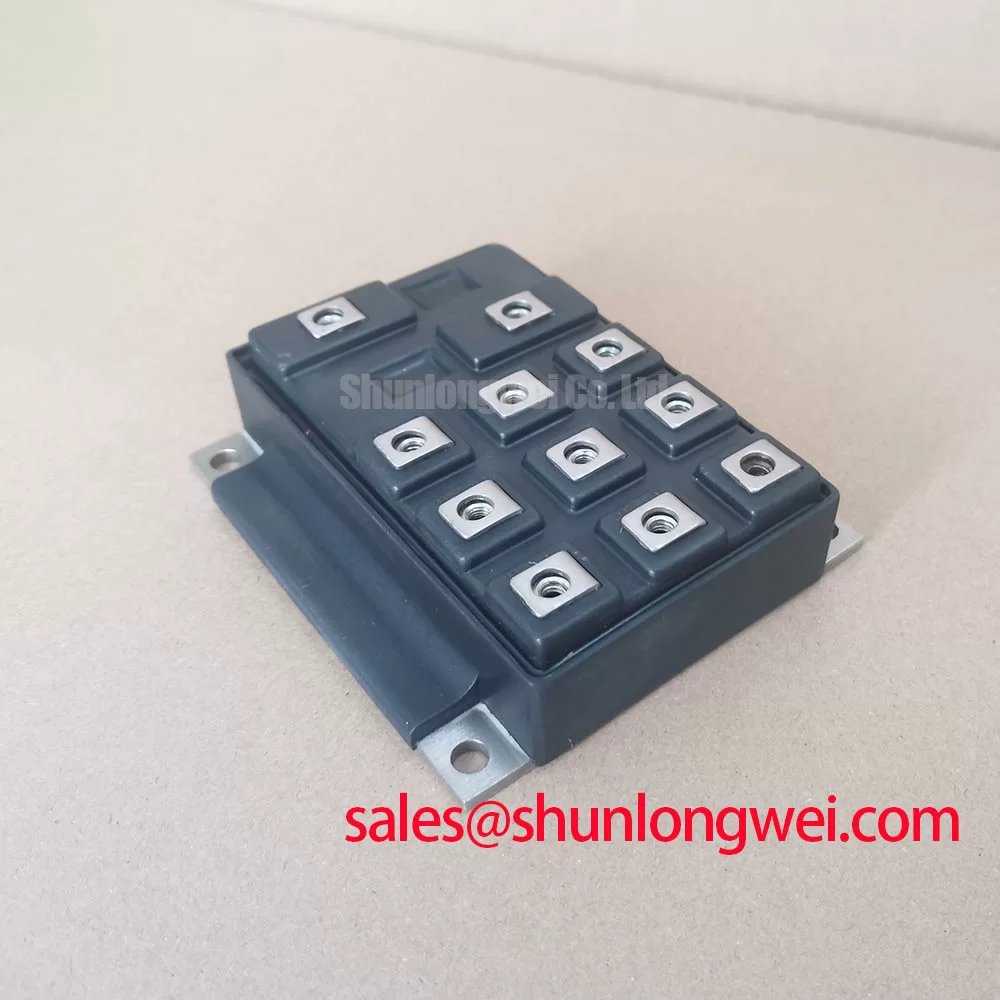

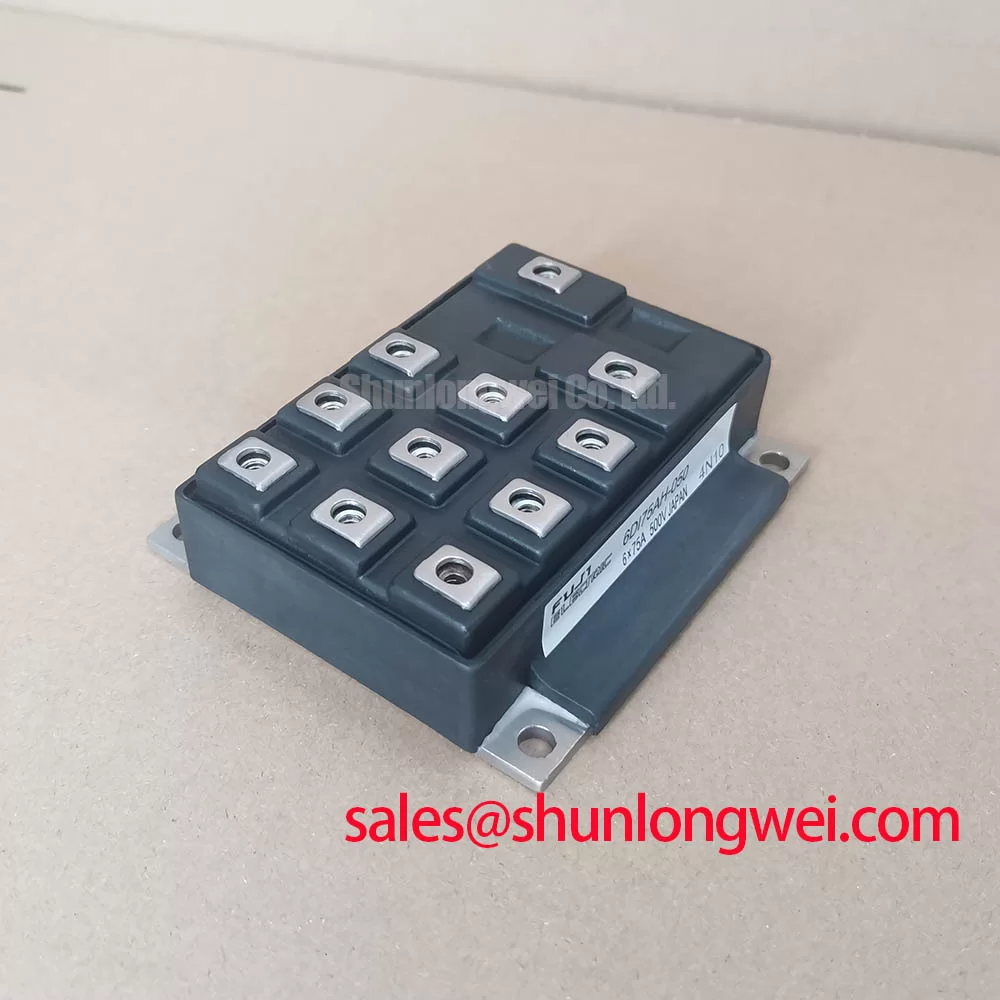

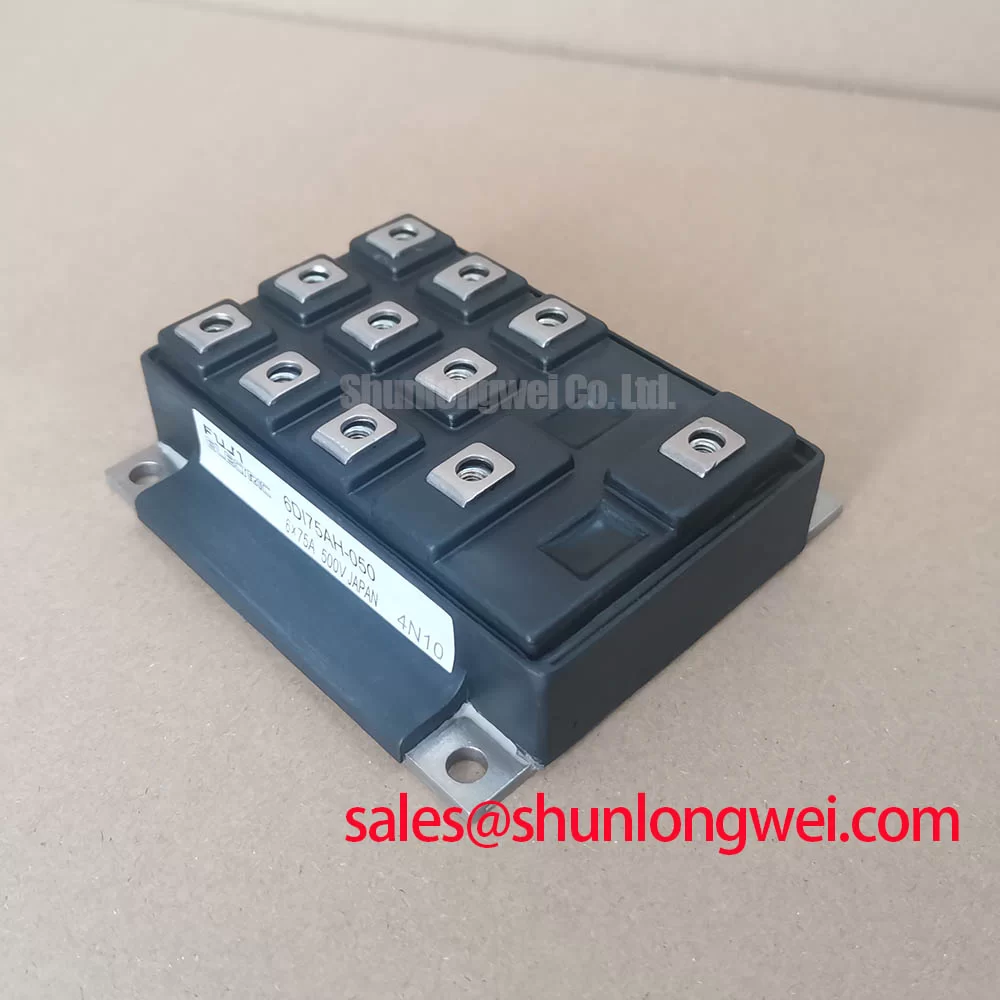

Fuji Electric 6DI75AH-050 | Robust 500V Six-Pack IGBT for Industrial Power Control
The Fuji Electric 6DI75AH-050 is a workhorse IGBT module engineered for reliability and performance in demanding, low-to-medium voltage power conversion systems. Far from being a simple collection of switches, this module represents a highly integrated solution designed to simplify inverter design, enhance thermal stability, and provide consistent operation over a long service life. It is a testament to Fuji's legacy of producing robust power components for critical industrial machinery.
Application Scenarios & Engineering Value
The specific 500V/75A rating of the 6DI75AH-050 makes it a uniquely suitable component for a range of applications where it offers a distinct advantage over higher-voltage alternatives. Its design provides an optimal balance of performance and cost-effectiveness in systems operating from 200-240V AC lines.
- General Purpose & Vector Control Drives: In three-phase motor drives up to 22kW, this module is a perfect fit. The integrated six-pack configuration drastically simplifies the power stage layout, reducing stray inductance and improving the reliability of the inverter. Its 75A capacity provides ample current for driving induction motors in conveyors, pumps, and fans.
- Welding Power Supplies: The module's robust construction and high current handling capability are ideal for the pulsed-power demands of modern welding equipment. The fast-recovery freewheeling diodes (FWD) co-packaged with the IGBTs efficiently handle the inductive energy, ensuring clean switching and protecting the silicon.
- Uninterruptible Power Supplies (UPS): For commercial and industrial UPS systems operating in the 10-20 kVA range, the 6DI75AH-050 provides the core switching block for the DC-AC inverter stage. Its proven reliability is a critical factor in applications where uptime is non-negotiable.
Technical Deep Dive: Beyond the Ratings
Two core engineering principles define the value of the 6DI75AH-050: integration and thermal efficiency. Understanding these reveals why it remains a trusted choice for specific designs.
First, the "6-in-1" PIM (Power Integrated Module) topology is a significant design accelerator. By housing all six IGBTs and their corresponding FWDs for a three-phase bridge in a single package, it solves multiple engineering challenges at once. This architecture minimizes parasitic inductance between switches, which is a common source of voltage overshoot and EMI in designs using discrete components. This inherent advantage simplifies the requirements for Snubber Circuit design and helps achieve electromagnetic compliance (EMC) more easily. For engineers, this translates to a faster design cycle and a more compact, reliable end-product.

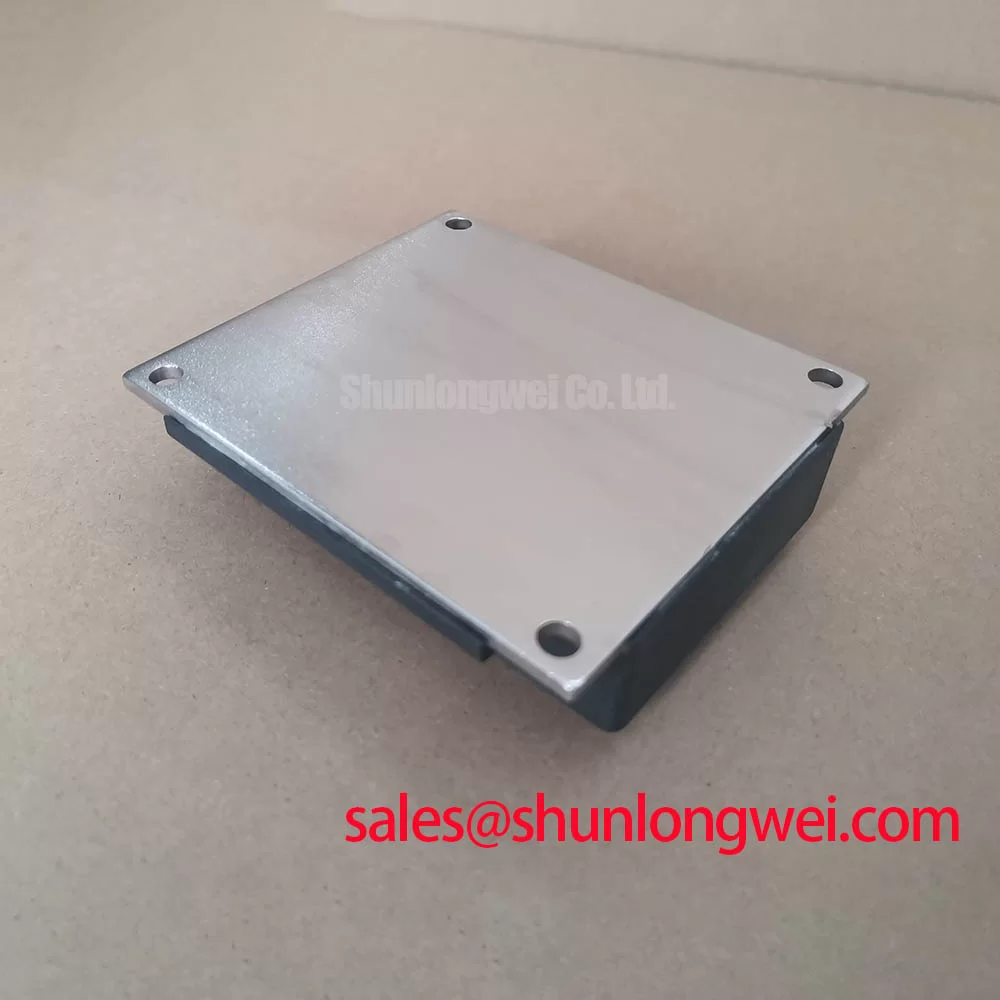

Second, the module’s thermal design is optimized for industrial environments. The baseplate is electrically isolated from the switching elements, allowing it to be mounted directly to a common heatsink without complex insulating pads. This ensures a low thermal resistance path (Rth), effectively drawing heat away from the IGBT junctions. Superior thermal management is directly linked to longer service life and the ability to withstand temporary overload conditions, a key factor in the longevity of industrial equipment.
Key Parameter Overview: 6DI75AH-050
The following table outlines the critical performance specifications for design engineers. These parameters form the foundation for accurate system modeling and thermal analysis.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 500V |
| Continuous Collector Current (IC) @ TC=80°C | 75A |
| Collector-Emitter Saturation Voltage (VCE(sat)) typ. @ 75A | 2.3V |
| Topology | Six-Pack (Three-Phase Bridge) |
| Package | M621 |
| Isolation Voltage (Visol) | 2500V (AC, 1 minute) |
Selection and Design Considerations
The 6DI75AH-050 is an excellent choice for maintaining and repairing existing fleets of industrial equipment originally designed with this module. Its footprint and electrical characteristics ensure a direct, reliable replacement.
For new designs based on 200-240V AC mains, this module offers a compelling combination of proven robustness and cost-efficiency. While newer generation IGBT modules from Fuji Electric may offer lower VCE(sat), the 6DI75AH-050 provides more than adequate performance for moderate frequency applications (typically under 10 kHz) where durability is the primary concern. When designing with this module, it is crucial to implement a robust gate drive circuit with a stable voltage supply and short, low-inductance paths to prevent spurious turn-on and ensure reliable switching. For detailed guidance on preventing common issues, review our guide on IGBT failure analysis.
Frequently Asked Questions (FAQ)
Q: Why would I choose a 500V IGBT module when 600V or 650V modules are more common?
A: The 500V rating is specifically tailored for systems with a DC bus voltage below 400V (e.g., from a rectified 240V AC line). In this specific voltage class, the silicon can be optimized for a better balance between breakdown voltage and on-state losses (VCE(sat)) compared to a higher-rated device. It provides more than sufficient voltage margin for these applications without the potential performance trade-offs of an over-specified 600V part.
Q: Is the 6DI75AH-050 suitable for paralleling to achieve higher current?
A: While possible, paralleling multi-IGBT modules requires careful design to ensure current sharing. This includes symmetrical PCB layouts and consideration of the positive temperature coefficient of VCE(sat). For applications requiring more than 75A, it is often more reliable and efficient to select a single, higher-current module. If you need assistance with selecting the right component, please contact our technical team for an expert consultation.
