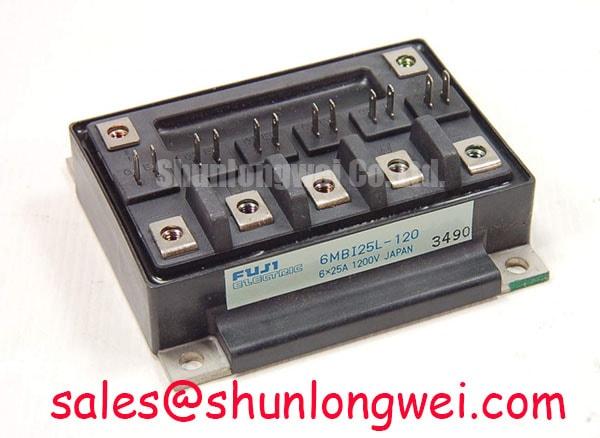

Fuji 6MBI25L-120 IGBT Module

6MBI25L-120 Features

.High Speed Switching

.Low Saturation Voltage

.Voltage Drive

Applications

.Inverter for Motor Drive

.AC and DC Servo Drive Amplifier

.Uninterruptible Power Supply

.Industrial Machines,such as Welding Machines

Junction Temperature Tj 150 °C

Storage Temperature Tstg -40 to 125 °C

Collector-Emitter Voltage (G-E SHORT) VCES 250 Volts

Gate-Emitter Voltage (C-E SHORT) VGES ±20 Volts

Collector Current (Tc = 25°C) IC 25 Amperes

Peak Collector Current (Tj ≤ 150°C) ICM 50 Amperes

Emitter Current** (Tc = 25°C) IE 400 Amperes

Peak Emitter Current** IEM 800* Amperes

Maximum Collector Dissipation (Tc = 25°C) Pc 250 Watts

Weight 510 Grams

Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso 2500 Volts
