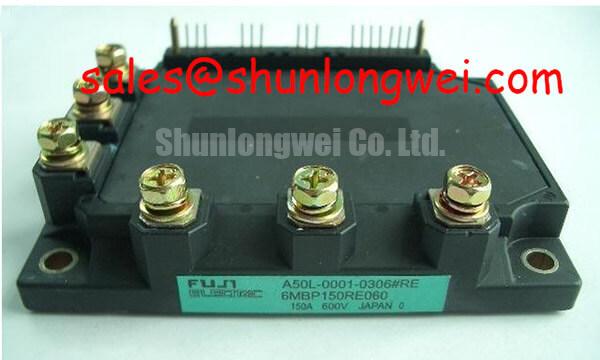

6MBP150RE060 Fuji Electric 600V 150A Intelligent Power Module (IPM)
The 6MBP150RE060, a cornerstone of the Fuji Electric R-series, represents a highly integrated power solution designed to streamline the engineering of mid-power industrial motor drives. By consolidating high-speed IGBTs, optimized gate drive circuitry, and a comprehensive suite of self-protection features into a single Intelligent Power Module (IPM), it addresses the critical need for power density and system-level reliability. This module is specifically tailored for systems operating on 200V to 400V AC lines where space constraints and thermal overhead are primary design concerns.
UVP: Delivering deterministic reliability in industrial networks through integrated protection and optimized thermal feedback.
- Top Specs: 600V | 150A | Tj(max) 150°C
- Key Benefits: Reduces PCB complexity; enhances short-circuit ruggedness.
- Hidden Problem Addressed: How does the 6MBP150RE060 simplify drive design? It eliminates the need for discrete gate drivers and external protection logic, significantly reducing parasitic inductance and electromagnetic interference (EMI) during high-frequency switching.
For mid-power industrial inverters prioritizing design simplicity, this 150A IPM is the optimal integration choice.
Application Scenarios & Value
Achieving System-Level Benefits in Industrial Motion Control
Engineers often face the challenge of balancing high current handling with the physical limitations of standardized enclosure sizes. In a typical Variable Frequency Drive (VFD) or AC Servo Drive application, the 6MBP150RE060 serves as the primary power stage. Its 150A rating is particularly effective at managing motor startup surges, where inductive loads demand high instantaneous current without compromising the Safe Operating Area (SOA). The integrated short-circuit protection acts like an automated emergency brake, isolating the power stage within microseconds of a fault detection, thus preventing catastrophic failure in heavy machinery.
In high-precision applications like medical imaging or robotic servo drives, the module's low switching loss contributes to a cleaner Pulse-Width Modulation (PWM) signal, reducing harmonic distortion. For systems requiring higher voltage overhead for 690V line applications, the related 7MBR150VR120 offers a 1200V rating while maintaining a similar 150A current profile. By utilizing this IPM, procurement teams can lower the Total Cost of Ownership (TCO) through reduced component counts and simplified assembly processes, adhering to modern Industry 4.0 standards for efficient power conversion.
Technical & Design Deep Dive
Advanced Internal Logic for Thermal and Electrical Ruggedness
The internal architecture of the 6MBP150RE060 utilizes a 6-pack IGBT configuration with an integrated driver that manages dead-time and prevents "shoot-through" conditions. This integration is conceptually similar to a high-speed logic controller embedded directly within the power switch. One of its most significant features is the Overheating (OH) protection, which utilizes a temperature sensor located in close proximity to the IGBT chips. Rather than relying on external thermistors that may have a delayed response, this direct thermal feedback ensures the module shuts down before the junction temperature exceeds its 150°C safety limit.
The module’s switching performance is optimized for frequencies in the 15-20 kHz range, commonly used to minimize audible noise in industrial environments. To maximize these technical advantages, engineers must pay close attention to the Thermal Management strategy. Utilizing high-performance thermal paste and ensuring a mounting surface flatness within 50μm is essential to maintain the Rth(j-c) performance. For further insights into the physical construction of these devices, designers may reference this guide on deconstructing the IGBT's hybrid structure.
Key Parameter Overview
Decoding the Specs for Enhanced System Reliability
| Parameter | Official Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 600V | Provides safety margin for 240V/480V AC rectified DC buses. |
| Collector Current (Ic) | 150A | Continuous current capability at Tc=25°C for high-torque motor loads. |
| Isolation Voltage (Viso) | 2500V AC (1 min) | Ensures operator safety and signal integrity between high and low voltage. |
| Short Circuit Withstand Time | 10μs (Typical) | Crucial window for internal protection logic to trigger fault alerts. |
Download the 6MBP150RE060 datasheet for detailed specifications and performance curves at the Fuji Electric official product portal.
Frequently Asked Questions
How does the integrated OH protection in the 6MBP150RE060 affect heatsink selection?
The integrated Overheating (OH) protection provides a secondary safety layer, but it does not replace the need for a properly sized heatsink. Because the module can detect its own junction temperature, designers can push the thermal envelope closer to the limits without risking a catastrophic meltdown, potentially allowing for slightly more compact heatsinks in pulsed-load applications.
What is the primary benefit of the 6MBP150RE060's integration?
It minimizes system footprint and enhances reliability by eliminating external gate drive components and complex discrete protection circuits.
What supply voltage is required for the internal control circuits?
The control supply voltage (Vcc) typically requires a stable 15V DC. Deviations below the Under-Voltage (UV) lockout threshold will trigger a module shutdown to prevent the IGBTs from operating in the linear region, which would cause excessive heat.
Does the module include a built-in brake chopper?
The 6MBP150RE060 is a "6-pack" configuration, meaning it contains the three-phase inverter bridge. For regenerative braking requirements, an external brake chopper or a 7-pack version of the R-series would be necessary.
Is a negative gate drive required for turning off this IPM?
No. One of the primary advantages of the Fuji IPM is that it is designed to operate with a single-sided power supply for the drive circuit. The internal logic handles the turn-off characteristics to prevent parasitic turn-on, simplifying the auxiliary power supply design. For more on selection frameworks, see our guide on IGBT selection and thermal management.
From a distributor perspective, we provide the 6MBP150RE060 as a verified solution for engineers seeking to upgrade existing motor drive platforms or develop new, high-efficiency power converters. This product is an essential component for those moving toward more integrated and rugged power electronics designs.
