6MBP200KA060 IPM Module: Technical Details & Applications

A 600V/200A IPM Engineered for Efficient Power Conversion in Demanding Drive Systems

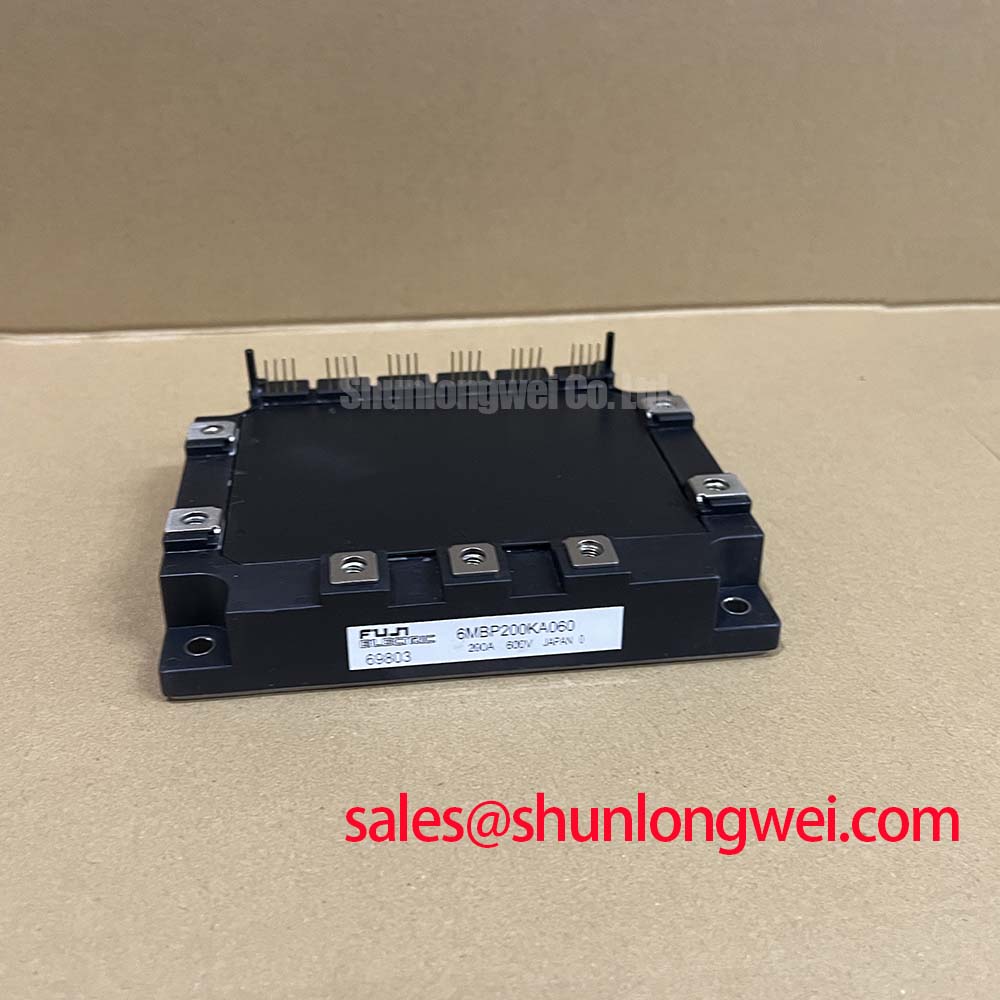

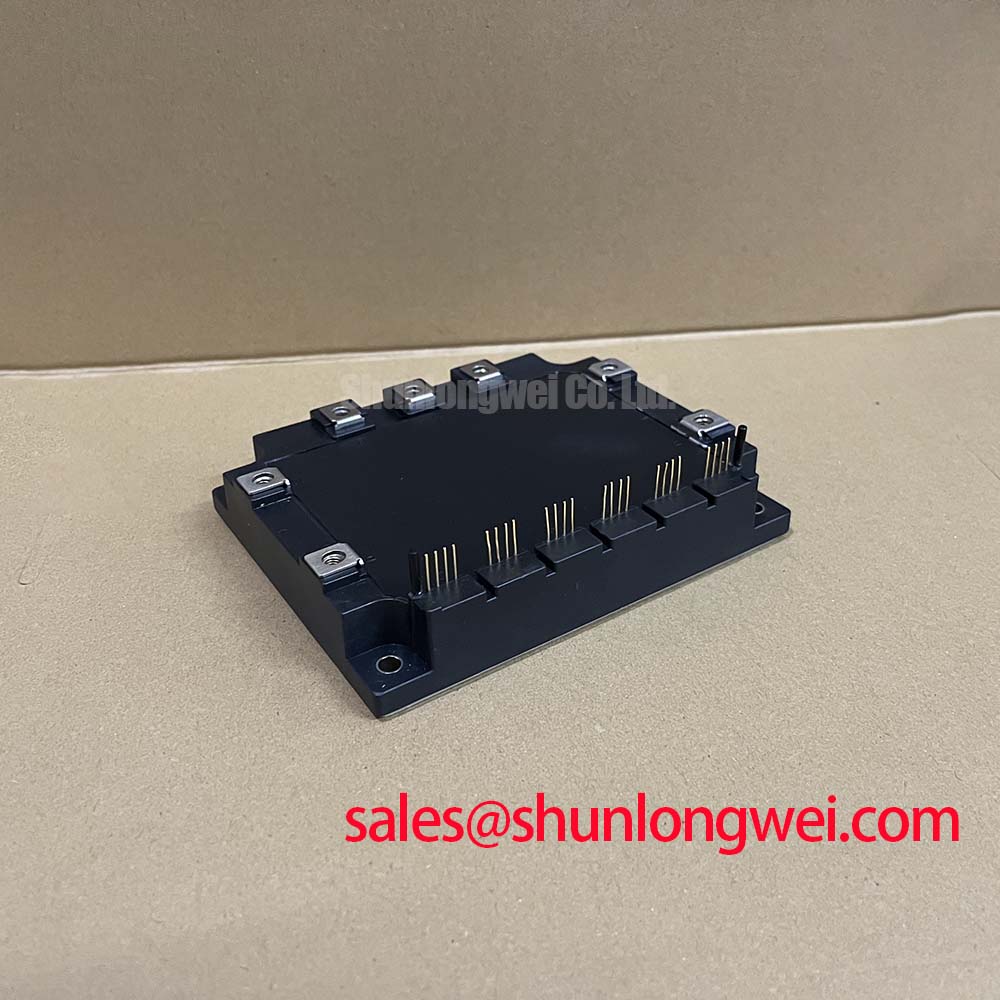

The Fuji Electric 6MBP200KA060 is a highly integrated Intelligent Power Module (IPM) that provides a compact and performance-oriented solution for three-phase motor control. This module combines six IGBTs in a three-phase inverter configuration, along with a brake chopper IGBT, gate drive circuitry, and protection features. Its core specifications include: 600V | 200A (Inverter) / 100A (Brake) | Integrated Protection. Key engineering benefits are simplified gate drive design and enhanced system reliability. The module directly addresses the need for efficient power stages in variable frequency drives by integrating key components, which simplifies thermal management and reduces overall system assembly complexity.

Key Parameter Overview

Dissecting Core Electrical and Thermal Characteristics

The performance of the 6MBP200KA060 is defined by its electrical and thermal specifications. These parameters are crucial for engineers to determine its suitability for a specific application and to design the surrounding system for optimal and reliable operation.

Functional Grouping of Parameters

Note: The parameters listed are subject to conditions specified in the official datasheet. For a comprehensive list of specifications, please Download the Datasheet.

Interpreting Key Specifications
The Collector-Emitter Saturation Voltage (Vce(sat)) is a critical parameter for efficiency. A lower Vce(sat) signifies reduced conduction losses, meaning less power is wasted as heat when the IGBT is active. Think of it as electrical friction; the lower the friction, the more efficiently power is transferred through the device. The 2.7V maximum for the inverter stage in the 6MBP200KA060 is indicative of its design focus on balancing switching performance with conduction efficiency.

Another vital characteristic is the maximum Operating Junction Temperature (Tj) of 150°C. This figure defines the thermal limit of the semiconductor. Effective thermal management is essential to keep the operating temperature below this threshold to ensure long-term reliability and prevent device failure.

Intra-Series Comparison & Positioning

Defining Its Role Within the Fuji Electric IPM Portfolio

The 6MBP200KA060 is part of Fuji Electric's broader portfolio of 600V IPMs. Within this series, modules are differentiated primarily by their current handling capabilities and internal configurations. The "200" in its part number denotes a 200A rating for the main inverter section, placing it in the mid-to-high power range for this voltage class.

Compared to lower current models in the same family, the 6MBP200KA060 is tailored for more powerful motor applications, such as those in the 30kW to 75kW range, depending on the specific switching frequency and cooling conditions. The inclusion of a 100A brake chopper is a significant feature. This integrated brake circuit is designed for applications requiring dynamic braking to rapidly decelerate or stop a motor, dissipating regenerative energy. This positions the module as an all-in-one solution for systems where such braking is a necessity, simplifying the bill of materials and reducing design complexity compared to using a separate, external brake unit. For systems with even higher power demands, the Fuji Electric portfolio extends to modules like the 6MBP300KA060, which offers a 300A current rating within a similar operational framework.

Application Scenarios & Value

Powering High-Performance Industrial Drives

The integrated nature and robust electrical characteristics of the Fuji Electric 6MBP200KA060 make it an excellent component for a variety of power conversion systems. Its design is particularly advantageous in applications that demand high reliability and a compact footprint.

Primary application areas include:

• Variable Frequency Drives (VFDs): At the core of industrial automation, the 6MBP200KA060 provides precise and efficient control for AC induction motors in machinery like pumps, fans, conveyors, and machine tools.
• Servo Drives: In high-precision motion control systems, such as robotics and CNC machines, this IPM (Intelligent Power Module) delivers the fast and controlled switching necessary for accurate positioning and dynamic response.
• Industrial Power Supplies: The module can be utilized in high-power Switched-Mode Power Supplies (SMPS) and Uninterruptible Power Supplies (UPS), where its efficiency and integrated protection contribute to overall system dependability.

What is the primary benefit of its integrated design? Simplified system assembly and improved reliability by reducing external component count and interconnections. The inclusion of over-current, short-circuit, over-temperature, and under-voltage protection within the module itself provides a crucial layer of safety, safeguarding both the drive and the motor. For robotic servo drive applications prioritizing a compact power stage with built-in braking, this 200A module offers a compelling solution over discrete component designs.

Industry Insights & Strategic Advantage

Meeting the Demands for Energy Efficiency and System Integration

The deployment of modules like the 6MBP200KA060 aligns with critical industry trends pushing for greater energy efficiency and simplified design cycles. As global standards for motor efficiency (such as IE3 and IE4) become more stringent, the performance of the power electronics driving these motors is increasingly under scrutiny. The low conduction and switching losses inherent in this module's design contribute directly to reducing the overall energy consumption of the end system.

From a strategic perspective, the trend toward system integration offers significant value. By consolidating the power stages, gate drivers, and protection circuits into a single, factory-tested component, designers can:

• Accelerate Time-to-Market: Reducing the complexity of the power stage design allows engineering teams to focus on system-level features and software development.
• Enhance Reliability: Minimizing external wiring and component count reduces potential points of failure, leading to a more robust and field-reliable product.
• Optimize Manufacturing: A single module simplifies the assembly process compared to mounting, soldering, and testing numerous discrete components.

This approach simplifies the engineering challenge of creating a robust power conversion system, making the 6MBP200KA060 a strategic component for OEMs aiming to build competitive and reliable industrial equipment. For engineers looking to understand the fundamental building blocks of such modules, exploring resources on IGBT structure and technology can provide valuable context.

For further technical inquiries or to discuss how the 6MBP200KA060 can be integrated into your next project, please contact our technical support team for detailed specifications and application guidance.
