6MBP75TEA060 Thermal Electrical Optimization: Overvoltage Trip Prevention Through Fast Switching Practical Tuning

Manufacturer: Fuji Electric | Part: 6MBP75TEA060 | Category: IPM Module | Key Rating: 600 V, 75 A

When a forklift traction inverter reports a DC link overvoltage event during deceleration, first isolate the braking path and confirm whether the braking IGBT, ballast resistor, gate driver, and voltage sensing circuit are responding as one controlled system. The 6MBP75TEA060 is a 600 V, 75 A intelligent power module with integrated gate drive and protection circuitry. Those figures identify the device rating class; the braking circuit still requires system level validation under the actual motor inertia, DC link capacitance, switching pattern, and enclosure temperature. A separate braking switch and resistor, where fitted, must be assessed from their own specifications rather than the inverter module’s ratings.

The module’s collector emitter saturation voltage is useful when reviewing conduction loss in the inverter and when comparing a replacement against the original service documentation. Use the applicable Fuji Electric datasheet values with their stated collector current, junction temperature, and control supply conditions. The module’s current rating should likewise be read alongside the case temperature, switching conditions, thermal path, protection thresholds, and duty cycle established by the complete traction inverter.

For a braking resistor, the practical question is how much kinetic energy enters the DC link during the commanded deceleration interval and how quickly the resistor and switching device can absorb it. The resistor value, pulse duration, cooling method, and control threshold are system determined. Designers should verify the resistor pulse rating and thermal recovery against the vehicle duty cycle, while the measured DC link waveform should remain within the inverter’s validated operating envelope during repeated stops.

Switching overshoot is strongly affected by the commutation loop. Minimize the high current path through the relevant switching device, DC link capacitor, braking resistor connection, and return path so that stray inductance does not add excessive voltage during turn off. Keep the IPM’s control wiring separate from the collector current path and route control returns according to the manufacturer’s connection guidance. Where a separate braking switch provides an auxiliary emitter connection, keep its gate return distinct from the power emitter connection and validate the resulting gate voltage at that switch’s terminals.

Freewheel diode reverse recovery can alter both the voltage overshoot and the radiated electromagnetic field. The reverse recovery softness factor is a device and operating condition characteristic that should be assessed from the applicable diode data and switching waveform. A softer recovery transition can reduce abrupt current transfer, but the actual result depends on DC link voltage, gate drive behavior, junction temperature, loop geometry, and the opposing switch. Use a suitably rated high bandwidth differential probe and a controlled switching test to compare the voltage peak, current slope, and ringing frequency at the module terminals.

A metal oxide varistor can form part of the wider overvoltage absorption network, but its clamping behavior must be coordinated with the DC link capacitor, semiconductor voltage rating, fuse behavior, and fault energy. Treat the MOV as a system protection element with its own pulse and thermal limits. Its presence does not remove the need to control the braking command, verify the resistor path, or inspect the snubber and bus layout.

For service replacement in an electric forklift or warehouse traction controller, compare the original module’s terminal arrangement, control interface, mechanical mounting pattern, thermal interface, and protection behavior before energizing the high voltage bus. The 6MBP75NA060 can be reviewed for compatibility analysis, subject to the original circuit documentation and a complete electrical comparison. A part number relationship alone does not establish interchangeability.

Design Recommendation: Keep the braking switch, resistor connection, and DC link capacitor in a compact commutation loop, route the voltage sensing reference away from switching currents, then verify turn off overshoot and resistor temperature during controlled deceleration tests.

Field Diagnostics and Commissioning: Driver Power Stage Start Up Inrush Mitigation in 6MBP75TEA060 Topologies

Do not apply the high voltage DC link until the driver auxiliary supplies, control input states, undervoltage protection, and fault recovery sequence have been observed in the intended order. The specified module ratings describe the power semiconductor boundary; the IPM’s control supply requirements, input levels, and protection behavior must be checked separately in the applicable Fuji Electric documentation.

The 6MBP75TEA060 uses integrated gate drive circuitry. Its external control inputs must receive the specified logic signals, not a discrete IGBT gate drive waveform. Do not apply a negative gate bias such as −5 V to −15 V to these inputs. Verify the permitted control supply voltages, input levels, reference connections, and startup sequence from the module documentation.

Inrush current at driver startup can disturb the control supplies precisely when the control board is releasing its first command. Check the auxiliary supply rise time, local bypass path, supply current demand, and fault recovery behavior together. If the surrounding supply circuit uses a bootstrap arrangement, confirm that the module documentation permits that arrangement and evaluate its charging path, consumption, leakage, operating interval, and allowable supply droop. These requirements cannot be inferred from the module’s 75 A current rating.

Where a bootstrap supply is permitted, its diode also deserves attention during repeated low speed traction operation. A diode with unsuitable reverse recovery behavior can inject disturbances into the supply and create additional common mode current. Confirm that the supply retains adequate voltage during the complete high side conduction interval, including driver consumption, leakage, temperature variation, and the available recharge intervals. Observe the supply voltage relative to its own reference with a suitably rated differential or isolated probe instead of relying only on the controller’s fault status.

At the module control terminals, inspect the input waveform using a probe arrangement that avoids adding a long measurement loop. Switching transients may disturb control signals or their reference connections. Review control wiring placement, supply decoupling, signal returns, input interface requirements, and dead time. Internal gate resistance and gate clamp settings should not be treated as externally adjustable features of this IPM. Establish the final system settings from measured control signals, collector voltage, current transfer, and thermal behavior.

For current feedback, a Hall sensor, shunt, or magnetoresistive sensor may be used by the surrounding traction controller. The giant magnetoresistance reference provides background on GMR technology, but it does not define the interface or accuracy of this Fuji Electric module. Verify the actual sensor topology, isolation arrangement, bandwidth, and fault threshold in the inverter documentation.

When the power stage is commissioned, record the sequence of auxiliary supply rise, undervoltage protection release, control enable, DC link application, and first current command. A command that appears before the control supplies have settled may indicate sequencing interaction, while unequal high side and low side behavior may point to supply charging, return path impedance, or probe reference problems. Trace the signal path from controller output to module control input before changing protection thresholds.

The Fuji Electric power semiconductors portal is a useful manufacturer resource for product family context and documentation access. The 7MBI75N-060-10 is another power module that may be reviewed when comparing converter architectures. It should not be assumed to provide the same integrated drive, protection, or terminal interface as the 6MBP75TEA060.

6MBP75TEA060 Operational Boundaries: Evaluating Thermal Grease Pump Out Limits

Thermal performance begins at the interface between the module baseplate, thermal interface material, and heatsink. Use the documented junction to case thermal resistance for the relevant IGBT or diode when estimating junction temperature. The overtemperature protection threshold must be interpreted according to its specified sensing location; it does not by itself establish the junction temperature. An uneven thermal path can move the junction temperature away from the value assumed during current and saturation voltage checks.

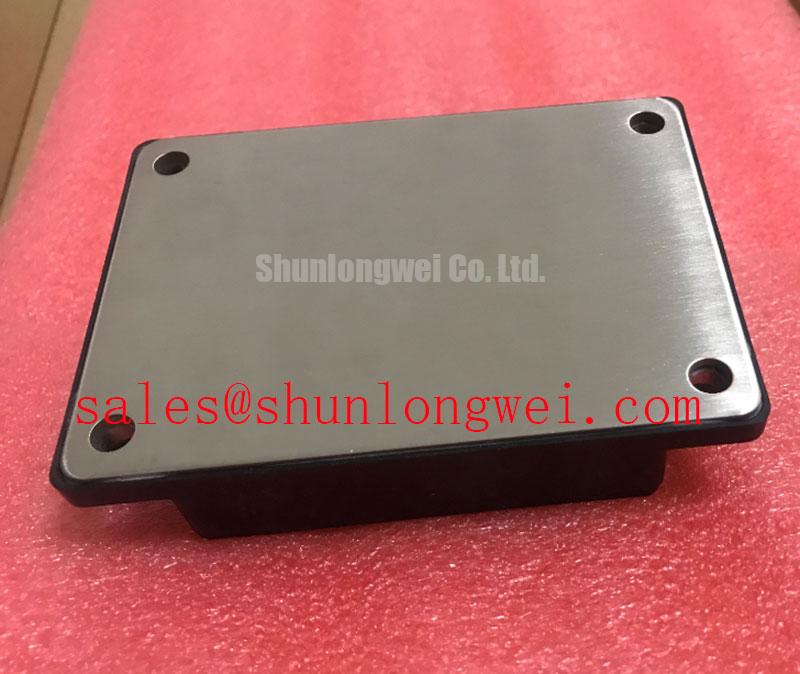

Inspect the module baseplate and heatsink contact surfaces for contamination, burrs, local high spots, and visible distortion before applying thermal interface material. The heatsink should provide a stable, continuous contact area across the module footprint. Excessive surface waviness can leave dry regions under the baseplate, while excessive tightening at a single corner can distort the assembly and place mechanical stress into the substrate.

A controlled TIM layer should fill microscopic surface irregularities without creating a thick thermal barrier. Confirm the application thickness against the selected compound, surface finish, application method, and manufacturer mounting instructions. The correct layer is determined by contact coverage and thermal performance, not by visual thickness alone.

Use the specified tightening sequence and a calibrated torque tool so that contact pressure develops progressively across the baseplate. The applicable fastener torque remains a mechanical installation requirement that must be taken from the original mounting documentation and hardware specification. Do not substitute a generic torque value when the module drawing, screw size, washer arrangement, or heatsink material differs.

Bench Diagnostic: Disconnect the DC link and auxiliary power, allow stored energy to discharge, and verify the DC link voltage is safe before removing control or power connections.

During maintenance, examine the interface for evidence of pump out around the perimeter or compound migration caused by repeated thermal cycling. Dry contact zones can be assessed when the module is removed. These observations may indicate movement between the module and heatsink, unsuitable compound rheology, excessive interface thickness, or a clamping problem. Correlate the inspection with the temperature difference between comparable phases and with the measured thermal response during a controlled load profile.

Clearance around the power terminals should support the intended busbar geometry and allow the service technician to inspect insulation, fasteners, and cable strain without disturbing the thermal mounting. Keep control wiring away from the high current commutation path, and provide mechanical support so vibration is not transferred into the module terminals. The enclosure, cooling airflow, and heatsink temperature determine the usable thermal margin for the complete traction controller.

For a replacement evaluation, compare the original thermal interface footprint, baseplate contact area, terminal orientation, control connector arrangement, and protection wiring before installation. The Power Electronics Masterclass offers broader background on IGBT selection, switching behavior, and system reliability. Use that engineering context together with the applicable Fuji Electric documentation and measured results from the target forklift drive.

Once the module is mounted, verify phase balance, control waveform consistency, heatsink temperature rise, braking response, and fault behavior under progressively increased load. The 6MBP75TEA060 ratings provide the component reference points, while the final operating boundary is established by the validated interaction of the semiconductor, integrated driver, bus structure, cooling assembly, motor, and control firmware.
