BSM100GB120DLCK Voltage Margin and Thermal Checks

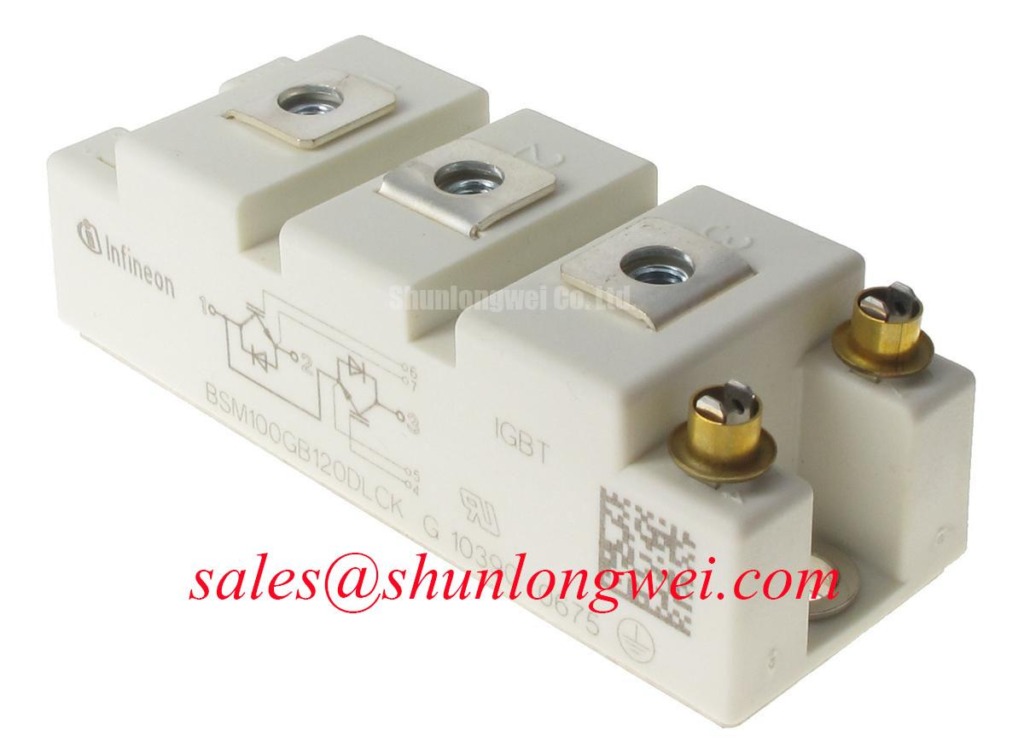

BSM100GB120DLCK hardware specification: Manufacturer: IXYS; product category: IGBT module; package: Module; rated voltage: 1200 V; rated current: 100 A. The voltage, current and package are official product specifications, not complete operating limits for an assembled drive.
Measure the drive’s DC-link voltage and inspect its recorded turn-off waveform when investigating a voltage-related trip. The 1200 V rating is an official specification for BSM100GB120DLCK; it is not permission to operate the DC link at that voltage. Switching overshoot must also fit within the applicable device limits. Compare the measured waveform with the drive’s established operating condition, using appropriate high-voltage measurement equipment and procedures.
Inspect the cooling path when the fault appears only after the drive warms up. Check the module-to-heatsink contact, fastening condition, cooling airflow and temperature measurements available from the equipment. A rising heatsink temperature does not by itself identify a defective module: load changes, restricted cooling and mounting problems can produce similar symptoms. The 100 A rating is an official product specification, while allowable operating current in an enclosure depends on the complete thermal design and operating conditions.
Voltage derating is a Design Consideration, especially where a drive operates above its original installation altitude. Environmental exposure and cosmic-ray-related failure mechanisms cannot be converted into a credible failure-in-time figure from the voltage rating alone. For a high-altitude installation, the system engineer should assess the actual DC-link operating range, switching peaks and environmental requirements against applicable manufacturer reliability guidance rather than assume a universal altitude correction.
Transient Dynamics and Gate-Drive Balance
Probe the gate waveform at the module terminals when a replacement drive leg exhibits ringing or unequal switching behavior. Compare turn-on and turn-off traces under repeatable load conditions, then inspect gate-return routing and connector contact before changing the driver circuit. A long or shared return path can add unwanted voltage to the gate loop; the resulting waveform may resemble a driver-setting problem.
Gate resistance and driver source-and-sink capability are Design Considerations set by the installed circuit, not values established by this module’s voltage and current ratings. Select any damping change through switching tests that examine ringing, switching loss and turn-off overshoot together. If parallel devices are present, compare their current paths and gate waveforms rather than assuming that matching nominal ratings guarantees dynamic sharing. Temperature-dependent on-state behavior also needs device-specific characterization before it can be used to justify static current-sharing assumptions.
Read the drive schematic before treating another power module as an interchangeable part of the same stage. The FZ600R12KE3, for example, can be examined as a separate module in a wider power-conversion architecture; its circuit role and connections must be established from the equipment design. Infineon’s CIPOS™ Maxi IPM series illustrates a different approach that integrates power devices with control functions, rather than defining the gate-drive requirements of this module.
BSM100GB120DLCK Busbar Geometry and Turn-Off Overshoot
Capture collector-to-emitter voltage during turn-off when the drive reports intermittent overvoltage or shows waveform spikes. Compare traces taken at equivalent current and DC-link conditions, and inspect the physical current loop for loose joints, changed busbar spacing or a displaced local capacitor. These checks can separate a layout or assembly change from a shift in switching behavior.
Minimizing loop inductance is a Design Consideration because current changing through parasitic inductance adds to the voltage seen during turn-off. The practical limit is system-determined: the engineer must verify the measured peak against the module’s applicable voltage boundary across relevant operating conditions. A symmetrical, closely coupled busbar arrangement can help control unequal current paths, but neither a particular geometry nor a snubber value follows from the 1200 V and 100 A ratings alone.
💡 Pro Tip: Keep the outgoing and return busbar paths geometrically balanced, then verify turn-off voltage margin with switching measurements rather than relying on appearance alone.
For a heavy-duty variable frequency AC motor drive under repair, compare the installed module’s terminal arrangement, mounting interface and circuit function before assessing alternatives. The BSM100GB120DLC is a relevant cross-model comparison, not an automatic replacement for BSM100GB120DLCK. Confirm electrical limits and mechanical fit from the applicable product documentation and the drive drawing. Infineon’s HybridPACK™ Drive shows why module families intended for different integration environments require their own interface assessment.
Gate-Return Routing and Protection Checks
Measure the gate-to-emitter waveform during a protection event and compare it with a known-good drive leg, where one is available. Check the driver return connection, gate wiring continuity and protection signal timing at the same time. Ringing at the gate may arise from shared return impedance, coupling from the power loop or measurement setup; a single trace should not be treated as proof of one cause.
Keep the gate-control return distinct from the high-current path wherever the module’s documented terminals and the drive layout permit it. This is a Design Consideration for reducing unwanted coupling, not a claim that BSM100GB120DLCK provides a particular auxiliary emitter terminal. Establish its actual terminal functions from the module documentation and the installed assembly before rerouting a connection.
Safety interlock note: Isolate the drive and verify that the DC link is discharged before disconnecting module or gate-driver wiring. After reassembly, inspect terminal seating and the cooling interface, then repeat waveform checks under controlled operating conditions. If a freewheel path or snubber is part of the drive circuit, examine its measured switching behavior alongside the module waveform; do not assign an unverified reverse-recovery or EMI characteristic to this product. The 1200 V CoolSiC™ MOSFET discussion provides broader three-phase switching context, but its MOSFET characteristics should not be applied as specifications for this IGBT module.
