Assembly Integrity & Layout Architecture: Damping Switching-Current Oscillations in the BSM50GB100D

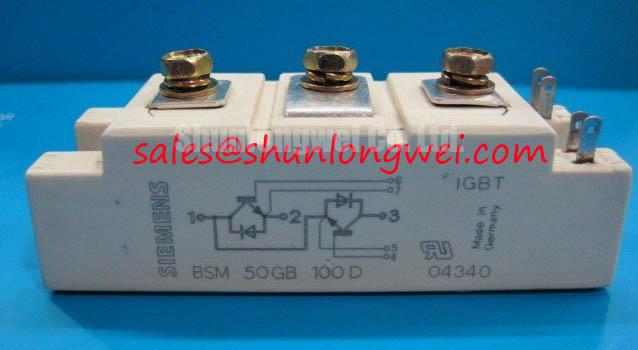

When turn-on current rings or electromagnetic emissions rise, capture the collector current and module voltage together with a properly rated differential probe, then compare the switching event with the gate waveform. For the BSM50GB100D, the specified VCES is 1000 V and the continuous collector current is 50 A at Tc = 80°C; these ratings establish device limits, not a ready-made operating point for a particular traction inverter.
In a half-bridge, the incoming IGBT commutates current from the complementary freewheeling diode. Diode reverse-recovery peak current, recovery softness, and current fall rate can affect turn-on loss, voltage overshoot, and conducted or radiated noise. The module’s supplied parameters here do not specify Irrm or softness factor S, so treat those as waveform and datasheet review items rather than presumed model characteristics. Inspect the commutation loop for excessive area and unequal conductor paths before changing gate resistance.
Design Consideration: If measured ringing remains after correcting layout, engineers can evaluate a suitably located RC snubber or adjust turn-on gate resistance, then compare switching loss, peak voltage, and emissions under representative load conditions. Select component values from measured waveforms and system constraints; a snubber or slower edge can increase dissipation. Keep high-current switching paths compact, maintain appropriate clearance for the working voltage, and route gate signals away from the commutation node. For an electric forklift traction controller, compatibility depends on the complete DC-link, switching, thermal, and protection design rather than the module rating alone.
BSM50GB100D Operational Boundaries: Evaluating PCB Gate Loop Layout Symmetry Limits
Keep the gate-drive return electrically separate from the main load-current emitter path wherever the module’s terminal arrangement provides an auxiliary emitter connection. Shared impedance in the emitter return can create voltage that appears in series with the gate signal; during fast current transitions, this can disturb the effective gate-to-emitter voltage and contribute to oscillation or unintended turn-on. Follow the module’s actual terminal identification and package drawing when laying out the driver connection.
The supplied official parameters specify VCE(sat) = 2.8 V typical at IC = 50 A, a gate threshold voltage of 4.8 V minimum to 6.2 V maximum, and Rth(j-c) no greater than 0.25 K/W per IGBT. Threshold voltage is not a recommended drive level: it describes the specified onset condition, not the voltage needed to achieve a desired conduction state. The gate operating waveform must remain within the module’s VGES rating of ±20 V.
For parallel devices, symmetrical busbar geometry and comparable gate-loop impedance are engineering considerations that can support more even dynamic sharing. The positive temperature coefficient often associated with IGBT saturation voltage can assist static sharing in some operating regions, but it does not guarantee equal transient current or eliminate thermal imbalance. Measure each branch under relevant switching conditions and assess junction-to-case heating using the specified thermal resistance alongside the system’s case temperature and cooling path.
When comparing candidates for a repair, check voltage class, current conditions, package, terminal layout, gate requirements, thermal interface, and switching behavior rather than selecting by current rating alone. The BSM200GB60DLC is another module listing for comparison; its ratings and physical compatibility must be assessed independently against the equipment design.
Field Diagnostics & Commissioning: Auxiliary Emitter Pinout Cold-Check in BSM50GB100D Topologies
Before connecting a driver, identify the main emitter and any auxiliary emitter terminal from the exact package marking and manufacturer pinout drawing. Do not infer terminal identity from physical proximity or from another module in the same family. A cold continuity check can help trace the board’s power and driver returns, but it does not establish that the gate loop is correctly referenced during switching.
With the DC link isolated and discharged according to the equipment’s service procedure, inspect the gate resistor path, driver return, and emitter connections for lifted joints, contamination, damaged traces, or unintended links to the load-current route. Confirm that the driver’s output return reaches the intended emitter reference and that measurement probes do not bridge isolated or high-voltage nodes. The auxiliary emitter connection, when present in the specific module configuration, is intended for a cleaner gate reference; verify its pin assignment before relying on it.
During controlled commissioning, observe gate-to-emitter voltage at the module terminals, not only at the driver output. A discrepancy between those points can reveal shared-return inductance, probe-loop pickup, or connection problems. Correlate the gate waveform with collector-emitter voltage and current to distinguish genuine gate disturbance from measurement artefacts. If a suspected false trigger occurs, compare the affected switching event with the opposite device’s transition and review dead-time behavior in the controller. Apply the isolation, interlock, and discharge procedures required by the equipment before reconnecting test instruments.
BSM50GB100D Thermal-Electrical Optimization: Dynamic Gate Impedance Control for Robust Practical Tuning
High collector-voltage slew rate can couple current through the off-state device’s Miller capacitance and raise its gate voltage. A dedicated active Miller clamp or a negative off-state gate bias may be evaluated as design options when measured waveforms show inadequate immunity, but neither is a guaranteed feature of the module. Keep the applied gate voltage inside the specified ±20 V VGES boundary under steady-state and transient conditions, including driver startup, shutdown, and fault behavior.
Choose gate-drive behavior by balancing switching loss, overshoot, oscillation, and immunity to parasitic turn-on in the actual circuit. Infineon’s EiceDRIVER™ galvanically isolated gate-driver ICs and gate-driver IC portfolio provide component-level references for evaluating isolation and driver functions; the selected driver and its settings remain system design decisions. For background on off-state bias approaches, see Evolution of Negative Off-Bias Gate Drive Circuits.
The module’s 500 W Ptot at Tc = 25°C and Rth(j-c) ≤ 0.25 K/W per IGBT are thermal specifications, not permission to dissipate that power in every installation. Evaluate conduction and switching losses at the intended current and switching conditions, then account for the case-to-coolant or case-to-ambient path, interface material, mounting flatness, and cooling performance. Pro Tip: Confirm gate-voltage and collector-voltage margins at the module terminals during representative switching tests before releasing a tuned drive configuration.
