BSM50GP60 IGBT Module: Technical Review & Application Analysis
Introduction to the BSM50GP60 Power Module

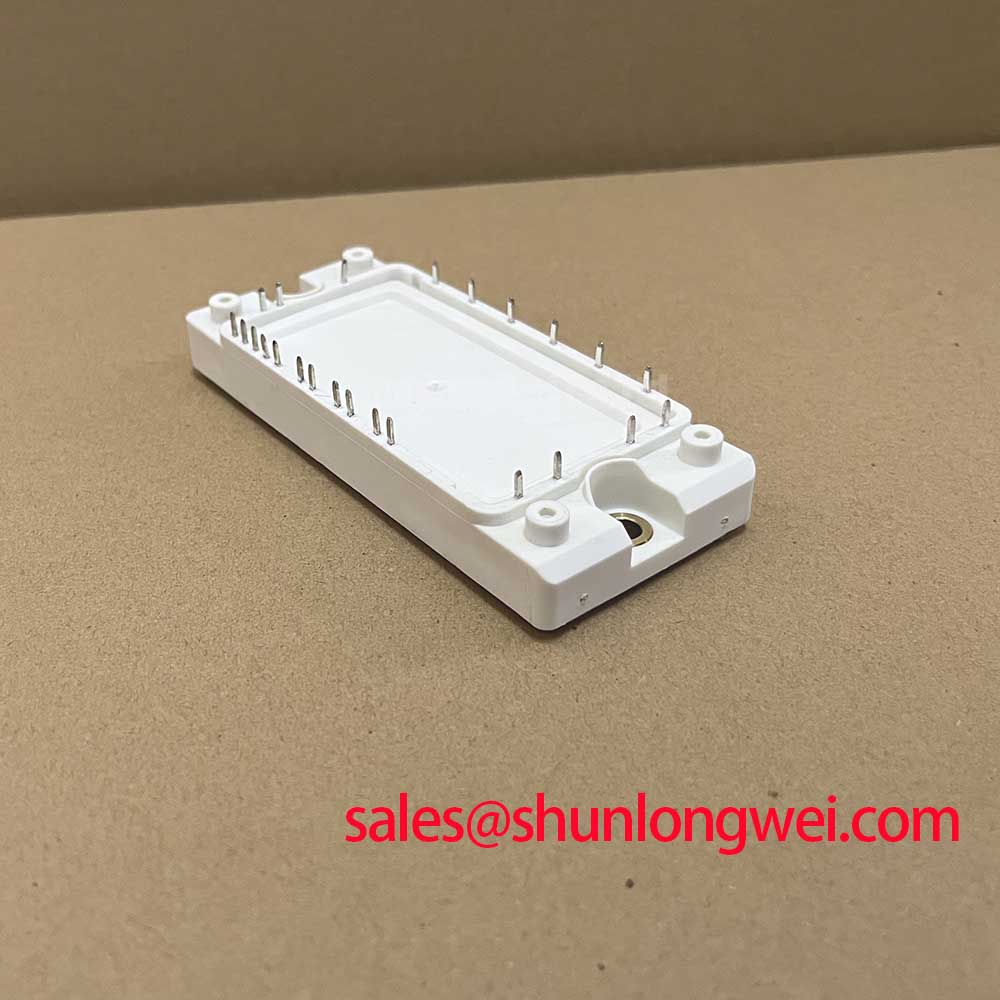

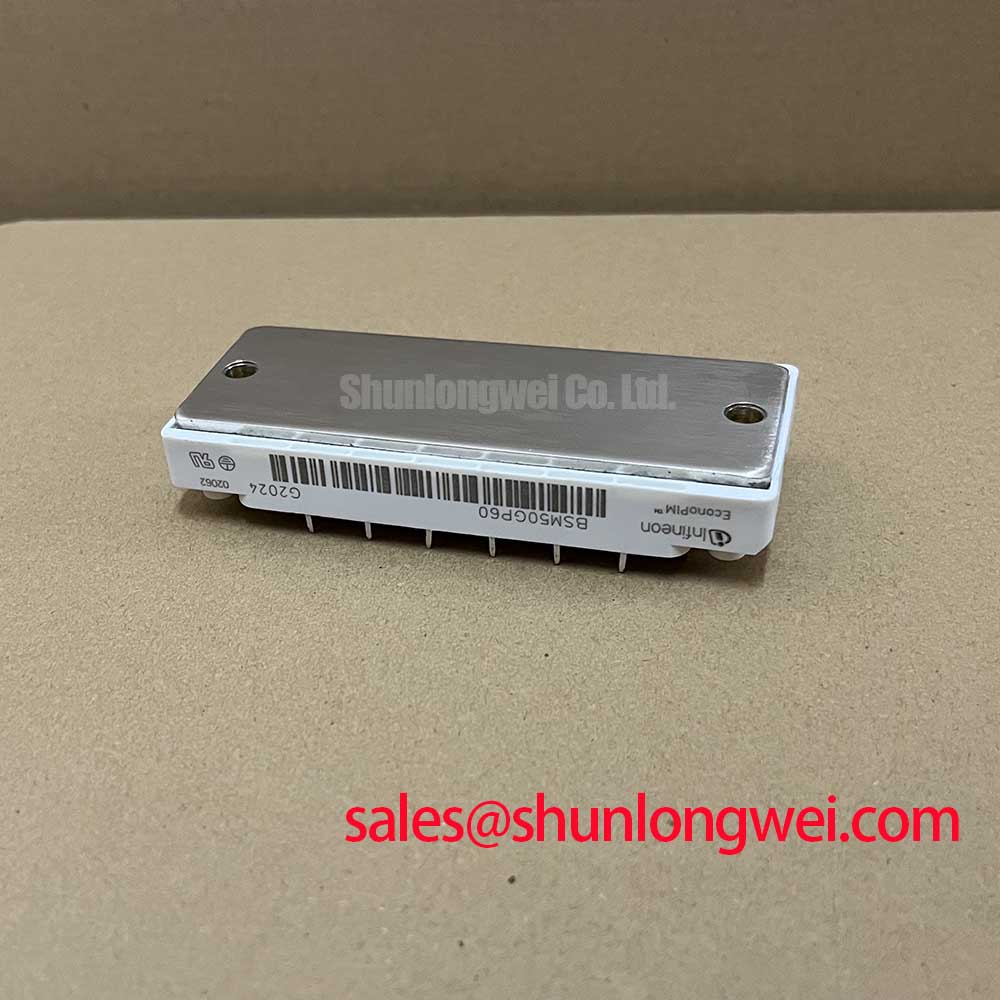

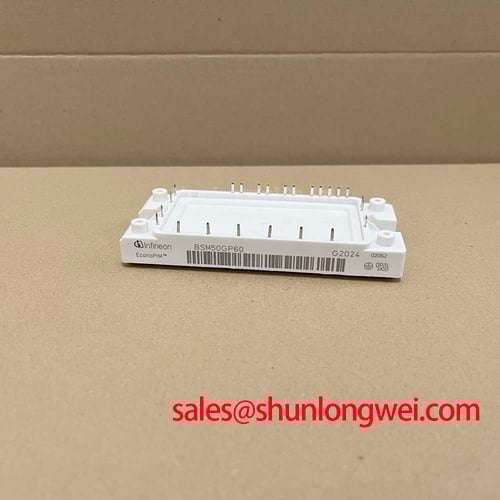

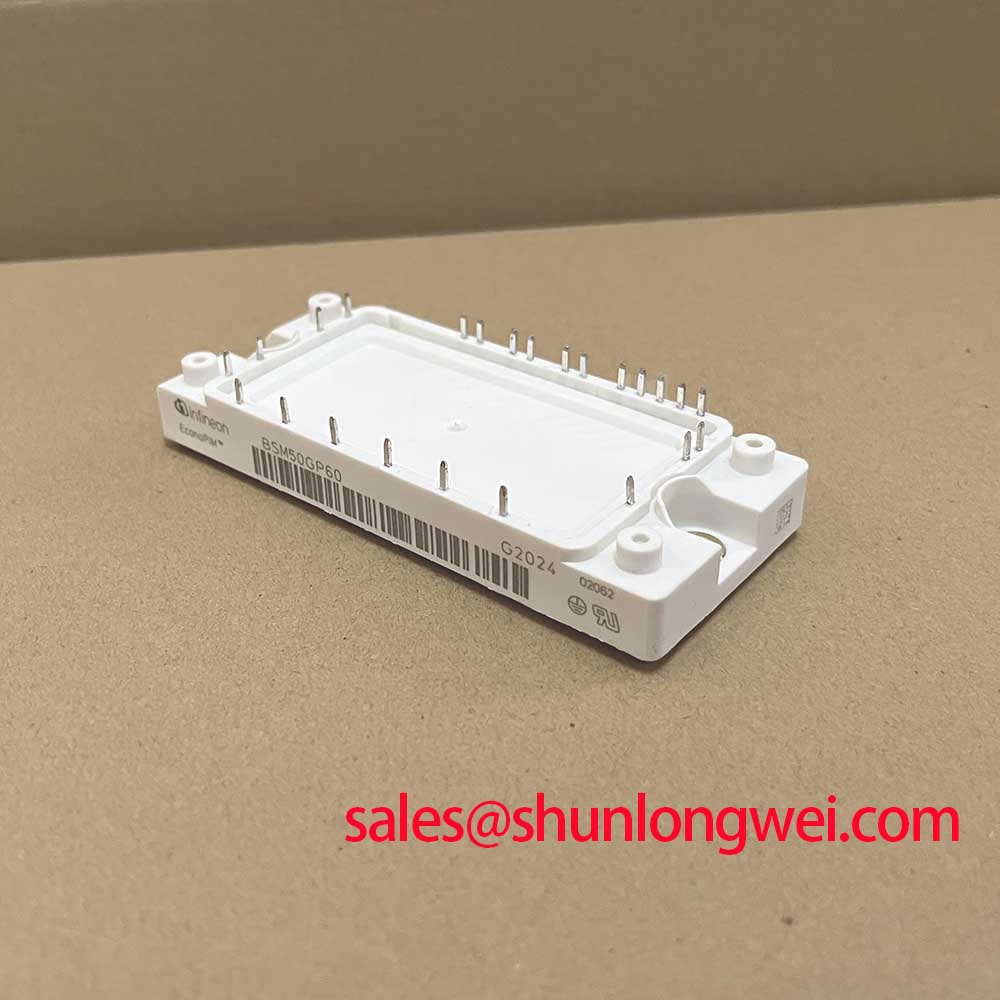

The BSM50GP60 is a 600V IGBT power module engineered for balanced performance in high-frequency power conversion systems. With its key specifications of 600V | 50A at 80°C | VCE(sat) 1.9V, this module provides a robust foundation for efficient and reliable power stage design. It delivers the essential benefits of low conduction losses and dependable thermal stability. For engineers designing compact motor drives or power supplies, the BSM50GP60's electrical and thermal characteristics offer a direct path to achieving high power density without compromising on long-term operational integrity. For systems prioritizing a blend of switching efficiency and conduction performance, this module represents an optimal design choice.
Application Scenarios & Value
Driving Efficiency in Industrial Automation and Power Systems
The BSM50GP60 is adeptly suited for a range of power conversion applications where efficiency and reliability are paramount. Its operational characteristics make it a strong candidate for small to medium-power industrial systems.
- AC Motor Drives: In Variable Frequency Drive (VFD) systems for industrial motors, the BSM50GP60's low collector-emitter saturation voltage (VCE(sat)) of 1.9V (typical at nominal current) directly translates to lower conduction losses. This is critical in applications like conveyor belts or HVAC systems, where the drive operates for extended periods, leading to significant energy savings and reduced operating temperatures.
- Uninterruptible Power Supplies (UPS): The module's fast-switching anti-parallel diodes are crucial for the performance of UPS systems. They ensure rapid and efficient freewheeling during inverter operation, which enhances the overall system efficiency and protects the IGBTs from damaging voltage transients, a key factor in ensuring power continuity for critical loads.
- Welding Power Supplies: The robust thermal design and ability to handle pulsed currents make the BSM50GP60 a reliable component for inverter-based welding power supplies. It can sustain the demanding power cycles required in welding, ensuring consistent performance and extending the equipment's service life.
For designs that require a higher voltage rating for operation on 480V AC lines, the related BSM35GP120 offers a 1200V capability in a similar package footprint.
Key Parameter Overview
Critical Specifications for System Design and Evaluation
The following table highlights the essential electrical and thermal parameters of the BSM50GP60, extracted from the official datasheet. These values are fundamental for accurate performance simulation, thermal management design, and overall system integration.
| Parameter | Symbol | Value | Conditions |
|---|---|---|---|
| Collector-Emitter Voltage | V_CES | 600 V | T_vj = 25 °C |
| Continuous Collector Current | I_C | 50 A | T_C = 80 °C |
| Repetitive Peak Collector Current | I_CRM | 100 A | t_P = 1 ms |
| Collector-Emitter Saturation Voltage | V_CE(sat) | 1.9 V (typ), 2.3 V (max) | I_C = 50 A, V_GE = 15 V, T_vj = 25 °C |
| Gate-Emitter Threshold Voltage | V_GE(th) | 5.5 V (typ) | I_C = 2.0 mA, V_CE = V_GE, T_vj = 25 °C |
| Total Power Dissipation | P_tot | 300 W | T_C = 25 °C, per IGBT |
| Thermal Resistance, Junction-to-Case | R_thJC | ≤ 0.42 K/W | Per IGBT |
| Diode Forward Voltage | V_F | 1.75 V (typ) | I_F = 50 A, V_GE = 0 V, T_vj = 25 °C |
Download the BSM50GP60 datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
What is the primary benefit of the BSM50GP60's typical 1.9V VCE(sat)?
A lower VCE(sat) value directly reduces the power lost as heat during the on-state (conduction losses). This improves the overall energy efficiency of the application, such as a motor drive, and simplifies thermal management, potentially allowing for a smaller heatsink.
How does the RthJC of 0.42 K/W impact thermal design?
The thermal resistance from junction-to-case (RthJC) quantifies how efficiently heat can be transferred from the semiconductor chip to the module's baseplate. A low value like 0.42 K/W indicates efficient heat transfer, allowing the device to run cooler under load. This is a crucial parameter for designing an effective cooling solution and ensuring the junction temperature stays within safe operating limits.
Is the 600V rating of the BSM50GP60 sufficient for 240V AC line applications?
Yes, a 600V VCES rating provides a substantial safety margin for applications connected to a 230/240V AC line. After rectification, the DC bus voltage is typically around 325-340V. The 600V rating offers robust protection against voltage spikes and transients common in industrial environments, enhancing system reliability.
A Strategic Perspective on Component Selection
Integrating a component like the BSM50GP60 into a power system is a decision that extends beyond immediate performance metrics. Its balanced profile of low conduction losses, robust voltage headroom, and established thermal characteristics provides a low-risk, high-value solution for mainstream industrial applications. For engineering teams focused on optimizing system cost and accelerating time-to-market, this module offers a proven and predictable performance baseline, minimizing design uncertainties and ensuring long-term operational reliability in the field.
