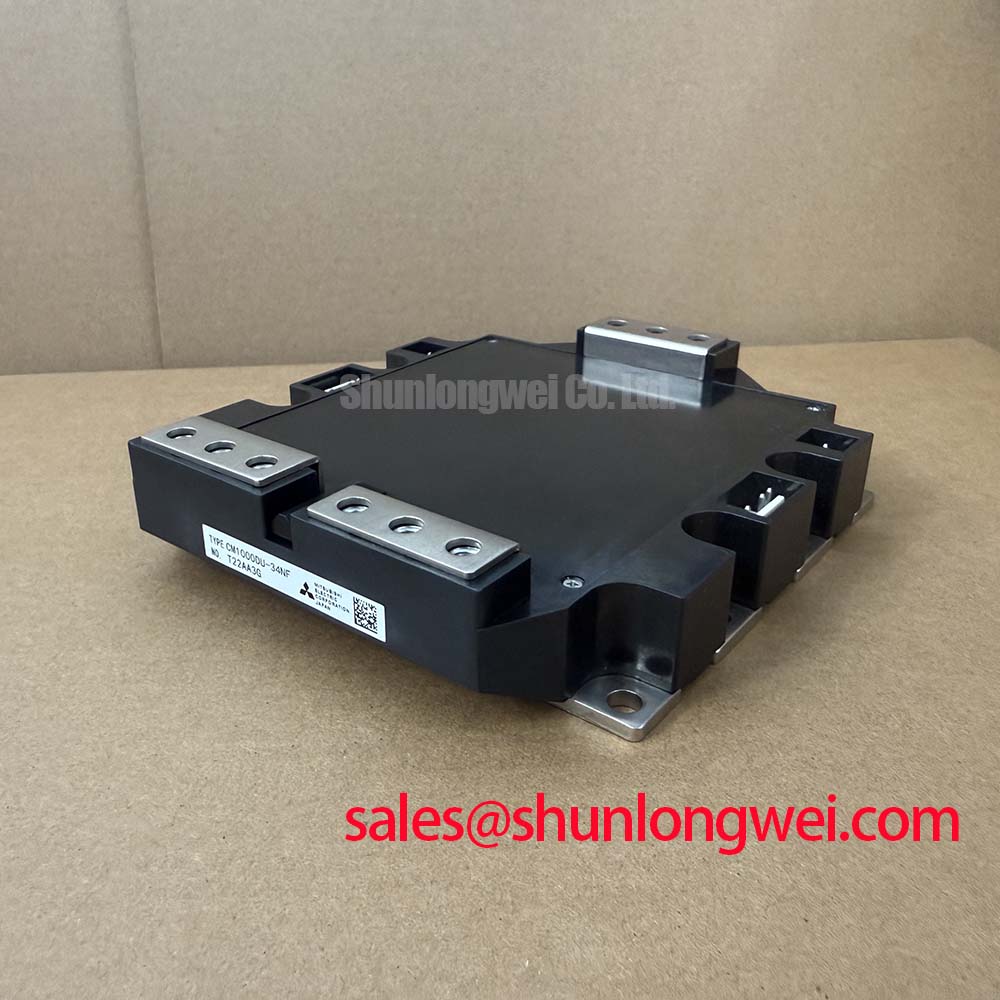

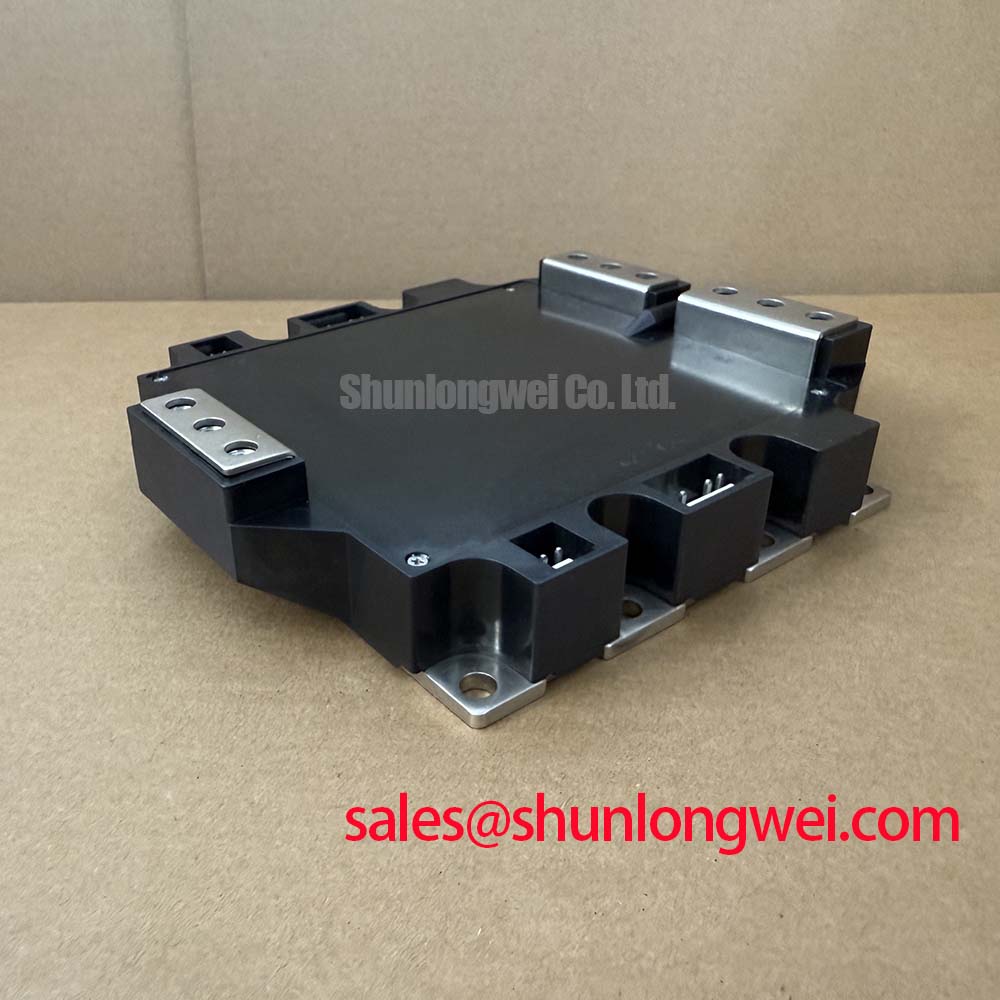

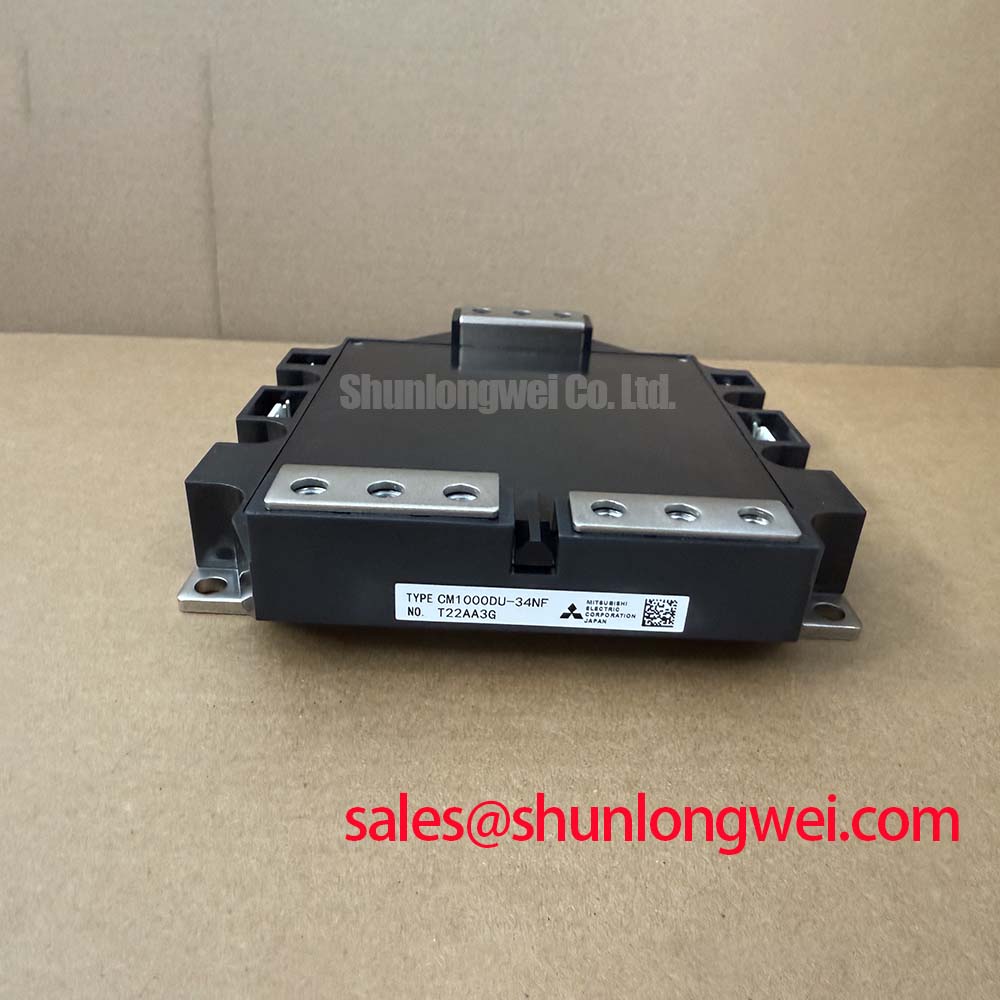

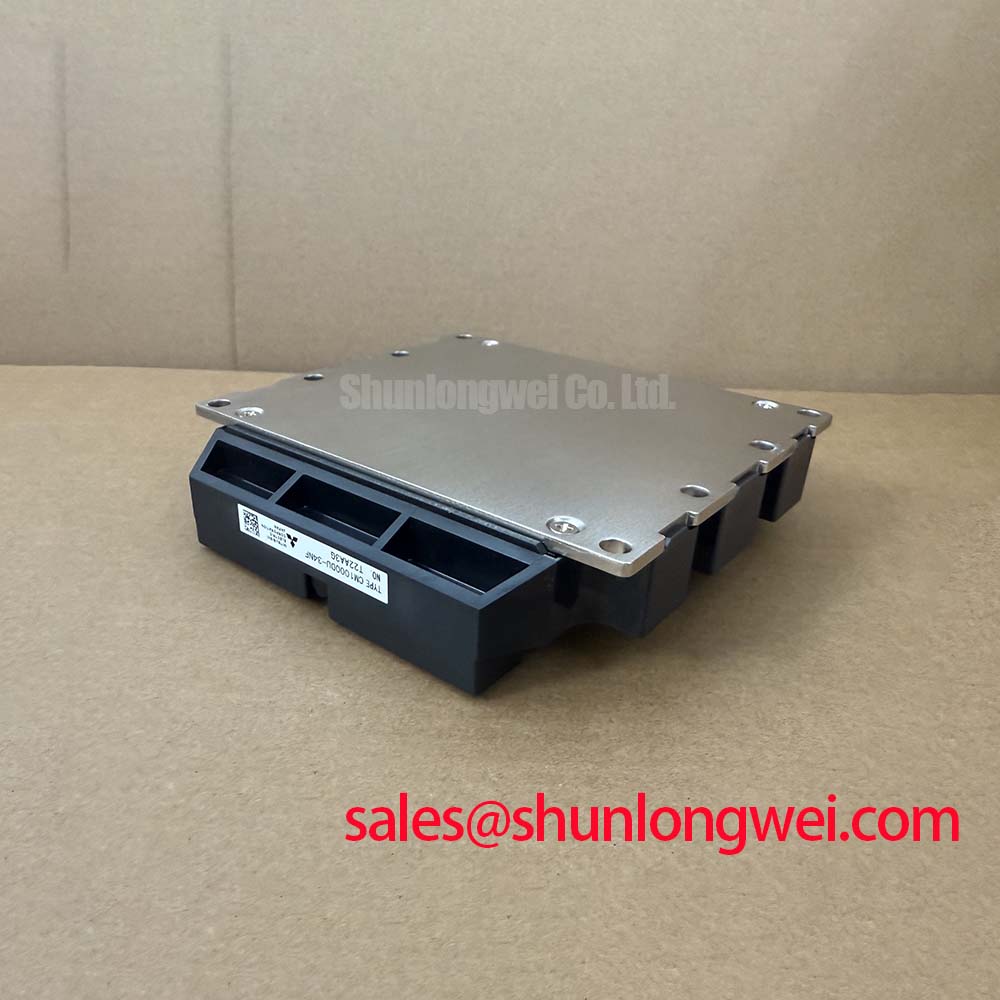

Optimizing Industrial Power Conversion Efficiency with the Mitsubishi CM1000DU-34NF IGBT Module
Engineers and procurement specialists evaluating high-power semiconductor solutions often require a balance of extreme current handling and minimized thermal dissipation. The Mitsubishi CM1000DU-34NF, part of the proven NF-series, is a 1700V, 1000A dual IGBT module designed specifically to address conduction loss challenges in large-scale industrial inverters. By utilizing the proprietary CSTBT™ (Carrier Stored Trench-Gate Bipolar Transistor) technology, this module enables higher power density while ensuring Safe Operating Area (SOA) robustness for 690V AC line applications.
Top Specs: 1700V | 1000A | CSTBT™ Technology
Key Benefits: Drastically reduced conduction losses and enhanced short-circuit withstand capability.
What is the primary benefit of the CSTBT structure? It significantly reduces collector-emitter saturation voltage while maintaining high switching speeds.
For 690V industrial grids requiring extreme current density and reduced conduction losses, the 1700V Mitsubishi CM1000DU-34NF provides the necessary voltage headroom and thermal efficiency.
Application Scenarios & Value
Achieving System-Level Benefits in High-Capacity Wind and Grid Infrastructure
Engineers often face the dilemma of managing heat in constrained enclosures when designing wind turbine inverters or large-scale VFD systems. The CM1000DU-34NF addresses this by offering a low Vce(sat) of typically 2.2V at rated current, which minimizes the heat generated during the conduction phase. In a wind-to-grid conversion environment, this efficiency translates directly into smaller heat sink requirements and longer component life.
For systems operating on a 690V industrial line, the 1700V rating provides a critical safety margin against voltage transients and inductive spikes. While this module is ideal for 1000A requirements, for systems necessitating even higher current handling within the same voltage class, the related CM1200DB-34n offers a Vces of 1700V with a 1200A rating. Integrating the CM1000DU-34NF into a PWM control architecture allows for high-frequency switching with reduced Switching Loss, facilitating more compact filter designs.
Industry Insights & Strategic Advantage
Strategic Role of 1700V Modules in the Global Decarbonization Roadmap
As global industrial standards shift toward higher energy efficiency and carbon neutrality, the role of high-power IGBT modules becomes more strategic. The Mitsubishi CM1000DU-34NF represents a mature technology node that balances TCO (Total Cost of Ownership) with reliability. Unlike 1200V modules that may struggle with the transients of 690V networks, the 1700V class is the de facto standard for robust industrial infrastructure.
Implementing CSTBT™ technology is not just about raw power; it is about the "carrier storage" effect that optimizes the trade-off between switching speed and conduction loss. This is particularly vital in high-power UPS and centralized solar inverters, where every percentage of efficiency gain results in significant operational savings over a 20-year lifecycle. Following Mitsubishi CSTBT™ design principles ensures that engineers are utilizing a platform that has been rigorously tested for Power Cycling Capability in harsh environments.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Category | Parameter | Value (Typical/Max) |
|---|---|---|
| Absolute Ratings | Collector-Emitter Voltage (Vces) | 1700V |
| Absolute Ratings | Collector Current (Ic) | 1000A |
| Electrical | Vce(sat) at Ic=1000A, Tj=125°C | 2.2V (Typical) |
| Dynamic | Short-Circuit Withstand Time (twc) | 10µs |
| Thermal | Thermal Resistance Junction-to-Case | 0.021 K/W (Max) |
Download the CM1000DU-34NF datasheet for detailed specifications and performance curves.
FAQ
How does the CSTBT™ structure in the CM1000DU-34NF improve conduction efficiency compared to standard trench-gate designs?
The CSTBT™ technology introduces a "plug" layer that traps carriers near the emitter side of the trench gate. Think of it like a dam that increases water pressure; by increasing the carrier density, the resistance during the "on" state is lowered, resulting in a significantly lower Vce(sat) and less heat waste.
What is the engineering significance of the 10µs short-circuit withstand time for this module?
A 10µs withstand time provides a critical window for the Gate Drive protection circuitry to detect a desaturation event or overcurrent and safely shut down the module. This ruggedness prevents catastrophic failure during motor stall or output short-circuit scenarios in VFD applications.
How should the 0.021 K/W thermal resistance influence heatsink selection for a 1000A load?
The exceptionally low Rth(j-c) indicates that the module can transfer heat extremely efficiently from the silicon die to the baseplate. To maximize the CM1000DU-34NF capability, engineers should use a high-performance Thermal Management strategy, typically involving liquid cooling or high-velocity forced air with a low-resistance thermal interface material (TIM).
As industrial systems continue to push the boundaries of power density, the Mitsubishi CM1000DU-34NF remains a cornerstone for engineers requiring high-current 1700V performance with proven reliability. By prioritizing efficiency through CSTBT™ technology, this module enables the development of next-generation power electronics that are smaller, cooler, and more reliable.
