Fuji Electric J2-Q03A-F 600V 400A Power Transistor Darlington Module

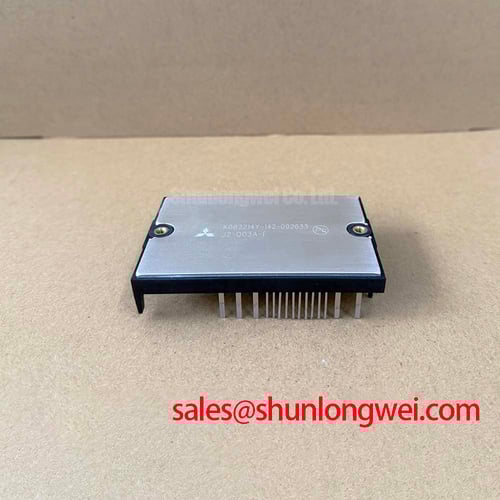

Start incoming inspection by isolating the J2-Q03A-F, checking its case and terminals for mechanical damage, and recording a cold-state resistance comparison before connecting any base-drive or DC-bus wiring. The Fuji Electric module is specified for a 600 V collector-emitter voltage and a 400 A DC collector current, making the published electrical limits the first reference point for a repair or replacement assessment.

The values in this table are official product data supplied for this listing. They should not be treated as a complete switching, short-circuit, base-drive, mechanical, or lifetime specification. The original equipment documentation remains necessary for terminal identification, switching conditions, mounting hardware, and protection settings.

J2-Q03A-F Operational Boundaries: Evaluating Cosmic Ray Robustness and Voltage Derating

The 600 V VCES rating defines a collector-emitter voltage boundary, but it does not establish a site-specific Single Event Burnout rate, FIT value, or altitude derating curve. At installations above 2000 m, a design review may consider reduced air density, insulation coordination, switching overshoot, and the system DC-bus operating point together. No cosmic-ray, terrestrial neutron, SEB, or altitude reliability data is provided here, so a numerical FIT calculation would not be a valid product claim.

For an electric forklift or warehouse traction inverter, begin field evaluation by recording the DC-bus voltage during acceleration, regenerative braking, and emergency stopping. Compare the measured waveform with the voltage at the module terminals rather than relying only on the controller display. A high-voltage probe and a current probe can help identify whether an abnormal event occurs during turn-off, diode recovery, contactor operation, or a fault-clearing sequence. Repeated overvoltage evidence should be reviewed against the 600 V rating and the complete switching design.

Clearance and creepage are system-level insulation decisions. The integrator should verify the required distances using the working voltage, pollution environment, material group, altitude, and applicable equipment standard. The module’s 2500 V AC isolation rating for one minute is not a substitute for the creepage and clearance requirements of the finished traction assembly. Clean, dry surfaces, controlled cable routing, and suitable barriers should be considered where conductive dust or moisture may be present.

Protection coordination also requires more than the 400 A DC collector-current value. A semiconductor fuse, contactor, current sensor, and controller trip response should be evaluated against the actual fault energy and the module’s approved short-circuit capability. The supplied data does not include an I2t curve or a dead-short withstand time. Engineers should obtain those values from the applicable Fuji Electric documentation before selecting a fast semiconductor fuse or declaring fault protection adequate.

For a repair kit containing related power devices, the QM200HA-HK can be reviewed as a separate, neutral compatibility reference. Pin arrangement, electrical ratings, thermal interface, and drive requirements must be checked independently; physical fit alone does not establish interchangeability.

Transient Dynamics and Electrical Design: Transmission-Line Effects on J2-Q03A-F

Long motor leads can behave as a distributed network rather than a simple wire. Reflections caused by cable impedance, motor-terminal conditions, and inverter switching can raise the voltage seen at the load or module terminals. A commonly discussed two-times DC-bus reflection is a system phenomenon, not an official J2-Q03A-F rating or guaranteed operating condition. The actual peak must be measured at the relevant terminals with an appropriately rated differential probe.

When evaluating a low-voltage traction inverter, inspect the switching waveform during both motoring and regenerative operation. Compare the base-drive command, collector-emitter voltage, phase current, and DC-bus voltage on the same time base. Ringing that changes with cable length, probe position, or grounding arrangement may indicate a measurement issue or an impedance interaction. Use a known-good unit or signal path as a comparison rather than assigning a single failure cause from one waveform.

Output chokes, dv/dt filters, and motor-side networks should be selected from the complete inverter, cable, and motor characteristics. The correct filter corner frequency, current rating, insulation level, and thermal behavior are system-determined. An RC snubber may reduce a measured ringing component, but its resistor pulse capability, capacitor voltage rating, losses, and effect on switching speed require bench verification. Designers should avoid adding a generic snubber without checking the resulting current and temperature.

Phase-angle control and line-frequency ripple also influence the voltage stress observed by the switching devices. A DC bus with insufficient energy storage or excessive ripple can produce a different transient profile from a stiff laboratory supply. When the module is used in a forklift traction controller, measure the bus under the actual battery, contactor, braking, and cable conditions. The related 6MBI15L-060 may be relevant when reviewing an associated inverter power stage, but its specifications should not be transferred to the J2-Q03A-F.

💡 Bench Tip: Use ESD protection, keep the device unpowered during terminal checks, and compare cold-state readings with a known-good reference before applying base drive.

Assembly Integrity and Layout Architecture: Low-Inductance DC-Bus Integration

The connection between the DC-link capacitor and the power module should be physically short, broad, and arranged to minimize the commutation loop area. Stray inductance converts a rapid current change into an additional voltage component, so the practical design objective is to reduce loop inductance and verify the resulting peak margin during switching tests. A laminated busbar can help control the forward and return path geometry, but its actual performance depends on layer spacing, joint construction, capacitor placement, and the complete mechanical assembly.

Do not infer a required inductance target from a generic application note. The supplied J2-Q03A-F information does not specify a maximum stray inductance, snubber capacitance, or allowable switching rate. Engineers should measure or model the intended bus structure, then validate collector-emitter peaks at the module terminals across temperature, load current, battery voltage, and regenerative conditions. The IGBT Design & Integration reference provides broader background on power-stage layout and thermal management, but its IGBT drive guidance should not be applied directly to this Darlington module.

Mechanical assembly directly affects electrical repeatability. Busbar joints should be clean and secure, with support that prevents terminal loading during vibration. The heatsink surface should be flat and clean, and the thermal interface material should be applied as a thin, continuous layer according to the manufacturer’s mounting guidance. The official 0.06°C/W maximum junction-to-case thermal resistance is a device thermal parameter; it does not include interface resistance, heatsink resistance, airflow, enclosure temperature, or mounting variation.

During a returned-unit investigation, inspect discoloration around power terminals, loosened fasteners, damaged insulation, uneven heatsink contact, and evidence of localized heating. A temperature rise at one terminal can result from contact resistance, current imbalance, busbar geometry, or a measurement location that does not represent the semiconductor case. Record the assembly condition before rework so that electrical and mechanical findings remain traceable.

J2-Q03A-F Thermal-Electrical Optimization: Base-Drive Transient Review

Fast collector-voltage transitions can couple through device capacitances and the base-drive circuit. The resulting base disturbance may affect switching timing or create unwanted conduction in a complementary device. This is a circuit-level behavior, not a stated J2-Q03A-F guarantee. A suitable investigation compares the base-emitter waveform with the collector-emitter transition while monitoring the opposite switch and phase current.

Base-drive current, turn-off charge extraction, and isolated drive arrangements may be considered where the measured switching behavior requires additional control. The correct topology and drive levels are determined by the Fuji Electric base-drive requirements and the system insulation design. The supplied parameters do not specify a base-emitter voltage range, required base current, storage time, or short-circuit withstand time; these values should be confirmed from the appropriate device documentation before hardware changes are made.

Keep the base-drive return path separate from high-current commutation paths where the circuit architecture allows it. Minimize the shared impedance between the driver and module terminals, maintain appropriate isolation barriers, and verify driver timing under the actual supply, temperature, and load conditions.

Thermal measurements should be taken after the electrical waveform has been validated. The published typical VCE(sat) is 2.1 V at Tj = 25°C, while actual conduction loss depends on current, temperature, switching state, and the complete operating point. A higher measured case temperature may reflect conduction loss, switching loss, interface resistance, airflow, or an abnormal base-drive waveform. The Mitsubishi Electric Diode Modules Lineup is a separate reference for reviewing diode-module functions in related power-stage topologies.

Before returning a repaired traction controller to service, verify terminal polarity, isolation condition, base-drive sequence, bus-voltage peaks, current sharing, and heatsink temperature under controlled testing. Any final operating limit must be established from the complete Fuji Electric documentation and the finished equipment design rather than from the headline voltage and current ratings alone.
